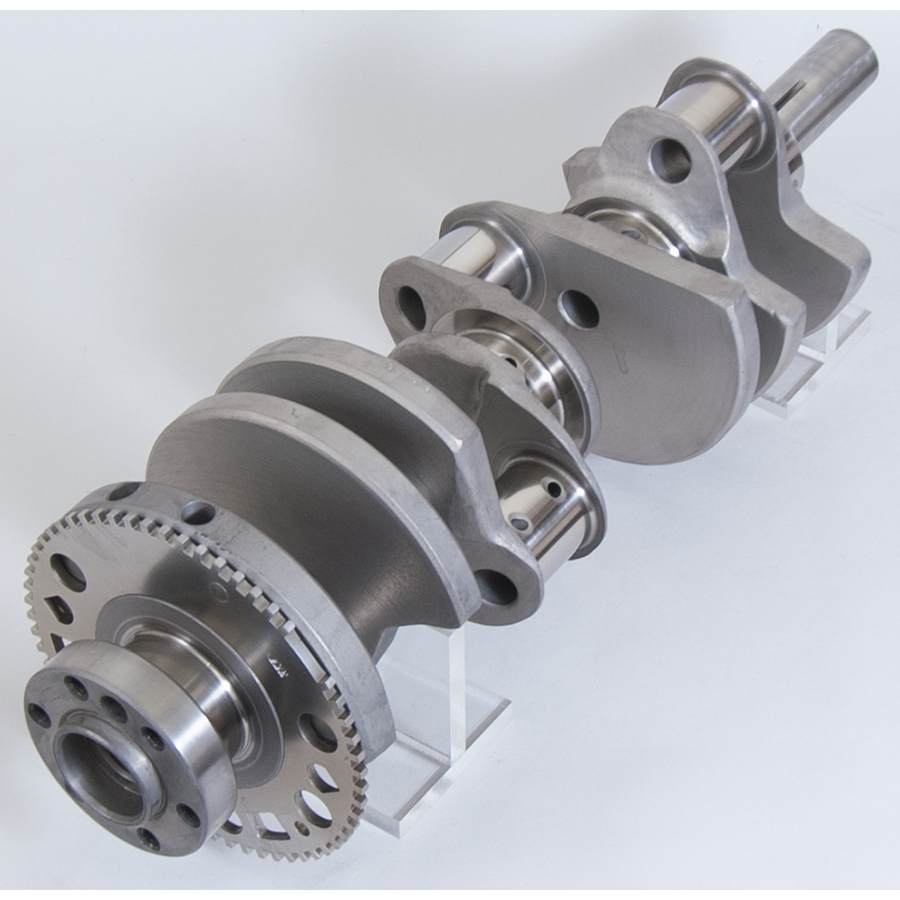

Eagle 442743756460 4340 CRANK CHEVY LS7 58T 4.375" STROKE

2 sold in last 8 days
Eagle
ds_CFQW_442743756460
Engine Crankshaft
$1,366.30
customers are viewing this product
Eagle 444246257100 4340 CRANK CHRY 440 4.625
Eagle 444246257100 4340 CRANK CHRY 440 4.625" STROKE
$1,594.39
Eagle 445542506700 4340 CRANK PONTIAC 455 4.250
Eagle 445542506700 4340 CRANK PONTIAC 455 4.250" STROKE
$1,871.67 $1,738.50
Eagle 442743756460 4340 CRANK CHEVY LS7 58T 4.375" STROKE
Details

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 58 tooth reluctor and long snout for dry-sump oiling system.

Specifications:

Description_ASC 58 tooth reluctor, long snout for dry sump oiling.
Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DES 4340 CRANK CHEVY LS7 58T 4.375" STROKE
Description_DEF Engine Crankshaft
Description_INV ESP 4340 Crank
Description_EXT Forged 4340 Steel Crank - Chevrolet LS LONG SNOUT, 4.250" Stroke, 1.889" Rod JournalS, 58 TOOTH RELUCTOR.
Description_SHO 4340 Crank
Description_MKT Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 58 tooth reluctor and long snout for dry-sump oiling system.
Prop 65 Yes/No Yes
Snout Diameter 1.48"
Prop 65 (C, R or CR) C
Flywheel Register Diameter call
Rod Journal Width 1.900"
Target Bobweight 1800g
Engine Stroke 4.375
Title ESP 4340 CRANK CHEVY LS7 58T 4.375" STROKE
Material Forged 4340 Steel
Minimum Rod Length 6.460"
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 - Short Label prop65_warning.jpg
Rod Journal 1.889"
Balance Type Internal
Pilot Bore Diameter call
Rear Seal Diameter call
Main Journal 2.559"
Flywheel Bolt Count 6
Intended Balance internal
Crankshaft Stroke 4.375"
Length 9.0000
Width 9.0000
Height 32.0000
Weight 61.0000
