Eagle 434641256100 4340 CRANK CHEVY LS1 24T 4.125" STROKE

2 sold in last 8 days
Eagle
ds_CFQW_434641256100
Engine Crankshaft
$1,518.36
customers are viewing this product
Eagle 4350348057LA 4340 CRANK CHEVY 350 LW 3.480
Eagle 4350348057LA 4340 CRANK CHEVY 350 LW 3.480" STROKE
$1,481.46 $1,381.77
Eagle 2237245765R 4340 CHEVY ECOTEC CRANKSHAFT W/RING
Eagle 2237245765R 4340 CHEVY ECOTEC CRANKSHAFT W/RING
$1,363.51
Eagle 434641256100 4340 CRANK CHEVY LS1 24T 4.125" STROKE
Details

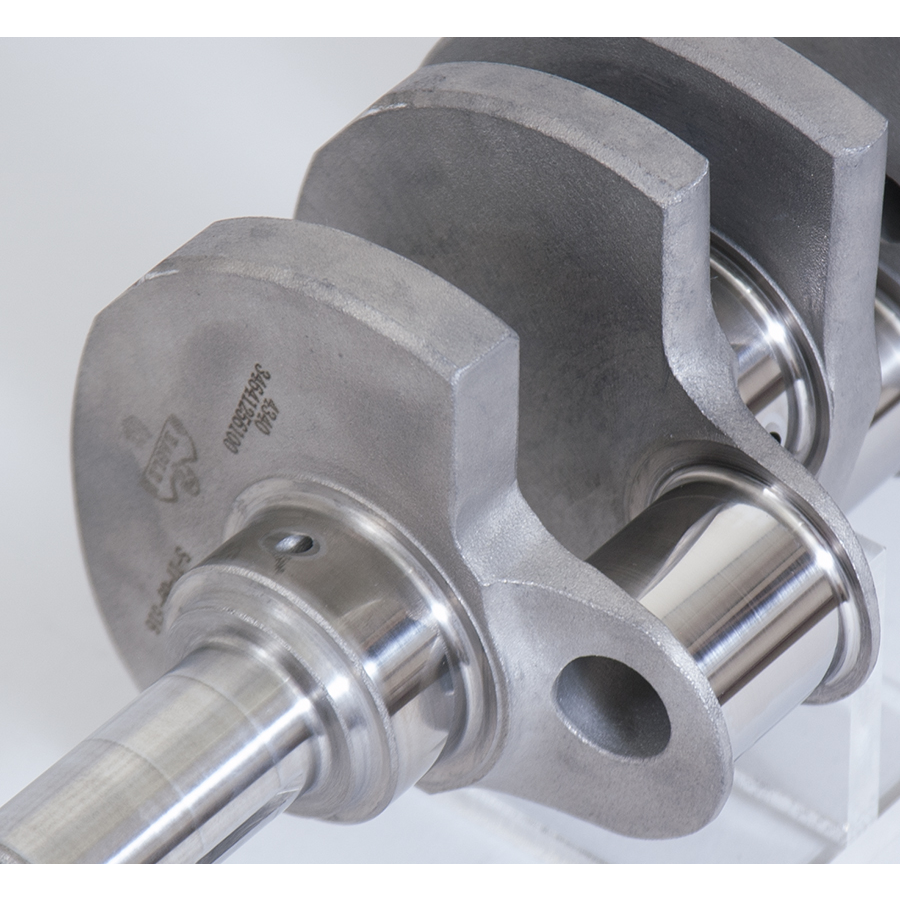

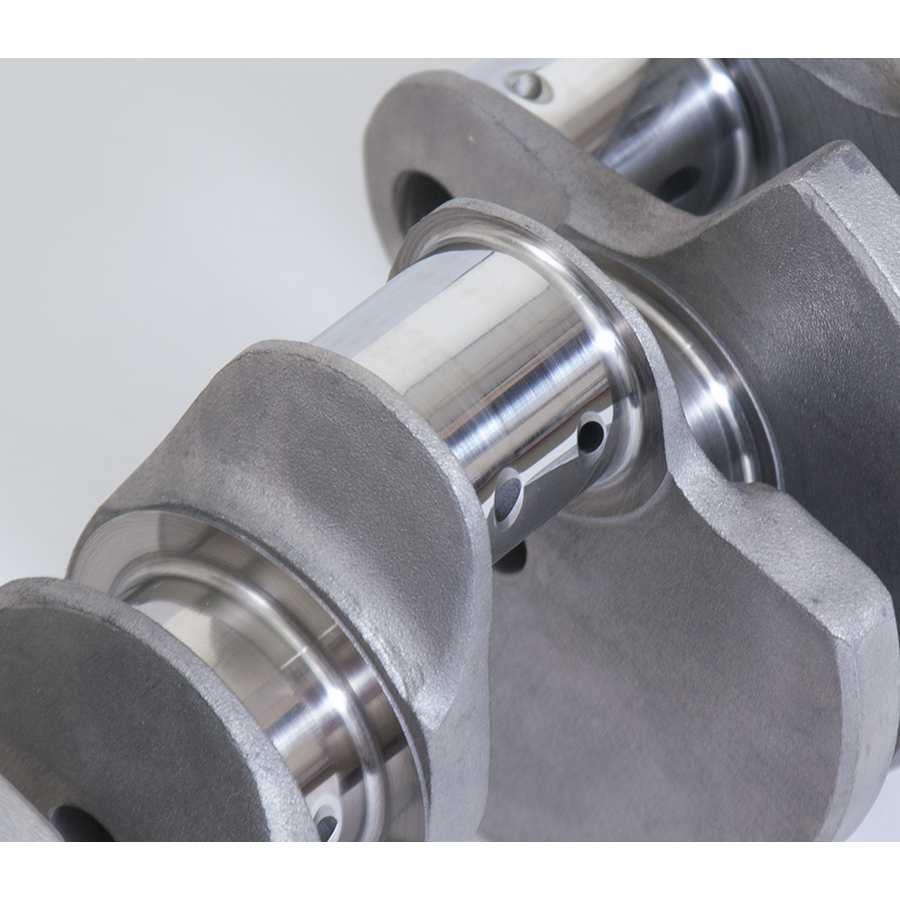

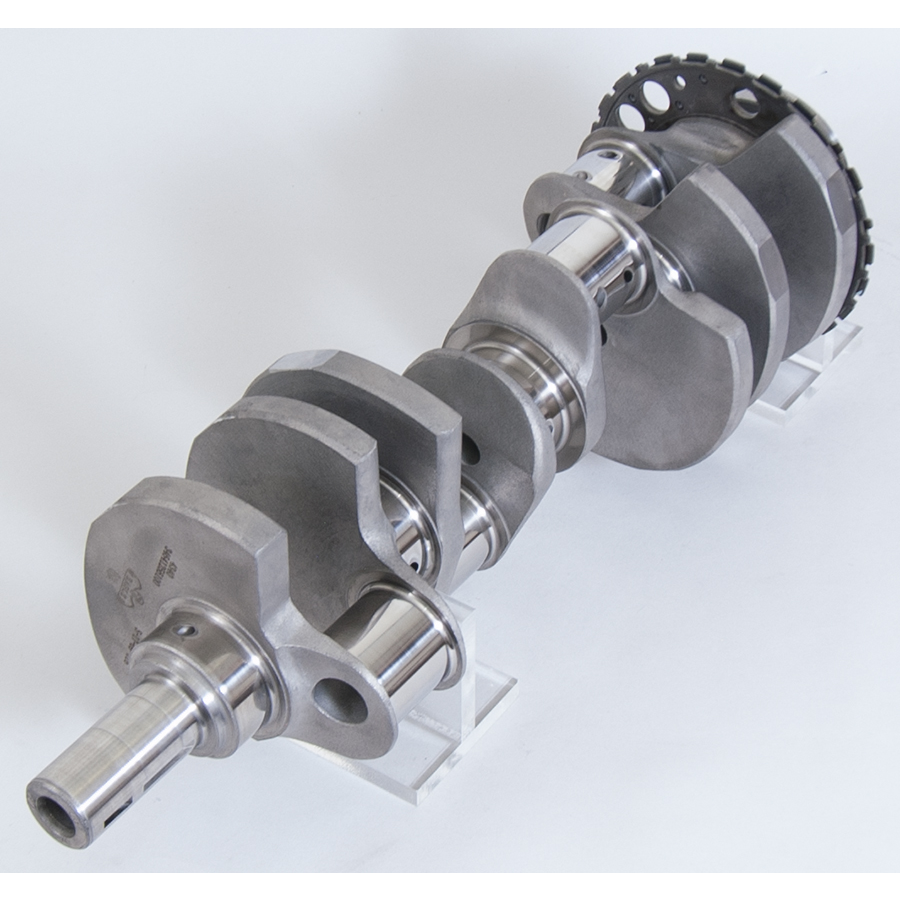

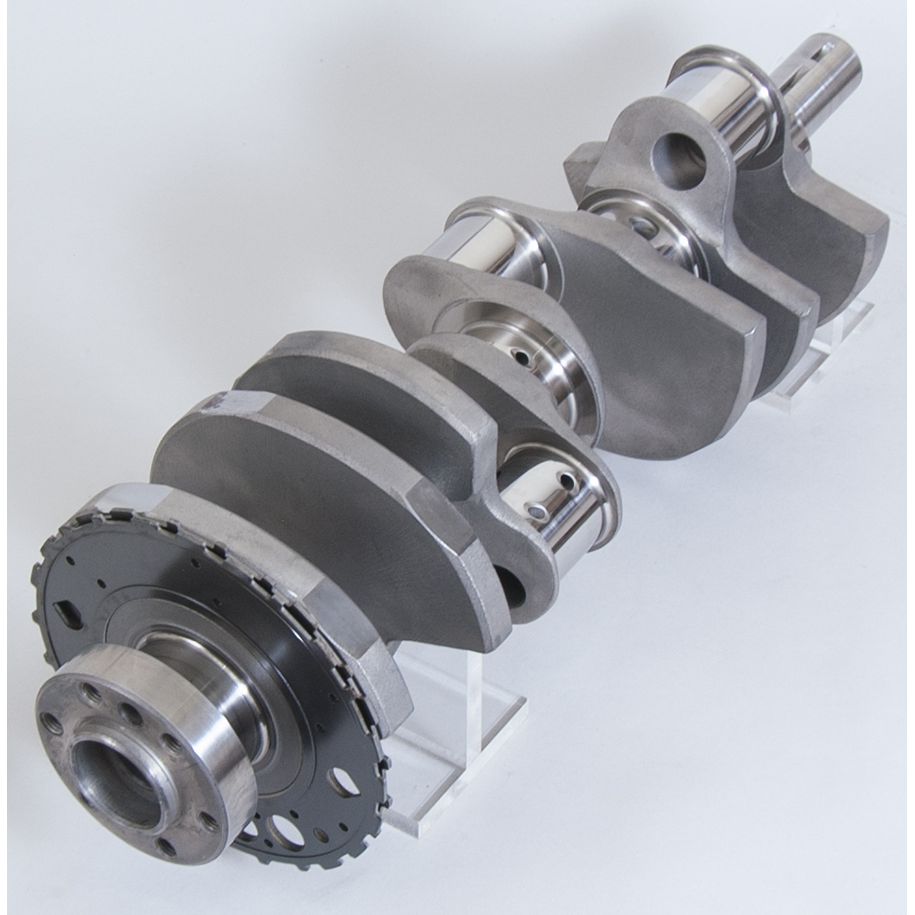

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.

Specifications:

Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DEF Engine Crankshaft
Description_DES 4340 CRANK CHEVY LS1 24T 4.125" STROKE
Description_MKT Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.
Description_INV ESP 4340 Crank
Description_EXT Forged 4340 Steel Crank - Chevrolet LS, 4.125" Stroke, 24 TOOTH RELUCTOR.
Description_SHO 4340 Crank
Rod Journal Width 1.900"
Prop 65 (C, R or CR) C
Pilot Bore Diameter call
Rod Journal 2.1"
Rod Journal Diameter 2.1
Flywheel Bolt Count 6
Prop 65 - Short Label prop65_warning.jpg
Target Bobweight 1800g
Intended Balance internal
Flywheel Register Diameter call
Prop 65 Yes/No Yes
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Material Forged 4340 Steel
Main Journal 2.559"
Title ESP 4340 CRANK CHEVY LS1 24T 4.125" STROKE
Minimum Rod Length 6.125"
Snout Diameter 1.48"
Balance Type Internal
Rear Seal Diameter call
Engine Stroke 4.125
Crankshaft Stroke 4.125"
Length 9.0000
Width 9.0000
Height 32.0000
Weight 61.0000
