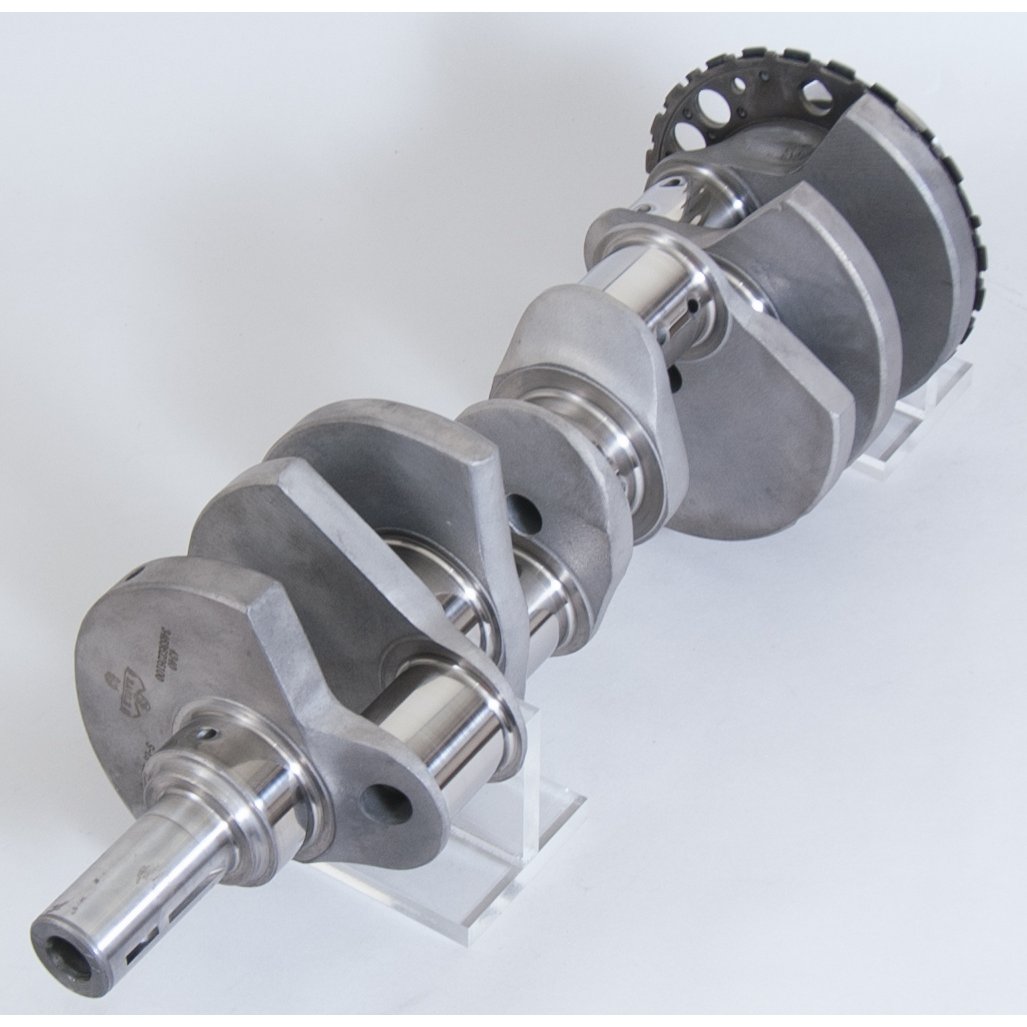

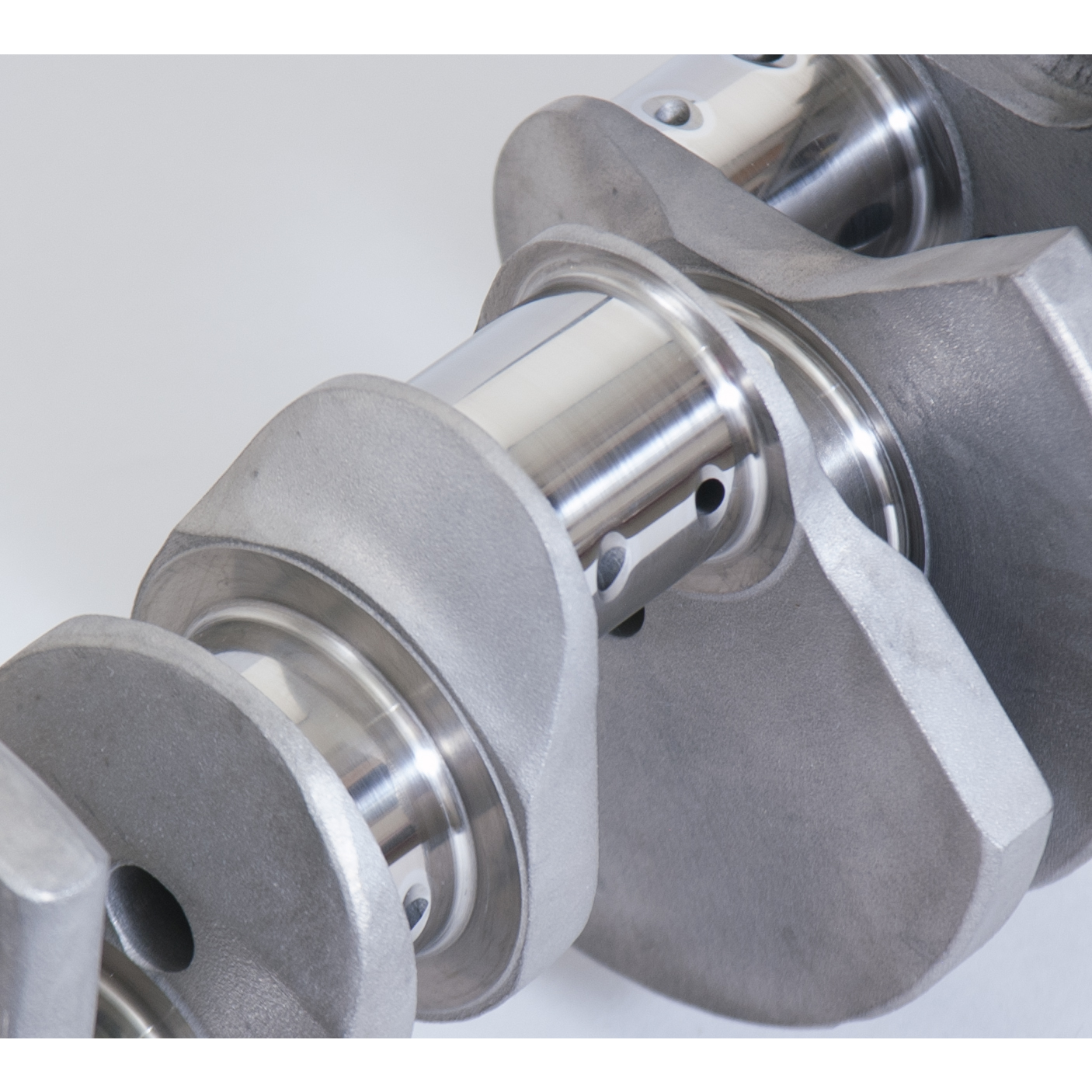

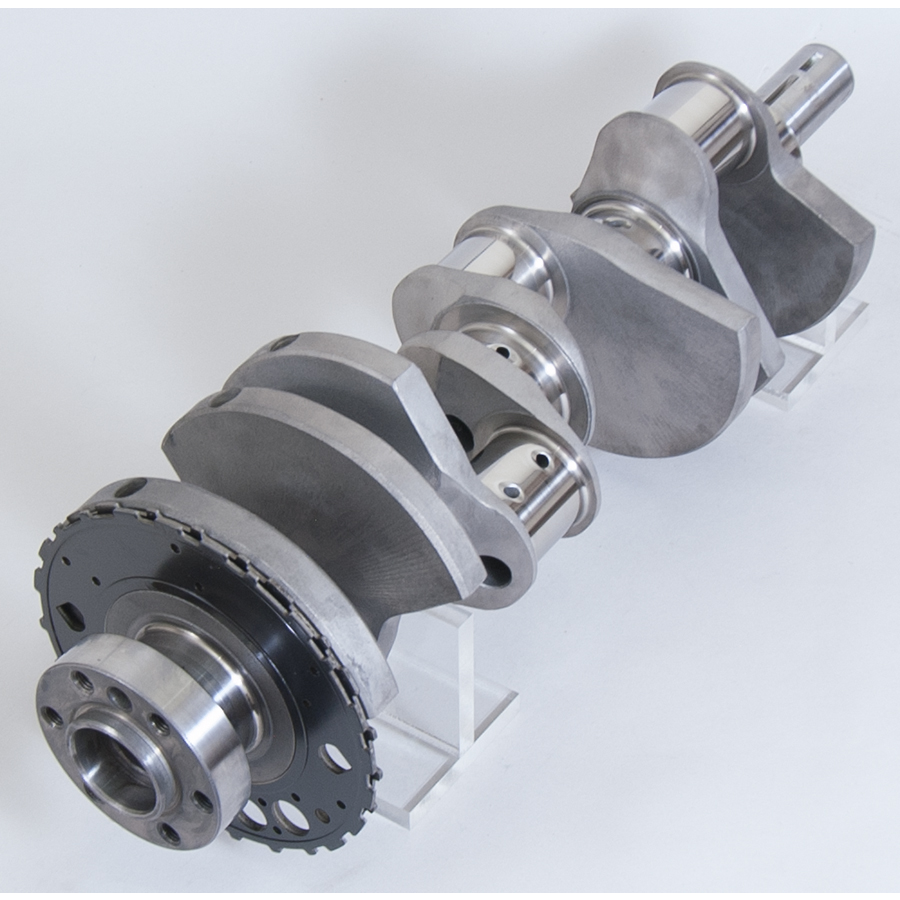

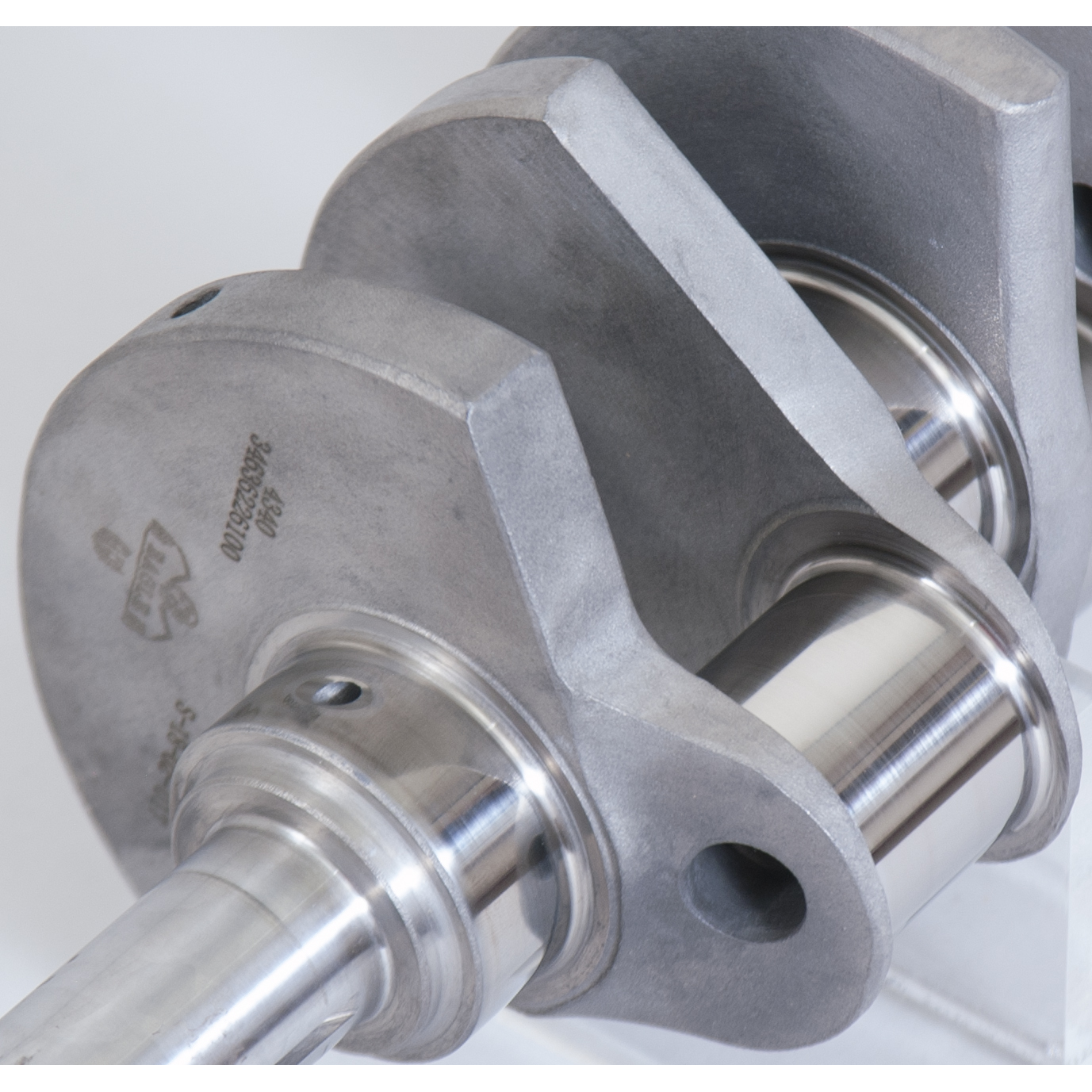

Eagle 434636226100 4340 CRANK CHEVY LS1 24T 3.622" STROKE

2 sold in last 8 days
Eagle
ds_CFQW_434636226100
Engine Crankshaft
$1,651.61 $1,534.09
$1,534.09
customers are viewing this product
Eagle 4349350057LA 4340 CRANK SBC 50 LB 2.00 Rod PIN
Eagle 4349350057LA 4340 CRANK SBC 50 LB 2.00 Rod PIN
$1,633.46 $1,495.59
Manley Performance 190360 Manley Crankshaft, CRANK-4340 FORGE 3.750 STROKE
Manley Performance 190360 Manley Crankshaft, CRANK-4340 FORGE 3.750 STROKE
$1,998.15
Eagle 434636226100 4340 CRANK CHEVY LS1 24T 3.622" STROKE
Details

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.

Specifications:

Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DES 4340 CRANK CHEVY LS1 24T 3.622" STROKE
Description_DEF Engine Crankshaft
Description_EXT Forged 4340 Steel Crank - Chevrolet LS, 3.622" Stroke, 24 TOOTH RELUCTOR.
Description_INV ESP 4340 Crank
Description_SHO 4340 Crank
Description_MKT Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 24 tooth reluctor.
Rod Journal 2.1"
Material Forged 4340 Steel
Crankshaft Stroke 3.622"
Minimum Rod Length 6.100"
Rod Journal Diameter 2.1
Title ESP 4340 CRANK CHEVY LS1 24T 3.622" STROKE
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Pilot Bore Diameter call
Flywheel Bolt Count 6
Engine Stroke 3.622
Rod Journal Width 1.900"
Target Bobweight 1800g
Prop 65 - Short Label prop65_warning.jpg
Prop 65 (C, R or CR) C
Snout Diameter 1.48"
Rear Seal Diameter call
Main Journal 2.559"
Intended Balance internal
Balance Type Internal
Prop 65 Yes/No Yes
Flywheel Register Diameter call
Length 9.0000
Width 9.0000
Height 32.0000
Weight 62.0000
