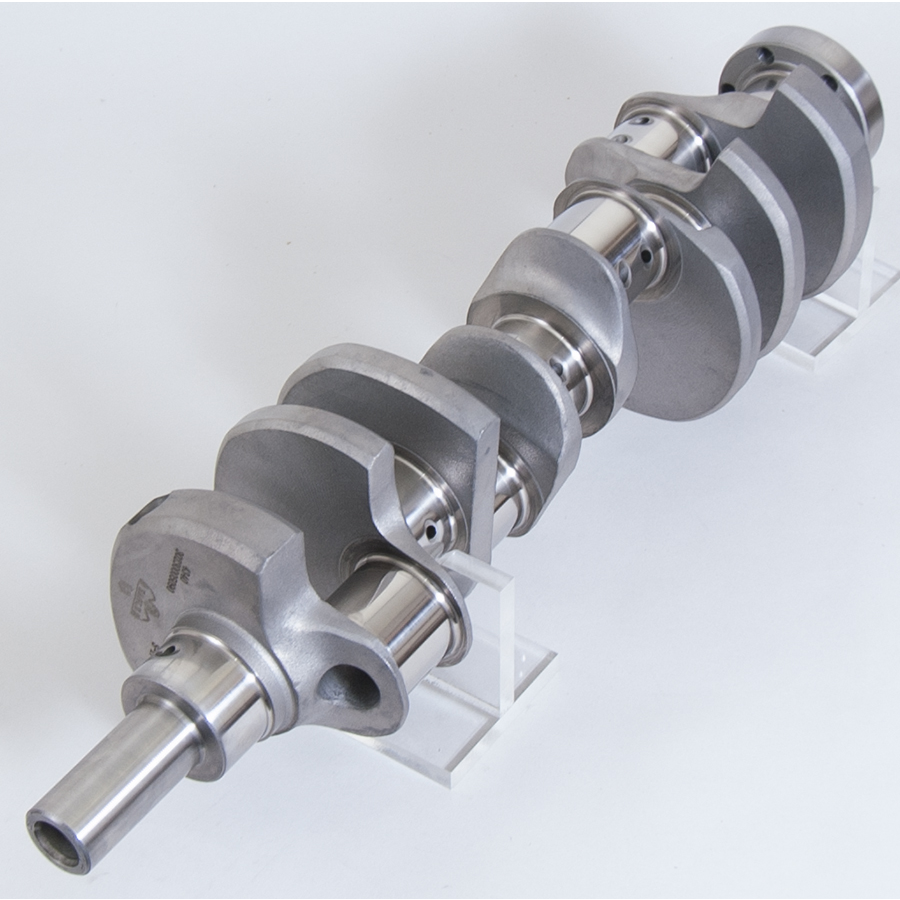

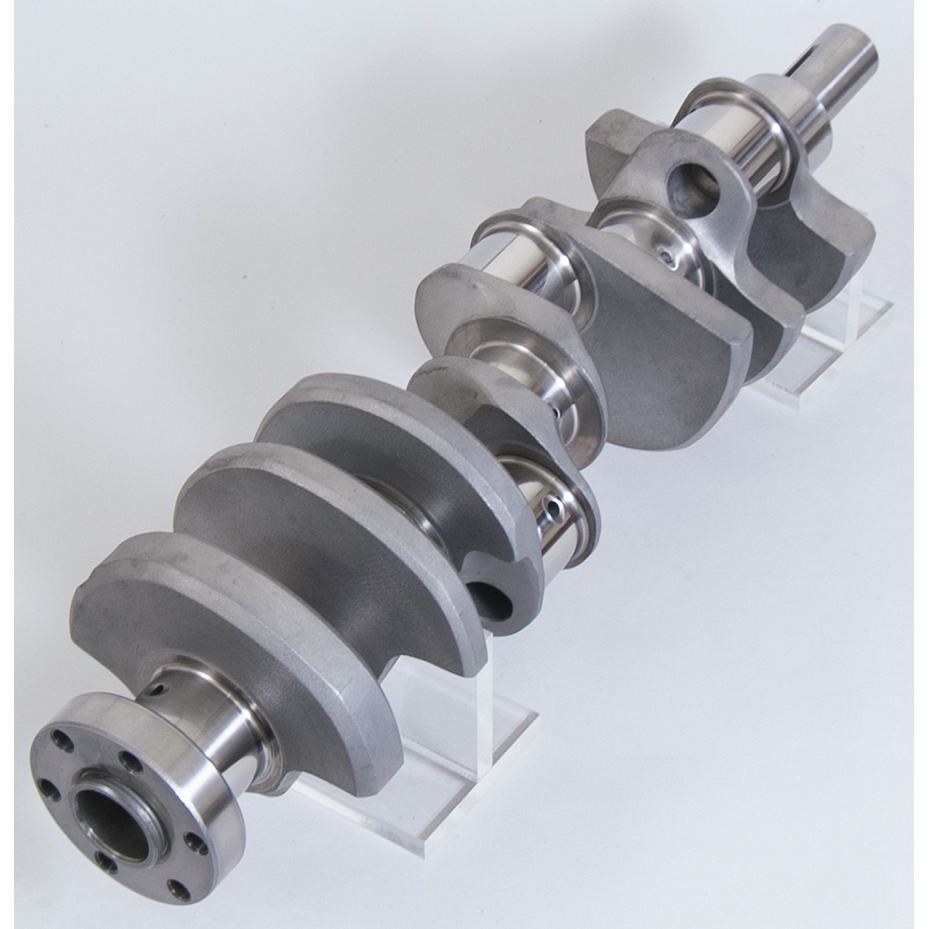

Eagle 430230015090 4340 CRANK Ford 302 3.00" STROKE

2 sold in last 8 days
Eagle
ds_CFQW_430230015090
Engine Crankshaft
$1,319.63
$1,319.63
customers are viewing this product
Eagle 445545006800 4340 CRANK PONTIAC 455 4.500
Eagle 445545006800 4340 CRANK PONTIAC 455 4.500" STROKE
$1,661.81
Eagle 435041256000 4340 CRANK CHEVY 4.125
Eagle 435041256000 4340 CRANK CHEVY 4.125" STROKE
$1,080.09
Eagle 430230015090 4340 CRANK Ford 302 3.00" STROKE
Details

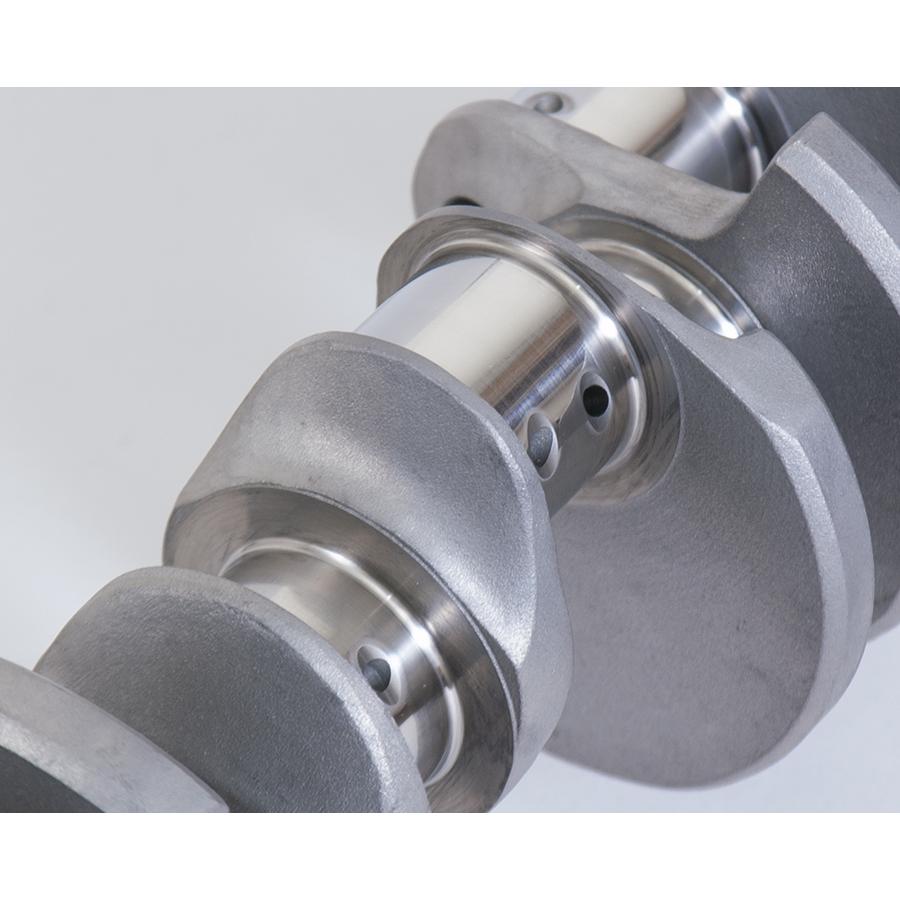

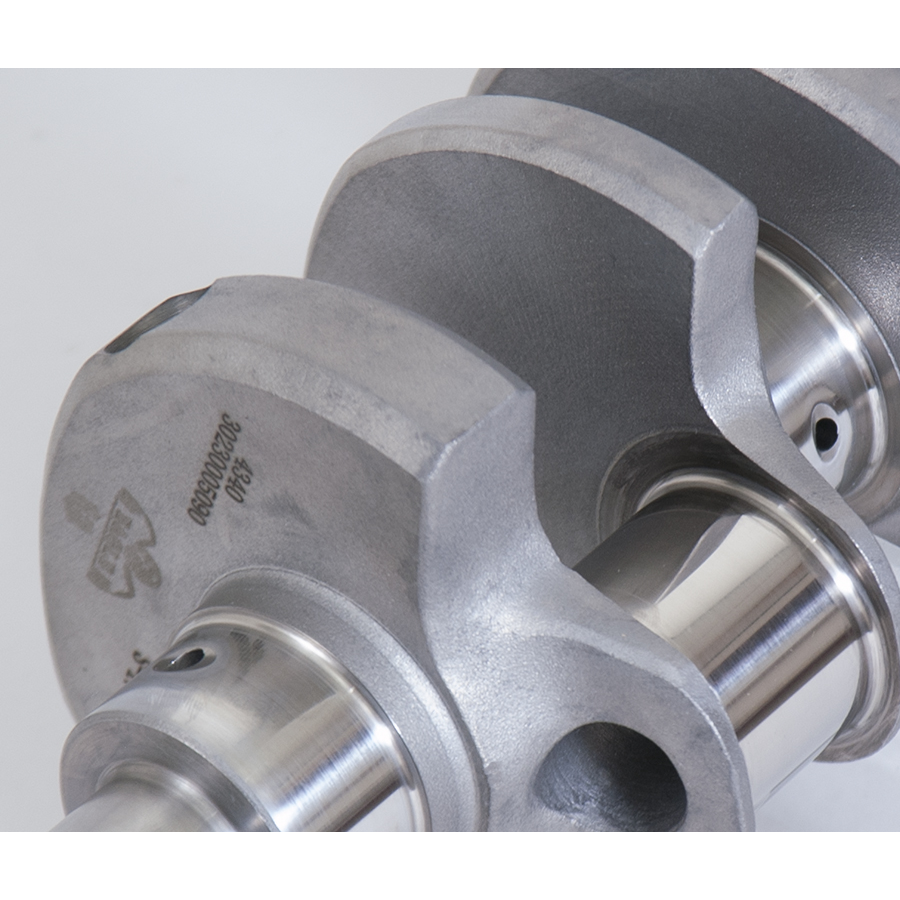

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Specifications:

Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DES 4340 CRANK Ford 302 3.00" STROKE
Description_DEF Engine Crankshaft
Description_INV ESP 4340 Crank
Description_EXT Forged 4340 Steel Crank - Ford 302, INTERNAL BALANCE.
Description_SHO 4340 Crank
Description_MKT Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Balance Type Internal
Crankshaft Stroke 3.000"
Engine Stroke 3
Intended Balance internal
Flywheel Register Diameter call
Pilot Bore Diameter call
Flywheel Bolt Count 6
Main Journal 2.249"
Material Forged 4340 Steel
Minimum Rod Length 5.09"
Rod Journal 2.123"
Title ESP 4340 CRANK Ford 302 3.00" STROKE
Rear Seal Diameter 3.624"
Snout Diameter 1.374"
Rod Journal Width 1.68"
Prop 65 (C, R or CR) C
Rod Journal Diameter 2.123
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Prop 65 - Short Label prop65_warning.jpg
Target Bobweight 1750g
Prop 65 Yes/No Yes
Length 9.0000
Width 9.0000
Height 32.0000
Weight 51.0000
