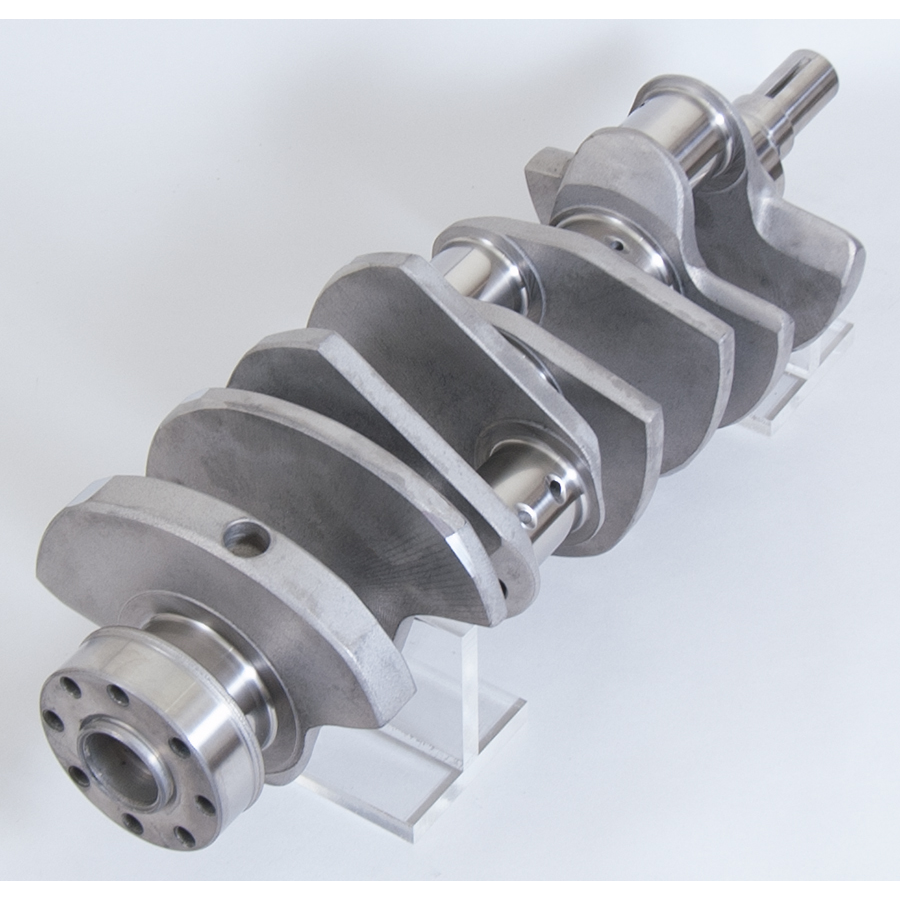

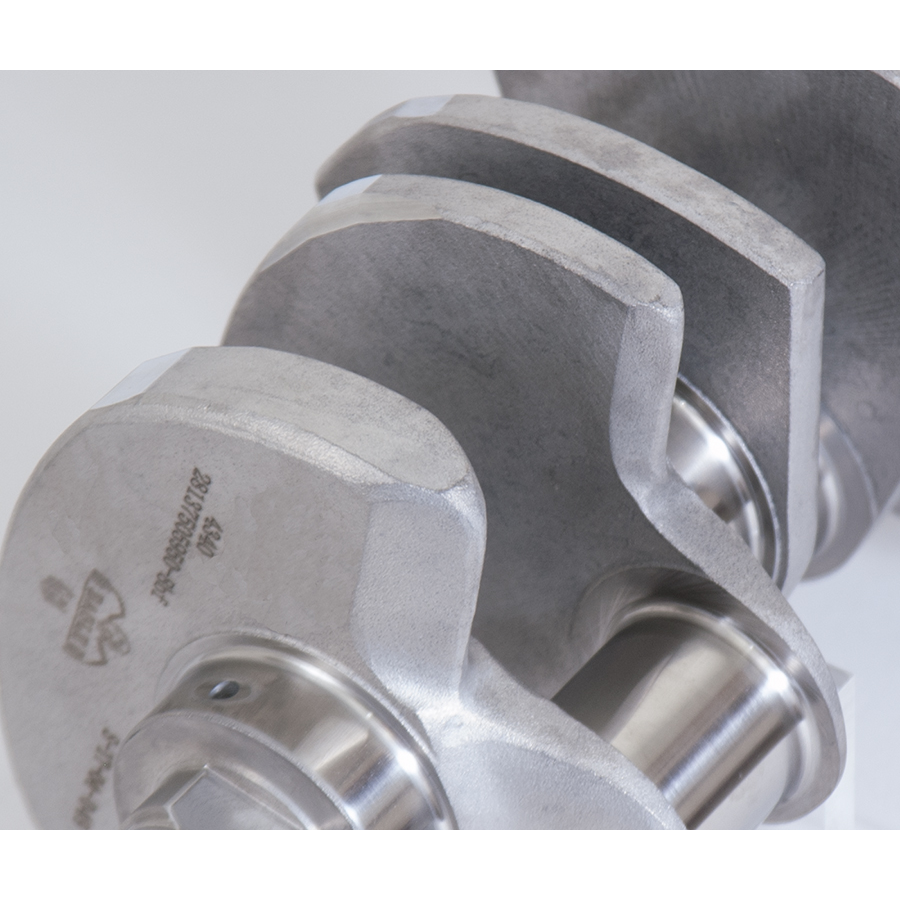

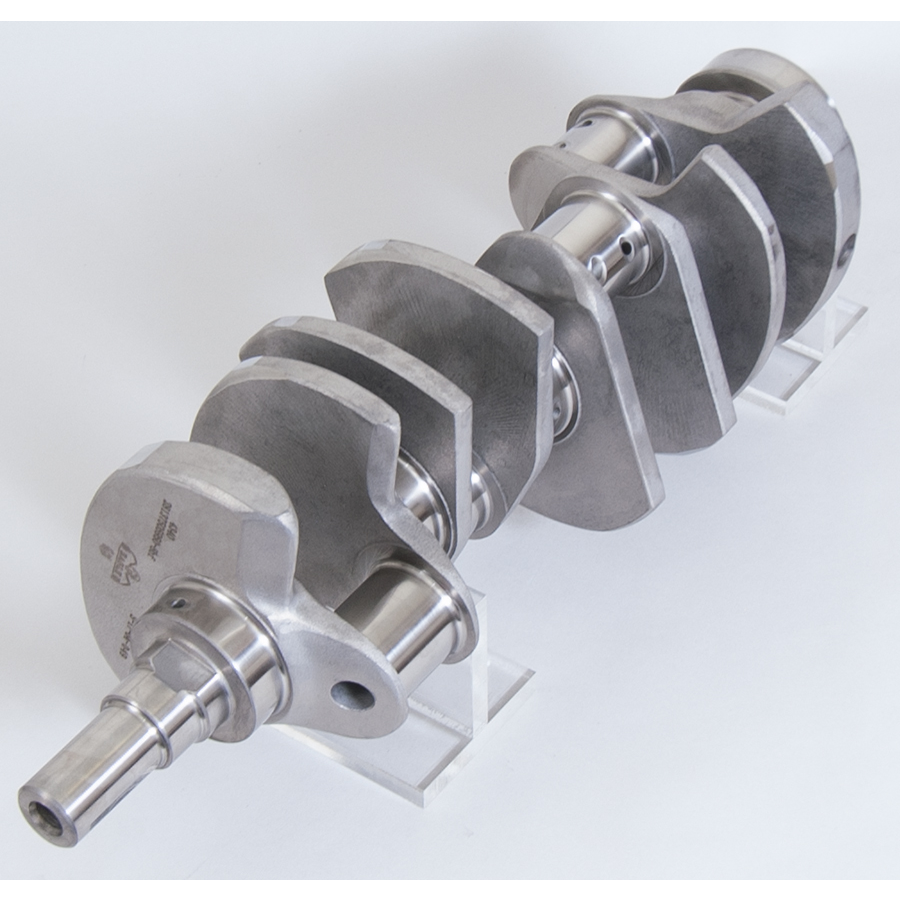

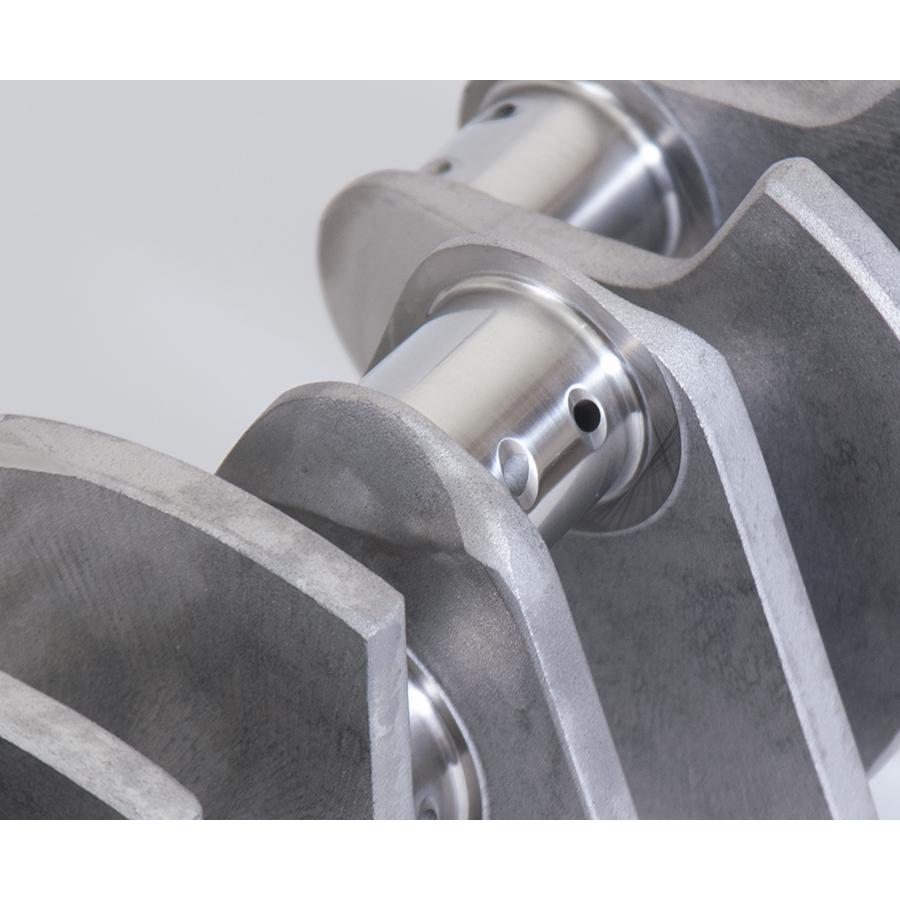

Eagle 428137505950 4340 CRANK 4.6L 281 3.750" STROKE

2 sold in last 8 days
Eagle
ds_CFQW_428137505950
Engine Crankshaft
$1,681.30
customers are viewing this product
Eagle 445442546385 4340 CRANK CHEVY BB INT BAL 4.250
Eagle 445442546385 4340 CRANK CHEVY BB INT BAL 4.250" STROK
$1,361.77 $1,360.26
Eagle 428237502000 4340 CRANK Ford Coyote 3.750
Eagle 428237502000 4340 CRANK Ford Coyote 3.750" 2.00 Rod
$1,686.22
Eagle 428137505950 4340 CRANK 4.6L 281 3.750" STROKE
Details

Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Specifications:

Description_ASC Center counterweights, 8 bolt rear flange.
Description_ASC Crankshaft must be balanced to match your specific Rods and pistons.
Description_DEF Engine Crankshaft
Description_DES 4340 CRANK 4.6L 281 3.750" STROKE
Description_MKT Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.
Description_INV ESP 4340 Crank
Description_EXT Forged 4340 Steel Crank - Ford 4.6L MODULAR V8, 3.750" Stroke, 1.889" Rod JournalS.
Description_SHO 4340 Crank
Main Journal 2.657"
Prop 65 - Short Label prop65_warning.jpg
Snout Diameter call
Engine Stroke 3.75
Rear Seal Diameter call
Minimum Rod Length 5.950"
Balance Type Internal
Crankshaft Stroke 3.750"
Title ESP 4340 CRANK 4.6L 281 3.750" STROKE
Pilot Bore Diameter call
Rod Journal Width 1.900"
Rod Journal 1.889"
Flywheel Bolt Count 8
Rod Journal Diameter 1.889
Prop 65 Yes/No Yes
Material Forged 4340 Steel
Intended Balance internal
Prop 65 Long This product contains nickel, which is known to the State of California to cause cancer.
Target Bobweight 1600g
Flywheel Register Diameter call
Prop 65 (C, R or CR) C
Length 9.0000
Width 9.0000
Height 32.0000
Weight 53.0000
