Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Specifications:
| Description_ASC |
Minor clearancing of block required. Balancing required. |
| Description_ASC |
Assembly must be balanced by qualified machine shop before use! |
| Description_DES |
Street & Strip Assembly Chevy 454, 1PC |
| Description_DEF |
Engine Crankshaft Rotating Assembly |
| Description_EXT |

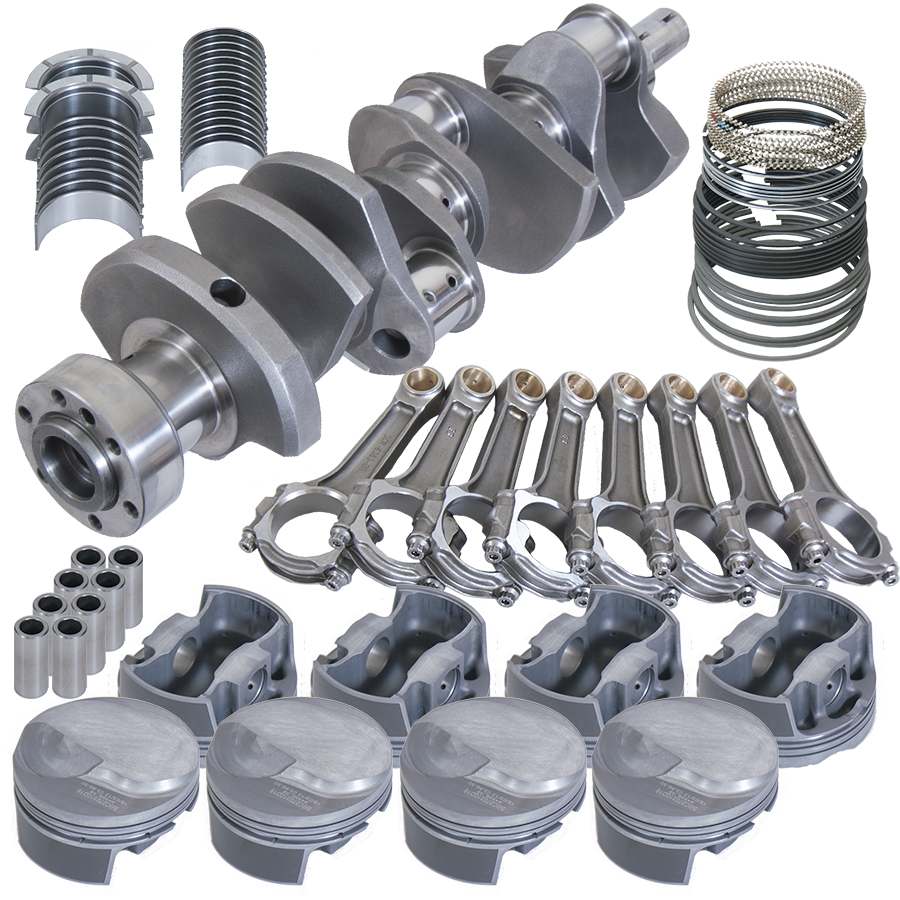

4.250" Cast Crank,6.385" I-BEAM Rods,7/16" ARP 8740 BOLTS,Forged 4032 MAHLE 18CC DOME 4.320" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS. |
| Description_INV |
ESP Street & Strip Assy |
| Description_MKT |
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles. |
| Description_SHO |
Street & Strip Assy |
| Piston Face Type |
dome |
| Prop 65 - Short Label |
prop65_warning.jpg |
| Crankshaft Center Counterweights |
No |
| Balance Type |
External |
| Second Piston Ring Type |
Reverse Twist Iron |
| Prop 65 (C, R or CR) |
C |
| Prop 65 Yes/No |
Yes |
| Main Bearings Included |
Yes |
| Crankshaft Material |
Cast Steel |
| Crankshaft Rod Journal Diameter |
2.200" |
| Assembly Balanced |
No |
| Thrust Washer Included |
No |
| Assembly Type |
Street & Strip Assembly |
| Rod Bearings Included |
Yes |
| Cylinder Bore Diameter |
4.320" |
| Crankshaft Flange Bolt Holes |
6 |
| Connecting Rod Material |
Forged 5140 steel |
| Main Bearing Type |
O.E. Replacement |
| Connecting Rod Design |
I-Beam |
| Piston Material |
Forged 4032 Aluminum |
| Piston Pin Type |
Full Floating |
| Flexplate/Flywheel Included |
No |
| Piston Type |
Dome Forged |
| Connecting Rod Bolt Material |
ARP 8740 |
| Product Line |
Street & Strip |
| Piston Dome Volume |
18cc |
| Piston Pin Diameter |
.990" |
| Crankshaft Main Journal Diameter |
2.749" |
| Damper Included |
No |
| Piston Ring Thickness |
1.5mm, 1.5mm, 3.0mm |
| Top Piston Ring Type |
Barrel Faced Plasma-Moly |
| Connecting Rod Length |
6.385" |
| Crankshaft Stroke |
4.250" |
| Crankshaft Reluctor |
No |
| Oil Rail Support Included |
No |
| Piston Ring Gap |
file-fit |
| Piston Brand |
Mahle |
| Connecting Rod Bolt Diameter |
7/16" |
| Title |
ESP Street & Strip Assembly Chevy 454, 1PC |
| Rod Bearing Type |
O.E. replacement |
| Bore |
4.32 |
| Length |
12.0000 |
| Width |
22.0000 |
| Height |
33.0000 |
| Weight |
106.0000 |
