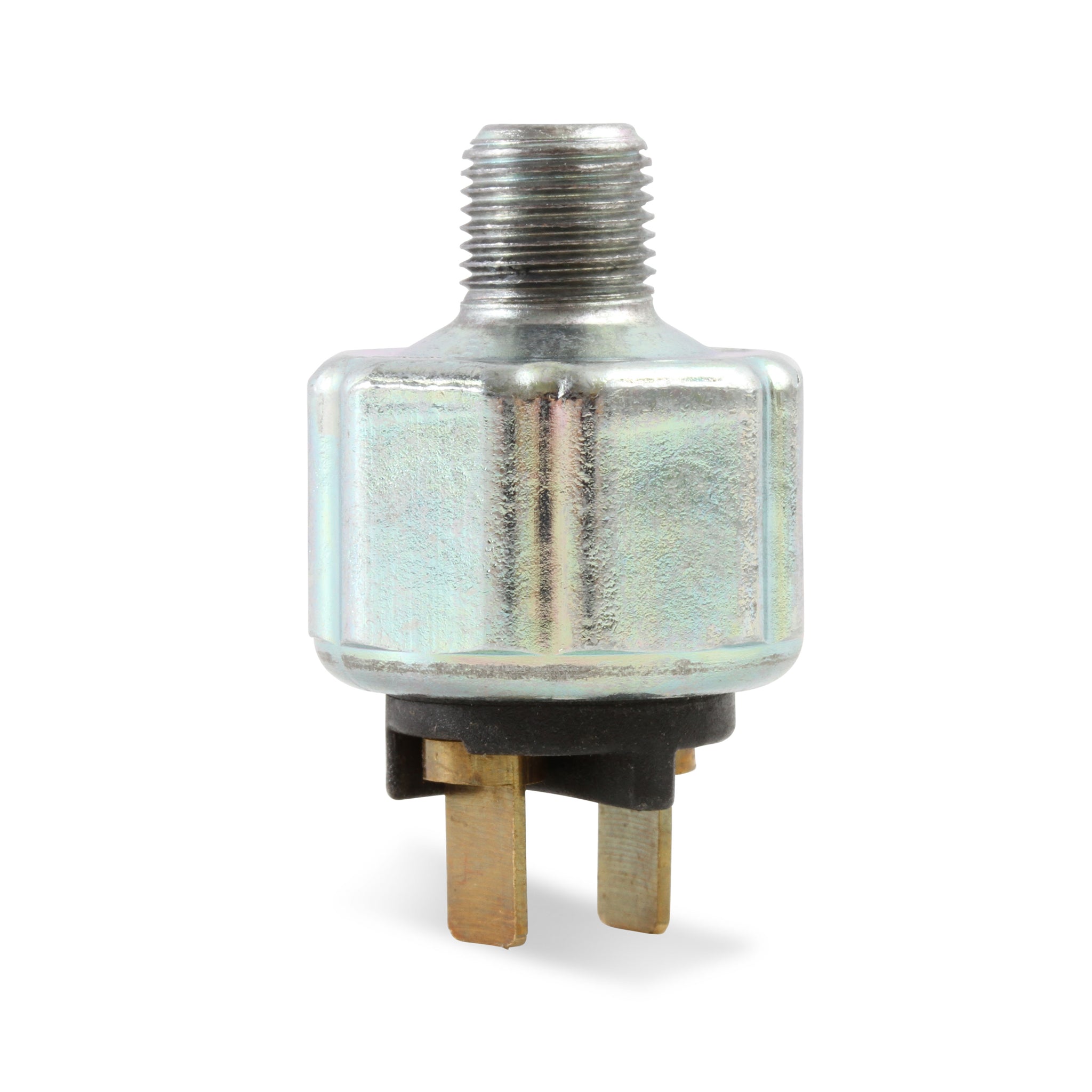

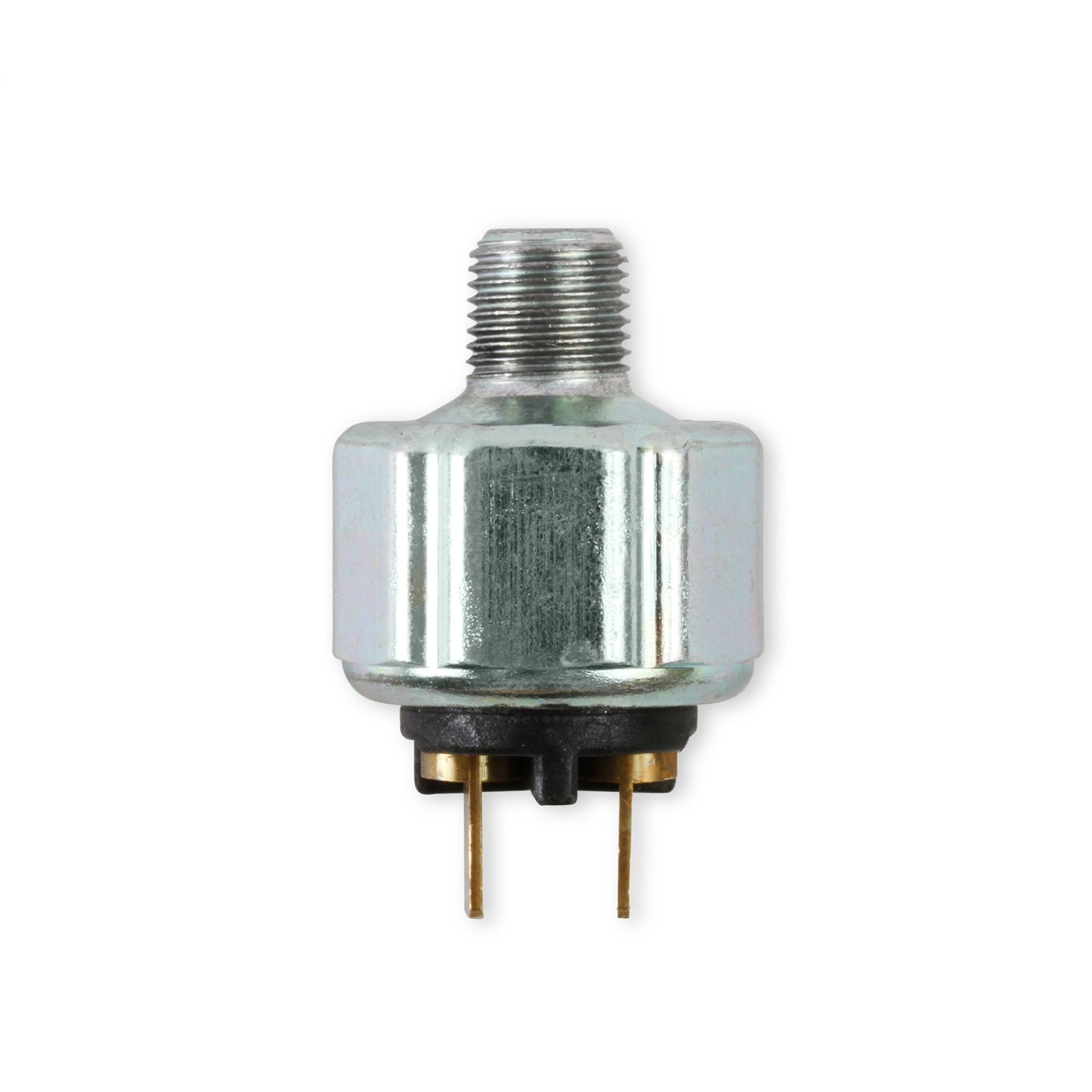

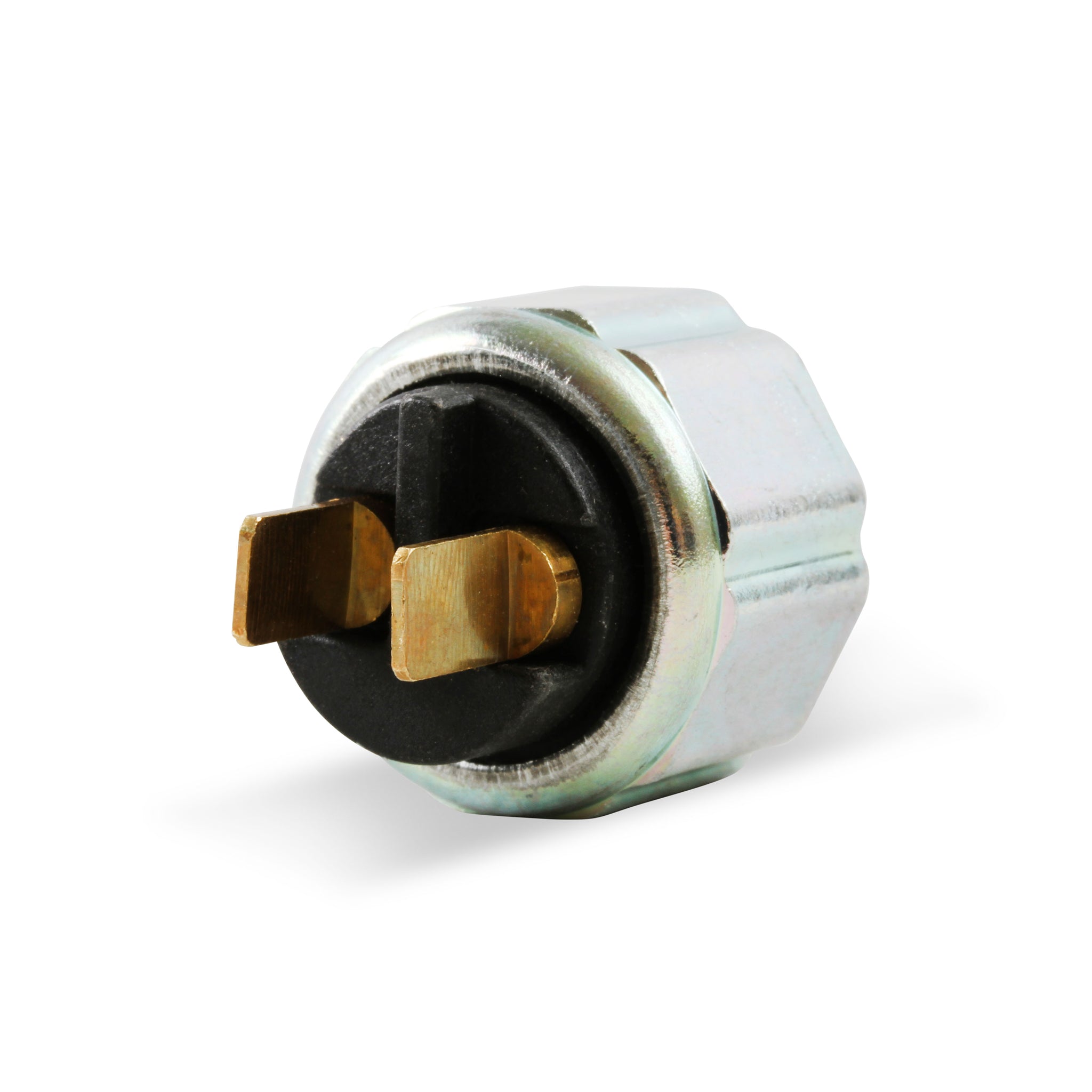

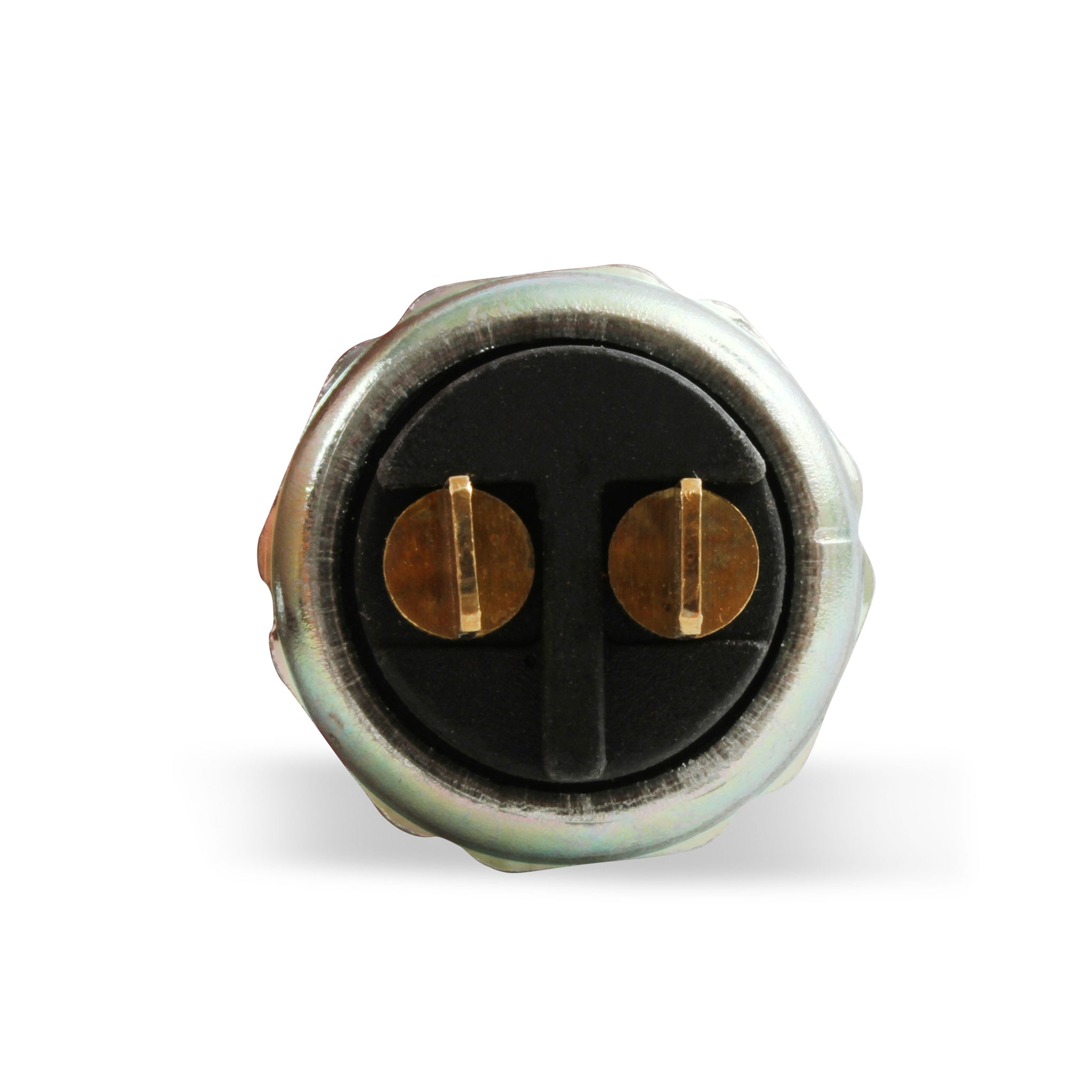

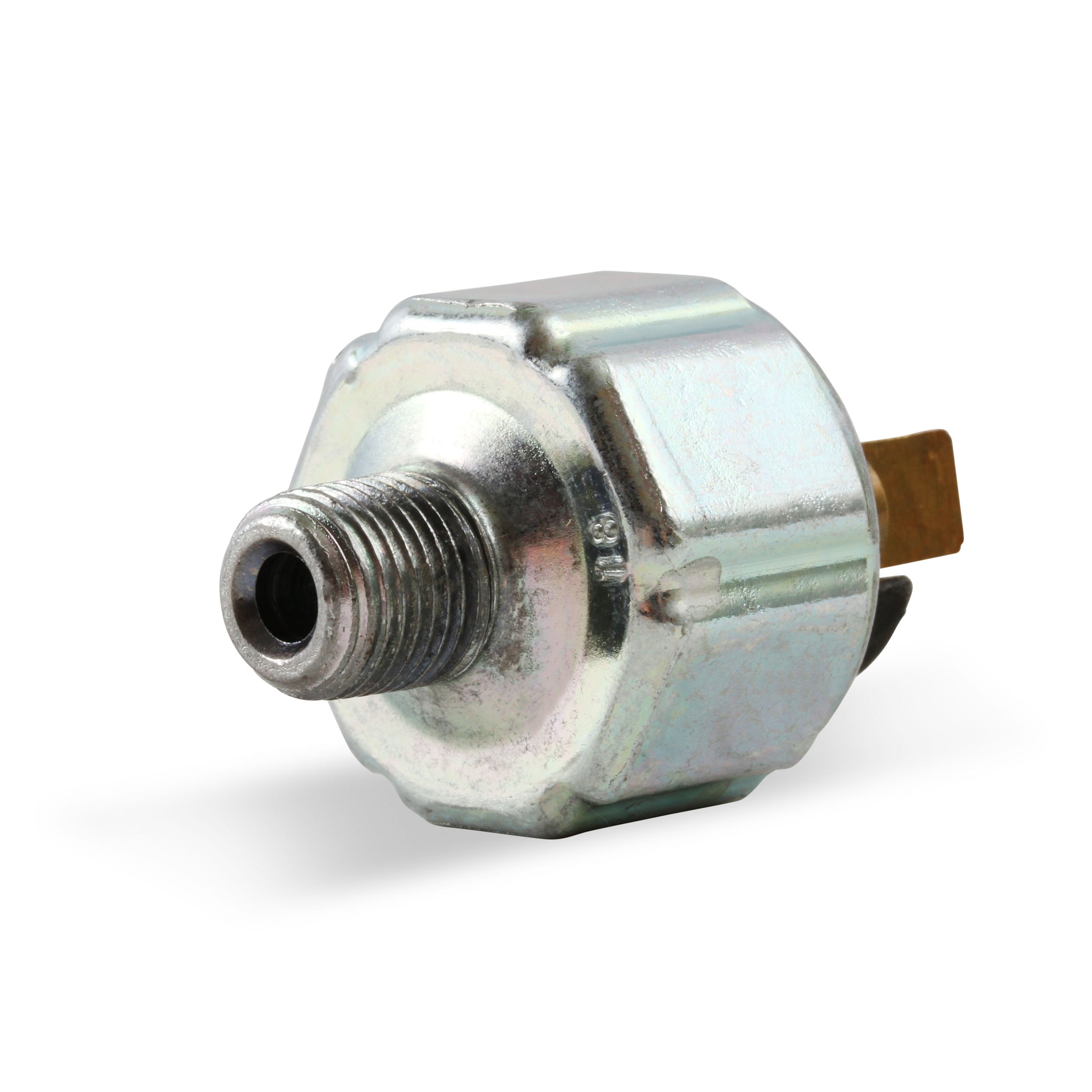

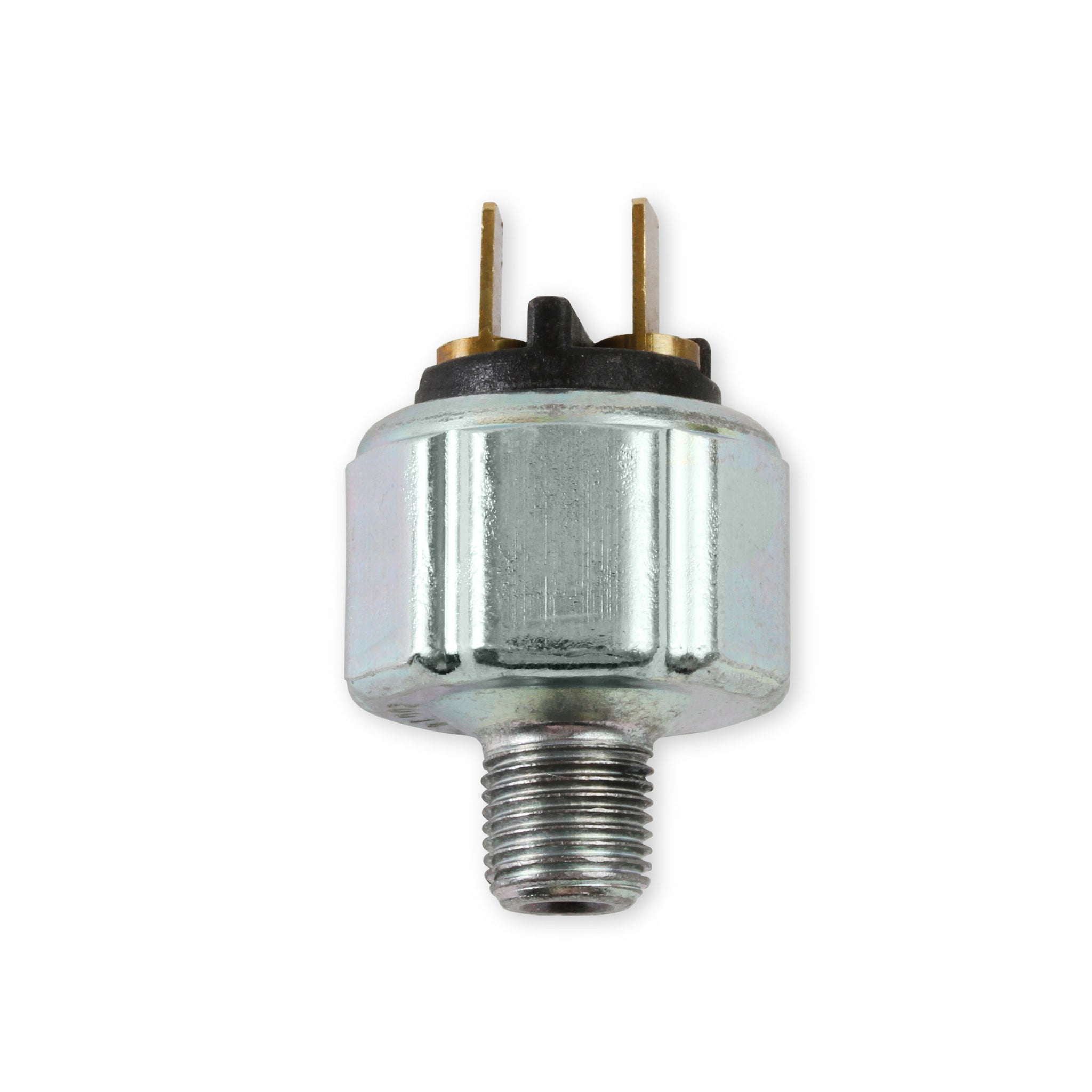

Brake light switch, pressure activated. This switch is an easy way to add brake lights to your vehicle, since the switch powers the brake light system using the hydraulic pressure from the brake line. Ideal for use w/ after-market pedals that don't have provisions for a brake light switch. Eliminates the hassle and complexity of modifying pedals for a mechanically operated brake light switch.
Specifications:
| Description_ASC |
This switch is not for use with Silicone Brake Fluid. |
| Description_DEF |
Brake Light Switch |
| Description_DES |
Earl's BRAKE LIGHT SWITCH - Pressure Activated |
| Description_INV |
BRAKE LIGHT SWITCH, MALE 2 TERMINAL 1/8 |
| Description_EXT |
Brake light switch - Pressure activated w/ 1/8" NPT port - (2) 1/4" blade style electrical terminals. |
| Description_FAB |
Switch is Normally Open and Closes when Activated at 60-100 PSI |
| Description_FAB |
1/8" NPT Male Threads |
| Description_FAB |
(2) 1/4" Blade Style Terminals |
| Description_MKT |
Brake light switch, pressure activated. This switch is an easy way to add brake lights to your vehicle, since the switch powers the brake light system using the hydraulic pressure from the brake line. Ideal for use w/ after-market pedals that don't have provisions for a brake light switch. Eliminates the hassle and complexity of modifying pedals for a mechanically operated brake light switch. |
| Description_MKT |
This switch can also be used as a safety feature to prevent the engine from starting w/o the clutch pedal depressed (w/ hydraulic clutch & manual transmission). Plumb this switch in the clutch line and run the small wire than goes from the start switch on the ignition to the starter solenoid through this switch. This will prevent the engine from turning over, unless the clutch pedal is pressed in. |
| Description_KEY |
switch; switches; brake; brakes; light; lamp; lights; lamps; .125"; 1/8; 1/8"; inch; inches; NPT; terminal; terminals; male; 2; two; prong; prongs; earls; accessories; brake light switch; plumbing; goodridge; xrp; aeroquip; fragola |
| Description_SHO |
Brake Light Switch |
| Emission Code |
5 |
| Finish |
Zinc |
| Material |
Steel |
| Brand |
Earl's |
| Adapter Type |
Brake Light Switch |
| WARNING CA Proposition 65 |
Yes |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Adapter NPT Size ( A ) |
1/8 NPT MALE |
| Product Type |
Brake Light Switch |
| Warning |
California Proposition 65 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
2.0000 |
