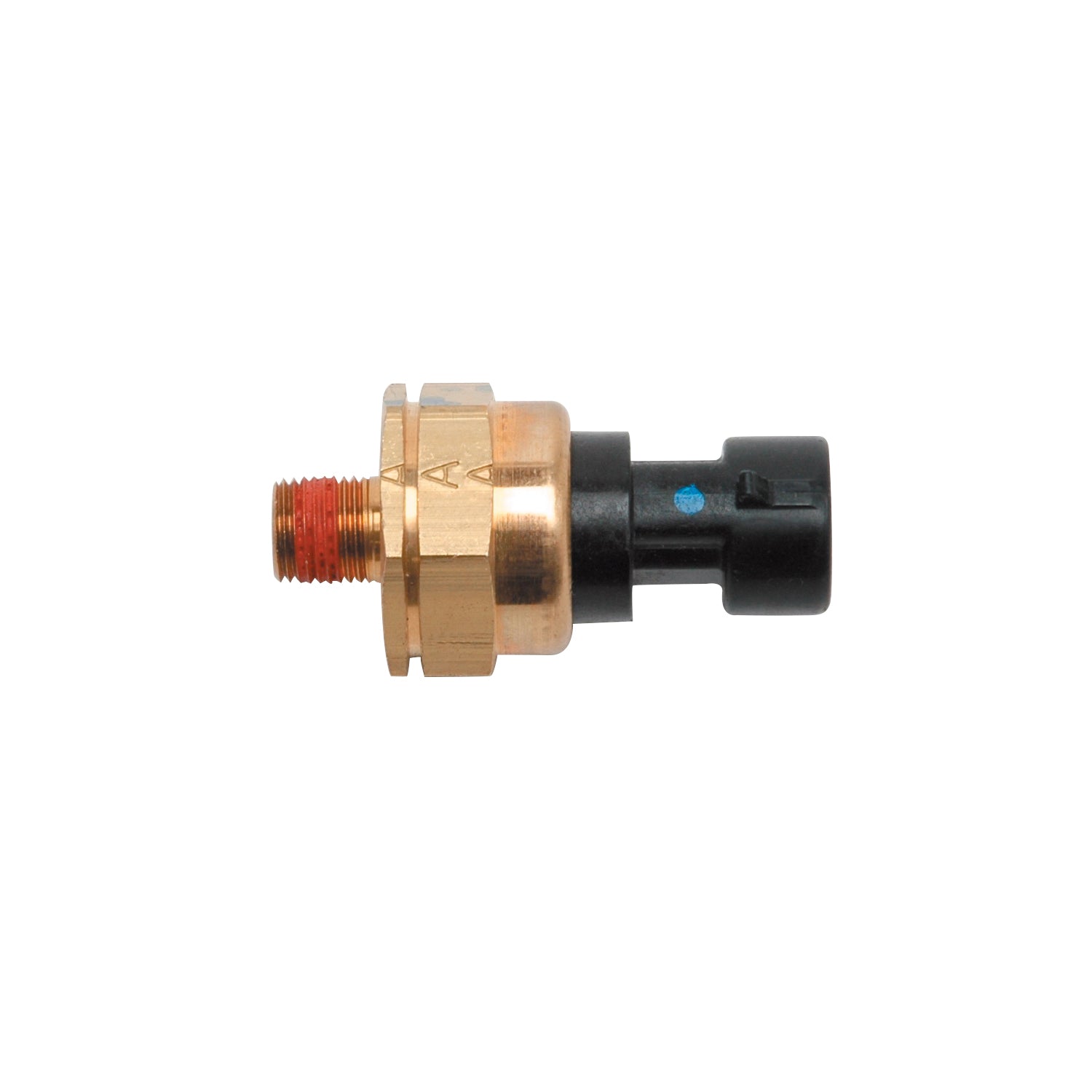

The Edelbrock #36020 Pro-Tuner EFI Pressure Sensors are intended to be used with Edelbrock's Pro-Tuner EFI system, but may be used with other systems using the supplied connector and wiring. They are configurable to most aftermarket ECUs. If you are using another aftermarket ECU, check the sensor's specifications with the manufacturer of your ECU. The brass body of these sensors features a 1/8" pipe thread (1/8-27 NPT) and pre-applied thread sealant.
Specifications:
| Description_ABR |
MAP Sensor |
| Description_DEF |
Manifold Absolute Pressure Sensor |
| Description_INV |
Manifold Absolute Pressure Sensor |
| Description_EXT |
Edelbrock Manifold Absolute Pressure Sensor are intended to be used with Edelbrock's Pro-Tuner EFI system, but may be used with other systems using the supplied connector and wiring. They are configurable to most aftermarket ECUs. |
| Description_MKT |
The Edelbrock #36020 Pro-Tuner EFI Pressure Sensors are intended to be used with Edelbrock's Pro-Tuner EFI system, but may be used with other systems using the supplied connector and wiring. They are configurable to most aftermarket ECUs. If you are using another aftermarket ECU, check the sensor's specifications with the manufacturer of your ECU. The brass body of these sensors features a 1/8" pipe thread (1/8-27 NPT) and pre-applied thread sealant. |
| Description_LAB |
2 Bar Manifold Absolute Pressure (MAP) Sensor for Pro-Flo 2 Systems |
| Description_TRA |
The sensor should be mounted such that the connector side faces upward to avoid trapping water or condensation in the sensor tip, which will damage the sensor. |
| Description_TRA |
Mount the MAP sensor at or as close to the intake manifold's plenum as possible to ensure the most accurate and consistent reading. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Connector Quantity |
1 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Connector Shape |
Round |
| Body Material |
Brass |
| Terminal Type |
Pin |
| Terminal Gender |
Male |
| Type |
Push On |
| Connector Color |
Black |
| Fitting Type |
Thread In |
| Terminal Quantity |
3 |
| Wiring Harness Length |
6.0 |
| Connector Gender |
Female |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
6.0000 |
