Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain. KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.
Specifications:
| Description_ASC |
Does not fit Jeep Hard Rock Edition bumper |
| Description_ASM |
2010-2018 Jeep Wrangler JK |
| Description_DEF |
Fog Light |
| Description_DES |

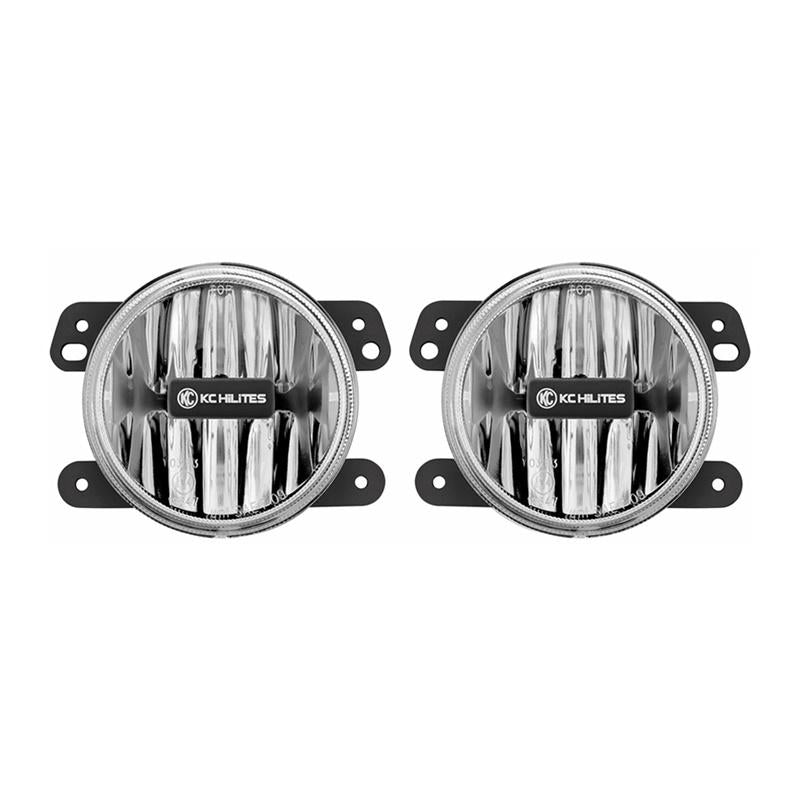

KC G4 Gravity LED 4in SAE ECE 2-Light System 2010-2018 Jeep Wrangler JK |
| Description_EXT |
KC Hilites 4 in Gravity LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-18 Jeep JKs. |
| Description_MKT |
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing. Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain. KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness. |
| Description_INV |
KC Gravity LED |
| Description_FAB |
Fog Beam Pattern (SAE ECE Street Legal) |
| Description_FAB |
Lightweight Magnesium Housing for Maximum Heat Dissipation |
| Description_FAB |
Street Legal 10-18 Jeep JK Application |
| Description_FAB |
Universal Adjustable Bracket |
| Description_SHO |
Fog Light |
| Color Temperature |
5000K |
| Lux |
150 |
| Prop 65 Yes/No |
No |
| Raw Lumens |
866 lm |
| IP Rating |
IP68 |
| Light Temp |
5000K |
| LED Source |
CREE LED |
| Beam Distance (Meters) |
245m |
| Beam Pattern |
Fog |
| Add-On |
N/A |
| Parts Included |
(2) 10W 4 in Gravity(R) G4 LED Fog lights, 2 x 10W 4 in Gravity(R) LED Fog Lights, 30A LED Switch w/Panel, Deluxe Wiring Harness w/ 2-Pin weatherproof connectors |
| Compliance |
SAE J583 ECE-R19 Street Legal |
| Wattage |
10W |
| Candela |
150,000 cd |
| Lumens |
866 |
| Amp Draw |
.74A |
| Product Dimensions |
W 3.94 in x H 3.94 in x D 3.44 in |
| Lux at 10 Meters |
150 lx |
| Voltage |
9V-32V |
| Title |
KC Hilites 4 in Gravity LED G4 - 2-Light System - SAE/ECE - 10W Fog Beam - for 10-18 Jeep JK |
| Lux at 10 Meters |
150 lx |
| Length |
6.0000 |
| Width |
7.0000 |
| Height |
12.0000 |
| Weight |
3.0000 |
