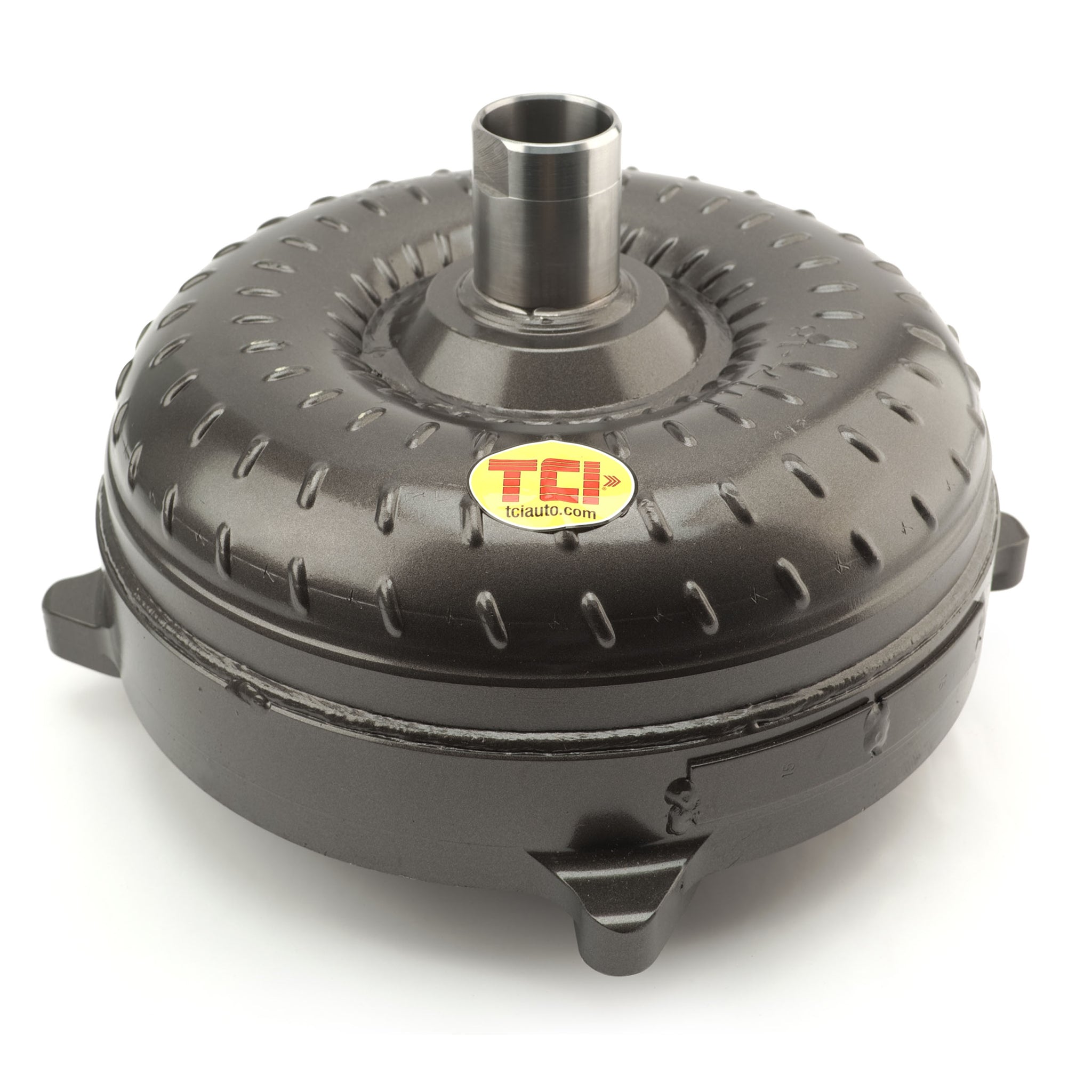

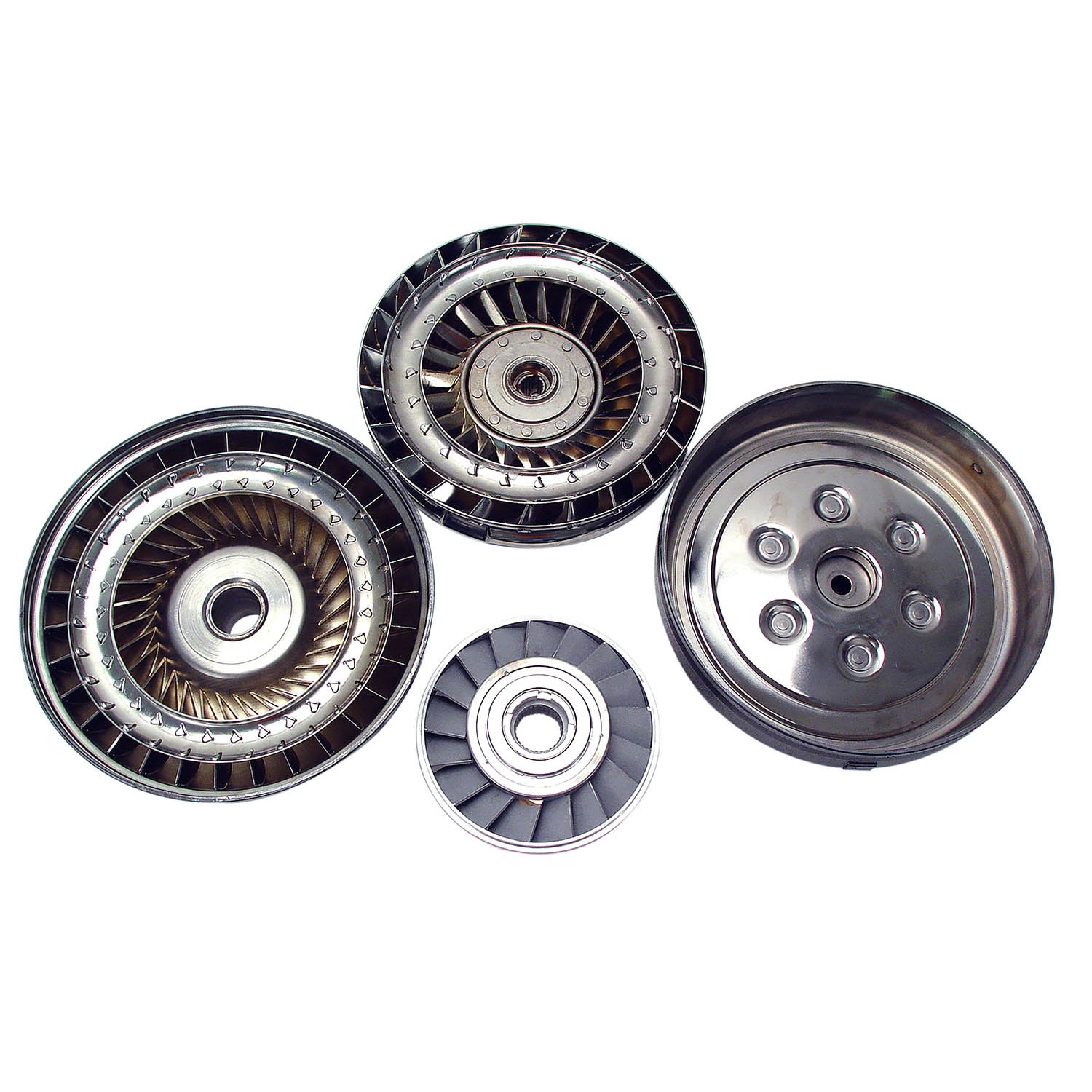

The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing.
Specifications:
| Description_ASC |
Features Lock-Up Capability. 10" Converter with Forged/Billet Front Cover. See 456000 for StreetFighter and 456002 for Super StreetFighter. With the modern advancements in drivetrain technology, higher advertised torque converter stall speeds means that driveability will suffer far less than an equivalent stall speed in older, less efficient transmissions. For more accurate stall range, be sure to contact TCI Support with your vehicle's specifications. TCI techs will need to know your vehicle's weight, engine displacement, power adders, rear gear ratio, along with tire diameter. |
| Description_DEF |
Automatic Transmission Torque Converter |
| Description_DES |
Breakaway Converter for '05-'10 V8 Mustang with 5R55S. |
| Description_INV |
5R55S Breakaway Converter |
| Description_EXT |
This Breakaway Converter is designed specifically for '05-'10 5R55S transmissions. Provide 2200 to 2400 Stall behind 5.0 L Coyote Engines. |
| Description_MKT |
The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing. |
| Advertised Cam Duration |
265 to 280 Degrees |
| Rear Gear Ratio |
3.00 to 3.73 |
| Title |
Breakaway Converter for '05-'10 V8 Mustang with 5R55S. |
| Lock Up Type |
Yes |
| California Proposition 65 |
Warning: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Torque Converter Series |
Breakaway |
| Expected Stall Speed with Small Block |
2200 to 2400 RPM |
| Engine Characteristics |
Fair Idle, Mild Modifications |
| Expected Stall Speed with Big Block |
2400 to 2600 RPM |
| Length |
8.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
39.0000 |
