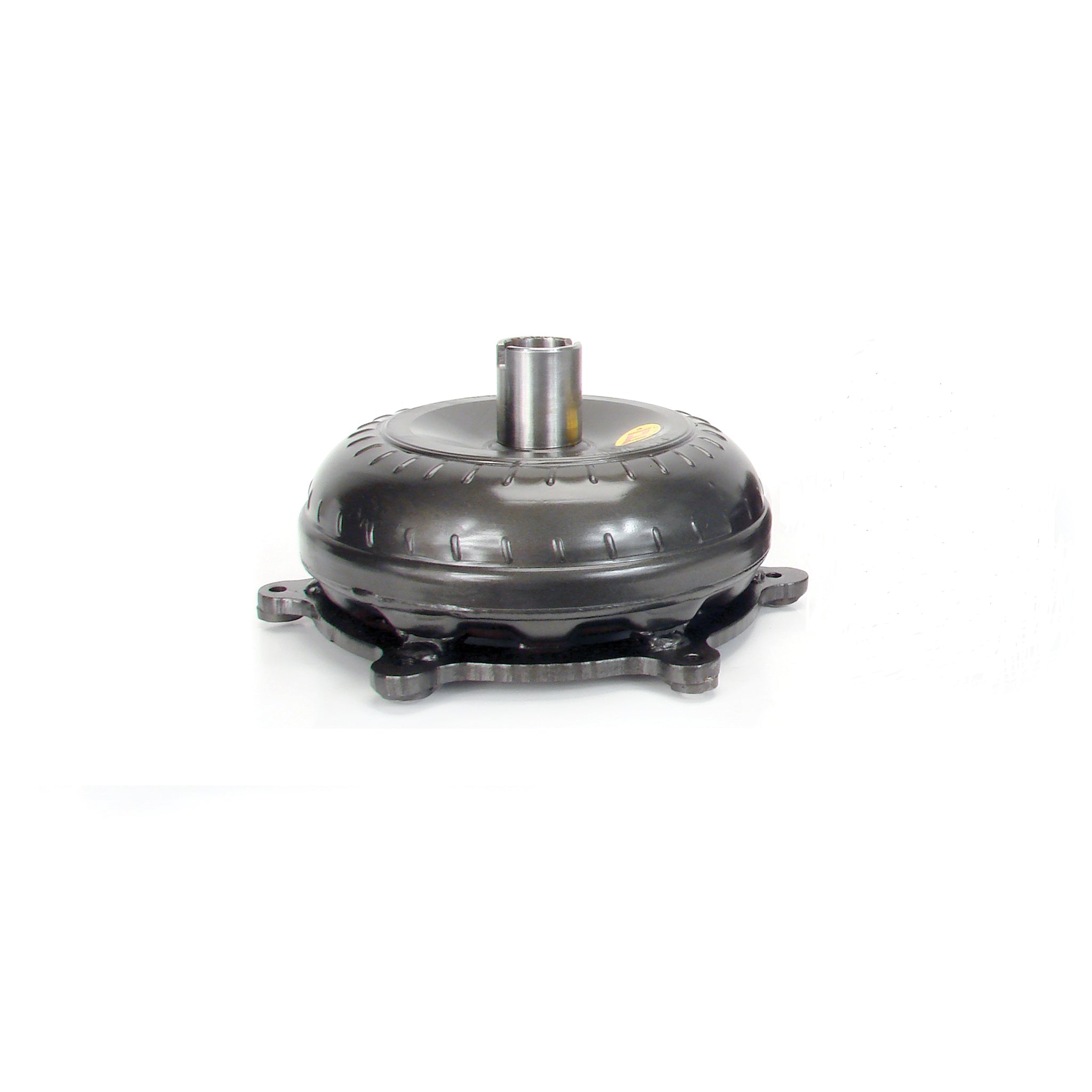

Building huge horsepower is fine as long as your drivetrain is up to the task of delivering the power to the pavement. TCI offers a complete line of premium torque converters built exclusively for use in Top Sportsman, Top Dragster and 10.5 Tire Outlaw classes. Able to handle 500+ c.i., 2500+ horsepower, 3500 RPM applications (including multi-stage, nitrous-assisted, supercharged and twin turbocharged engines), these high strength torque converters are built for most GM, Ford and Chrysler transmissions and bolt up to either six or four-bolt mounting flanges. In addition, the PRO-X 9" and 10" Torque Converters utilize the state-of-the-art, proprietary metallic gray HDT Coating which enables TCI converters to operate at lower temperatures and cool down faster.
Specifications:
| Description_ASC |
For more accurate stall range, be sure to contact TCI Support with your vehicle's specifications. TCI techs will need to know your vehicle's weight, engine displacement, power adders, rear gear ratio, along with tire diameter. |
| Description_DEF |
Automatic Transmission Torque Converter |
| Description_DES |
PRO-X TH400 Drag Race Converter w/ 5800-6200 Stall for 2800 lb Vehicle. |
| Description_EXT |
This TCI PRO-X TH400 Spline Converter is designed to provide 5800-6200 stall for applications that weigh around 2800 lbs, with roughly 632 cubic inches of displacement, up to a 4.30 gear with 32" tires. Engine Dyno HP of 1400 HP. |
| Description_INV |
PRO-X TH400 5800 Stall Converter |
| Description_MKT |
Building huge horsepower is fine as long as your drivetrain is up to the task of delivering the power to the pavement. TCI offers a complete line of premium torque converters built exclusively for use in Top Sportsman, Top Dragster and 10.5 Tire Outlaw classes. Able to handle 500+ c.i., 2500+ horsepower, 3500 RPM applications (including multi-stage, nitrous-assisted, supercharged and twin turbocharged engines), these high strength torque converters are built for most GM, Ford and Chrysler transmissions and bolt up to either six or four-bolt mounting flanges. In addition, the PRO-X 9" and 10" Torque Converters utilize the state-of-the-art, proprietary metallic gray HDT Coating which enables TCI converters to operate at lower temperatures and cool down faster. |
| California Proposition 65 |
Warning: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Title |
PRO-X TH400 Drag Race Converter w/ 5800-6200 Stall for 2800 lb Vehicle. |
| Torque Converter Series |
Pro-X Drag Race |
| Length |
8.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
26.0000 |
