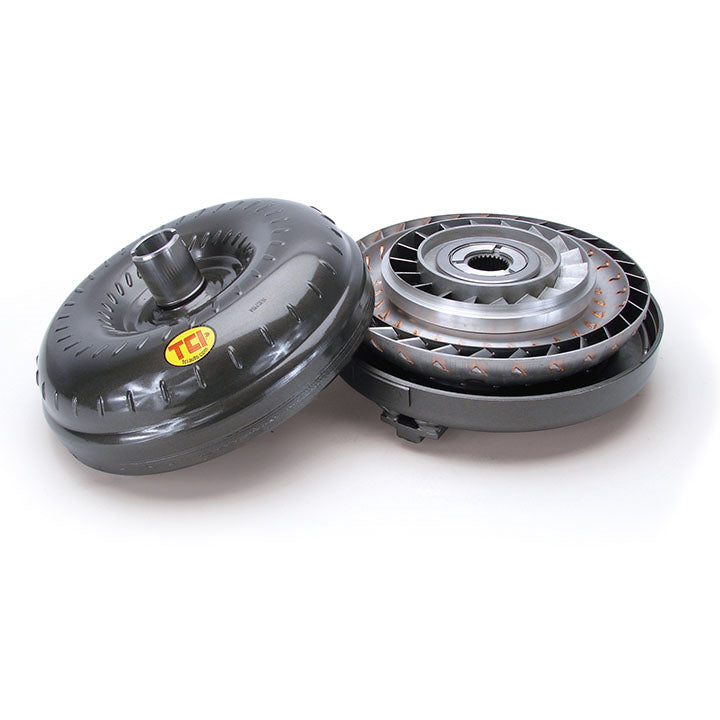

The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing.
Specifications:
| Description_ASC |
Features Lock-Up Compatibility. With the modern advancements in drivetrain technology, higher advertised torque converter stall speeds means that driveability will suffer far less than an equivalent stall speed in older, less efficient transmissions. For more accurate stall range, be sure to contact TCI Support with your vehicle's specifications. TCI techs will need to know your vehicle's weight, engine displacement, power adders, rear gear ratio, along with tire diameter. |
| Description_DES |
Breakaway Converter 4th Gen F-Body '99-'06 4L60/4L65E Trucks w/ 4.8/5.3/6.0 |
| Description_DEF |
Automatic Transmission Torque Converter |
| Description_EXT |
This Breakaway Converter is designed specifically for 4th Gen F-Body and '99-'06 4L60/65E Trucks. Provides 2200 to 2400 Stall behind Small Blocks and 2400 to 2600 Stall behind Big Blocks. |
| Description_INV |
Sfighter 4L60E F-Body |
| Description_MKT |
The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing. |
| Engine Characteristics |
Fair Idle, Mild Modifications |
| California Proposition 65 |
Warning: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Advertised Cam Duration |
265 to 280 Degrees |
| Rear Gear Ratio |
3.00 to 3.73 |
| Lock Up Type |
Yes |
| Expected Stall Speed with Small Block |
2200 to 2400 RPM |
| Torque Converter Series |
Breakaway |
| Expected Stall Speed with Big Block |
2400 to 2600 RPM |
| Title |
Breakaway Converter for 4th Gen F-Body and '99-'06 4L60/4L65E Trucks w/ 4.8/5.3/6.0 |
| Length |
8.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
32.0000 |
