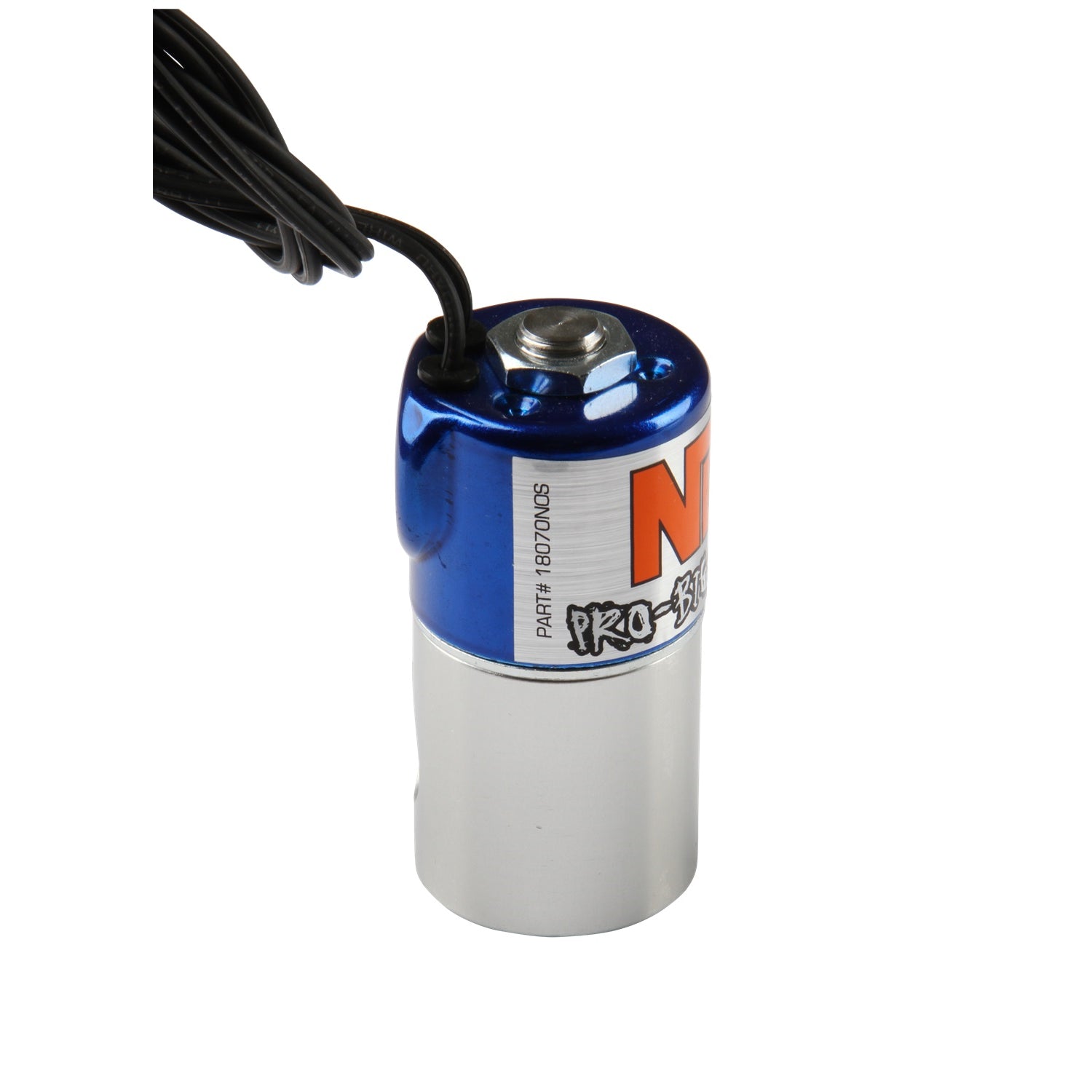

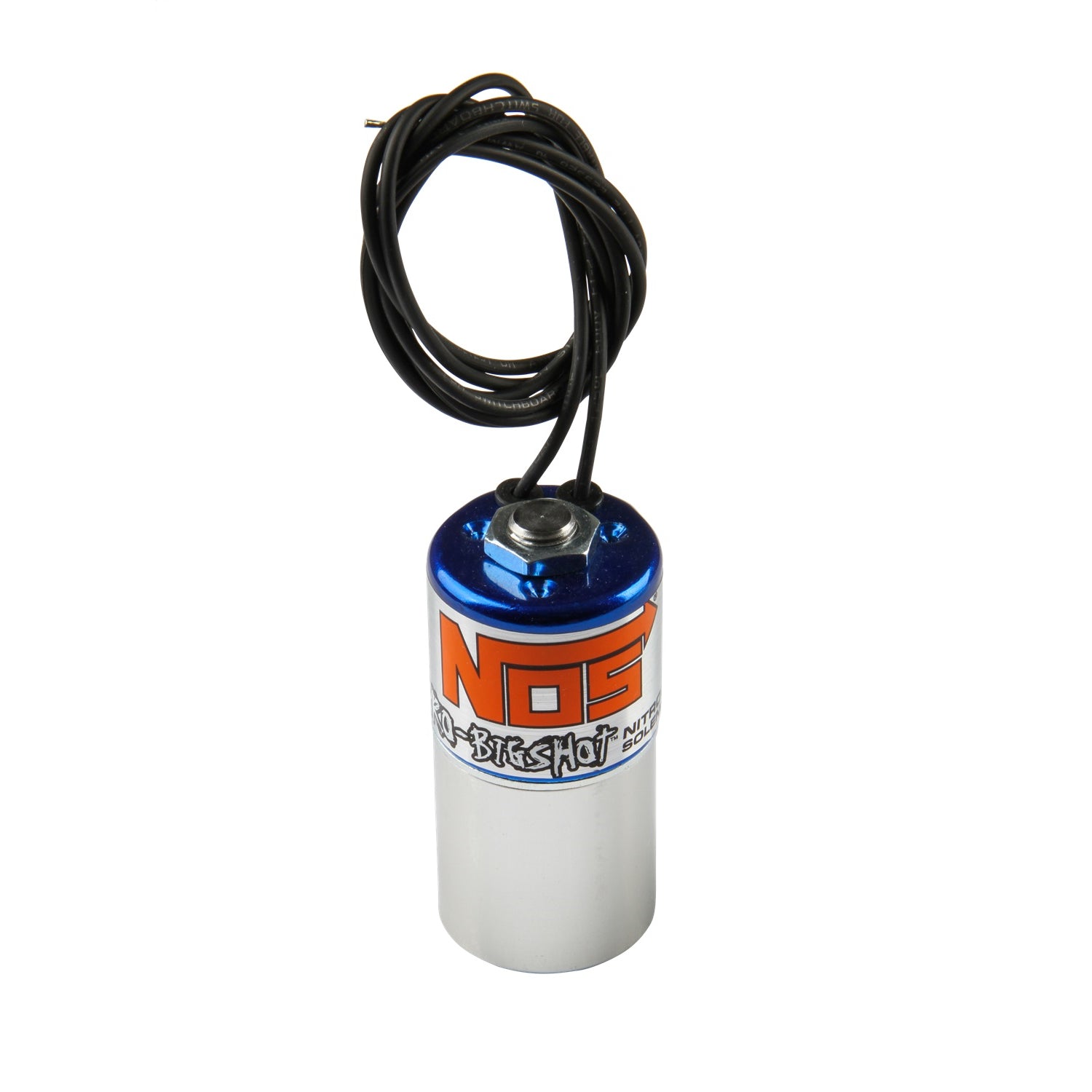

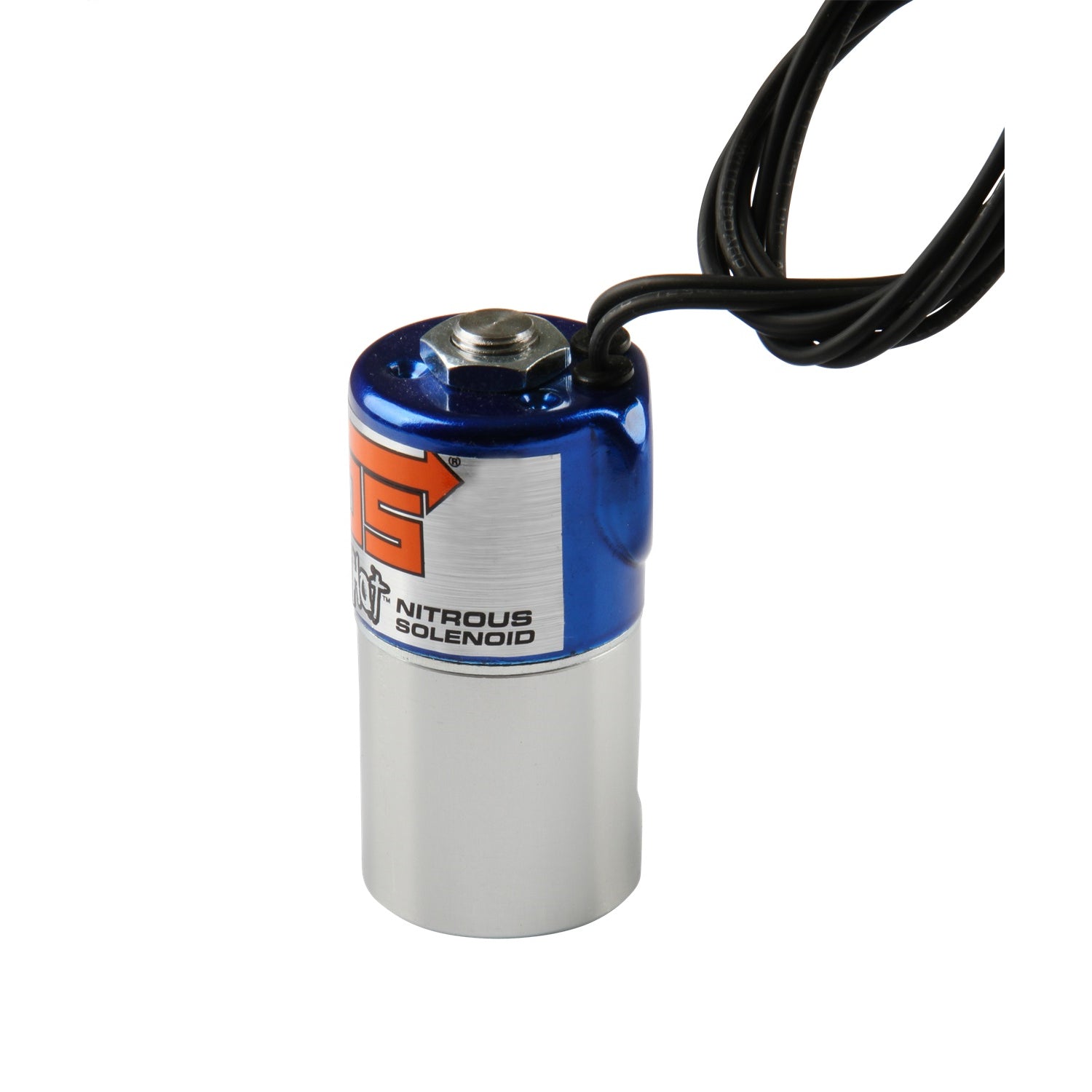

Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot (TM) nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot (TM) is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot (TM) nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids.
Specifications:
| Description_ASC |
NOTE: This solenoid is recommended for non-progressive nitrous applications that require absolute maximum solenoid flow, as well as installations that are trying to reduce overall electrical current. |
| Description_DEF |
Nitrous Oxide Solenoid |
| Description_DES |
NOS Nitrous Solenoid - Blue |
| Description_FAB |
Easiest way to add power to any engine |
| Description_FAB |
Features .250" orifice providing maximum flow for extreme applications |
| Description_FAB |
Blue powder coated housing with a clear anodized aluminum base |
| Description_FAB |
Makes installation easier on multi-stage systems |
| Description_FAB |
Pressure balanced design reduces power draw |
| Description_FAB |
Requires only 4-6 amps during operaton |
| Description_FAB |

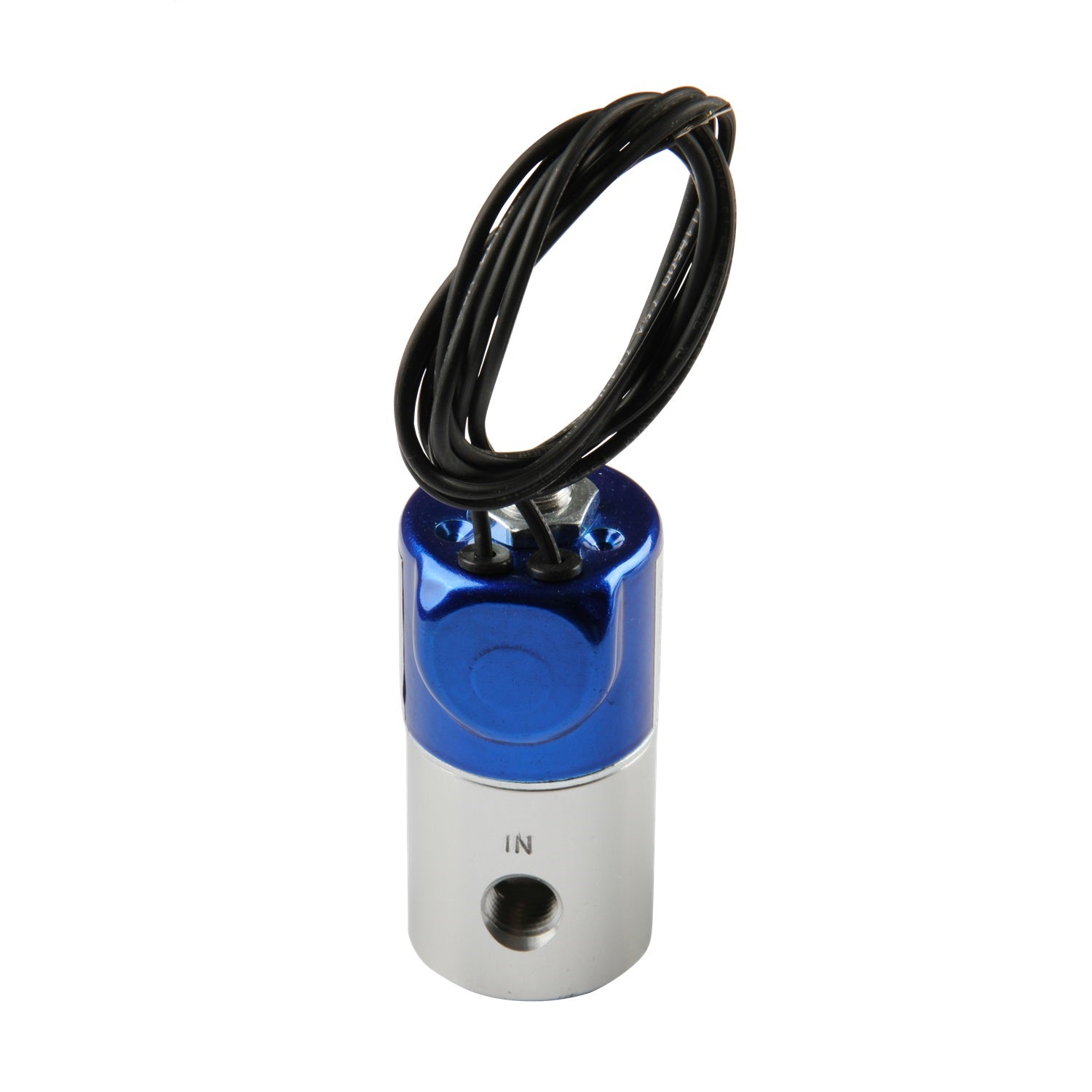

1/4" NPT side inlet |
| Description_FAB |
1/4" NPT bottom outlet |
| Description_FAB |
Cannot be use with a progressive controller |
| Description_INV |
PRO-BIGSHOT SOLENOID N2O |
| Description_EXT |
Pro-BigShot Solenoid; Up To 1200 PSI; 4-6 Amp Draw; 1/4 in. NPT Inlet And Outlet; |
| Description_SHO |
Fuel/N2OSolenoid |
| Description_MKT |
Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot (TM) nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot (TM) is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot (TM) nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids. |
| Clearance Category |
Nitrous |
| Outlet Size |
0.250 in. NPT |
| Amperage Draw |
4 to 6 |
| Solenoid Top Cover Color |
Blue |
| Orifice Diameter |
1/4 (0.250 in.) |
| Brand |
NOS |
| Emission Code |
4, 5 |
| Inlet |
Side |
| Inlet Attachment |
Female Threads |
| Orifice |
1/4" (0.250") |
| Sale Category |
Nitrous |
| WARNING CA Proposition 65 |
No |
| Maximum PSI |
1200 |
| AMP DRAW |
4 to 6A |
| Bracket(s) Included |
No |
| Color |
Blue |
| Discount Percentage |
26-50% |
| Finish |
Natural |
| Fittings Included |
No |
| Inlet Thread |
1/4" NPT |
| Max Pressure |
1200 PSI |
| Outlet |
Bottom |
| Outlet Thread |
1/4" NPT |
| Product Type |
Nitrous Solenoid |
| Inlet Size |
0.250 in. NPT |
| Material |
Stainless Steel |
| Outlet Attachment |
Female Threads |
| Product Line |
Pro Bigshot |
| Purge Port |
None |
| Length |
2.3000 |
| Width |
3.0000 |
| Height |
5.7000 |
| Weight |
0.9250 |
