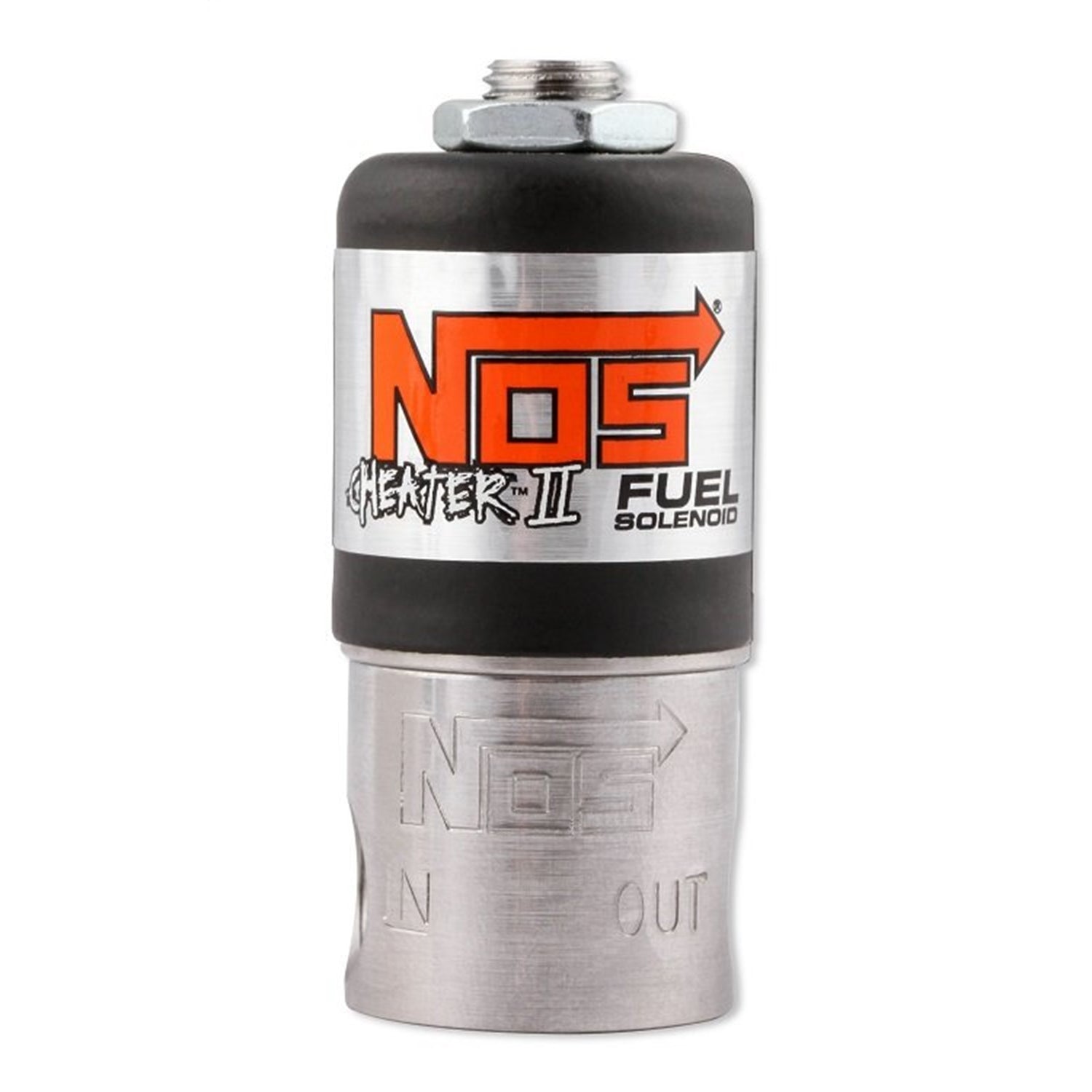

The Cheater II fuel solenoid is the evolution of the tried and true, large body, NOS Cheater fuel solenoid. With the same fuel flow capabilities and power potential as the 18050NOS, large body solenoid, but in a much smaller, lighter package. The Cheater II is available with a red or black powder coated housing, large orifice size and FKM plunger material for durability. All NOS solenoids feature stainless steel bases with the NOS logo so you know it is a quality NOS solenoid.
Specifications:
| Description_ASC |
Use only PTFE paste to seal fittings. Do not use PTFE tape as it can dislodge and damage the solenoid. |
| Description_DEF |
Nitrous Oxide Solenoid |
| Description_DES |
NOS Fuel Solenoid - Black |
| Description_EXT |
Cheater Fuel Solenoid; 400 HP Max; 2.7 Amp Draw; 1/8 in. NPT Inlet/Outlet; Small Coil; Black; |
| Description_INV |
LTS CHEATER SOLENOID FUEL (SMALL COIL),B |
| Description_FAB |
Cheater Fuel Solenoid, Small Body with Black Cover |
| Description_FAB |
Inlet Size - 1/8" NPT |
| Description_FAB |
Outlet Size - 1/8" NPT |
| Description_FAB |
Outlet Location - side |
| Description_FAB |
Orifice - 5/32" (0.156") |
| Description_FAB |
Plunger - Fluorocarbon (FKM) Rubber |
| Description_FAB |
Current Draw @12VDC - 2.7 amps |
| Description_MKT |
The Cheater II fuel solenoid is the evolution of the tried and true, large body, NOS Cheater fuel solenoid. With the same fuel flow capabilities and power potential as the 18050NOS, large body solenoid, but in a much smaller, lighter package. The Cheater II is available with a red or black powder coated housing, large orifice size and FKM plunger material for durability. All NOS solenoids feature stainless steel bases with the NOS logo so you know it is a quality NOS solenoid. |
| Description_SHO |
Fuel/N2OSolenoid |
| Product Type |
Fuel Solenoid |
| Plunger Material |
Fluorocarbon Rubber (FKM) |
| Color |
Black |
| Emission Code |
4 |
| Inlet Thread |
1/8" NPT |
| Outlet |
Side |
| Outlet Thread |
1/8" NPT |
| Amperage Draw |
2.7 |
| WARNING CA Proposition 65 |
No |
| AMP DRAW |
2.7A |
| Bracket(s) Included |
No |
| Finish |
Natural |
| Fittings Included |
No |
| Product Line |
Cheater |
| Purge Port |
None |
| Maximum Horsepower |
400 |
| Inlet Size |
0.125 in. NPT |
| Orifice Diameter |
5/32 (0.156 in.) |
| Outlet Size |
0.125 in. NPT |
| Brand |
NOS |
| Inlet |
Side |
| Inlet Attachment |
Female Threads |
| Max Horsepower |
400 |
| Orifice |
5/32" (0.156) |
| Outlet Attachment |
Female Threads |
| Solenoid Top Cover Color |
Black |
| Clearance Category |
Nitrous |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
4.0000 |
