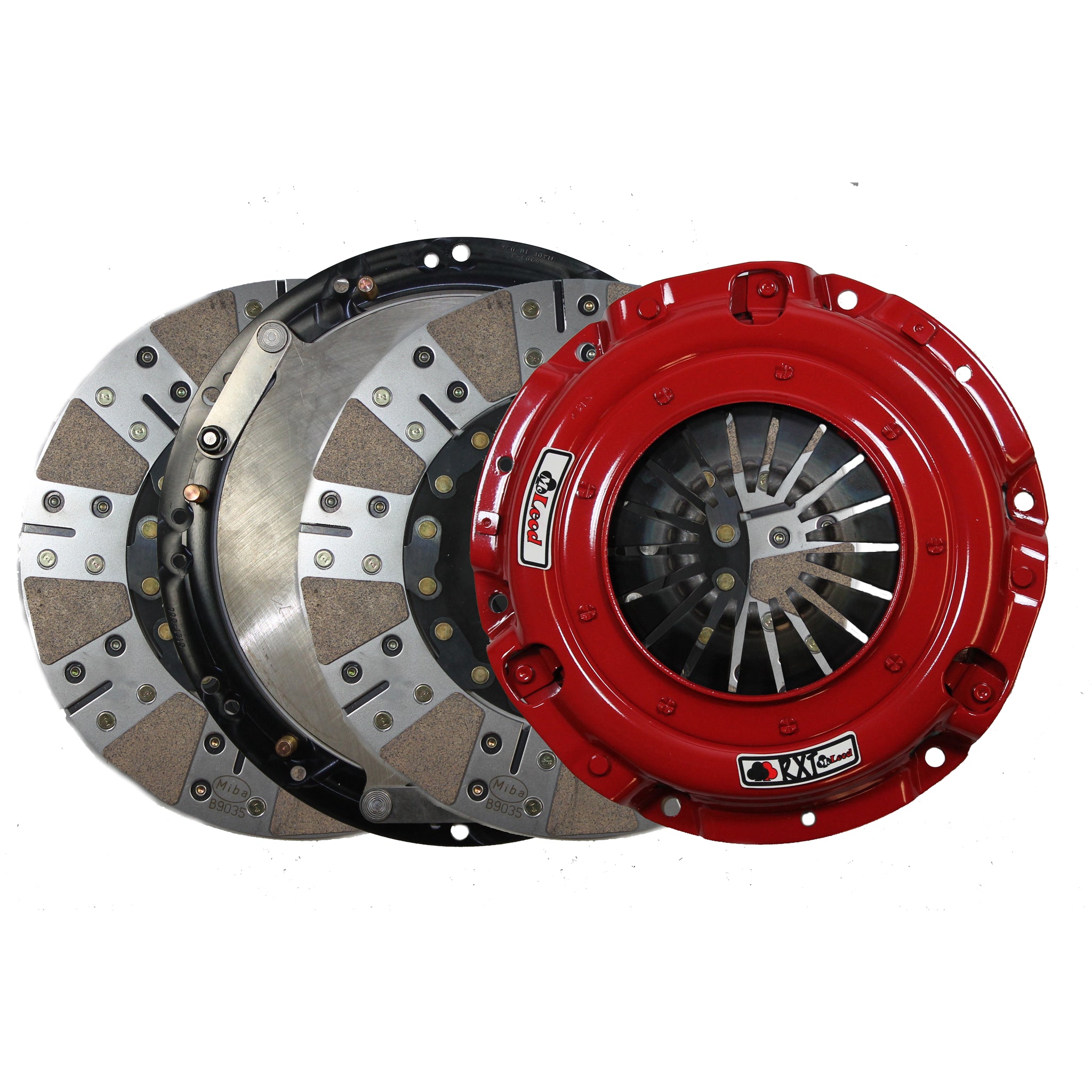

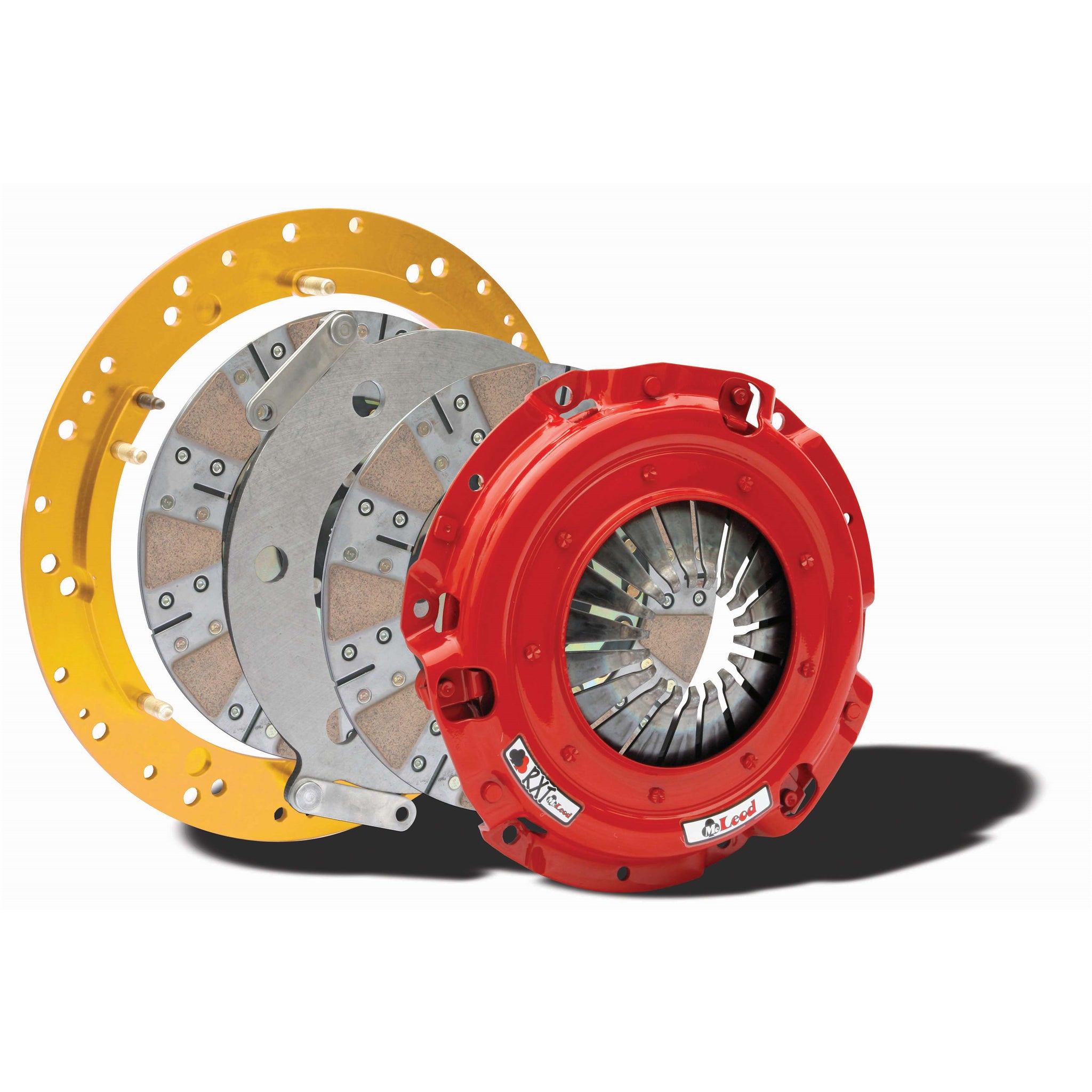

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars
Specifications:
| Description_ASC |
NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact. |
| Description_ASM |
Ford: Mustang 11 - 17 5 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT:9.687" Dia. Disc:2011-17 Ford Mustang 5.0L:1x23 Metric |
| Description_EXT |
RXT:9.687" Dia. Disc:2011-17 Ford Mustang 5.0L:1x23 Metric |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_INV |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars |
| Description_SHO |
Clutch Kit |
| NOTE: |
This clutch will not bolt up to the OEM flywheel with factory 9 bolt pressure plate pattern. Please call McLeod Tech for recommendation (714) 630-2764. |
| Disc Diameter |
9-11/16In. |
| Pressure Plate Style |
Diaphragm |
| Flywheel Included |
No |
| Make |
Ford |
| Pilot Bushing Material |
N/A |
| Spline |
1In. x 23 Metric |
| Clutch Usage |
Street/Track |
| Horsepower Rating |
1000 |
| Disc Style |
Full Face/Multi Pad |
| Clutch Patterns |
11In. Mustang with Dowel Pin Holes 2000 and up |
| NOTE 2: |
This clutch will not fit on flywheels with crank relief larger than 6.250In. in diameter. Please call McLeod Tech for recommendation (714) 630-2764 |
| Alignment Tool Included |
Yes |
| Number of Discs |
Double |
| Disc Material |
Ceramic |
| Hub Style |
Solid |
| Throwout Bearing Included |
No |
| Throwout Bearing Style |
Standard |
| Engine |
2011-2017 5.0L Coyote |
| Stock Disc Size |
11In. |
| Pilot Bushing Included |
No |
| Hardware Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
23.0000 |
