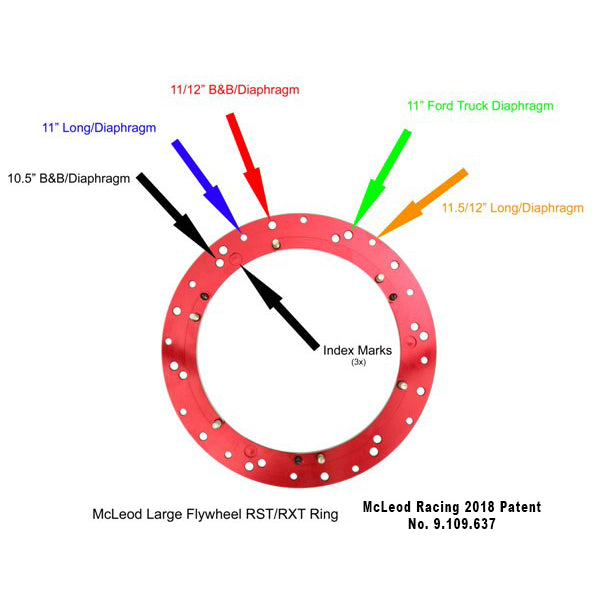

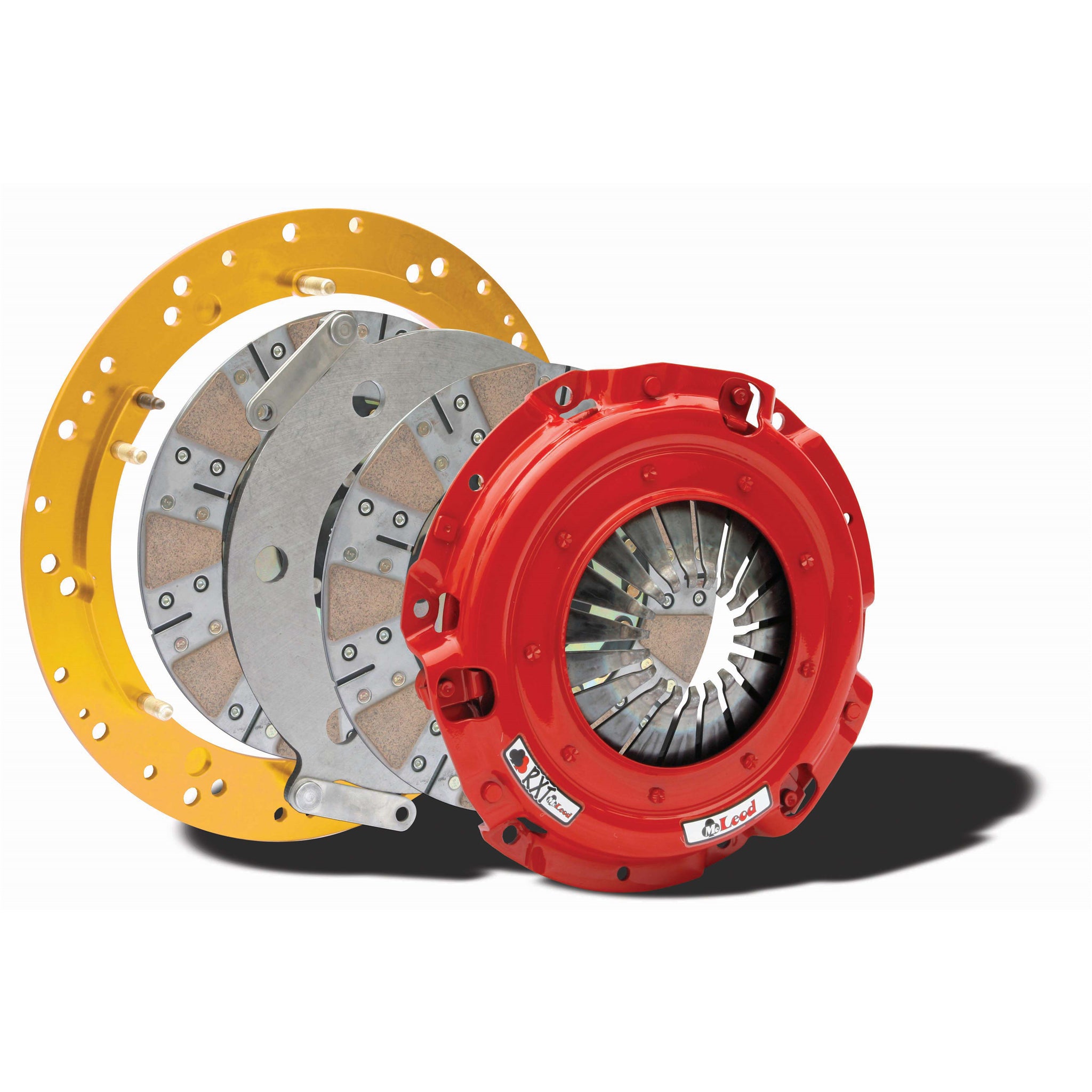

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars
Specifications:
| Description_ASM |
Ford: Custom 64 - 72 7 L Engine, Ford: Falcon 70 - 70 7 L Engine, Mercury: Cyclone 64 - 71 7 L Engine, Ford: Galaxie 64 - 67 7 L Engine, Mercury: Marauder 69 - 70 7 L Engine, Ford: Ranchero 68 - 71 7 L Engine, Ford: Torino 68 - 73 7 L Engine, Ford: Fairlane 64 - 69 7 L Engine, Mercury: Commuter 65 - 68 7 L Engine, Mercury: Monterey 64 - 73 7 L Engine, Mercury: Marquis 67 - 71 7 L Engine, Mercury: Park Lane 64 - 68 7 L Engine, Ford: Custom 500 73 - 73 7 L Engine, Mercury: Cougar 68 - 71 7 L Engine, Ford: GT40 66 - 69 7 L Engine, Ford: LTD 66 - 73 7 L Engine, Mercury: Comet 64 - 69 7 L Engine, Ford: Galaxie 500 68 - 73 7 L Engine, Mercury: Montclair 64 - 68 7 L Engine, Mercury: Montego 68 - 73 7 L Engine, Ford: Mustang 68 - 71 7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT:9.687" Dia. Disc:For use with Large Diameter Flywheel:1-3/8x10 |
| Description_EXT |
RXT:9.687" Dia. Disc:For use with Large Diameter Flywheel:1-3/8x10:Must use with internal hydraulic bearing. |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars |
| Description_SHO |
Clutch Kit |
| Clutch Patterns |
11In./12In. Borg & Beck |
| Spline |
1-3/8 x 10 |
| Torque Rating |
800 Ft. Lbs. |
| Alignment Tool Included |
Yes |
| NOTE: |
This application require a 1300 Series Bolt on style bearing to work properly. Please Call McLeod Tech for more info at 714 630 2764 |
| Pressure Plate Style |
Diaphragm |
| Number of Discs |
Double |
| Throwout Bearing Style |
Hydraulic Only |
| Clutch Usage |
Street |
| Disc Style |
Full Face |
| Hardware Included |
No |
| Engine |
All |
| Clutch Patterns 2 |
11In. Ford Long |
| Disc Material |
Organic |
| Engine Balance |
Neutral |
| Ring Gear |
N/A |
| Additional Counter Weight Kit Required |
No |
| Hub Style |
Solid |
| Flywheel Material |
N/A |
| Flywheel Included |
No |
| Clutch Patterns 4 |
11In. Ford Truck |
| Disc Diameter |
9.687In. |
| Pilot Bushing Material |
N/A |
| Pilot Bushing Included |
No |
| Throwout Bearing Included |
No |
| Make |
Ford |
| Clutch Patterns 3 |
11.5In./12In. Ford Long |
| Length |
5.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
26.0000 |
