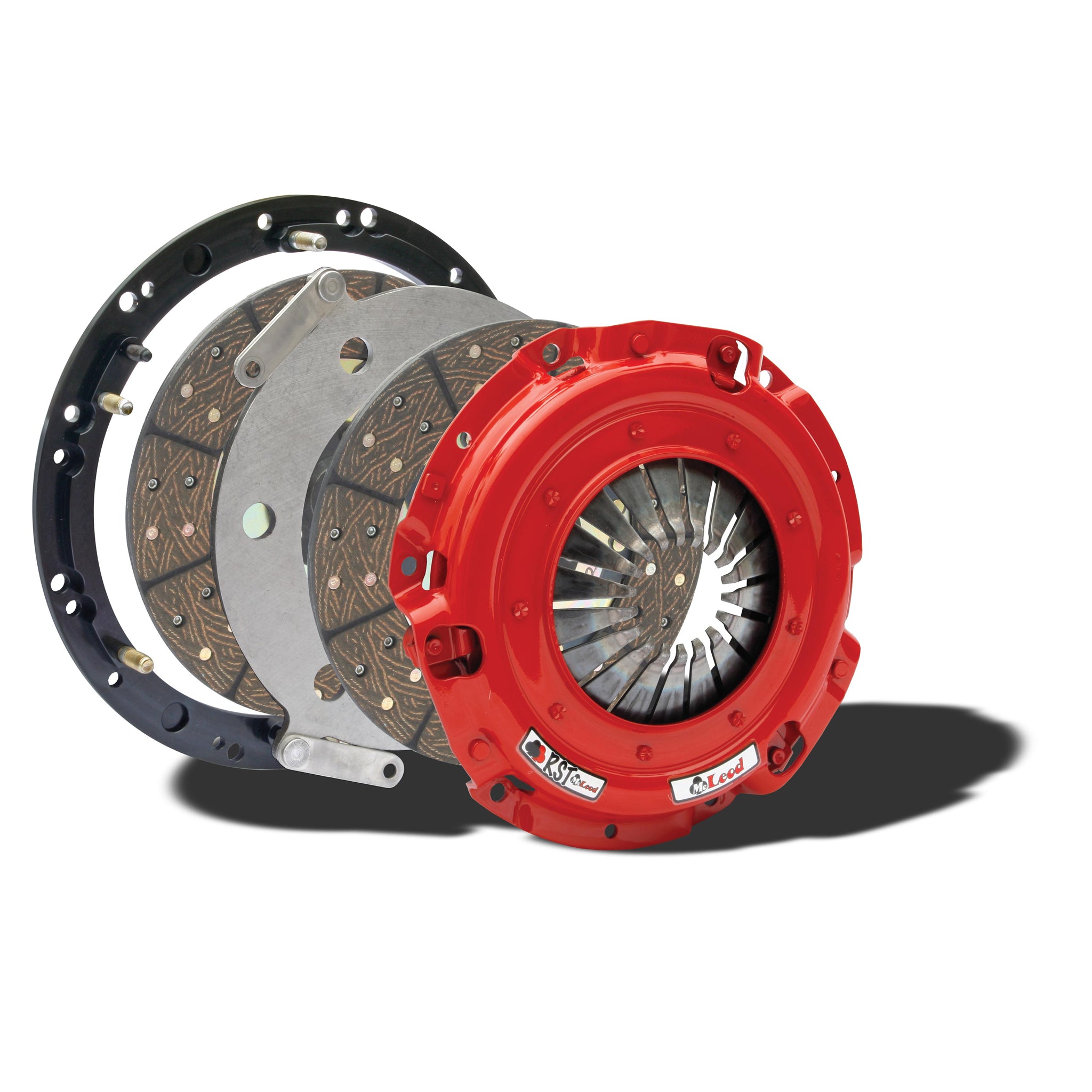

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASM |
Chevrolet: Camaro 10 - 15 6.2 L Engine, Ford: Mustang 11 - 17 5 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Camaro 14 - 15 7 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Ford: Mustang 01 - 10 4.6 L Engine, Pontiac: GTO 05 - 06 6 L Engine, Chevrolet: Camaro 98 - 02 5.7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RST:9.687" Dia. Disc:Chevy:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/8x26 |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_EXT |
RST:9.687" Dia. Disc:Chevy:1997-13 LS-X:2001-17 Ford 4.6/5.0L:1-1/8x26 |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Throwout Bearing Style |
Standard |
| Disc Material |
Organic |
| Number of Discs |
Double |
| Spline |
1 1/8In. x 26 |
| Alignment Tool Included |
Yes |
| Pressure Plate Style |
Diaphragm |
| Pilot Bushing Included |
No |
| Clutch Patterns |
11In. Mustang with Dowel Pin Holes 2000 and up |
| Horsepower Rating |
800 |
| Clutch Usage |
Street |
| Disc Style |
Solid Hub |
| Hub Style |
Solid |
| Pilot Bushing Material |
N/A |
| Flywheel Fitment |
Fits 164 Tooth Flywheel |
| Make |
Chevrolet |
| Throwout Bearing Included |
No |
| Disc Diameter |
9-11/16In. |
| Hardware Included |
Yes |
| Flywheel Included |
No |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
23.0000 |
