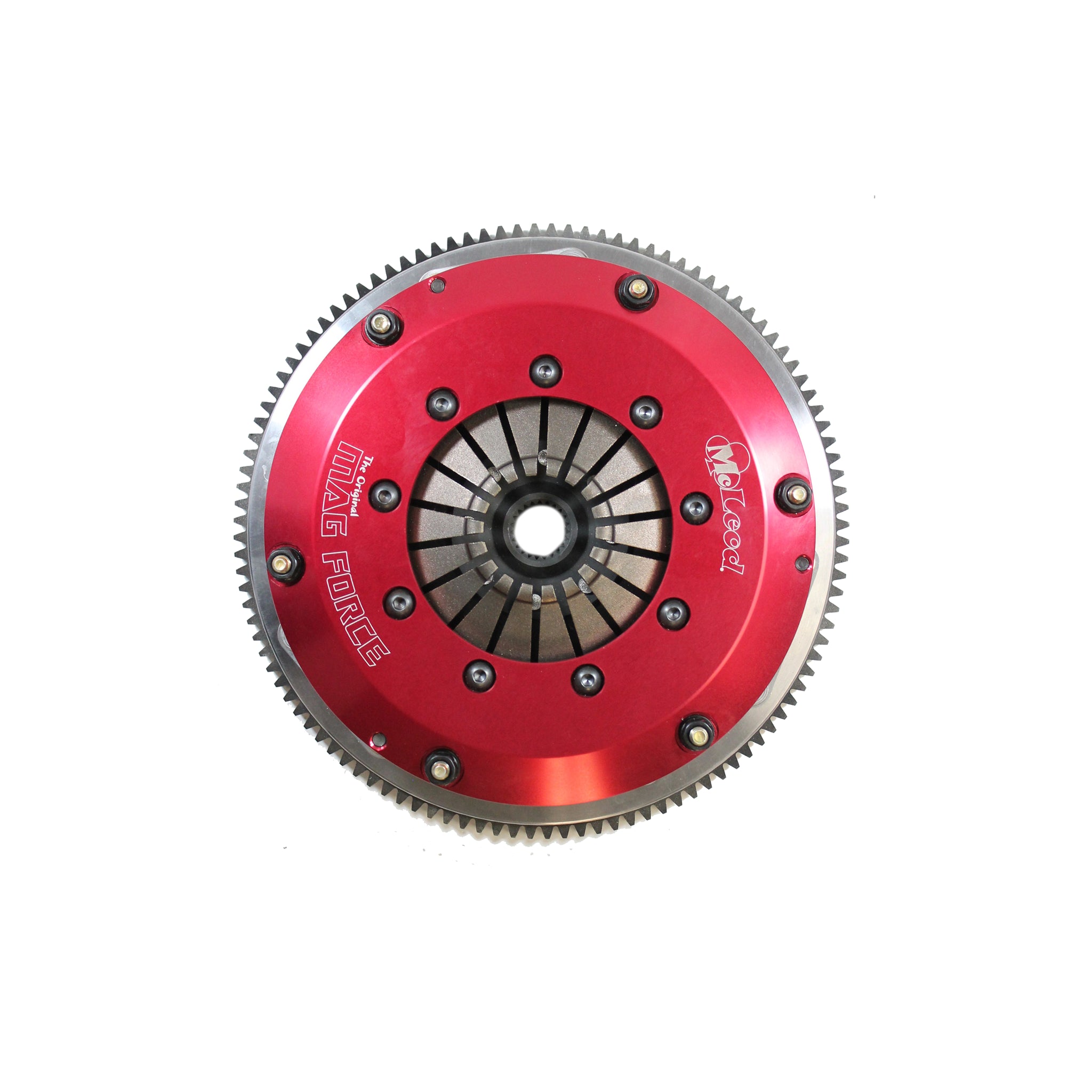

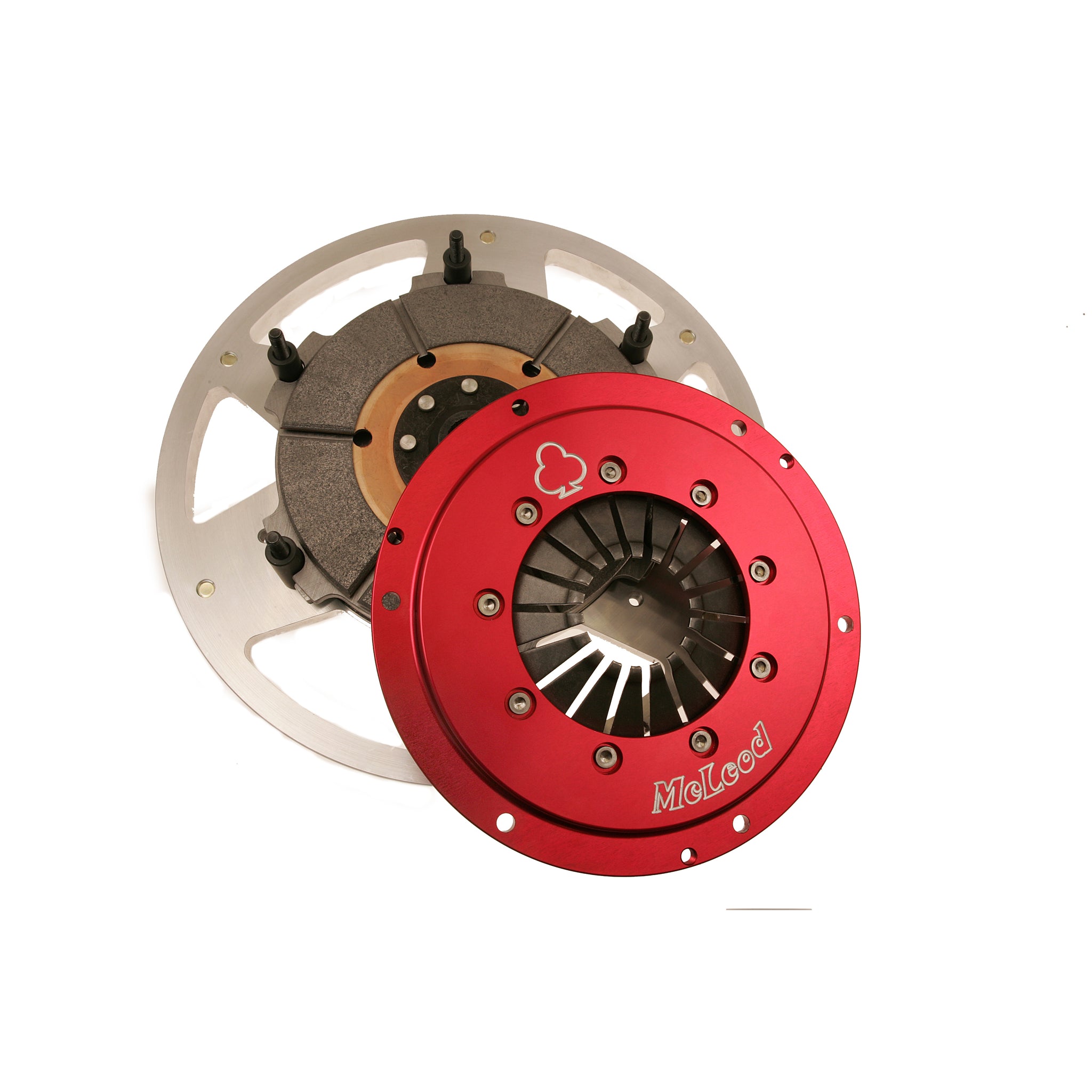

McLeod Racing 653002-00-07 Mag Force: Double Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x26: 153T

Name: McLeod Racing 653002-00-07 Mag Force: Double Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x26: 153T
Brand: McLeod Racing
Price: 1894.69 CAD
Availability: OutOfStock

2 sold in last 8 hours

$1,894.69

Guaranteed Fitment

Always the correct part

Added Value

Performance matched parts

In-House Experts

We know our products

Nationwide Delivery

Economy shipping

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

Specifications:

Description_ASM	Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine, Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine, Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine, Chevrolet: Chevelle 68 - 72 5 L Engine, Chevrolet: Chevelle 64 - 67 5.3 L Engine, Chevrolet: Chevelle 70 - 72 5.7 L Engine, Chevrolet: Chevelle 65 - 67 6.5 L Engine, Chevrolet: Chevelle 70 - 72 6.6 L Engine, Chevrolet: Chevelle 70 - 72 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II...
Description_DEF	Transmission Clutch Kit
Description_EXT	Mag Force: Double Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x26: 153T
Description_DES	Mag Force: Double Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x26: 153T
Description_INV	Clutch Kit
Description_FAB	The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
Description_MKT	Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Description_SHO	Clutch Kit
Disc Diameter	8In.
Engine Balance	Neutral
Make	Chevrolet
Flywheel Material	Aluminum
Engine	1955-85 SBC,1970-90 BBC; 1991-1999 BBC 1pc Seal
Ring Gear	153T
Hardware Included	Yes
Throwout Bearing Included	No
Flywheel Included	Yes
Pilot Bushing Material	N/A
Pilot Bushing Included	No
Clutch Usage	Drifting,Land Speed, Road Race
Additional Counter Weight Kit Required	560222
Spline	1-1/8 x 26
Disc Material	Sintered Iron
Number of Discs	Double
Disc Style	Segmented
Alignment Tool Included	Yes
Pressure Plate Style	Diaphragm
Throwout Bearing Style	Standard
Clutch Patterns	Proprietery McLeod Mag Force
Hub Style	Solid
Torque Rating	900 Ft. Lbs.
Length	6.0000
Width	17.0000
Height	16.0000
Weight	21.0000
