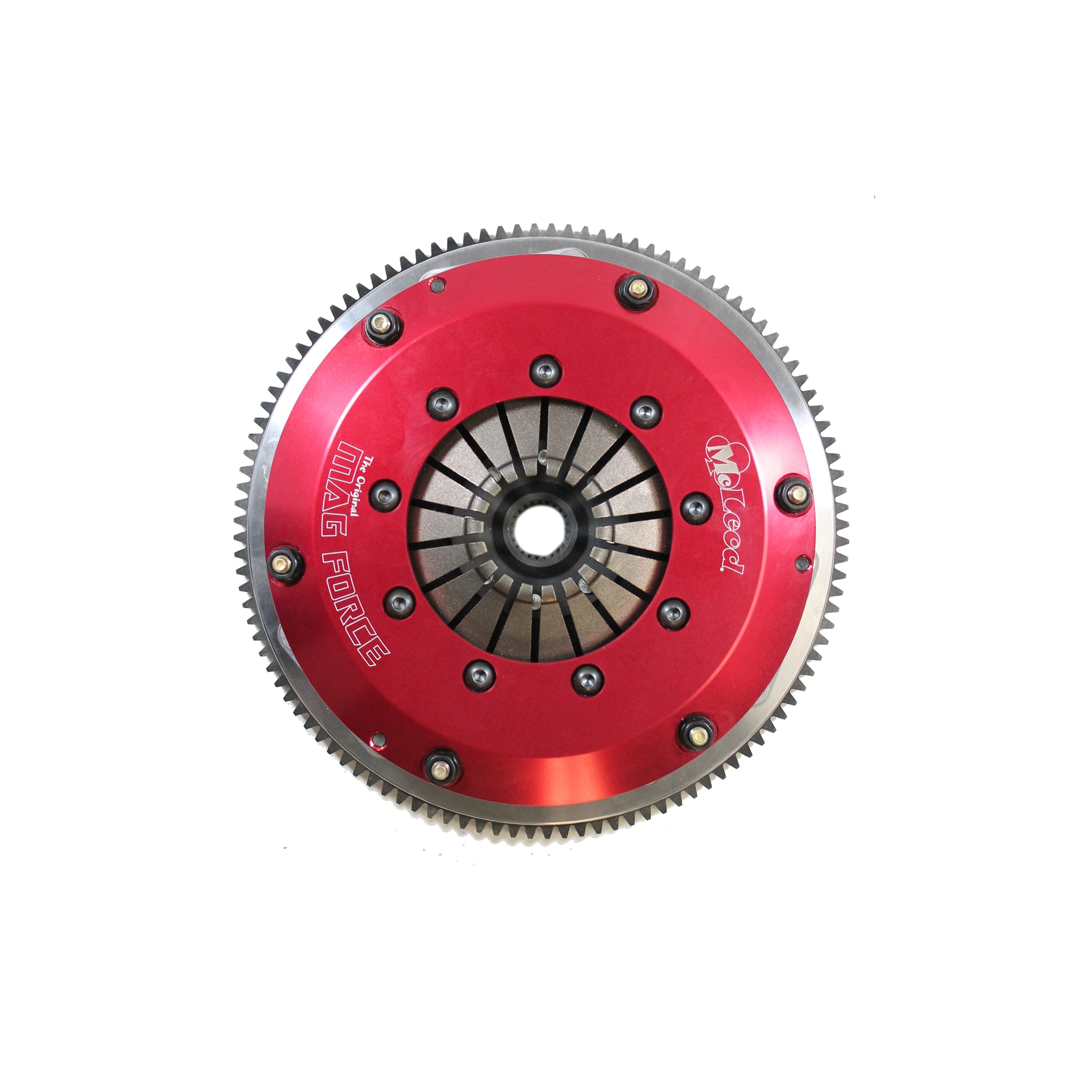

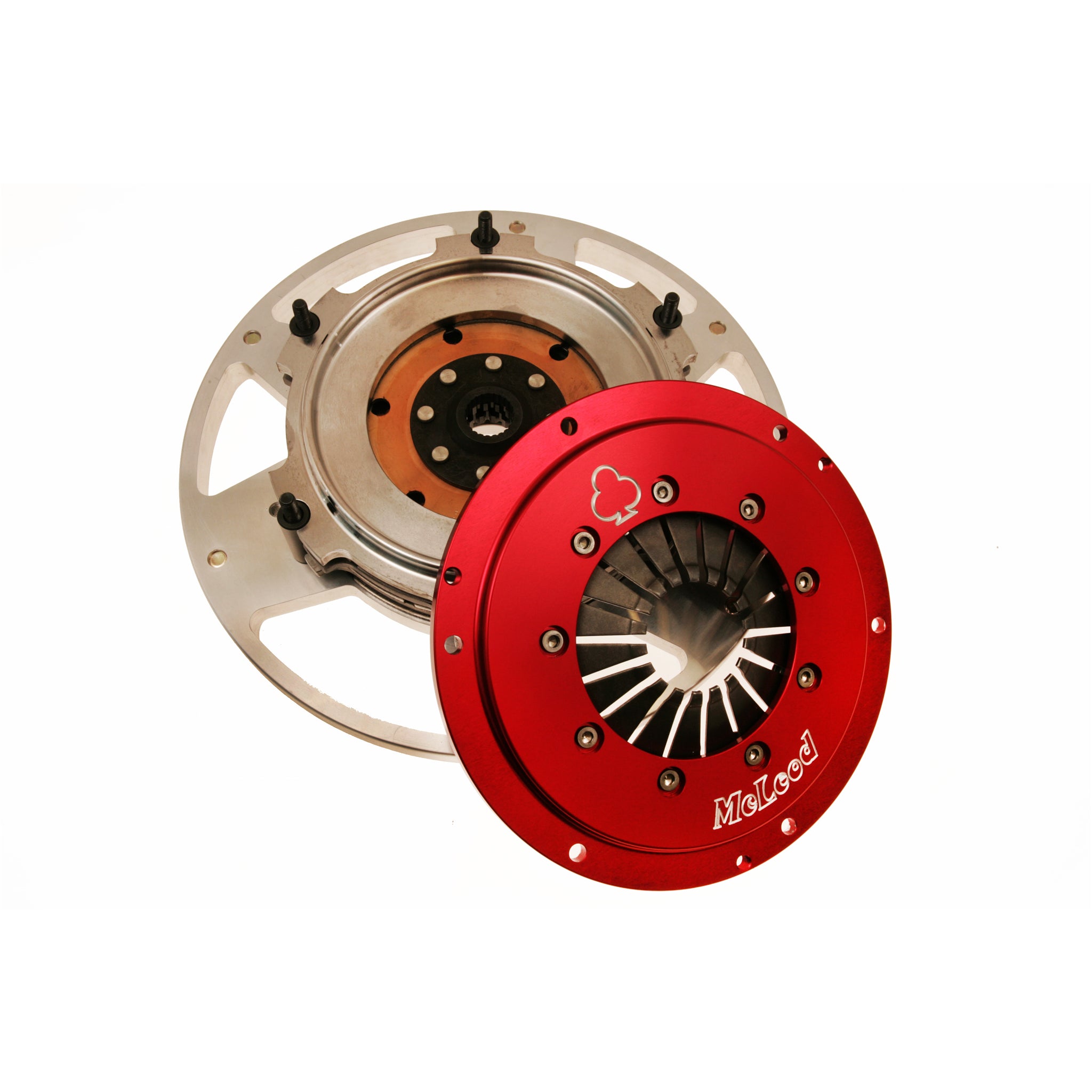

McLeod Racing's 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track.
Specifications:
| Description_ASM |
Chevrolet: Blazer 87 - 87 5 L Engine, Chevrolet: Blazer 87 - 92 5.7 L Engine, Chevrolet: C10 86 - 86 5 L Engine, Chevrolet: C10 86 - 86 5.7 L Engine, Chevrolet: C1500 88 - 92 5 L Engine, Chevrolet: C1500 88 - 92 5.7 L Engine, Chevrolet: C20 86 - 86 5 L Engine, Chevrolet: C20 86 - 87 5.7 L Engine, Chevrolet: C2500 88 - 92 5 L Engine, Chevrolet: C2500 88 - 92 5.7 L Engine, Chevrolet: C30 86 - 86 5.7 L Engine, Chevrolet: C35 86 - 92 5.7 L Engine, Chevrolet: C3500 88 - 92 5.7 L Engine, Chevrolet: Camaro 86 - 92 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine, Chevrolet: Corvette 86 - 92 5.7 L Engine, Chevrolet: G10 86 - 90 5 L Engine, Chevrolet: G10 86 - 90 5.7 L Engine, Chevrolet: G20 86 - 90 5 L Engine, Chevrolet: G20 86 - 90 5.7 L Engine, Chevrolet: G30 86 - 90 5.7 L Engine, Chevrolet: K10 86 - 86 5 L Engine, Chevrolet: K10 86 - 86 5.7 L Engine, Chevrolet: K1500 88 - 92 5 L Engine, Chevrolet: K1500 88 - 92 5.7 L Engine, Chevrolet: K20 86 - 86 5.7 L Engine, Chevrolet: K2500 88 - 92 5 L Engine, Chevrolet: K2500 88 - 92 5.7 L Engine, Chevrolet: K30 86 - 86 5.7 L Engine, Chevrolet: K3500 88 - 92 5.7 L Engine, Chevrolet: K5 Blazer 86 - 86 5 L Engine, Chevrolet: K5 Blazer 86 - 86 5.7 L Engine, Chevrolet: P20 86 - 89 5.7 L Engine, Chevrolet: P30 86 - 92 5.7 L Engine, Chevrolet: R10 87 - 87 5 L Engine, Chevrolet: R10 87 - 87 5.7 L Engine, Chevrolet: R20 87 - 88 5 L Engine, Chevrolet: R20 87 - 88 5.7 L Engine, Chevrolet: R20 Suburban 87 - 88 5.7 L Engine, Chevrolet: R2500 89 - 89 5.7 L Engine, Chevrolet: R30 87 - 88 5.7 L Engine, Chevrolet: R3500 89 - 91 5.7 L Engine, Chevrolet: Suburban 87 - 92 5.7 L Engine, Chevrolet: V10 87 - 87 5 L Engine, Chevrolet: V10 87 - 87 5.7 L Engine, Chevrolet: V10 Suburban 87 - 88 5.7 L Engine, Chevrolet: V1500 Suburban 89 - 90 5.7 L Engine, Chevrolet: V20 87 - 87 5.7 L Engine, Chevrolet: V20 Suburban 87 - 88 5.7 L Engine, Chevrolet: V30 87 - 88 5.7 L Engine, Chevrolet: V3500 89 - 91 5.7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag ForceSE: Double Disc: Pin Drive: Chevrolet: 1986-92 SBC: 1-1/8x26: 168T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag ForceSE: Double Disc: Pin Drive: Chevrolet: 1986-92 SBC: 1-1/8x26: 168T: Ceramic Discs |
| Description_MKT |
McLeod Racing's 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track. |
| Description_SHO |
Clutch Kit |
| Engine Balance |
Internal Balance |
| Disc Material |
Ceramic Puck |
| Engine |
1986-99 SBC 1pc Seal |
| Ring Gear |
153 tooth |
| Racing Application 2 |
Drifting |
| Pilot Bushing Included |
No |
| Throwout Bearing Style |
Standard |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Flywheel Material |
Aluminum |
| Number of Discs |
Double |
| Racing Application |
Road Race & Slalom Racing |
| Disc Diameter |
8In. |
| Flywheel Included |
Yes |
| Hardware Included |
Yes |
| Make |
Chevrolet |
| Disc Style |
Segmented |
| Pilot Bushing Material |
N/A |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Spline |
1 1/8In. x 26 |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
25.0000 |
