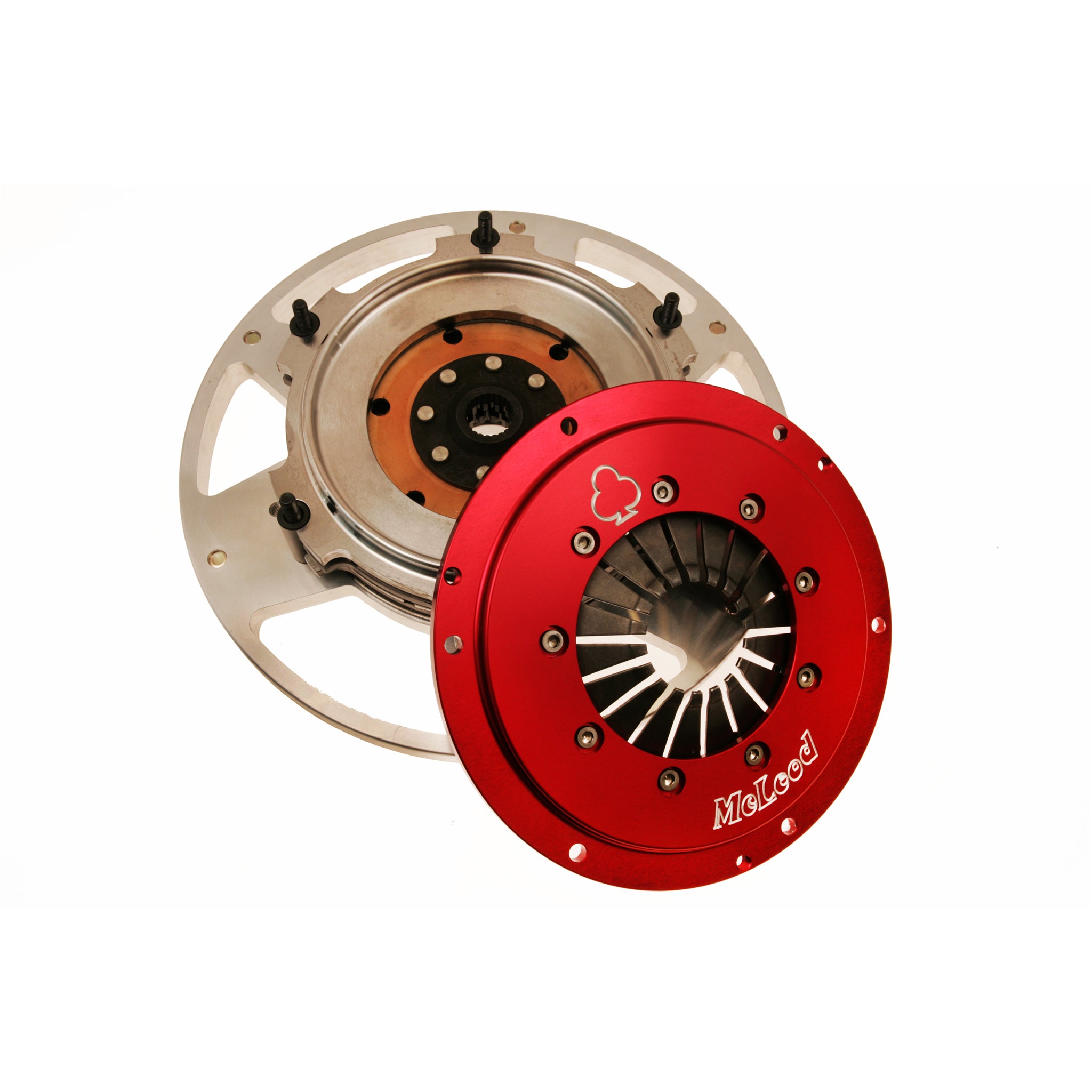

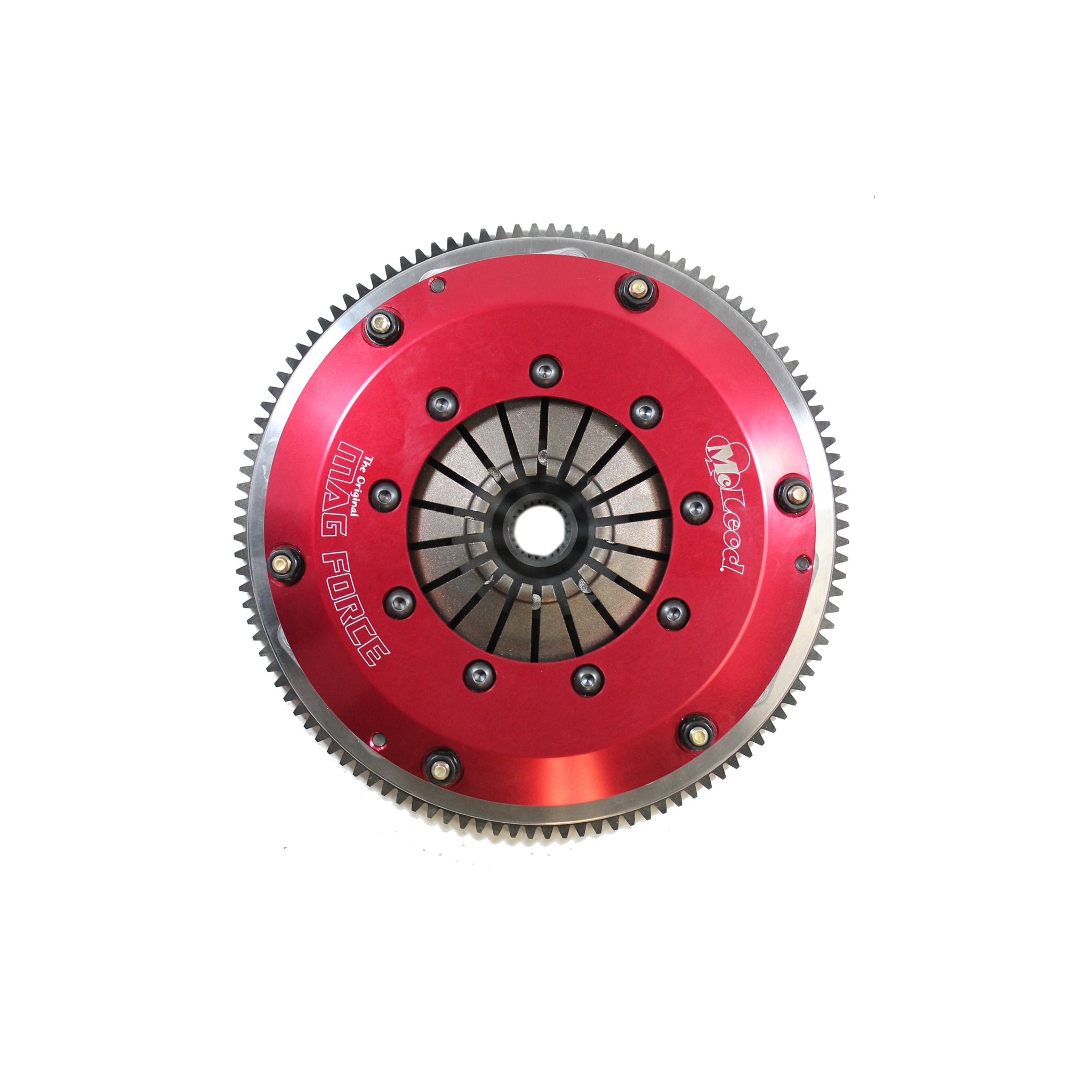

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine, Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine, Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine, Chevrolet: Chevelle 68 - 72 5 L Engine, Chevrolet: Chevelle 64 - 67 5.3 L Engine, Chevrolet: Chevelle 70 - 72 5.7 L Engine, Chevrolet: Chevelle 65 - 67 6.5 L Engine, Chevrolet: Chevelle 70 - 72 6.6 L Engine, Chevrolet: Chevelle 70 - 72 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II... |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Double Disc: Pin Drive: Chevrolet: 1955-85 SBC: 1-3/8x10: 168T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Double Disc: Pin Drive: Chevrolet: 1955-85 SBC: 1-3/8x10: 168T: Must use with internal hydraulic bearing |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Pilot Bushing Included |
No |
| Throwout Bearing Style |
Standard |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Alignment Tool Included |
Yes |
| Number of Discs |
Double |
| NOTE: |
This application require a 1300 Series Bolt on style bearing to work properly. Please Call McLeod Tech for more info at 714 630 2764 |
| Spline |
1-3/8 x 10 |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Engine |
1955-85 SBC 2pc Seal |
| Disc Material |
Sintered Iron |
| Ring Gear |
168 Tooth |
| Engine 3 |
1991-1999 BBC 1pc Seal |
| Engine Balance |
Internal Balance |
| Disc Diameter |
8In. |
| Hardware Included |
Yes |
| Disc Style |
Segmented |
| Racing Application |
Road Race & Slalom Racing |
| Engine 2 |
1970-1990 BBC |
| Racing Application 2 |
Drifting |
| Flywheel Included |
Yes |
| Flywheel Material |
Aluminum |
| Pilot Bushing Material |
N/A |
| Throwout Bearing Included |
No |
| Make |
Chevrolet |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
25.0000 |
