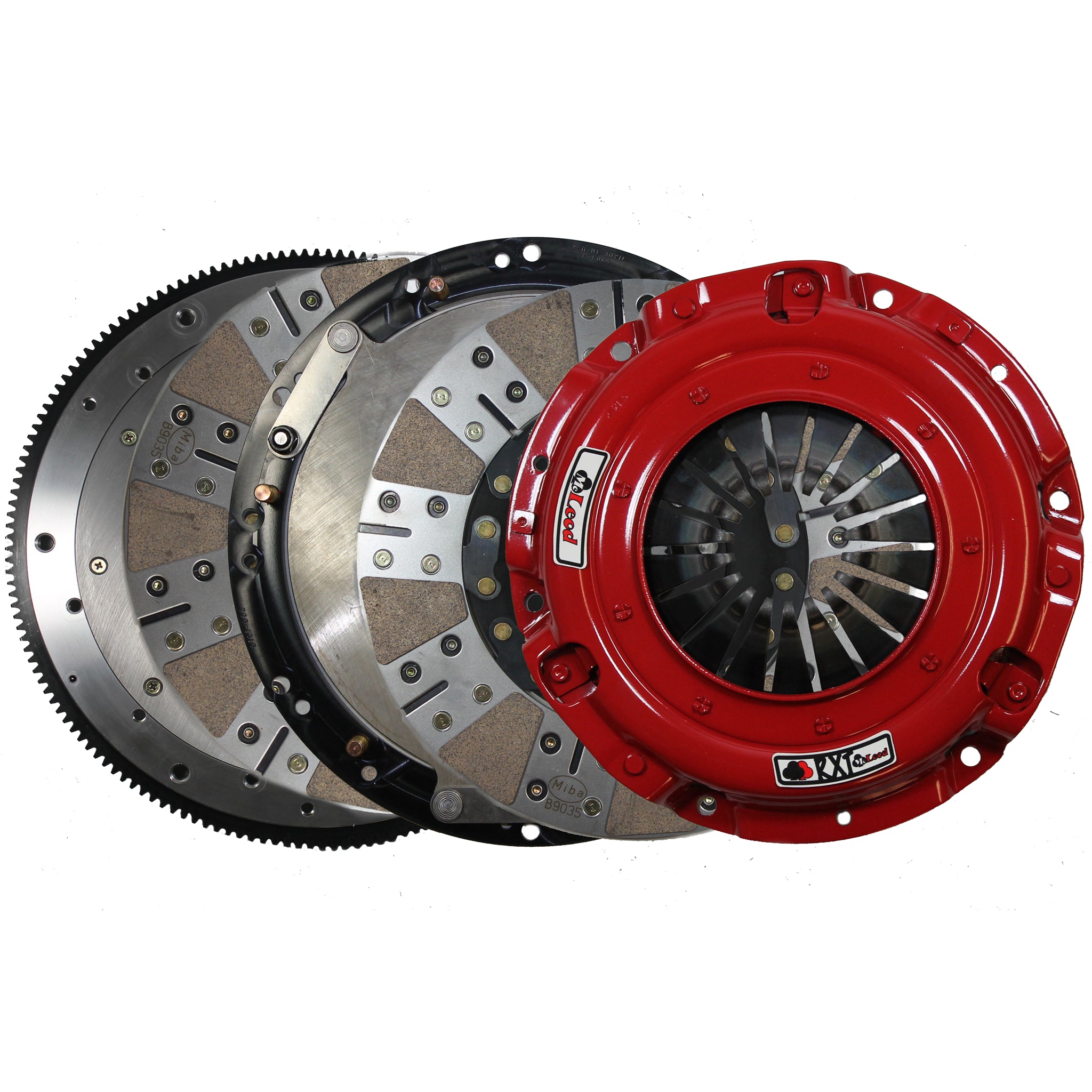

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 09 5.4 L Engine, Ford: Mustang 11 - 17 5 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
RXT: Steel Flywheel: Ford: 1996-17 4.6,5.0L: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_DES |
RXT: Steel Flywheel: Ford: 1996-17 4.6,5.0L: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_SHO |
Clutch Kit |
| Ring Gear Count |
164 |
| Application |
1996-2017 4.6,5.4L Ford Modular with 8 Bolt Crank. 1-1/8 x 26 Spline. |
| Disc Size |
9.687In. |
| Disc Configuration |
Twin |
| Flywheel Included |
Yes |
| Pressure Plate Style |
Diaphragm |
| NOTE: |
Will fit all 1996-2010 Ford Mustang Base Model and GT with the use of a aftermarket 8 bolt crank. Further questions please call McLeod Tech Line at 714-630-2764. |
| Inputshaft Spline |
1-1/8 x 26 |
| Disc Material |
Ceramic |
| Horsepower Rating |
1000 Hp/Tq at the crank. |
| Make |
Ford |
| NOTE 2: |
CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft ΓÇ£boss" can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care. |
| Flywheel Material |
Aluminum |
| Pilot Bearing/Bushing Included |
No |
| Alignment Tool Included |
Yes |
| T.O. Bearing Included |
No |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
55.0000 |
