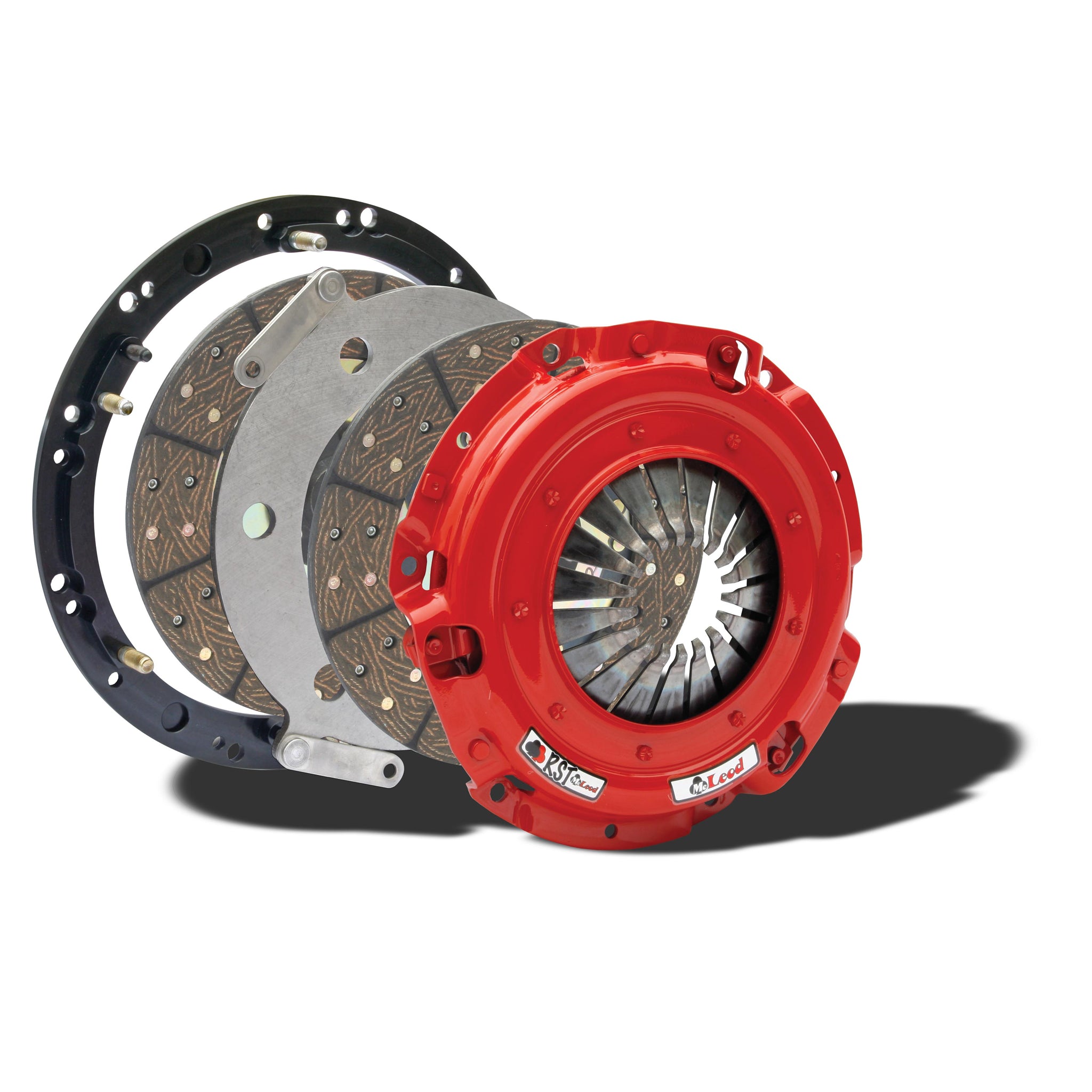

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASC |
Tremec changed the ball stud location on the T-56 Magnums for the Ford application. This ball stud change effects the fork angle and TO bearing clearance, causing a pre-load issue on the fingers of the pressure plate. This clutch kit eliminates this issue by giving the customer more clearance with a shorter crank to finger stack height. This kit is specific to 1996-2004 4.6L/5.0L Mod Motors with 8 bolt cranks and Tremec T-56 Magnums using cable linkage. |
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 00 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
RST: Steel Flywheel: Ford: 1996-04 4.6L: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_DES |
RST: Steel Flywheel: Ford: 1996-04 4.6L: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_MKT |
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_SHO |
Clutch Kit |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Hardware Included |
Yes |
| Make |
Ford |
| Engine |
1996-2004 4.6L/5.0L/5.4L 8 Bolt Crank |
| Flywheel Material |
Steel |
| Disc Diameter |
9.687In. |
| Pilot Bushing Included |
No |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Pilot Bushing Material |
N/A |
| Flywheel Included |
Yes |
| Linkage |
Cable |
| Clutch Usage |
Street |
| NOTE: |
Intended for 1996-2004 Mustang with 8 bolt crank, Cable Linkage and a T-56 Magnum Transmission. Call McLeod Tech for more info at 714-630-2764 |
| Disc Style |
Full Face |
| Transmission |
Tremec T-56 Magnum |
| Number of Discs |
Double |
| Horsepower Rating |
800 |
| Throwout Bearing Style |
Standard |
| Pressure Plate Style |
Diaphragm |
| Disc Material |
Organic |
| Spline |
1 1/8In. x 26 |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
50.0000 |
