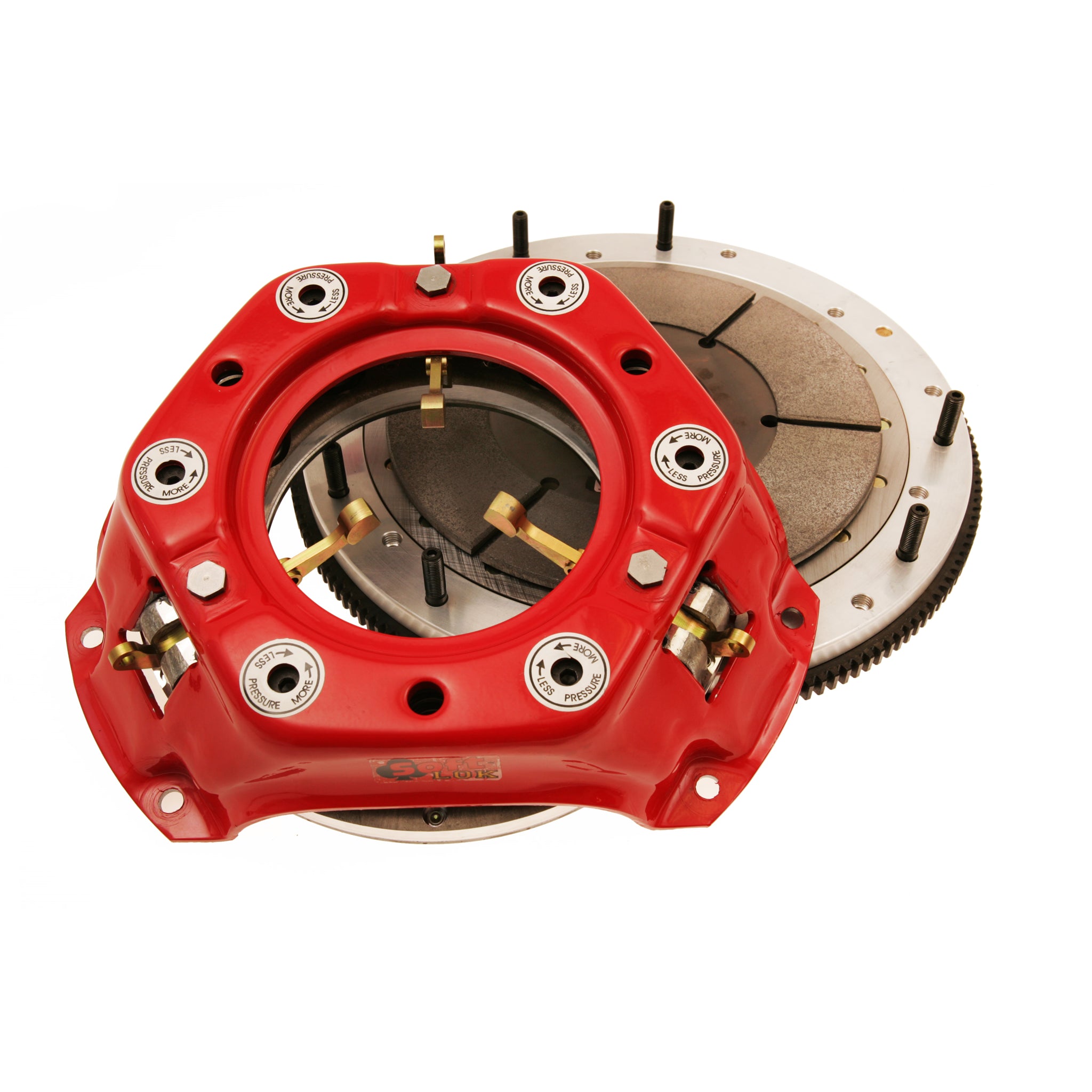

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Ford Fe: 10.5 X 1-3/16 X 18 Spl HCF 184T |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok: Aluminum: Ford Fe: 10.5 X 1-3/16 X 18 Spl HCF 184T |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Make |
Ford |
| Pilot Bushing Material |
N/A |
| Alignment Tool Included |
Yes |
| Spline |
1 3/16In. x 18 |
| Clutch Usage |
Drag Racing |
| Disc Style |
Solid Hub |
| Flywheel Included |
Yes |
| Disc Material |
Sintered Iron |
| Throwout Bearing Style |
Standard Mechanical |
| Engine Balance |
Internal Balance |
| Number of Discs |
Single |
| Hardware Included |
Yes |
| Ring Gear |
184 tooth |
| Hub Style |
Solid |
| Engine |
1969-1978 BBF |
| Disc Diameter |
10.5In. |
| Pilot Bushing Included |
No |
| Racing Application |
Drag Racing |
| Flywheel Material |
Aluminum |
| Throwout Bearing Included |
No |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
