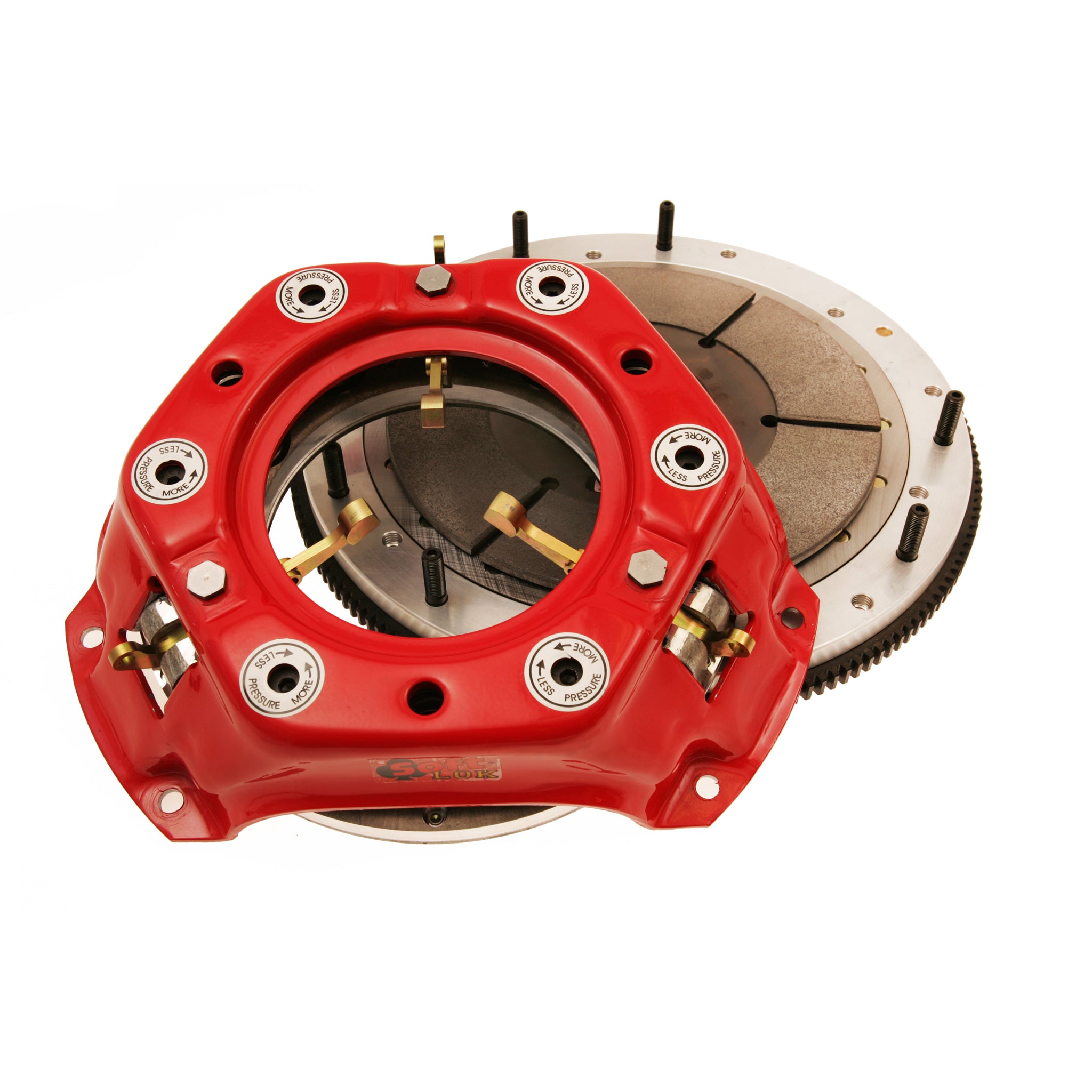

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_ASM |
Dodge: 880 64 - 65 7 L Engine, Dodge: Challenger 70 - 71 7 L Engine, Dodge: Charger 66 - 71 7 L Engine, Dodge: Coronet 65 - 71 7 L Engine, Dodge: Monaco 65 - 65 7 L Engine, Dodge: Polara 64 - 65 7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Mopar: 8 Bolt Crank: 11 X 1 X 23 Spl HCF 143T |
| Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_EXT |
Soft Lok: Aluminum: Mopar: 8 Bolt Crank: 11 X 1 X 23 Spl HCF 143T |
| Description_INV |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Disc Diameter |
11In. |
| Flywheel Material |
Aluminum |
| Racing Application |
Drag Racing |
| Flywheel Included |
Yes |
| Make |
Chrysler |
| Number of Discs |
Single |
| Engine |
1963-1972 Wedge & Hemi |
| Engine Balance |
Internal Balance |
| Hub Style |
Solid |
| Ring Gear |
143 tooth |
| Spline |
1 3/16In. x 18 |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
