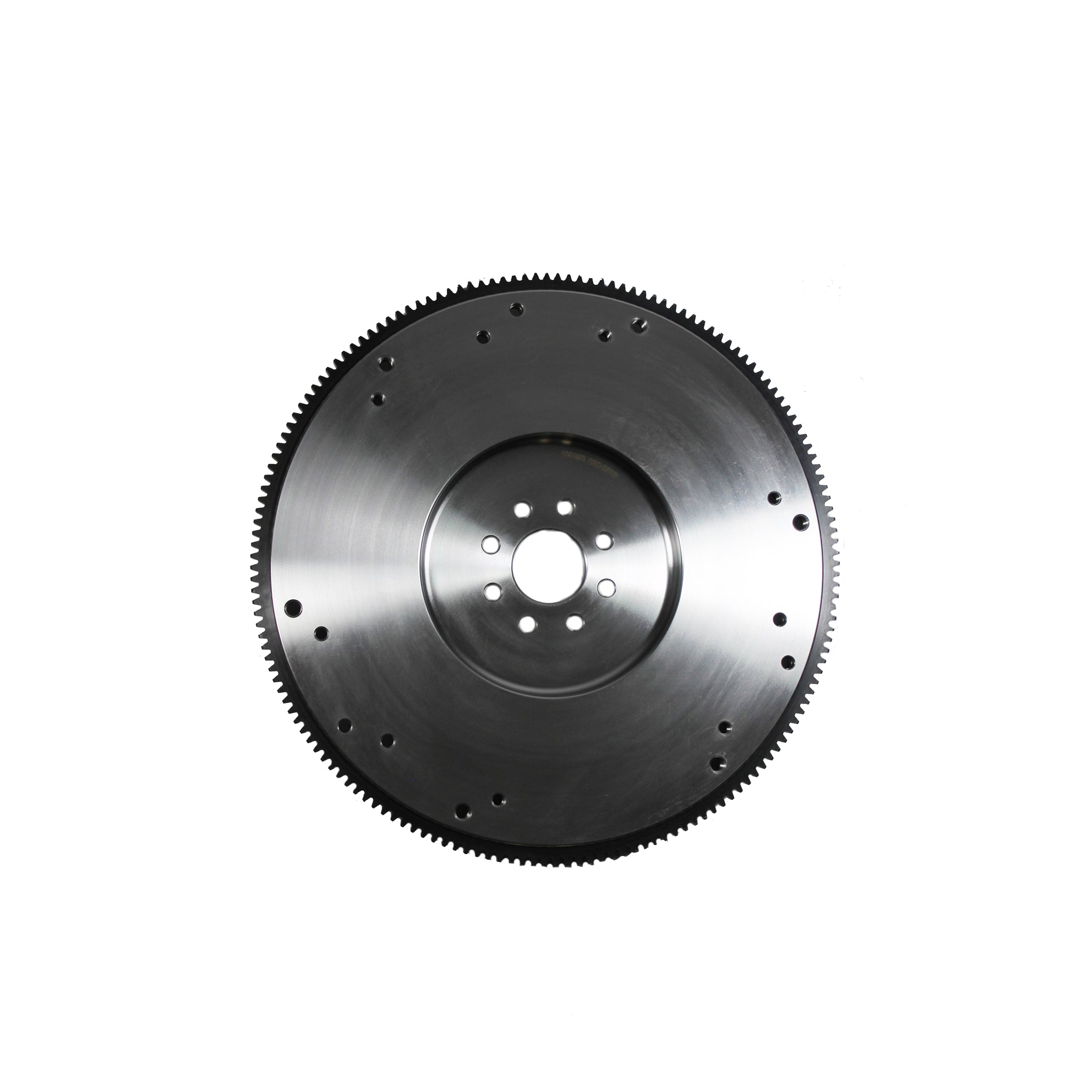

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.
Specifications:
| Description_ASM |
Ford: F-150 97 - 10 4.6 L Engine, Ford: E-150 03 - 10 4.6 L Engine, Ford: Mustang 96 - 10 4.6 L Engine, Ford: Crown Victoria 96 - 10 4.6 L Engine, Ford: Explorer 02 - 10 4.6 L Engine, Ford: F-150 Heritage 04 - 04 4.6 L Engine, Ford: E-150 Club Wagon 03 - 05 4.6 L Engine, Ford: E-150 Econoline Club Wagon 97 - 02 4.6 L Engine, Ford: Explorer Sport Trac 07 - 10 4.6 L Engine, Ford: E-250 03 - 10 4.6 L Engine, Ford: F-250 97 - 99 4.6 L Engine, Ford: Thunderbird 96 - 97 4.6 L Engine, Ford: E-150 Econoline 97 - 02 4.6 L Engine, Ford: Expedition 97 - 04 4.6 L Engine |
| Description_DEF |
Clutch Flywheel |
| Description_EXT |
Flywheel: Steel: Ford: 1996-10 4.6L: 6 Bolt Crank: 164T: 20 Lbs |
| Description_DES |
Flywheel: Steel: Ford: 1996-10 4.6L: 6 Bolt Crank: 164T: 20 Lbs |
| Description_INV |
Flywheel |
| Description_MKT |
McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears. |
| Description_FAB |
McLeod Racing Billet Steel flywheels is the best choice for customers that want a dependable good quality steel flywheel. Made from Billet steel the McLeod Racing flywheels are SFI rated to almost 9000 RPM. |
| Description_SHO |
Flywheel |
| Make |
Ford |
| Clutch Patterns |
10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes |
| NOTE: |
CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft ΓÇ£boss" can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care. |
| Clutch Pattern 2 |
2001.5-2004 11In. Diaphragm with Dowl Pin Hole |
| Ring Gear |
164 tooth |
| Disc Diameter |
10.5In./11In. |
| Flywheel Material |
Steel |
| Weight |
22 Lbs |
| Engine |
1991-2010 4.6L 6 Bolt Crank |
| Length |
2.0000 |
| Width |
15.0000 |
| Height |
15.0000 |
| Weight |
24.0000 |
