McLeod Racing 13025-1 1300 Series Hydraulic Bearing: GM:BW T-5:#1 Piston:M/C: Each

2 sold in last 8 days
McLeod Racing
ds_BHGR_13025-1
Clutch Release Bearing
$738.17
customers are viewing this product
McLeod Racing 1351ST 1300 Series Hydraulic Bearing:GM:Lenco ST1200: Each
McLeod Racing 1351ST 1300 Series Hydraulic Bearing:GM:Lenco ST1200: Each
$738.17
McLeod Racing 13505-1 1300 Series Hydraulic Bearing:GM:Tremec TKX:W-M/C:#1 Piston:Each
McLeod Racing 13505-1 1300 Series Hydraulic Bearing:GM:Tremec TKX:W-M/C:#1 Piston:Each
$738.17
McLeod Racing 13025-1 1300 Series Hydraulic Bearing: GM:BW T-5:#1 Piston:M/C: Each
Details

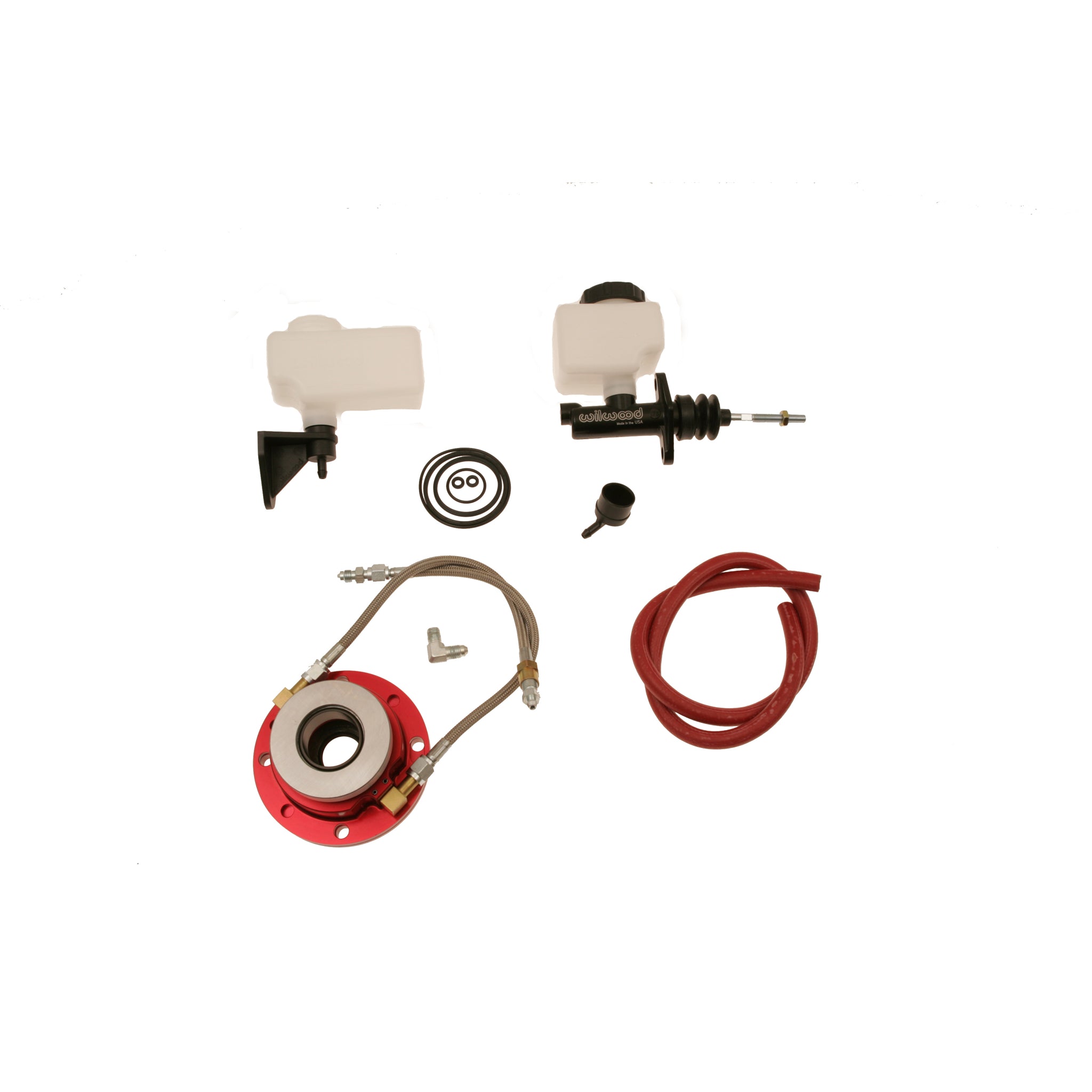

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Specifications:

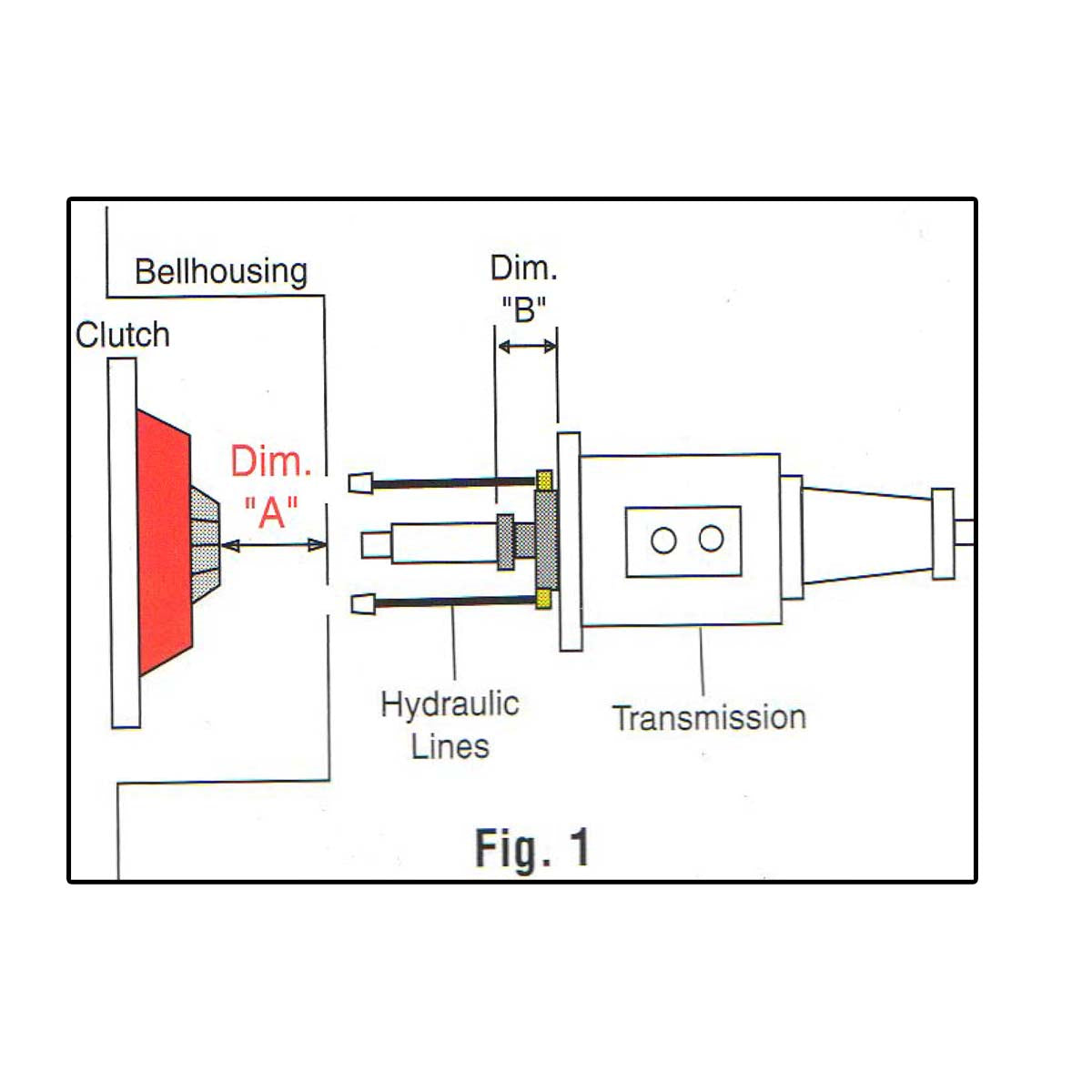

Description_ASC This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series bearing with a adjustable height piston. For more info please call McLeod Tech at 714-630-2764
Description_ASM Chevrolet: R20 87 - 88 5 L Engine, Chevrolet: V10 87 - 87 5 L Engine, Chevrolet: Camaro 85 - 89 2.8 L Engine, Chevrolet: K10 86 - 86 6.2 L Engine, Chevrolet: R2500 89 - 89 6.2 L Engine, Chevrolet: Astro 85 - 89 2.5 L Engine, Chevrolet: K2500 91 - 92 7.4 L Engine, Chevrolet: R20 87 - 88 4.3 L Engine, Chevrolet: V20 87 - 87 5.7 L Engine, Chevrolet: K10 86 - 86 5.7 L Engine, Chevrolet: K2500 88 - 92 6.2 L Engine, Chevrolet: K3500 88 - 90 6.2 L Engine, Chevrolet: R20 87 - 88 6.2 L Engine, Chevrolet: G20 86 - 90 5.7 L Engine, Chevrolet: K2500 88 - 92 5 L Engine, Chevrolet: G20 86 - 90 5 L Engine, Chevrolet: S10 Blazer 84 - 89 2.8 L Engine, Chevrolet: K3500 88 - 90 5.7 L Engine, Chevrolet: G30 86 - 90 5.7 L Engine, Chevrolet: G20 86 - 90 6.2 L Engine, Chevrolet: S10 84 - 93 2.8 L Engine, Chevrolet: S10 Blazer 88 - 90 4.3 L Engine, Chevrolet: C2500 88 - 92 5.7 L Engine, Chevrolet: G20 86 - 90 4.3 L Engine, Chevrolet: R20 87 - 88 5.7 L Engine, Chevrolet: R10 87 - 87 6.2 L Engine, Chevrolet: G10 86 - 90 5.7 L Engine, Chevrolet: V10 87 - 87 4.3 L Engine, Chevrolet: S10 84 - 95 2.2 L Engine, Chevrolet: R10 87 - 87 5 L Engine, Chevrolet: Camaro 90 - 92 3.1 L Engine, Chevrolet: K1500 88 - 90 5.7 L Engine, Chevrolet: K3500 88 - 90 7.4 L Engine, Chevrolet: G30 86 - 90 4.3 L Engine, Chevrolet: K1500 88 - 90 6.2 L Engine, Chevrolet: K2500 88 - 92 4.3 L Engine, Chevrolet: C2500 88 - 92 4.3 L Engine, Chevrolet: C1500 90 - 90 7.4 L Engine, Chevrolet: C1500 88 - 90 5 L Engine, Chevrolet: K1500 88 - 90 5 L Engine, Chevrolet: Camaro 87 - 92 5.7 L Engine, Chevrolet: C2500 91 - 92 7.4 L Engine, Chevrolet: R10 87 - 87 4.3 L Engine, Chevrolet: S10 Blazer 84 - 84 2.2 L Engine, Chevrolet: S10 Blazer 85 - 88 2.5 L Engine, Chevrolet: C2500 88 - 92 5 L Engine, Chevrolet: S10 Blazer 84 - 84 1.9 L Engine, Chevrolet: R2500 89 - 89 5.7 L Engine, Chevrolet: V10 87 - 87 5.7 L Engine, Chevrolet: Camaro 85 - 86 2.5 L Engine, Chevrolet: V20 87 - 87 6.2 L Engine, Chevrolet: S10 84 - 84 2 L Engine,...
Description_DEF Clutch Release Bearing
Description_EXT 1300 Series Hydraulic Bearing: GM:BW T-5:#1 Piston:M/C: 2.31" To 2.50" "A" Dimension:Each
Description_DES 1300 Series Hydraulic Bearing: GM:BW T-5:#1 Piston:M/C: Each
Description_MKT Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Description_SHO Hyd Bearing
Description_INV Hyd Bearing
A Dimension 2.31In. to 2.50In.
Master Cylinder Bore .750In.
Material Aluminum
Finish Red Anodize
Application GM T-5 5 Speed
Make GM
Master Cylinder Stroke 1.00In.
NOTE 2: This application will only work with an In.AIn. of 2.31In. to 2.50In.. If your application is outside of this range please call McLeod Tech at 714-630-2764
Hydraulic Line Size AN-4
NOTE: Will not work with counter weighted diaphragm pressure plates. For more info please call McLeod Tech at 714-630-2764
Length 6.0000
Width 14.0000
Height 14.0000
Weight 7.0000
