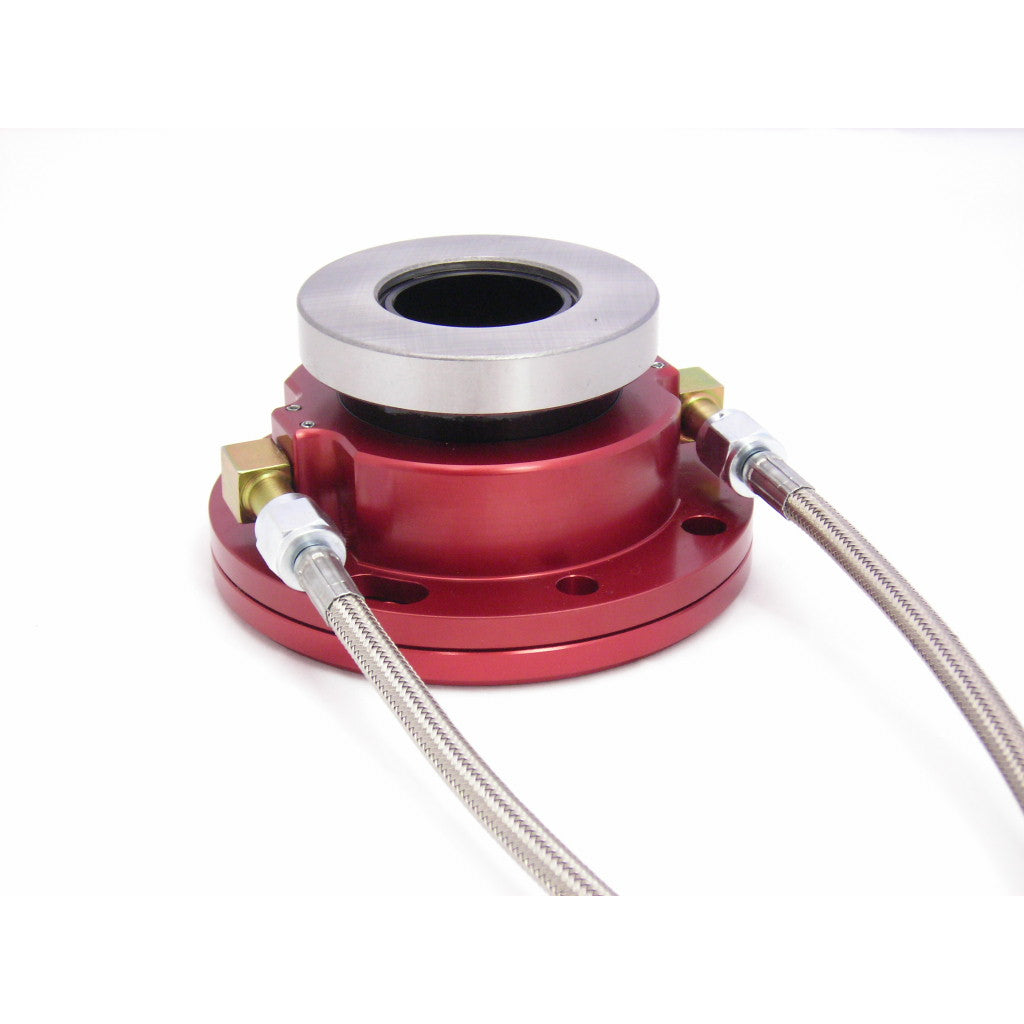

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Specifications:
| Description_ASC |

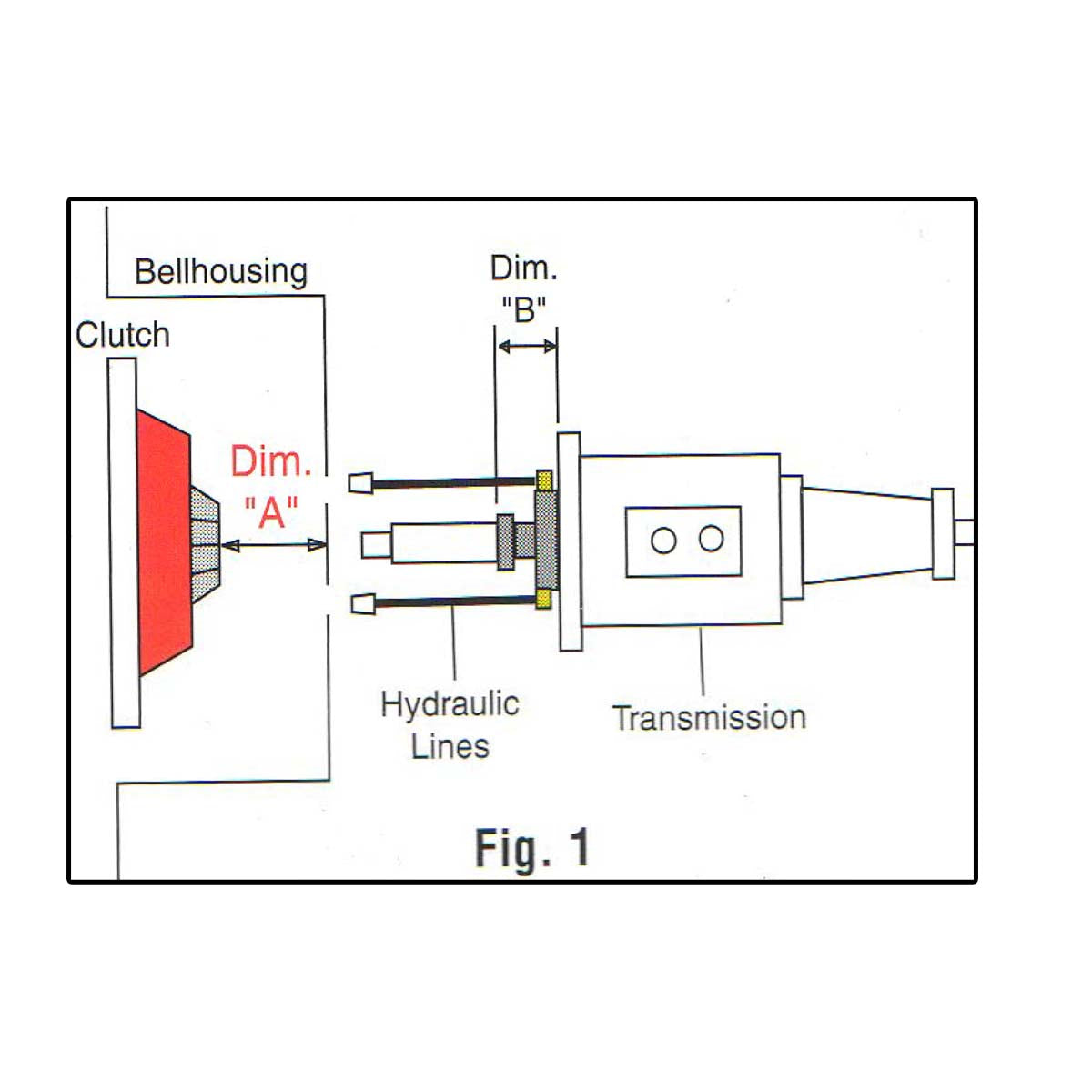

This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series bearing with a adjustable height piston. For more info please call McLeod Tech at 714-630-2764 |
| Description_ASM |
American Motors: Matador 71 - 74 6.6 L Engine, American Motors: Javelin 71 - 74 6.6 L Engine, Buick: Electra 62 - 66 6.6 L Engine, Buick: Invicta 59 - 63 6.6 L Engine, Buick: Gran Sport 65 - 66 6.6 L Engine, Buick: Wildcat 64 - 66 6.6 L Engine, Buick: LeSabre 63 - 64 6.6 L Engine, Buick: Skylark 65 - 66 6.6 L Engine |
| Description_DEF |
Clutch Release Bearing |
| Description_DES |
1300 Series Hydraulic Bearing: GM: BW: T-10,Super T-10:G-Force: "A" 2.31"-2.50" |
| Description_INV |
Hyd Bearing |
| Description_EXT |
1300 Series Hydraulic Bearing: GM: Borg Warner: T-10, Super T-10: G-Force: "A" Dimension: 2.31"-2.50": 4.680" Register |
| Description_SHO |
Hyd Bearing |
| Description_MKT |
Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine. |
| Hydraulic Line Size |
AN-4 |
| Make |
GM |
| Material |
Aluminum |
| Application |
T-10, Super T-10 |
| NOTE: |
Will not work with counter weighted diaphragm pressure plates. For more info please call McLeod Tech at 714-630-2764 |
| NOTE 2: |
This application will only work with an In.AIn. of 2.31In. to 2.50In.. If your application is outside of this range please call McLeod Tech at 714-630-2764 |
| A Dimension |
2.31In. to 2.50In. |
| Finish |
Red Anodize |
| Length |
6.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
3.0000 |
