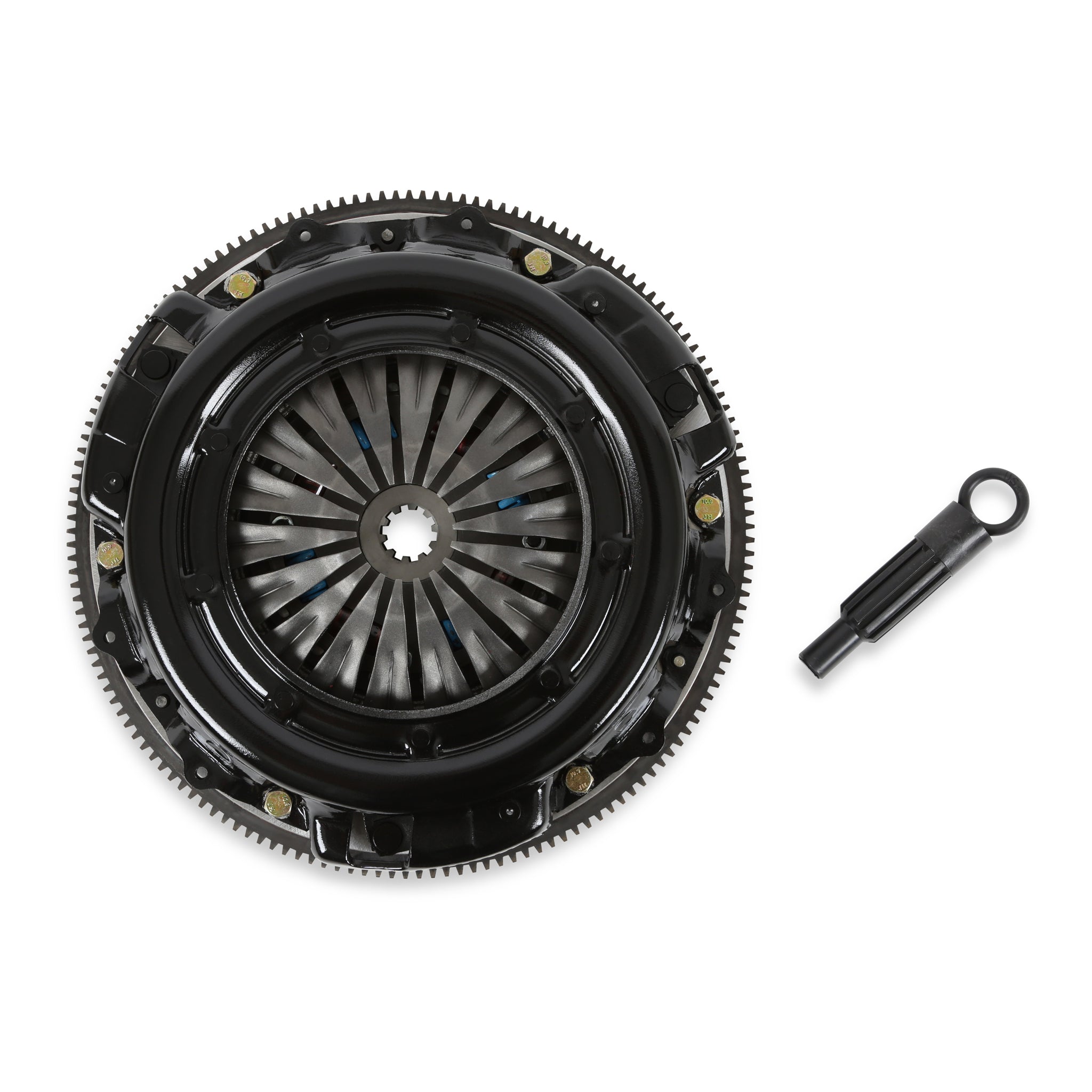

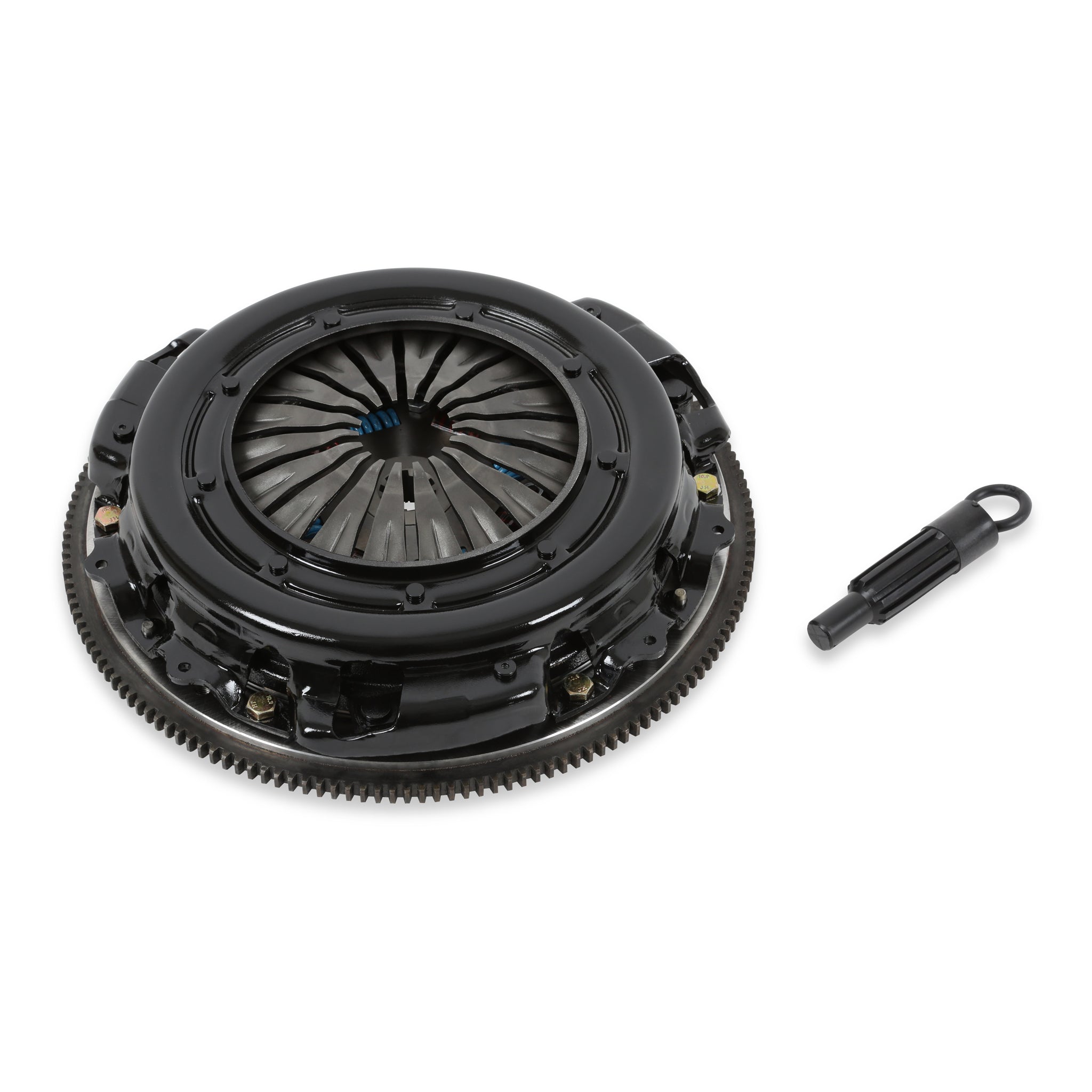

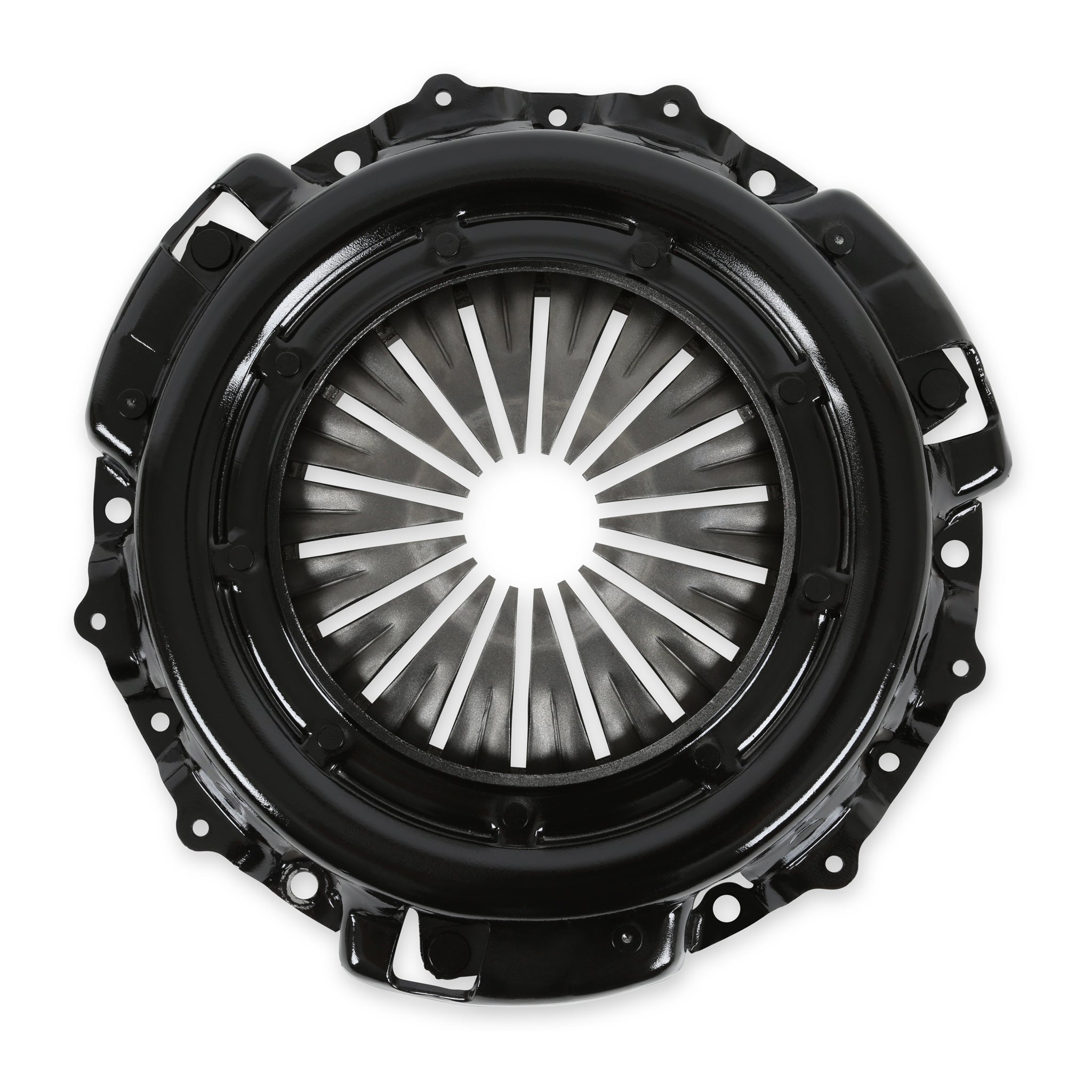

This Hays Hot Street Clutch kit fits 1965-1997 28oz external balance small block Ford engines. It offers ultimate Street/Strip performance through matched components. A 10.5- in. metallic disc with 6 spring helix sprung hub provides superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel. These matched components provide the peace of mind purchase you've come to expect over the years from Hays.
Specifications:
| Description_ASC |
Always allow 500 miles for break in period
Not intended for use with 5 bolt block engines or H.O 302. |
| Description_DEF |
Transmission Clutch Kit |
| Description_INV |
SBF 10 SPLINE 650HP FLYWHEEL/CLUTCH KIT |
| Description_FAB |

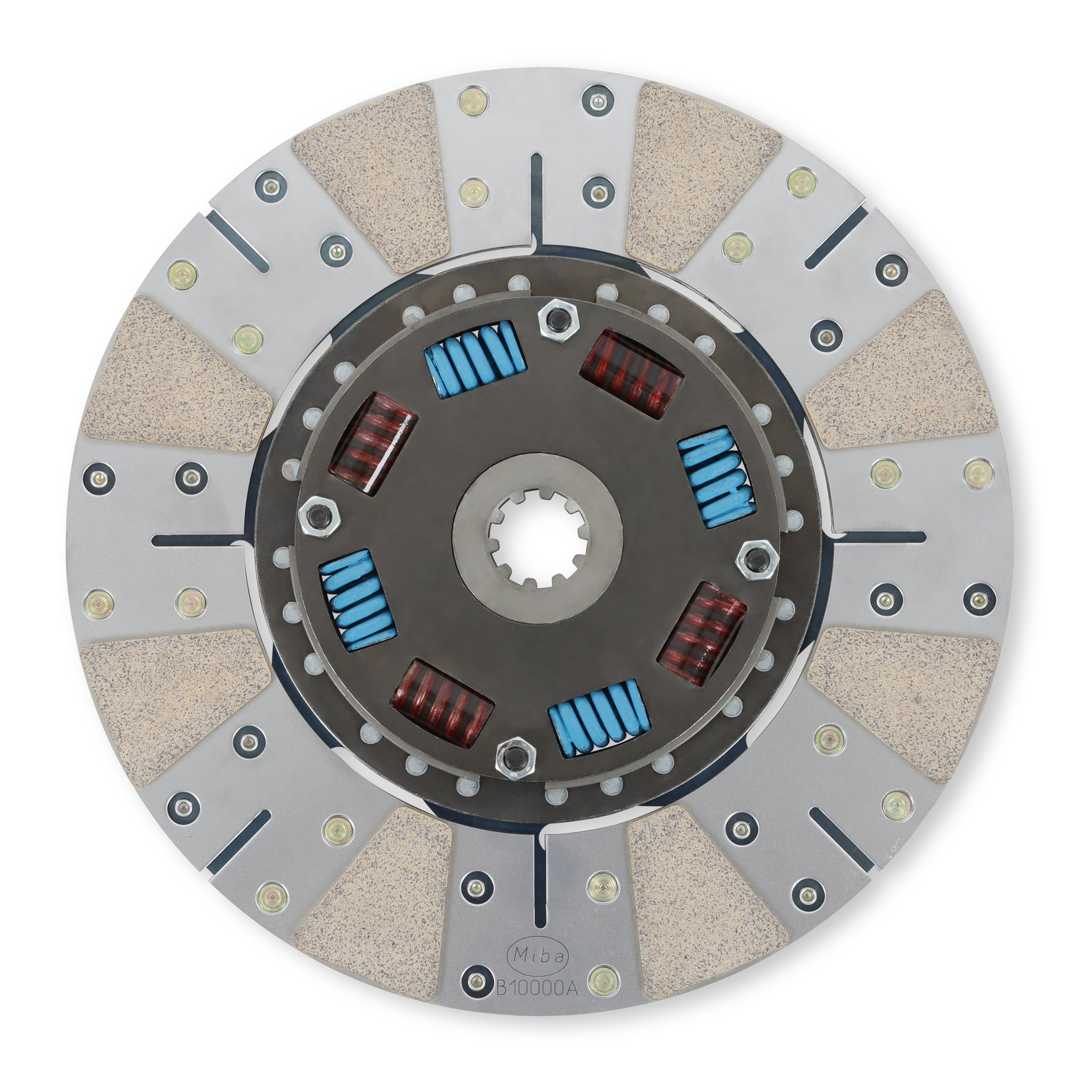

10.5-inch single clutch disc with 1-1/8-inch x 10 spline for 28oz small block Ford engines |
| Description_FAB |

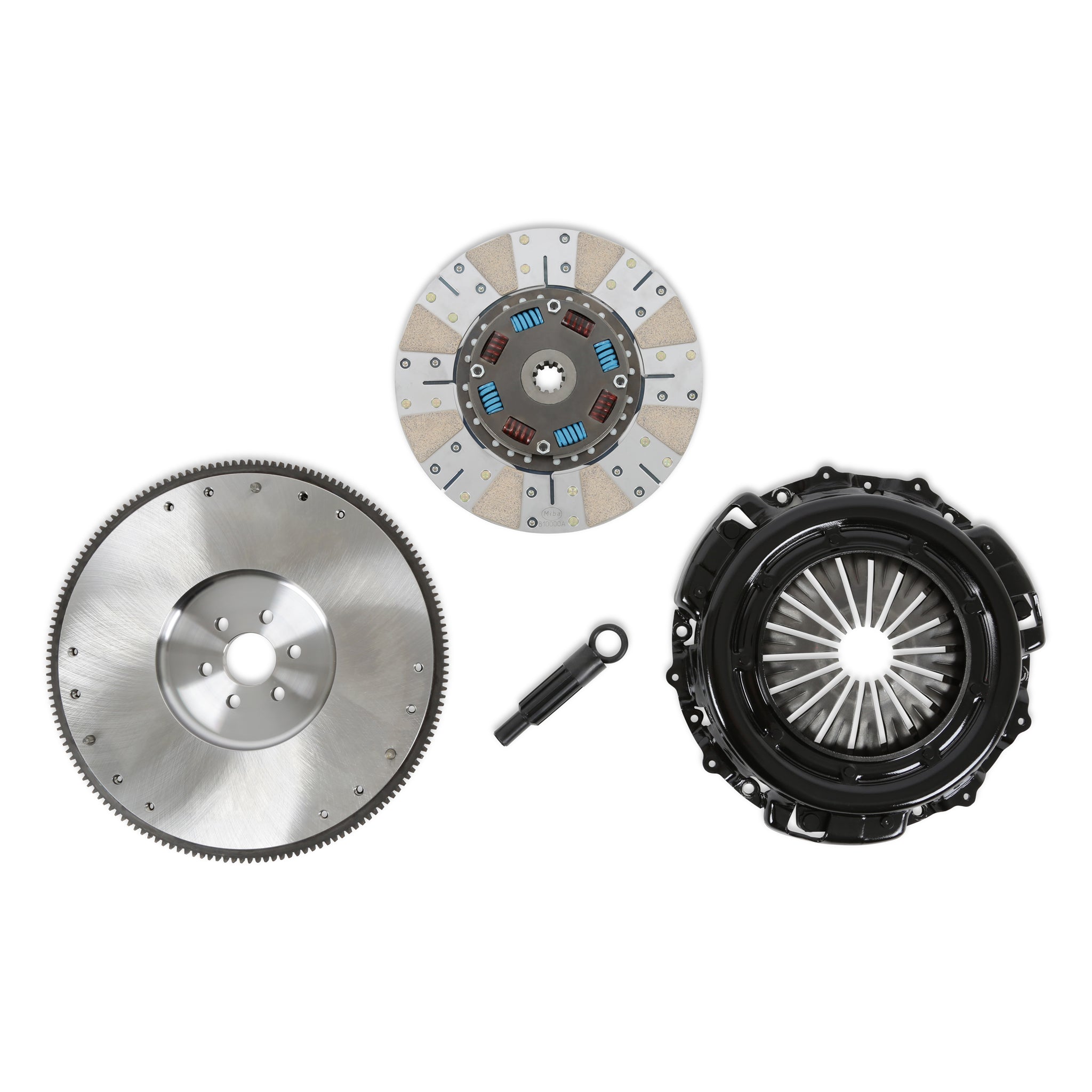

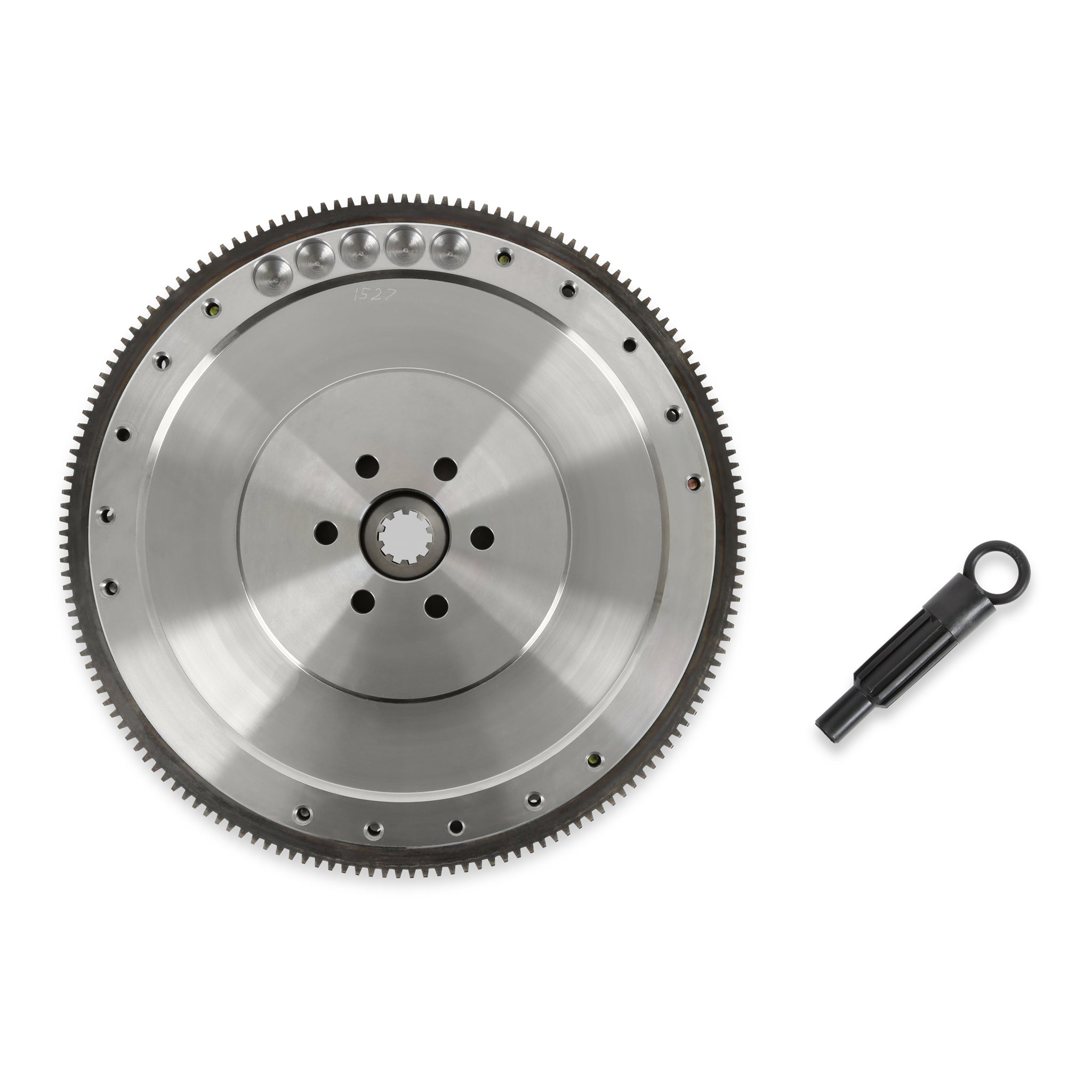

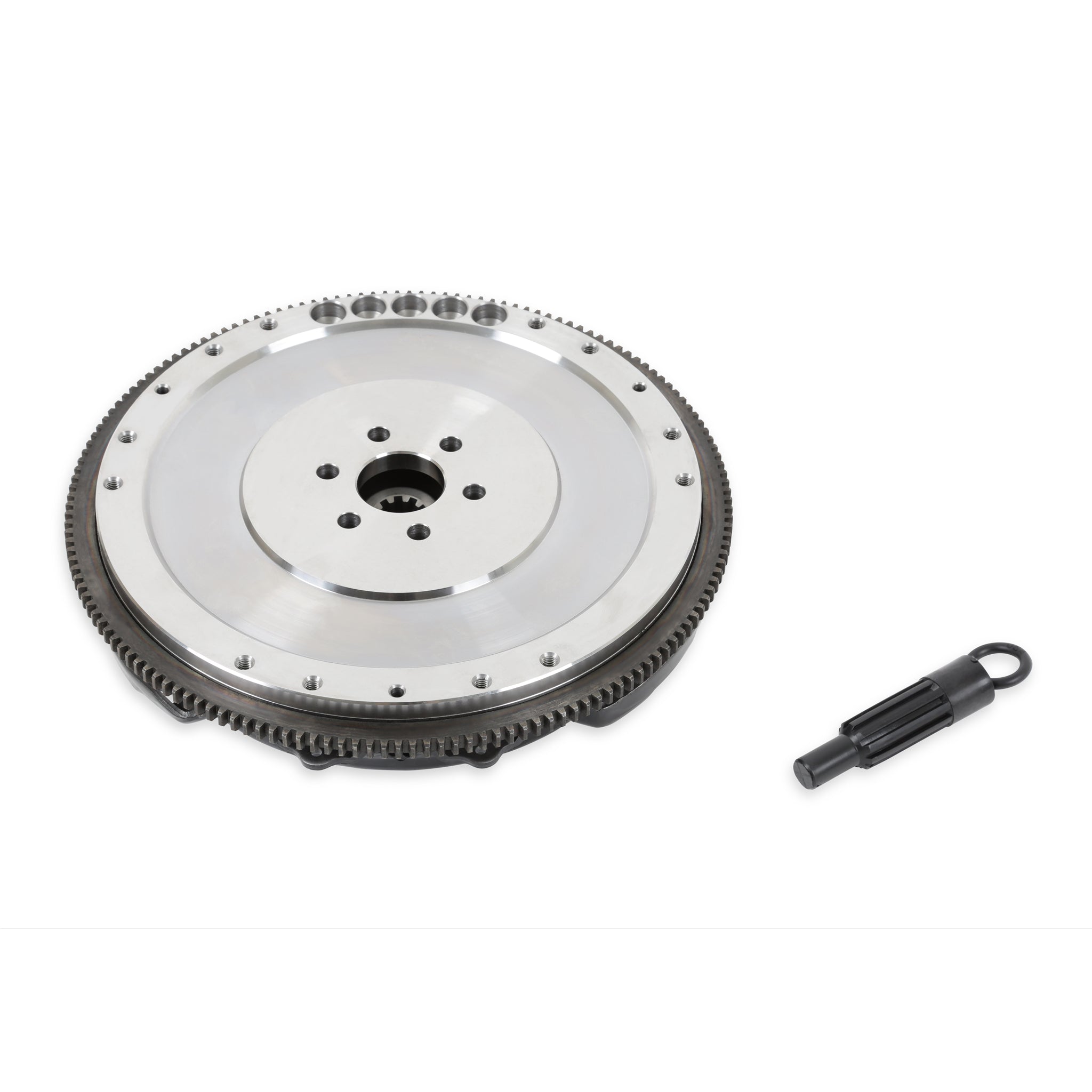

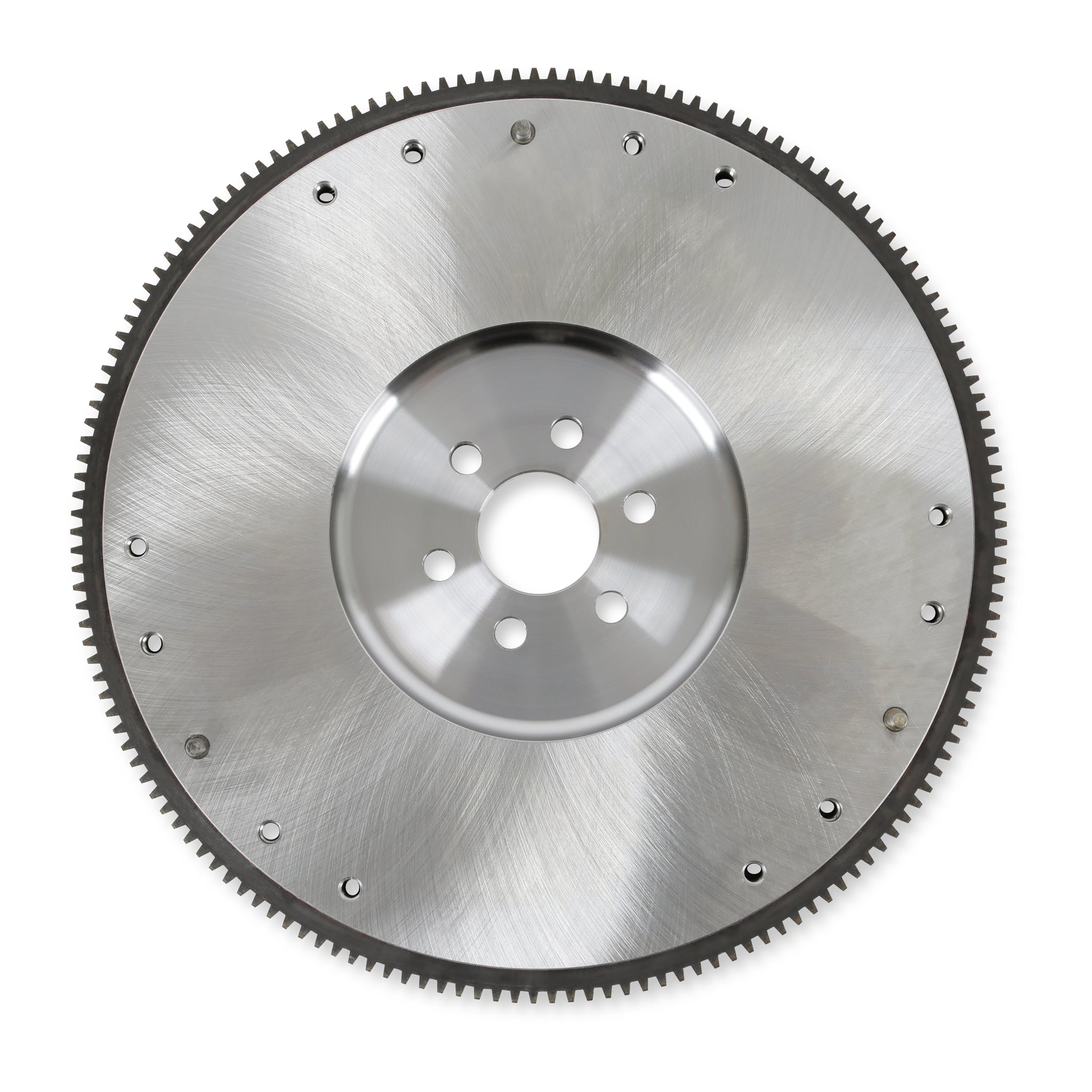

Kit includes Billet steel flywheel, pressure plate, metallic disk, pressure plate bolts, dowels and alignment tool |
| Description_FAB |
Street/Strip clutch kit provides excellent holding strength with a smooth daily driver pedal feel |
| Description_FAB |
Designed for power levels up to 550 naturally aspirated horsepower (500 hp for forced induction/nitrous) |
| Description_DES |
HAYS HOT STREET CLUTCH KIT - FORD |
| Description_EXT |
Hays Hot Street Ford Clutch Kit; For Small Block Ford; 10.5 in. Disc Dia.; Sprung Hub Disc; 10 Spline; 550 Max HP; 28 oz. External Engine Balance; |
| Description_SHO |
Clutch Kit |
| Description_MKT |
This Hays Hot Street Clutch kit fits 1965-1997 28oz external balance small block Ford engines. It offers ultimate Street/Strip performance through matched components. A 10.5- in. metallic disc with 6 spring helix sprung hub provides superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel. These matched components provide the peace of mind purchase you've come to expect over the years from Hays. |
| Description_KEY |
Clutch; kit; flywheel; pressure plate; disc; sbc; bbc; hot; street; strip; |
| Disc Diameter |
10.5 |
| Input Spline |
10 |
| Product Type |
Clutch Kits |
| WARNING CA Proposition 65 |
No |
| Application |
Ford |
| Disc Style |
Sprung Hub |
| Pressure Plate Style |
Diaphragm |
| Flywheel Included |
Yes |
| # of Teeth |
157 |
| Brand |
Hays |
| Emission Code |
5 |
| Engine |
Ford Small Block |
| Engine Balance |
28 oz. external |
| Input Shaft Diameter |
1-1/8 in. |
| Max Horsepower |
550 |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Pilot Bushing Included |
No |
| Length |
5.0000 |
| Width |
18.0000 |
| Height |
17.0000 |
| Weight |
44.0000 |
