Hays Diesel 850 Clutch single disc clutch kits are an excellent upgrade from your current clutch and designed handle Diesel engines with up to 850 ft. lbs. torque or 100-200 horsepower above stock. The Diesel 850 kit features a matched pressure plate and a heavy duty, high torque ceramic button-style clutch disc. This clutch disc utilizes world leading Carlisle (Wellman) sintered buttons to provide increased holding and torque capacity along with additional clamping force. Carlisle is known as the world leader in clutch button and sintered friction technology. The Diesel 850 offers over a 30% greater clamping force than a stock clutch allowing you to put more power to the ground or haul full-size loads with confidence. Kits available for Dodge 5.9L Cummins Diesel and Ford 6.0L/7.3L Power Stroke Diesel engines.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Hays Diesel 850 Clutch Kit - Ram |
| Description_EXT |

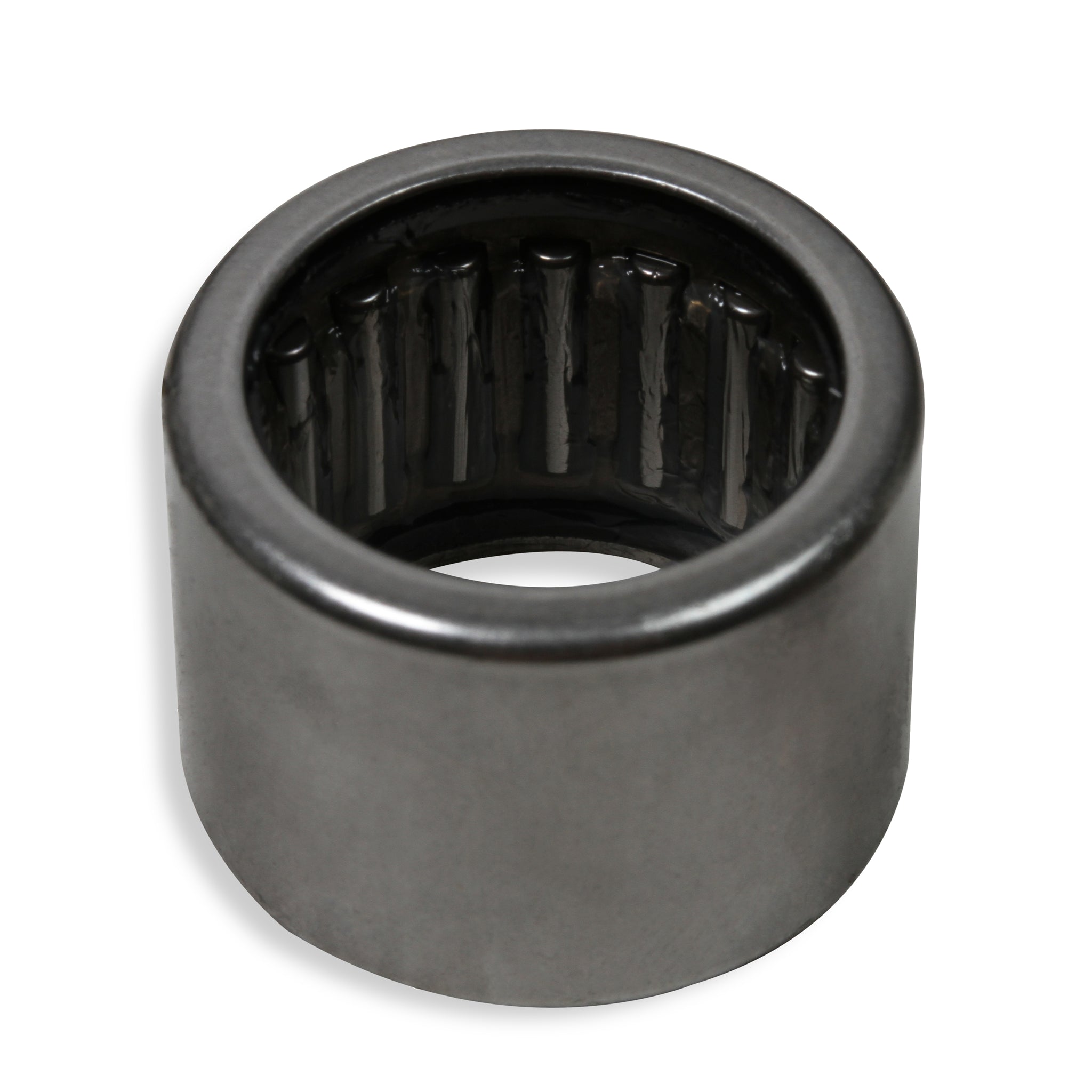

Hays Diesel 850 Clutch Kit; Single 13 in. Disc; 10 Spline by 1-1/4 in.; Incl. Alignment Tool/Throwout Bearing/Pilot Bushing; Organic Material; |
| Description_SHO |
Clutch Kit |
| Description_INV |
HAYS850 CLTCH 94-01 RAM I6,13IN,10SP |
| Description_MKT |
Hays Diesel 850 Clutch single disc clutch kits are an excellent upgrade from your current clutch and designed handle Diesel engines with up to 850 ft. lbs. torque or 100-200 horsepower above stock. The Diesel 850 kit features a matched pressure plate and a heavy duty, high torque ceramic button-style clutch disc. This clutch disc utilizes world leading Carlisle (Wellman) sintered buttons to provide increased holding and torque capacity along with additional clamping force. Carlisle is known as the world leader in clutch button and sintered friction technology. The Diesel 850 offers over a 30% greater clamping force than a stock clutch allowing you to put more power to the ground or haul full-size loads with confidence. Kits available for Dodge 5.9L Cummins Diesel and Ford 6.0L/7.3L Power Stroke Diesel engines. |
| Description_FAB |
Excellent clutch for torque levels up to 850 lbs. ft or 100-200 horsepower above stock |
| Description_FAB |
Offers increased holding and torque capacity needed for towing full-sized loads |
| Description_FAB |

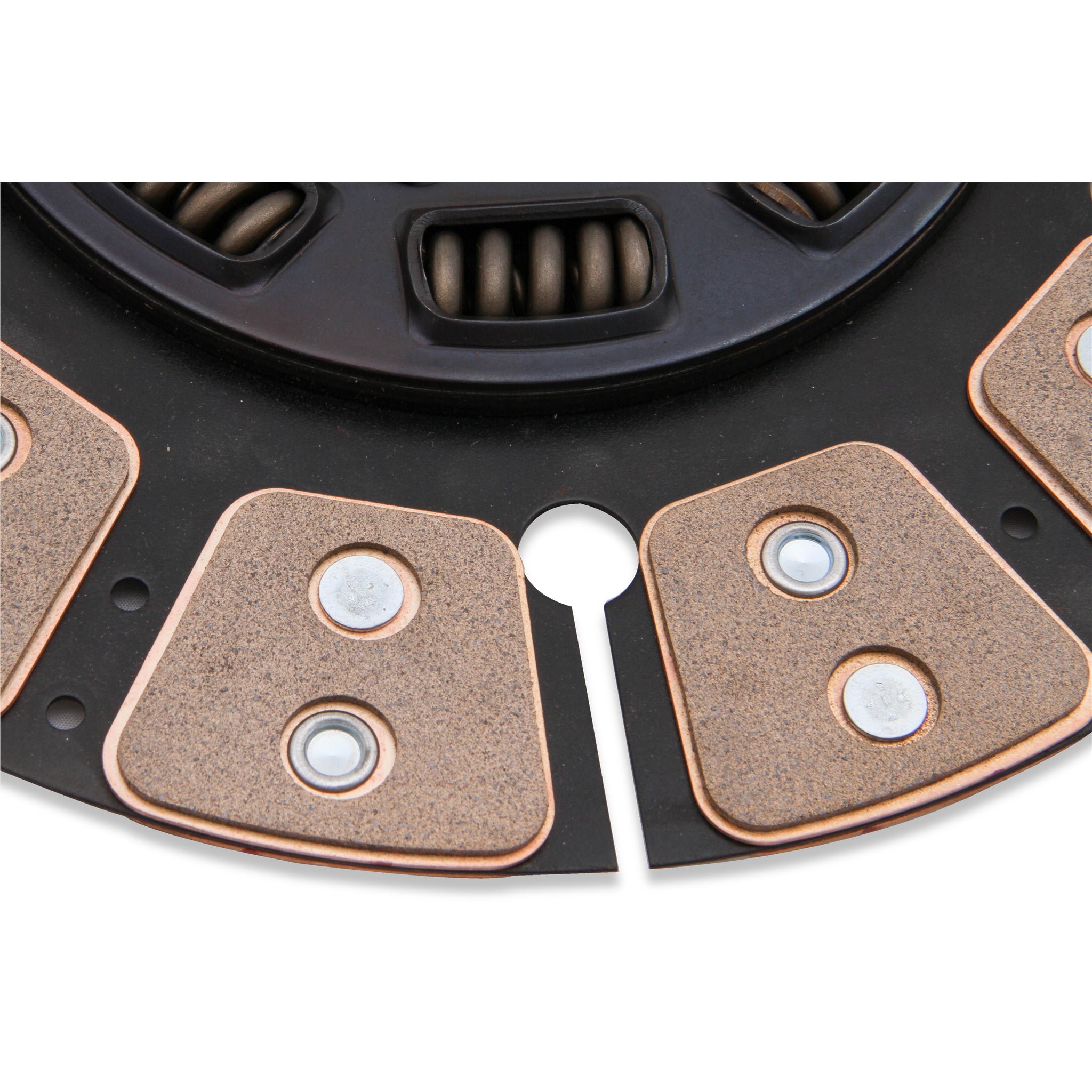

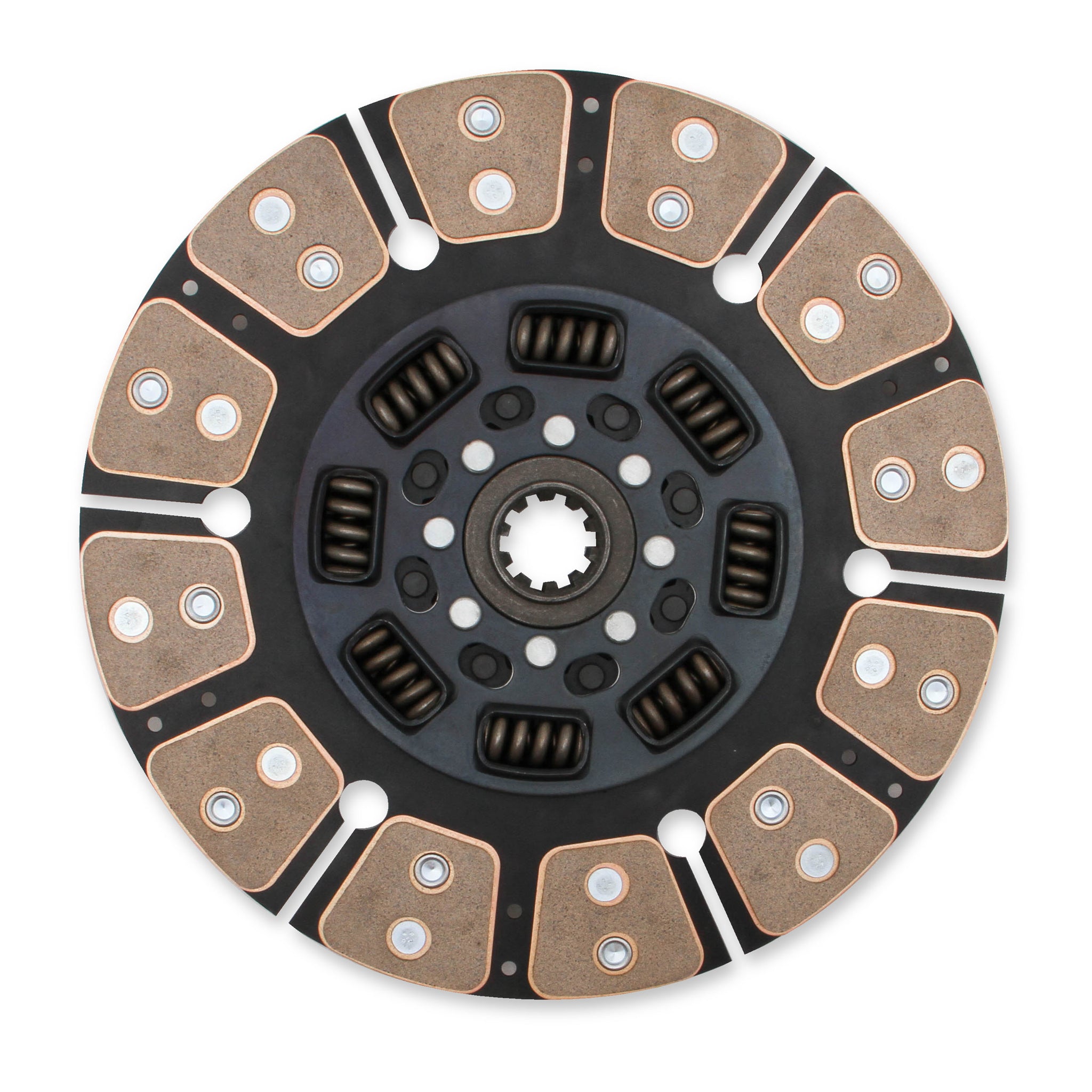

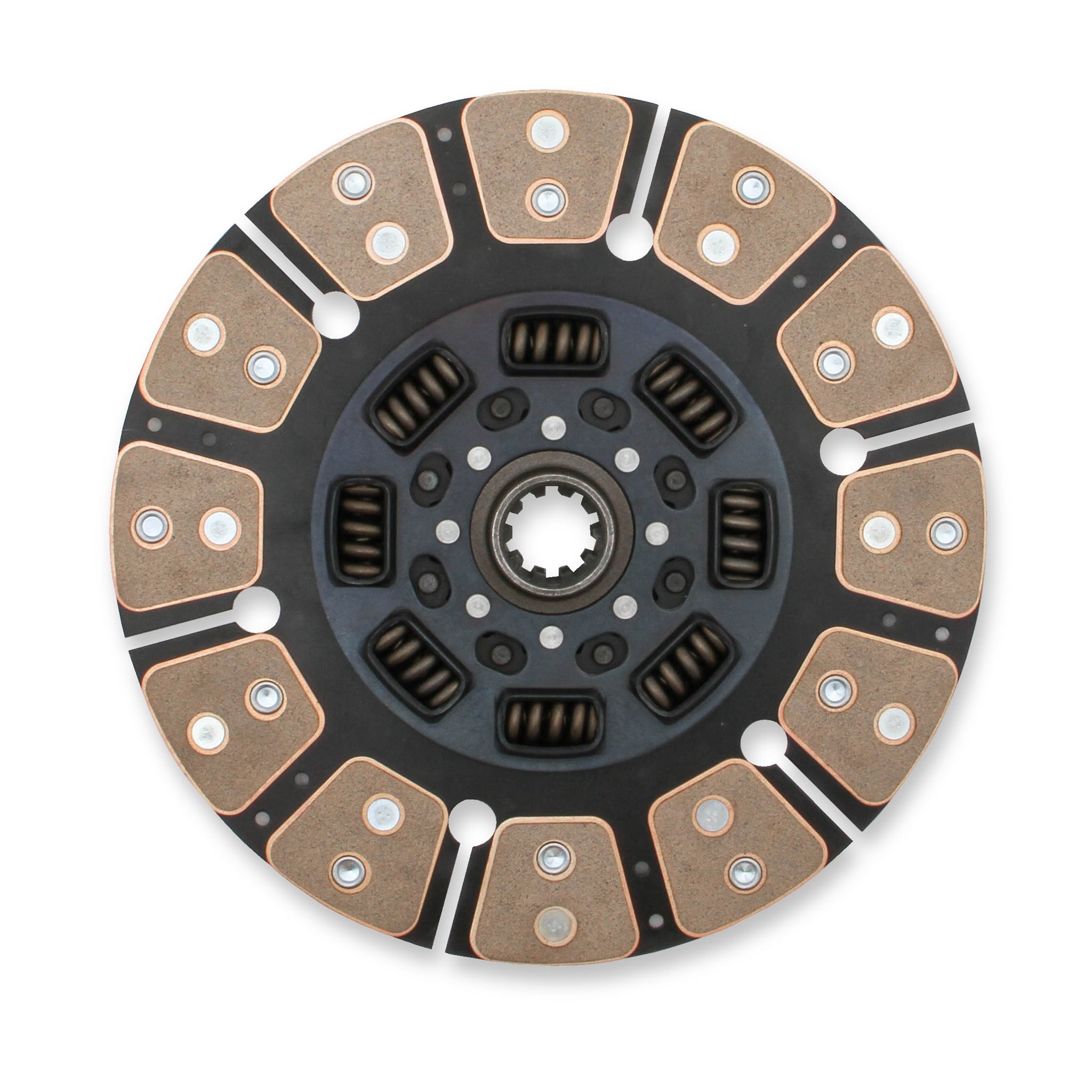

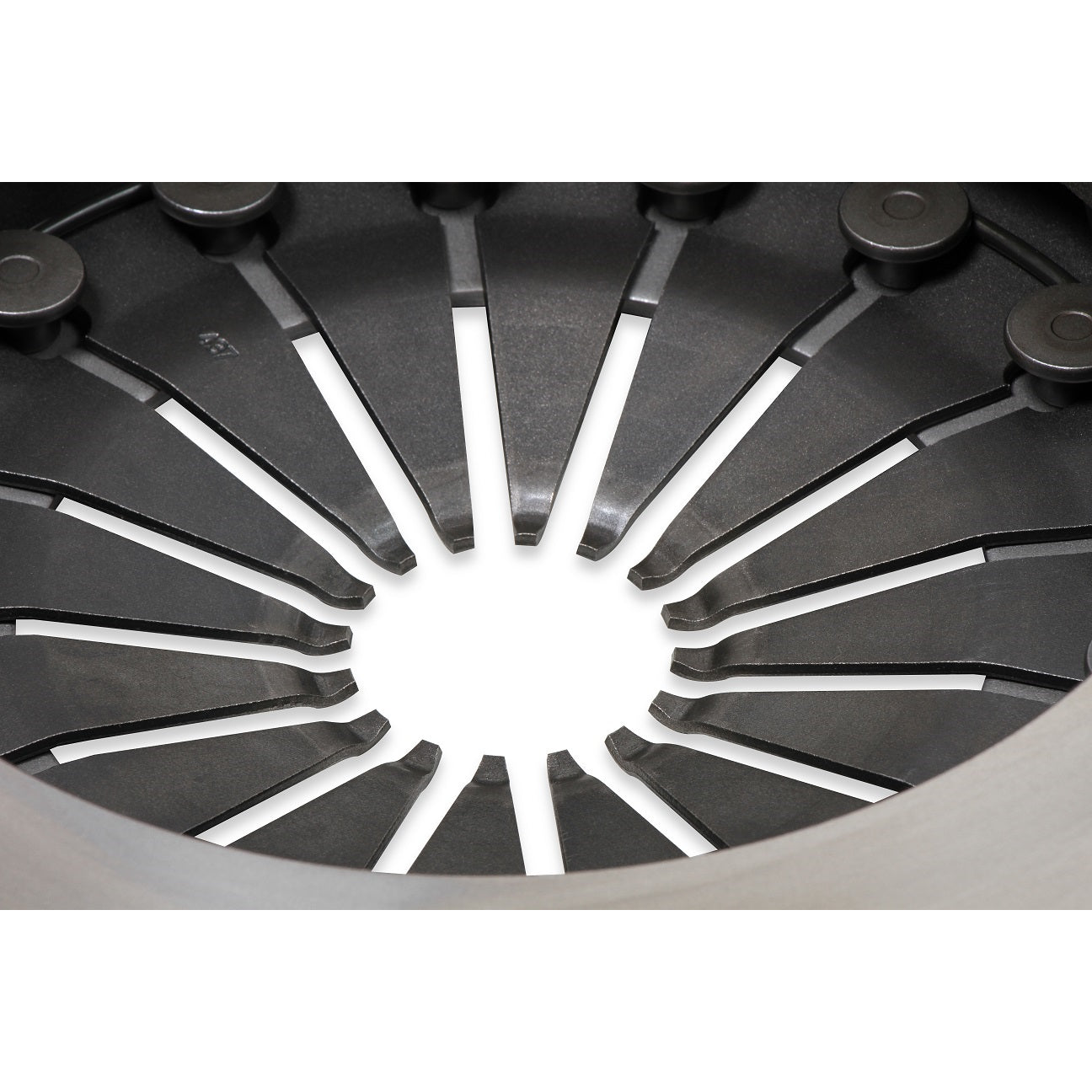

Features a matched OE pressure plate and a heavy duty, sintered ceramic button clutch disc |
| Description_FAB |

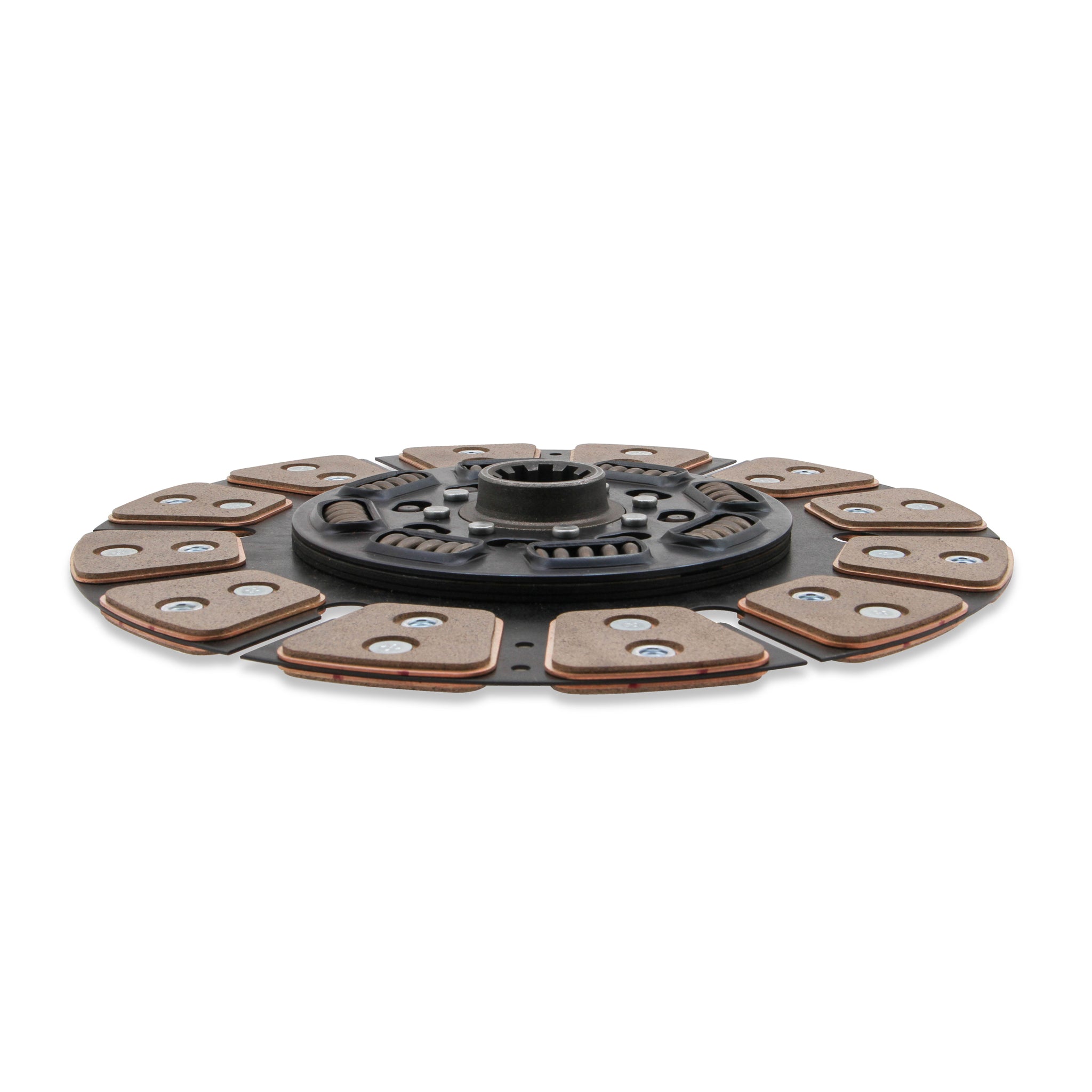

Ceramic button disc provides more aggressive engagement with a stock pedal effort |
| Description_FAB |

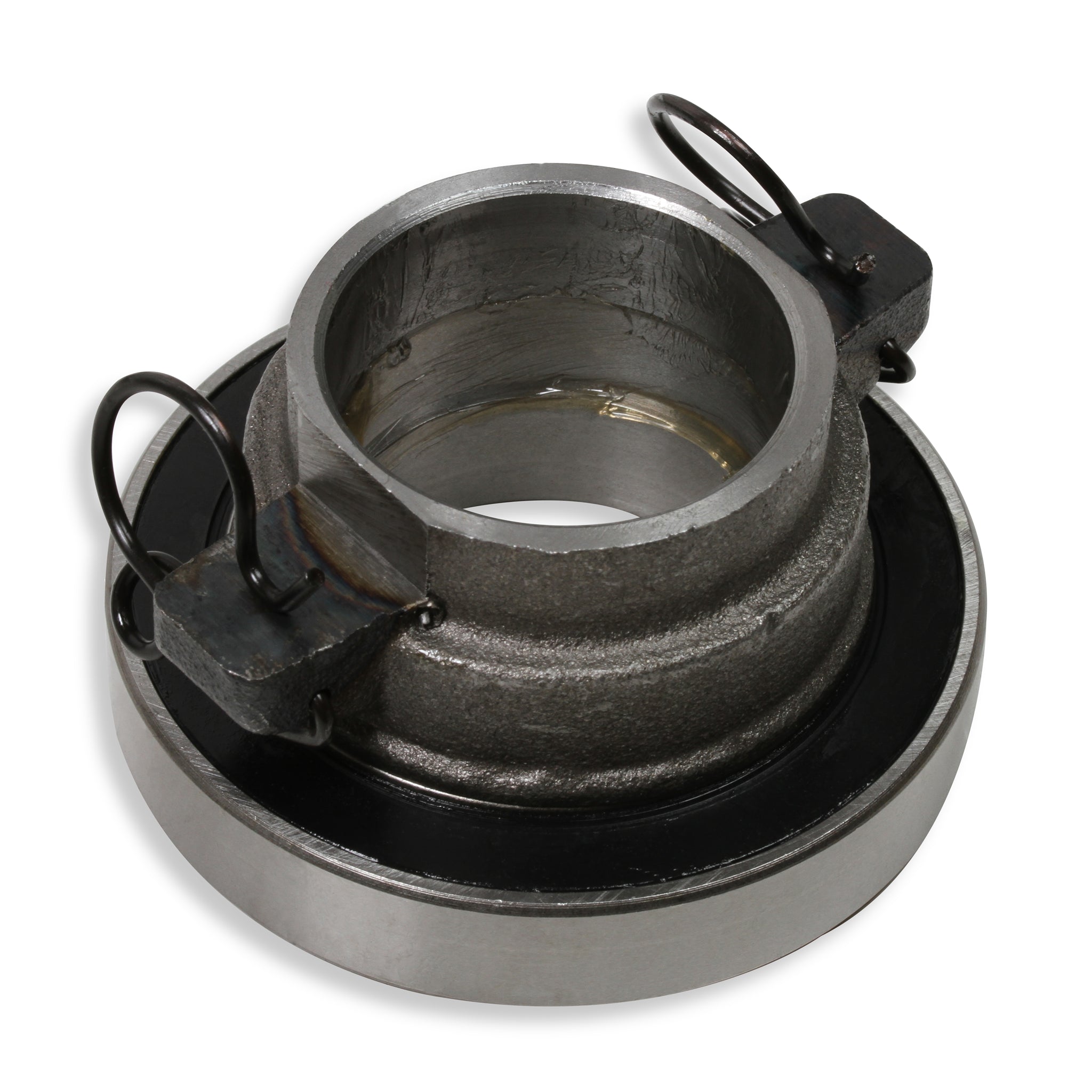

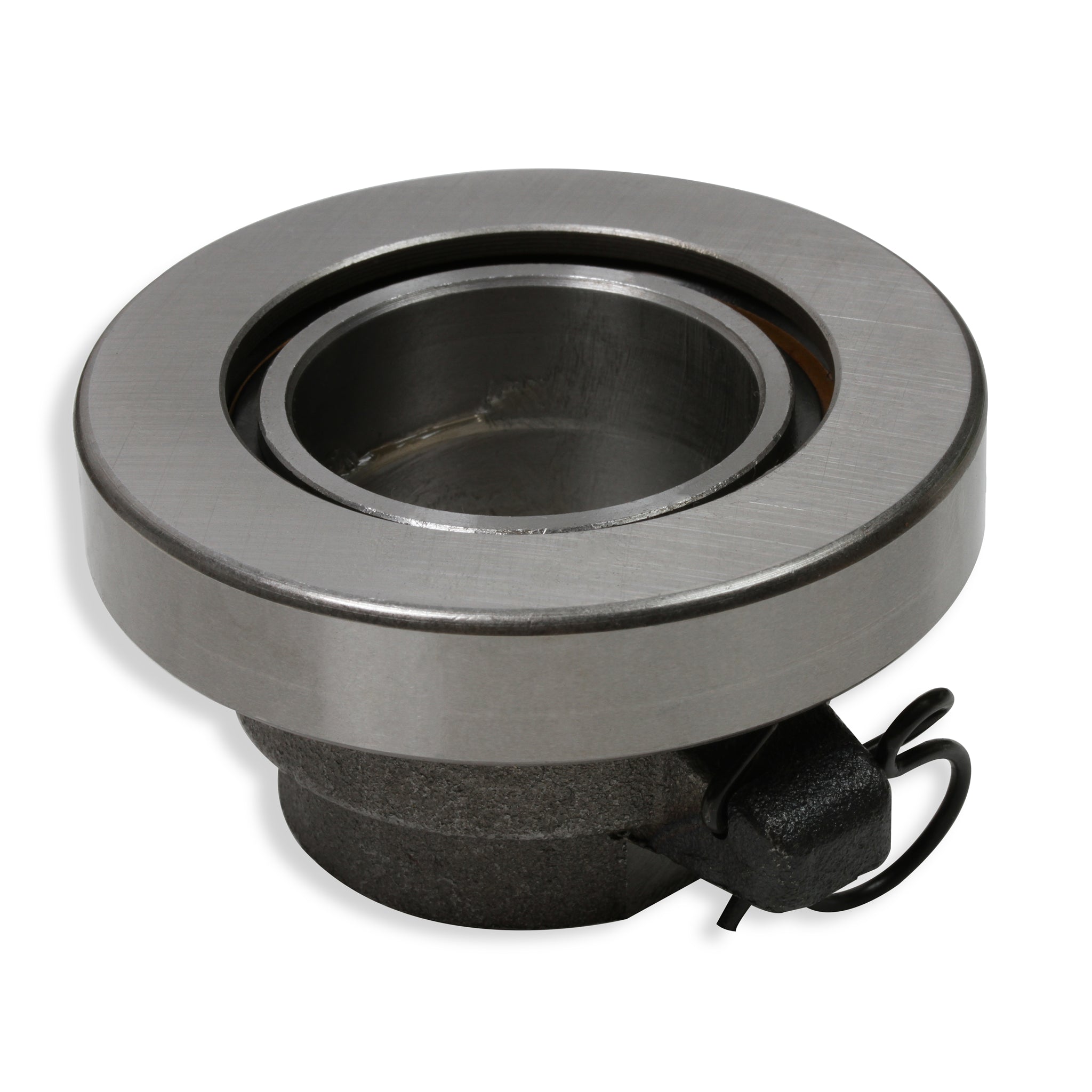

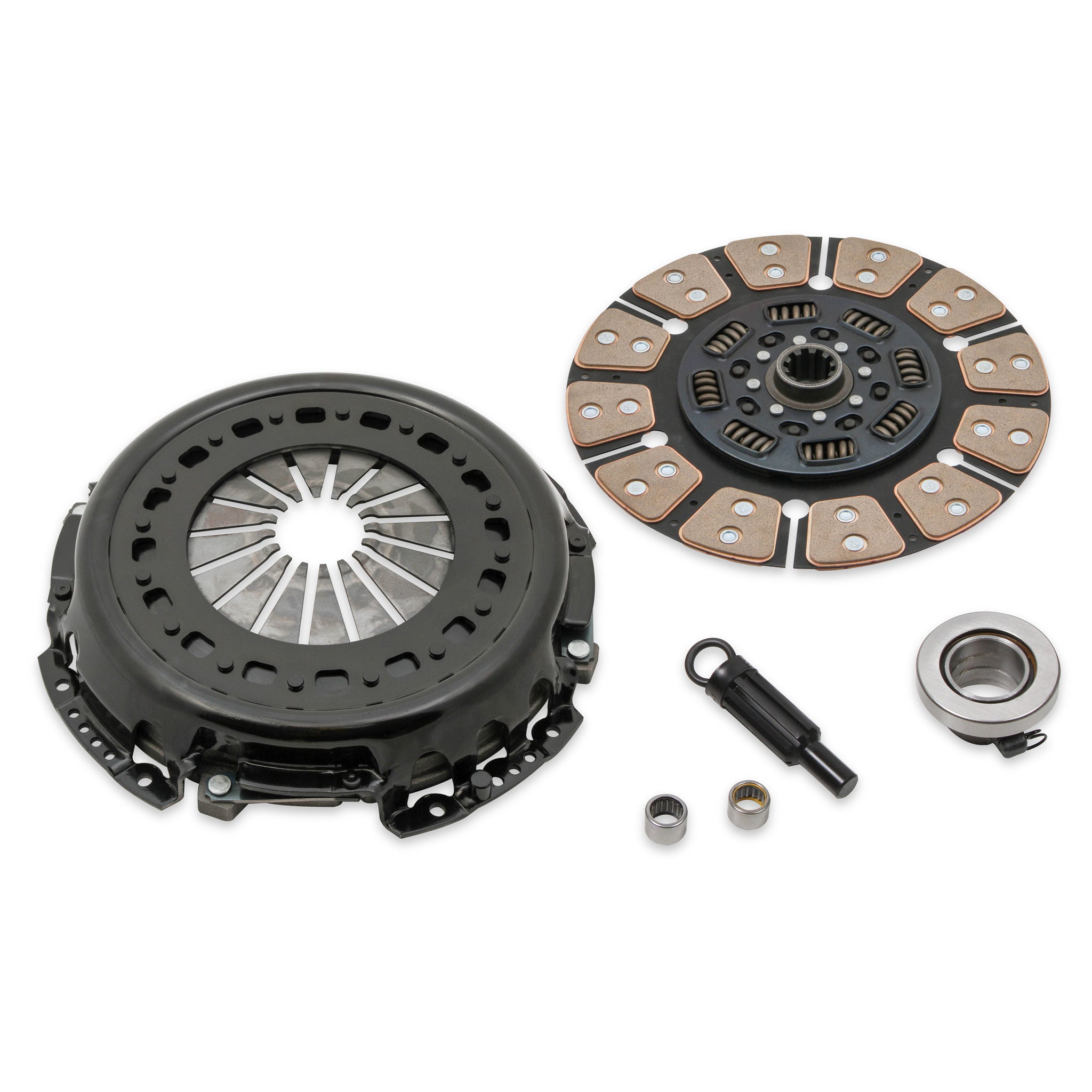

Comes complete with pressure plate, clutch disc, throwout bearing, alignment tool and instructions |
| Description_KEY |
FoMoCo; Dodge; Mopar; Ford; International; Cummings; d250;d350; w250;w350; f250;f350; f-series; 5 speed; 6 speed; MT; stick shift; 3 pedal; three pedal; Hayes; oil burner; Powerstroke; Power Stroke; inline 6; I6; V8; |
| Warranty |
Limited 90 Day Warranty |
| WARNING CA Proposition 65 |
No |
| Input Spline |
10 |
| Throwout Bearing I.D. (inches) |
1.732 |
| Disc Diameter |
13.000 in. |
| Application |
Ram |

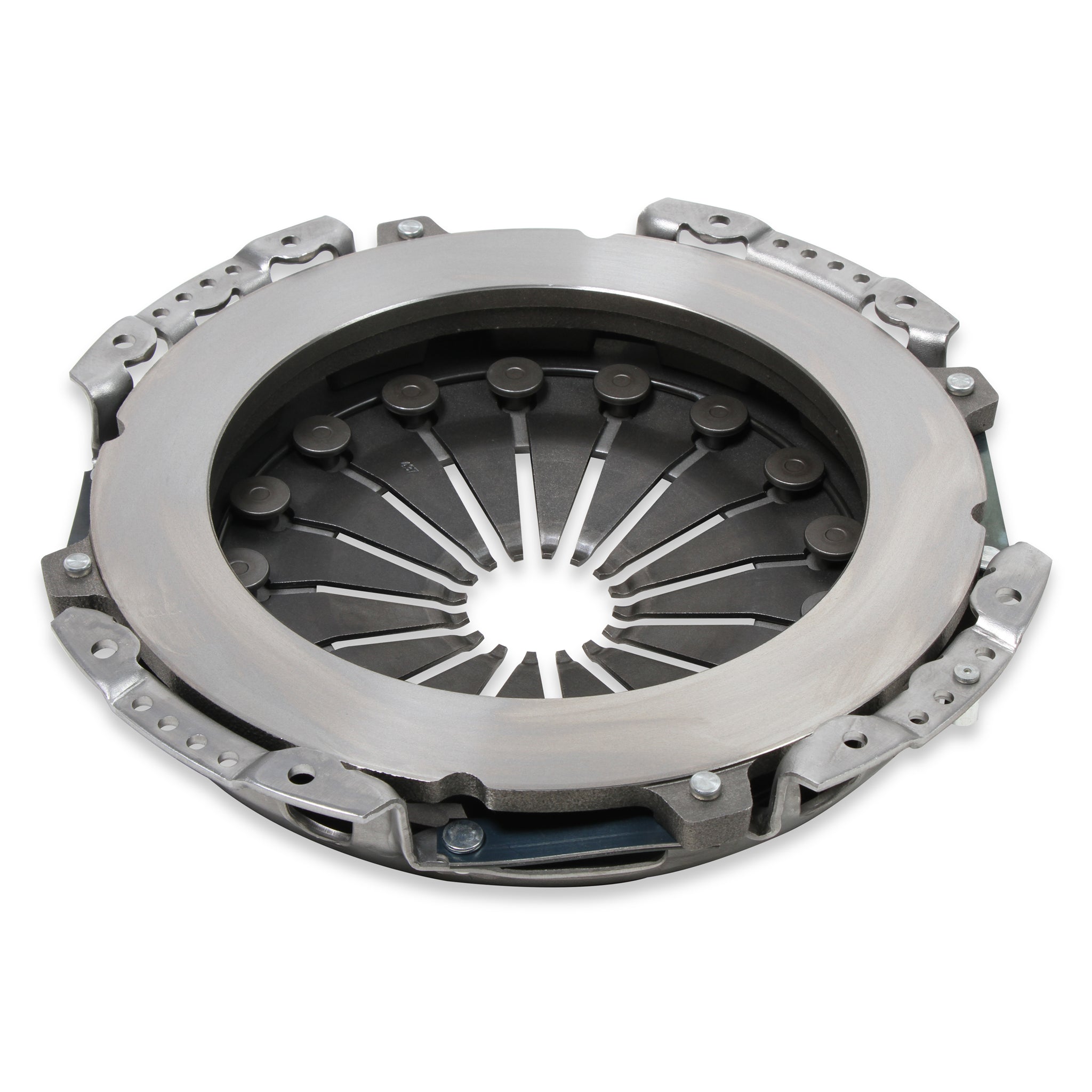

| Pressure Plate Style |
Diaphragm |
| Product Type |
Clutch Kits |
| Disc Material |
Ceramic |

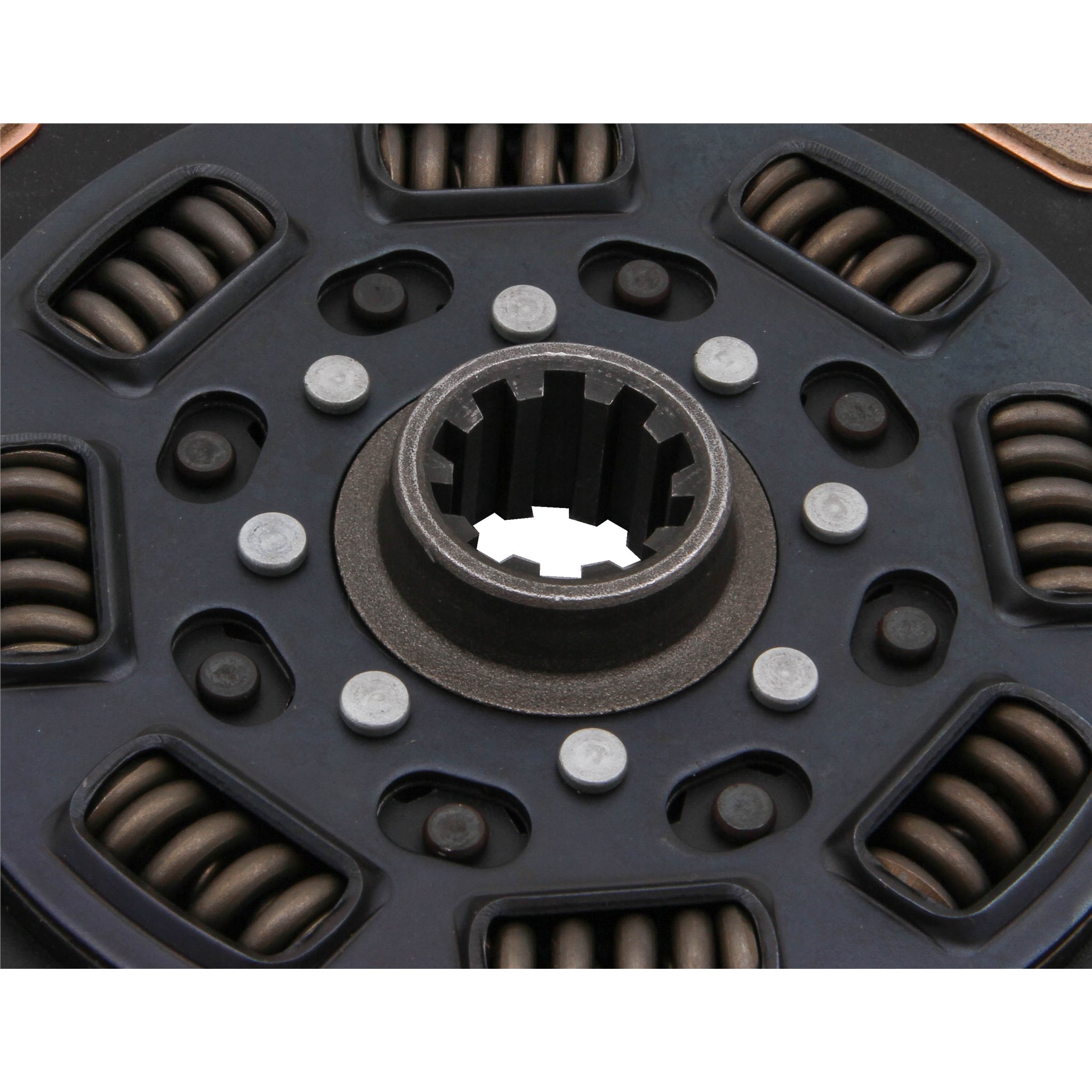

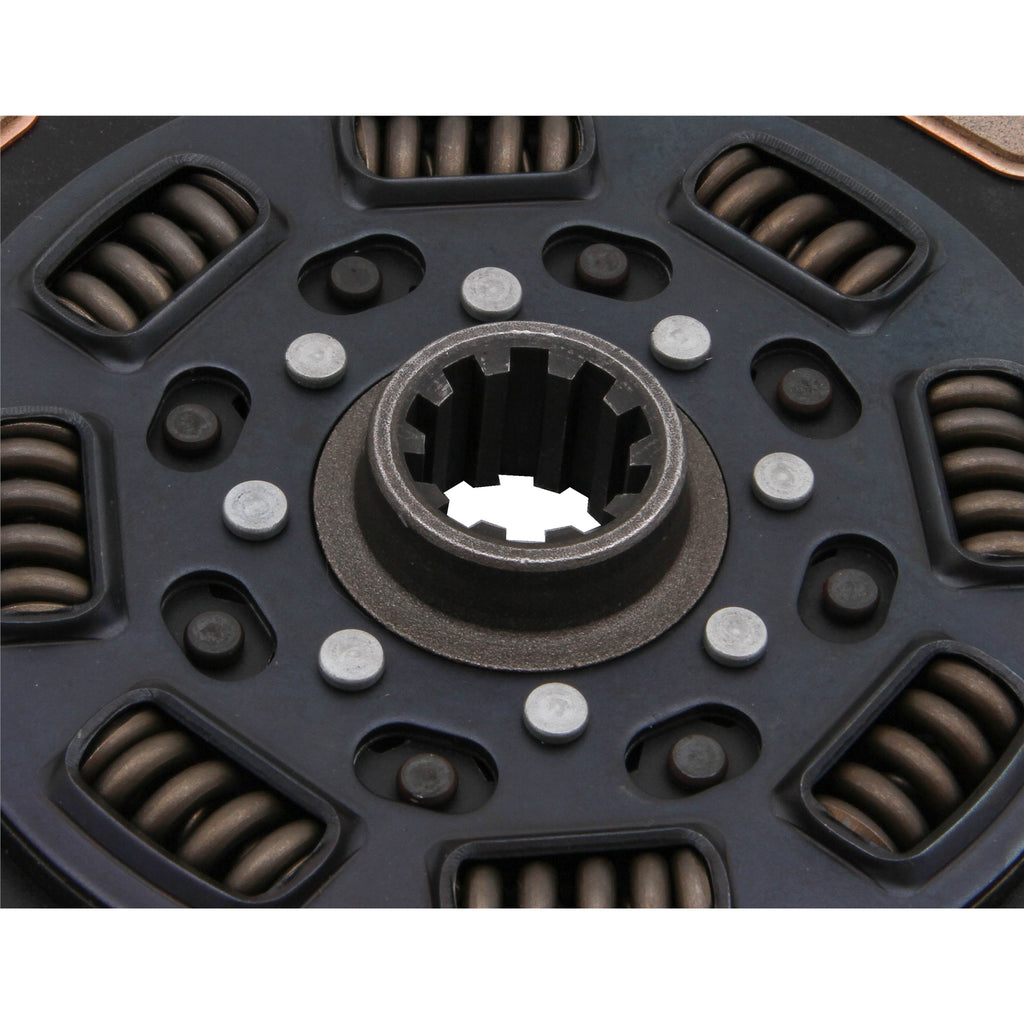

| Disc Style |
Spring Hub |
| Max Torque Rating (ft.-lbs.) |
850 |
| Throwout Bearing Included |
Yes |

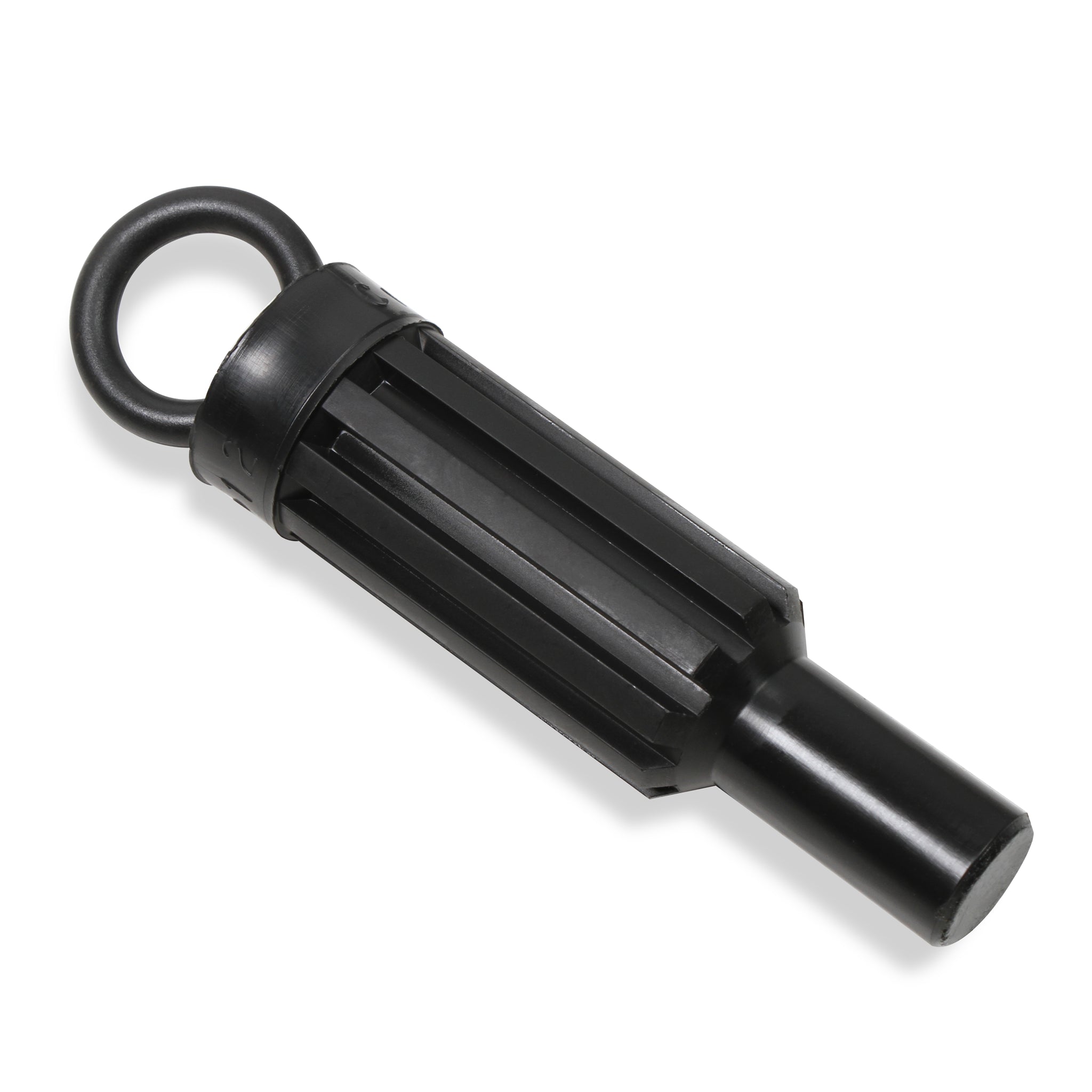

| Alignment Tool Included |
Yes |
| Torque Capacity |
850 ft/lbs. |
| Input Shaft Spline Quantity |
10 |
| Pressure Plate Type |
Diaphram |
| Input Shaft Diameter |
1.250 in. |
| Pilot Bushing Included |
Yes |
| Disc Type |
Spring Hub |
| Brand |
Hays |
| Emission Code |
5 |
| Length |
5.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
33.0000 |
