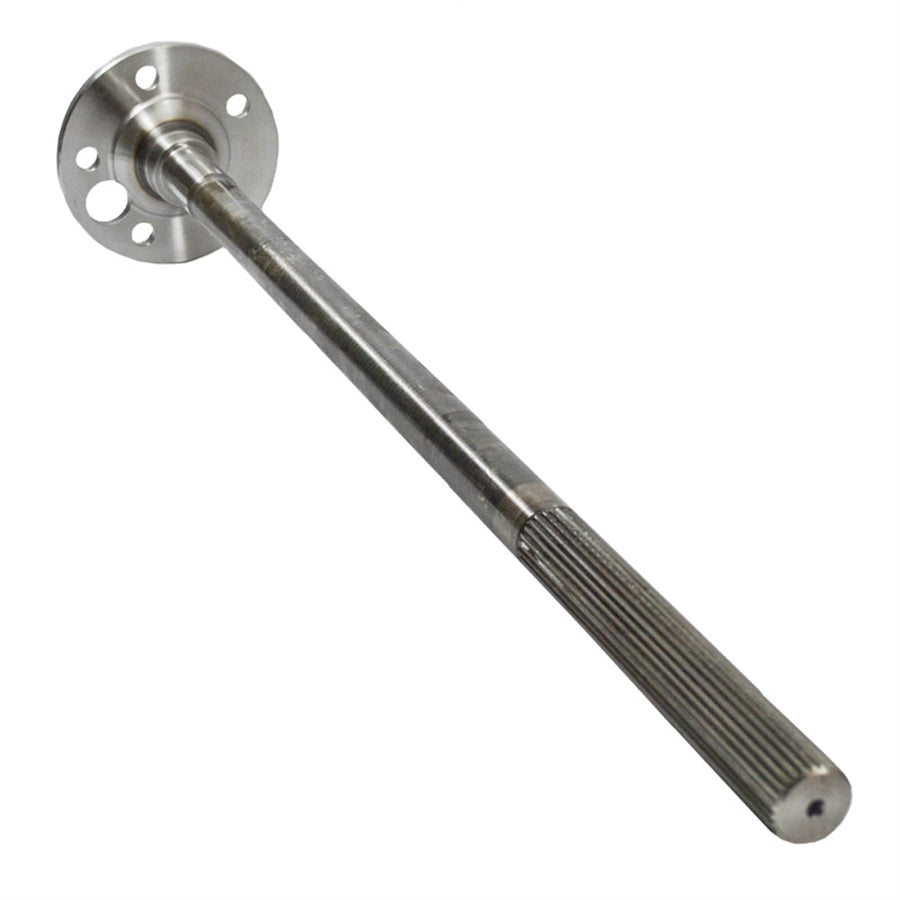

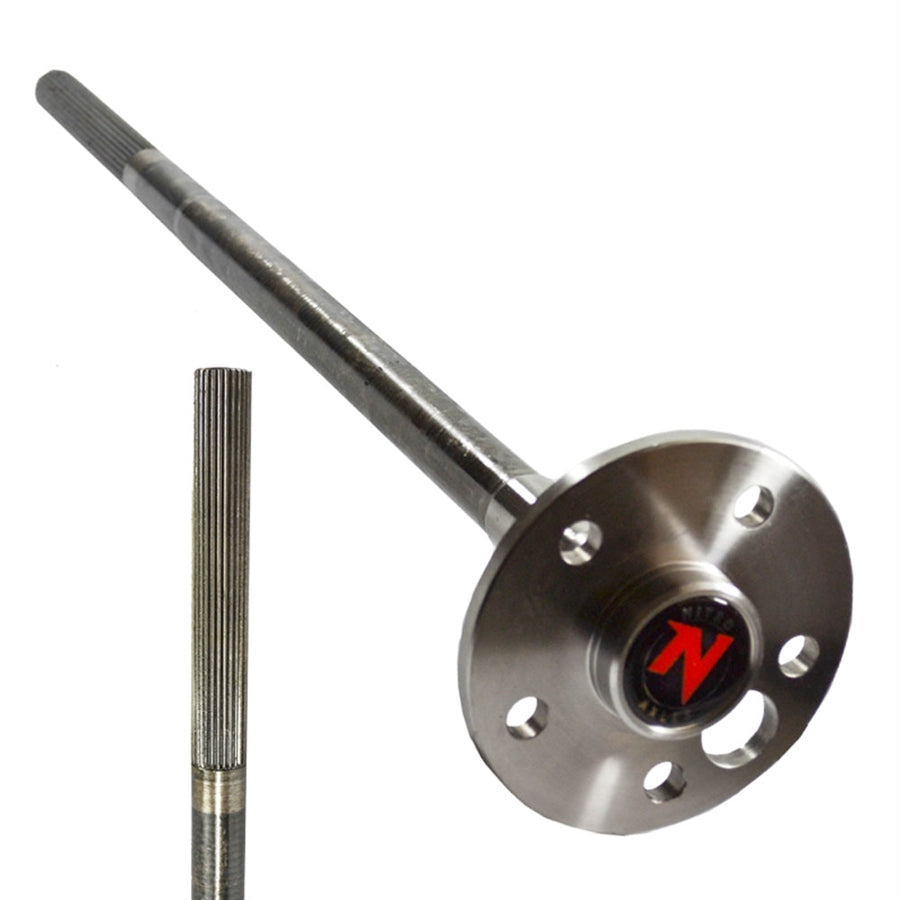

Nitro Gear and Axle now offers an assortment of Heavy Duty Cut-to-Length (CTL) rear axle shafts. The CTL axle shafts feature extra Long splines and can easily be cut to the desired length with a chop saw.This allows Nitro to use stronger rolled splines rather than cut splines and allows fewer part numbers to cover a wide range of OE and custom Fits. This also makes it easier for Offroad, restoration, and Rod Shops to stock axles since they fit so many Fits.Features:Ford 8 Inch and 9 Inch, 28 Spline, 25.5 Inch-33 Inch Cut-to-Length, 5 Lug, Nitro Rear Axle ShaftDrive axle shaftDifferential: Ford 8 Inch and 9 InchLength: 25.5 Inch-32.87 Inch Cut-to-LengthAxle Splines: 28Type: Semi FloatBolt Pattern 5X4.5 Inch, 5X4.75 Inch, 5x5 Inch, 2 3/8 Inch Offset, 2.43 Inch PilotMaterial: 1541h SteelManufacturer: Nitro Gear and AxleWarranty: 5 YearsFits:Any Ford 8 Inch and 9 Inch custom applications with the Large bearingBoth right hand passenger and left hand drivers side
Specifications:
Description_MKT |
Nitro Gear and Axle now offers an assortment of Heavy Duty Cut-to-Length (CTL) rear axle shafts. The CTL axle shafts feature extra Long splines and can easily be cut to the desired length with a chop saw.This allows Nitro to use stronger rolled splines rather than cut splines and allows fewer part numbers to cover a wide range of OE and custom Fits. This also makes it easier for Offroad, restoration, and Rod Shops to stock axles since they fit so many Fits.Features:Ford 8 Inch and 9 Inch, 28 Spline, 25.5 Inch-33 Inch Cut-to-Length, 5 Lug, Nitro Rear Axle ShaftDrive axle shaftDifferential: Ford 8 Inch and 9 InchLength: 25.5 Inch-32.87 Inch Cut-to-LengthAxle Splines: 28Type: Semi FloatBolt Pattern 5X4.5 Inch, 5X4.75 Inch, 5x5 Inch, 2 3/8 Inch Offset, 2.43 Inch PilotMaterial: 1541h SteelManufacturer: Nitro Gear and AxleWarranty: 5 YearsFits:Any Ford 8 Inch and 9 Inch custom applications with the Large bearingBoth right hand passenger and left hand drivers side |
Description_SHO |
Ford 8 and 9 Inch 28 Spline 25.5 -33 Inch Cut-to-Length 5 Lug Rear Axle Shaft Nitro Gear & Axle |
material |
1541 Steel |
series |
|
Length |
8.7500 |
Width |
8.3800 |
Height |
38.0000 |
Weight |
17.5000 |
