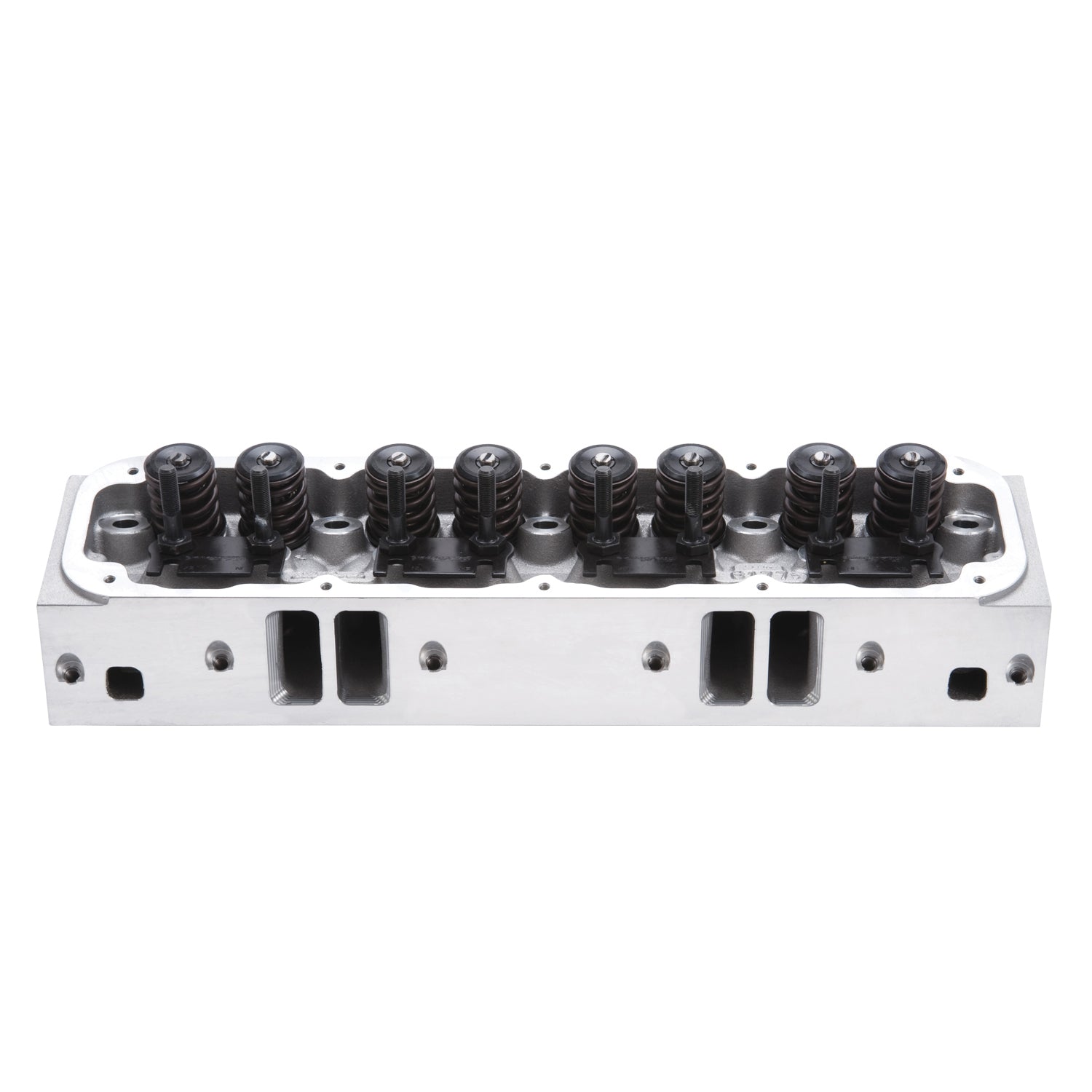

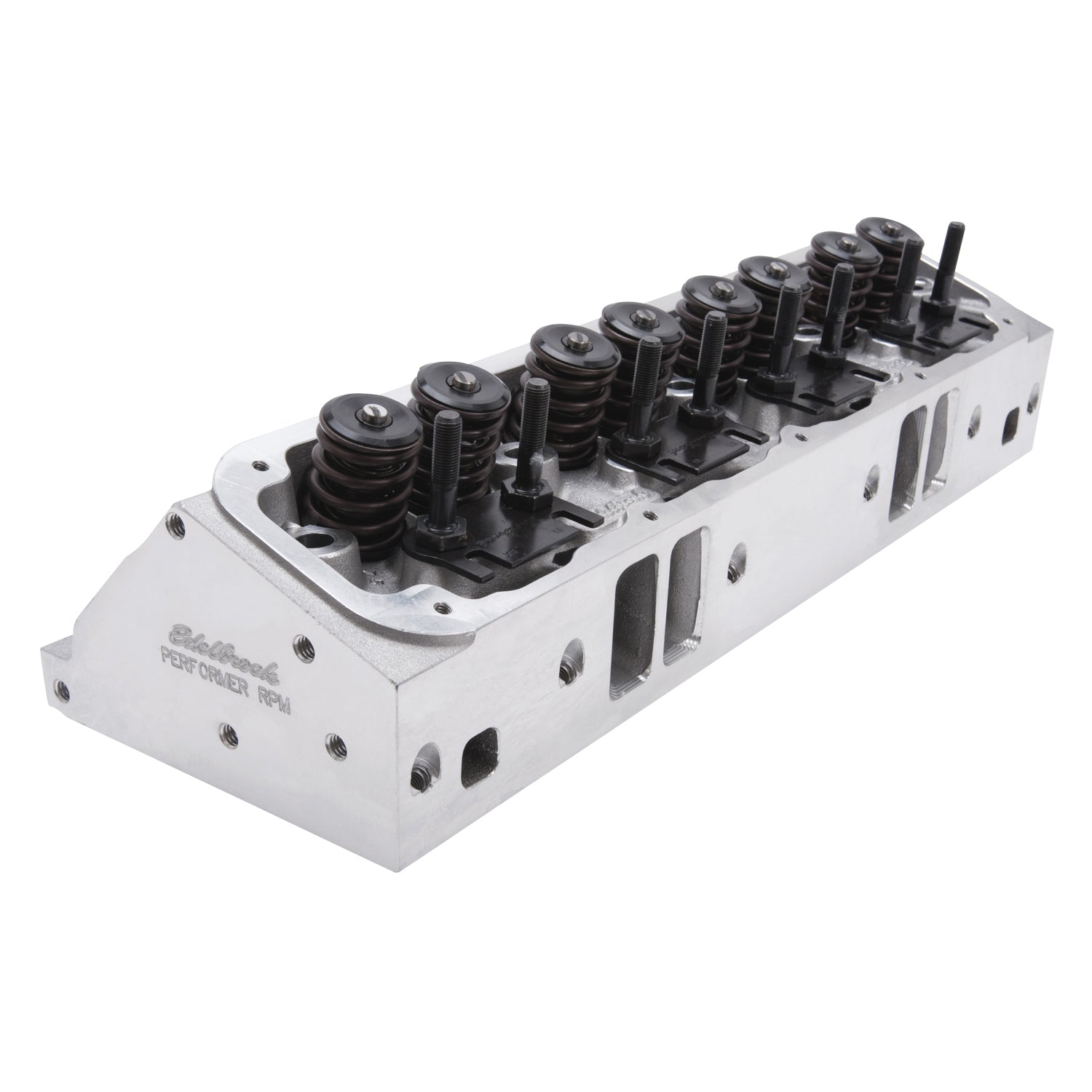

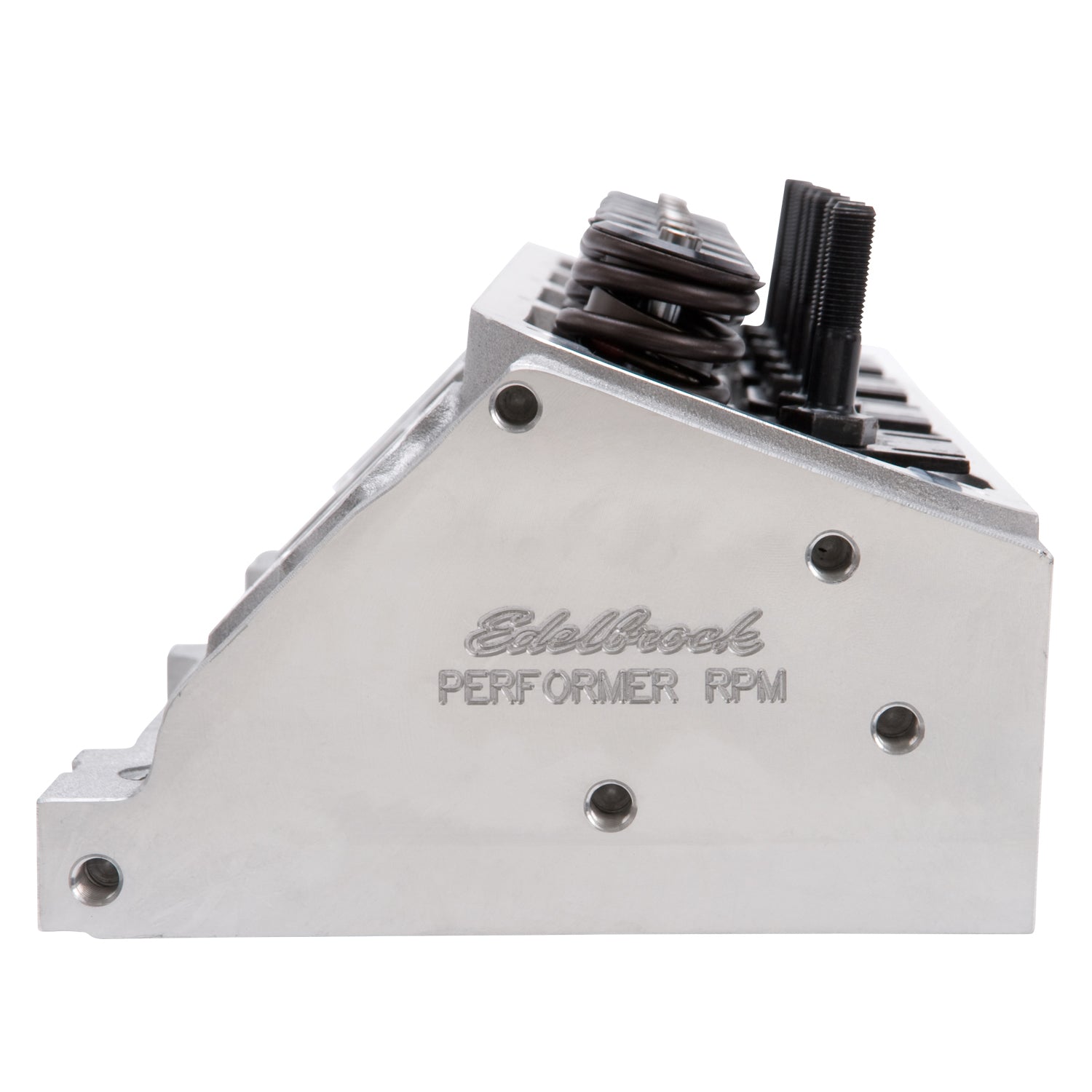

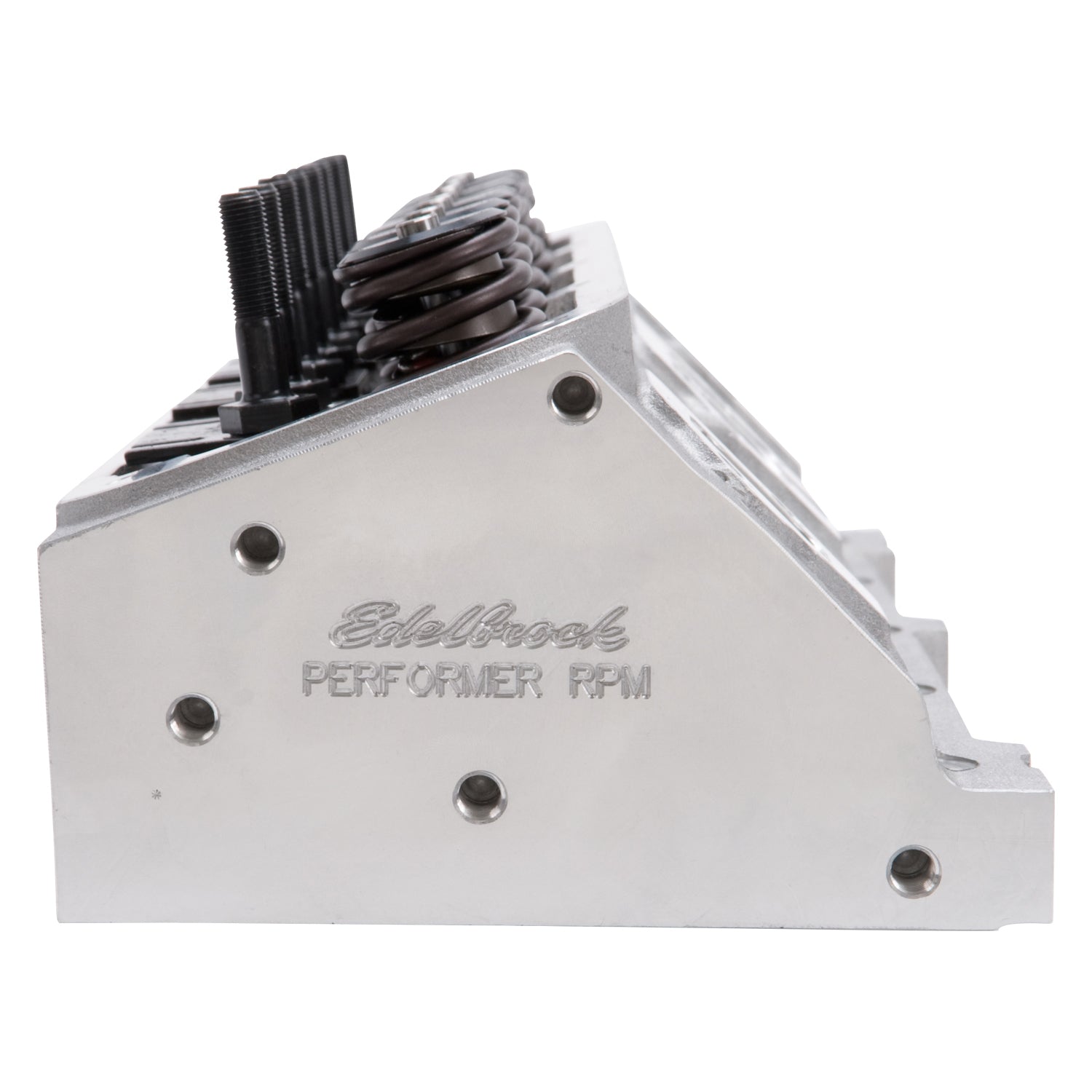

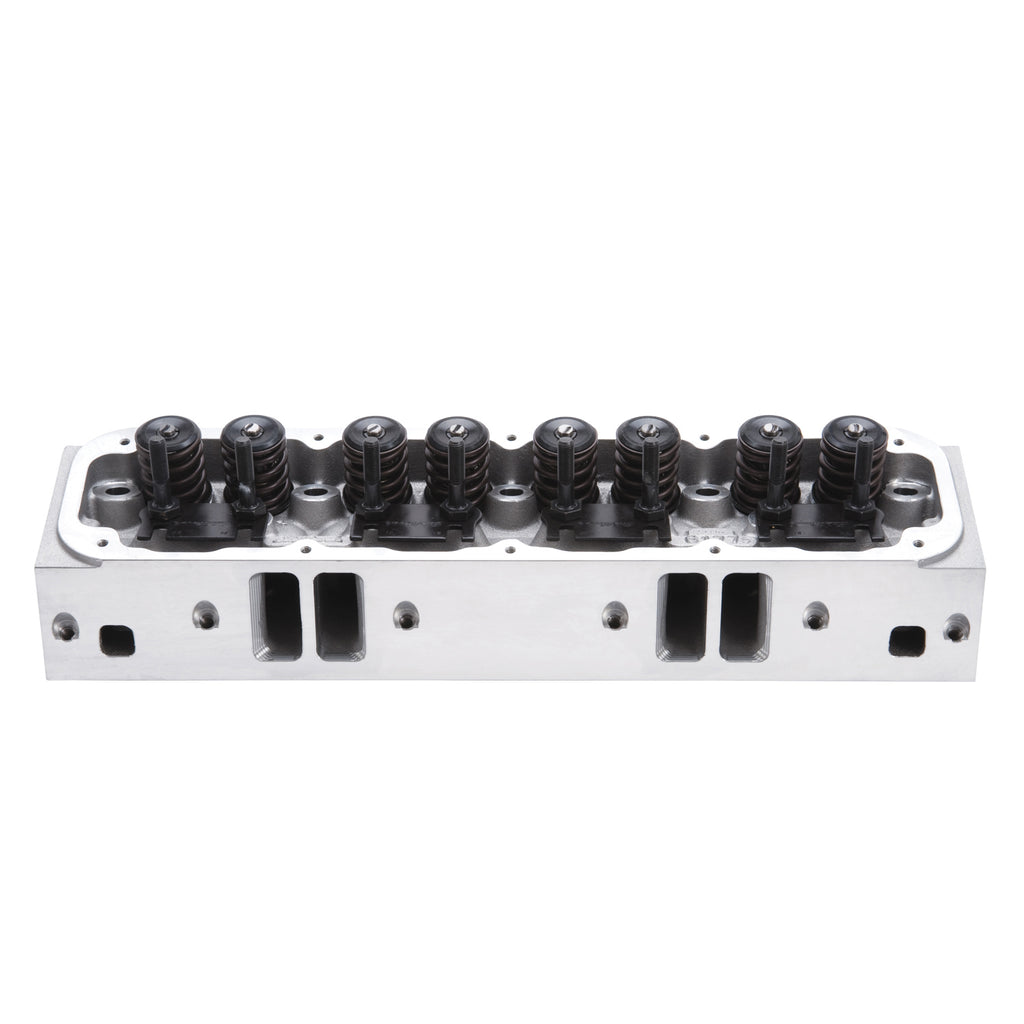

The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock part #61775 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. |
| Description_INV |
Edelbrock SB Chrysler Cylinder Head |
| Description_LAB |
RPM Small-Block Chrysler Magnum Cylinder Head Hydraulic Roller Cam |
| Description_MKT |
The Edelbrock #61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA |
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA |
Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 |
| Description_TRA |

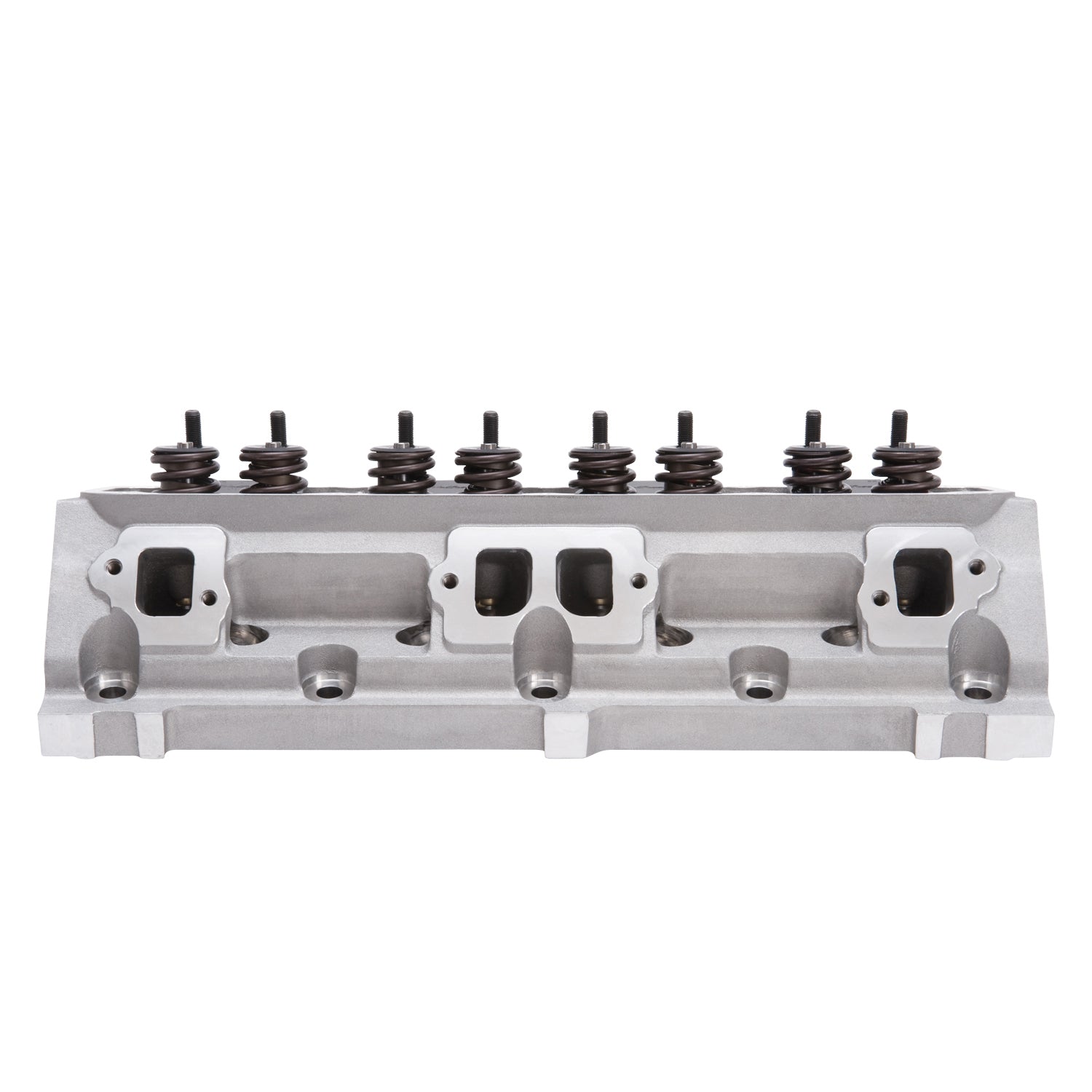

Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired |
| Description_TRA |
Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 |
| Description_TRA |
Requires hardened pushrods, #9638. |
| Description_TRA |
Match with Edelbrock head gasket sets. |
| Description_TRA |
Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA |
Deck thickness: 5/8" |
| Description_TRA |
Rocker stud diameter: 3/8" |
| Description_TRA |
Pushrod diameter: 5/16" (width of slot in guide plate). |
| Intake Valve Diameter |
2.02 |
| Construction Type |
Complete |
| Valve Springs Included |
Yes |
| Series |
Performer RPM |
| Seat Angle |
Exhaust 45 deg/Intake 45 |

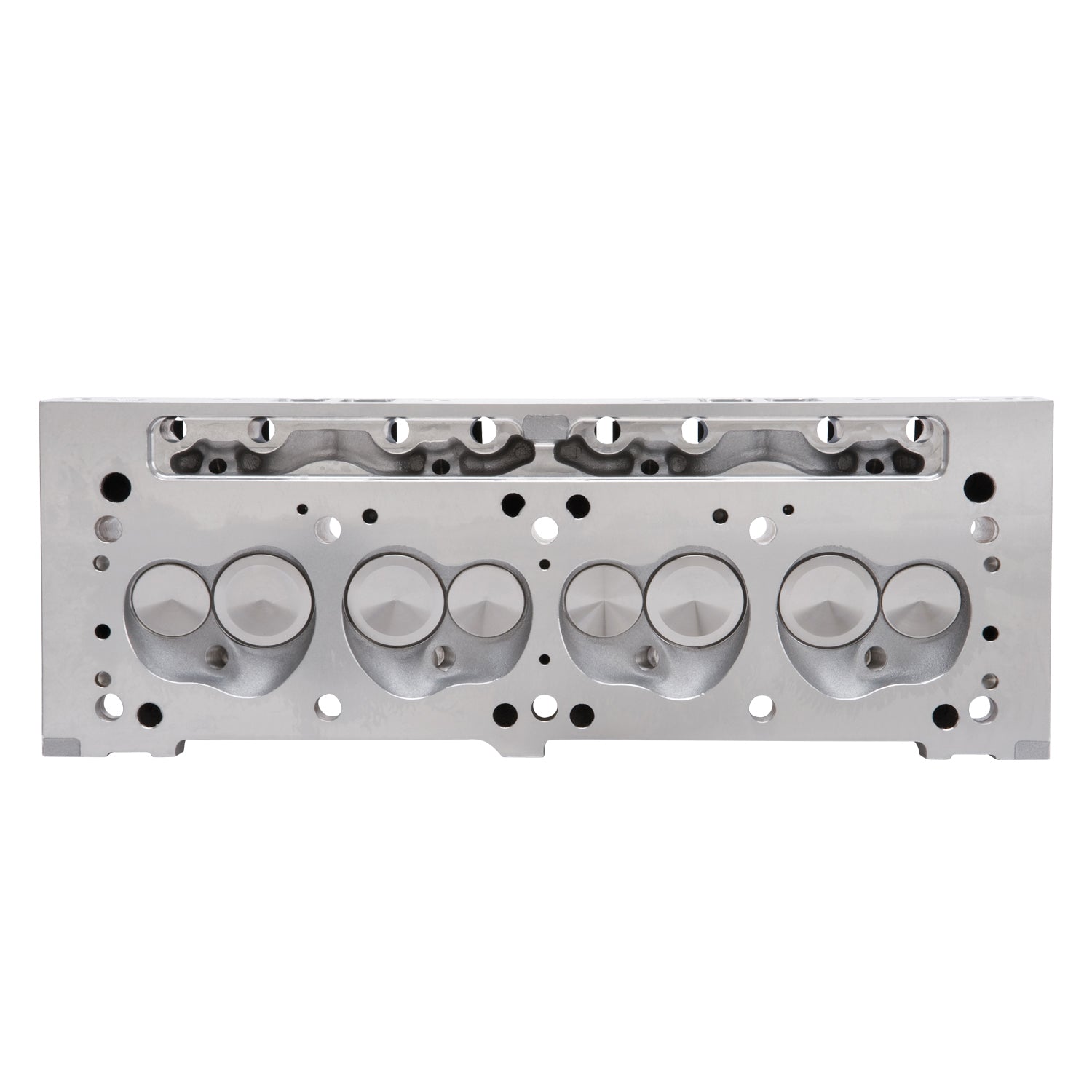

| Combustion Chamber Volume |
58 |
| Seat Material |
Ductile Iron |
| Rocker Arm Stud Diameter |
0.375 |
| Retainer Included |
Yes |
| Head Casting Number |
N/A |
| CNC Ported |
No |
| Valve Included |
Yes |
| Valve Angle |
18 |
| Valve Spring Maximum Lift |
0.580 |
| Quantity |
Sold Individually |
| Horsepower |
350-500 |
| EGR Port |
No |
| Guide Plates Included |
Yes |
| Family |
Performer RPM |
| Valve Stem Diameter |
0.3438 |
| Exhaust Port Location |
Standard |
| Material |
Aluminum |
| Exhaust Valve Diameter |
1.60 |
| Intake Runner Volume |
176 |
| Deck Thickness |
0.625 |
| Exhaust Runner Volume |
75 |
| Valve Spring Diameter |
1.46 |
| Grade Type |
Performance |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Guide Plate Material |
Hardened Steel |
| Camshaft Type |
Hydraulic Roller |
| Push Rod Diameter |
(Suggested) 0.3125 |
| Guide Material |
Manganese Bronze |
| Length |
8.0000 |
| Width |
11.0000 |
| Height |
25.0000 |
| Weight |
33.0000 |
