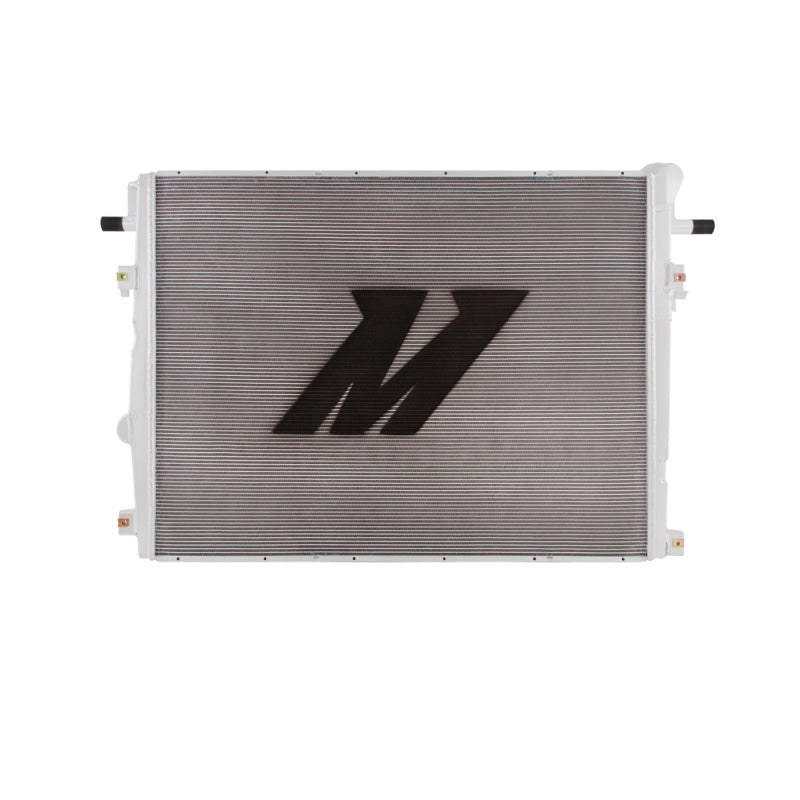

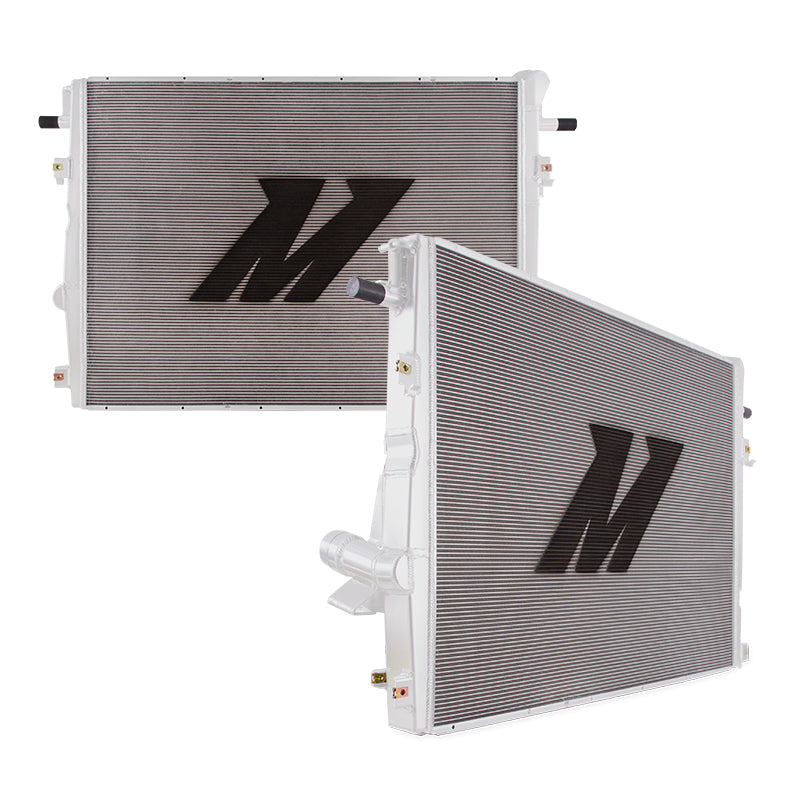

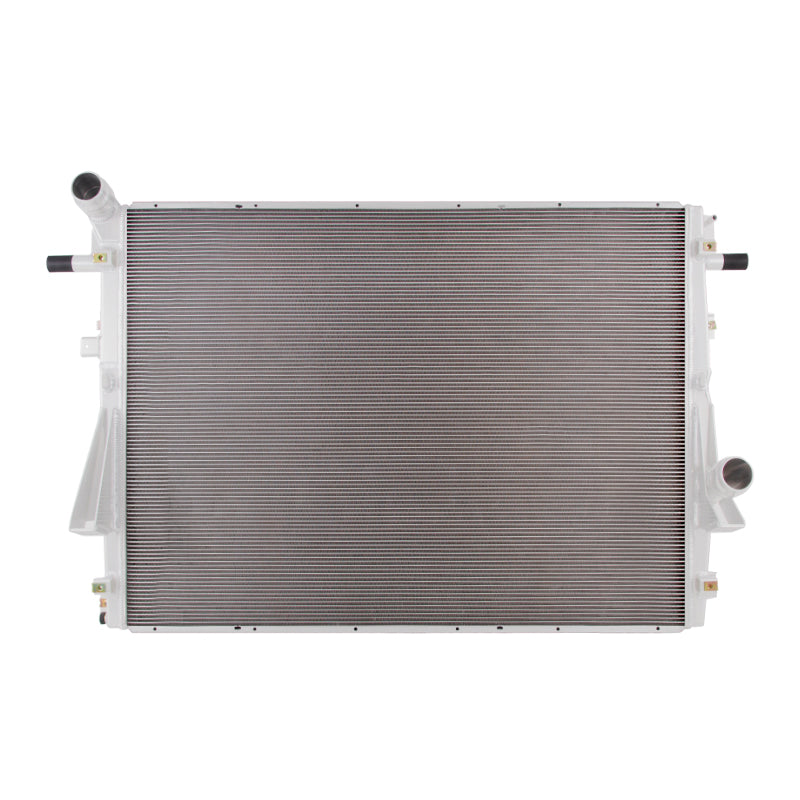

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.
Specifications:
| Description_DEF |
Radiator |
| Description_DES |
Ford 6.7L Powerstroke Aluminum Primary Radiator, 2011-2016 |
| Description_EXT |
Aluminum Primary Radiator, fits Ford 6.7L Powerstroke 2011-2016 |
| Description_INV |
Mishimoto MMRAD-F2D-11V2 |
| Description_FAB |
Direct fit for 2011-2016 Ford 6.7L Powerstroke |
| Description_FAB |
Extruded tubes with internal struts for increased strength and pressure tolerance |
| Description_FAB |
10-percent thicker core and 37-percent increase in coolant capacity |
| Description_FAB |
Patent pending |
| Description_FAB |

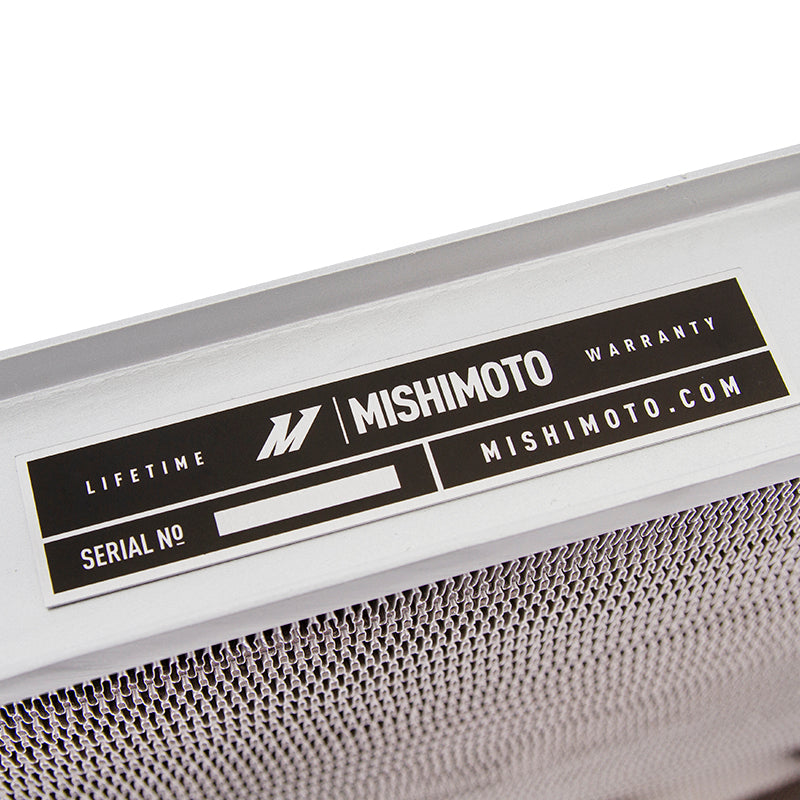

Mishimoto Lifetime Warranty |
| Description_MKT |
The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty. |
| Description_SHO |
Radiator |
| TechSpec Core Thickness (in) |
1.89 |
| TechSpec Inlet (in) |
N/A |
| TechSpec Overall Length (in) |
48.9 |
| TechSpec Rows |
2 |
| SellingPoint01 |
Direct fit for the 6.7L Powerstroke, 2011-2016 |
| SellingPoint02 |
37-percent increase in coolant capacity |
| SellingPoint13 |
N/A |
| TechSpec Chassis Codes |
N/A |
| SellingPoint04 |
10-percent thicker core than factory |
| Install Difficulty |
4 |
| SellingPoint05 |
100-percent brazed aluminum core |
| SellingPoint07 |

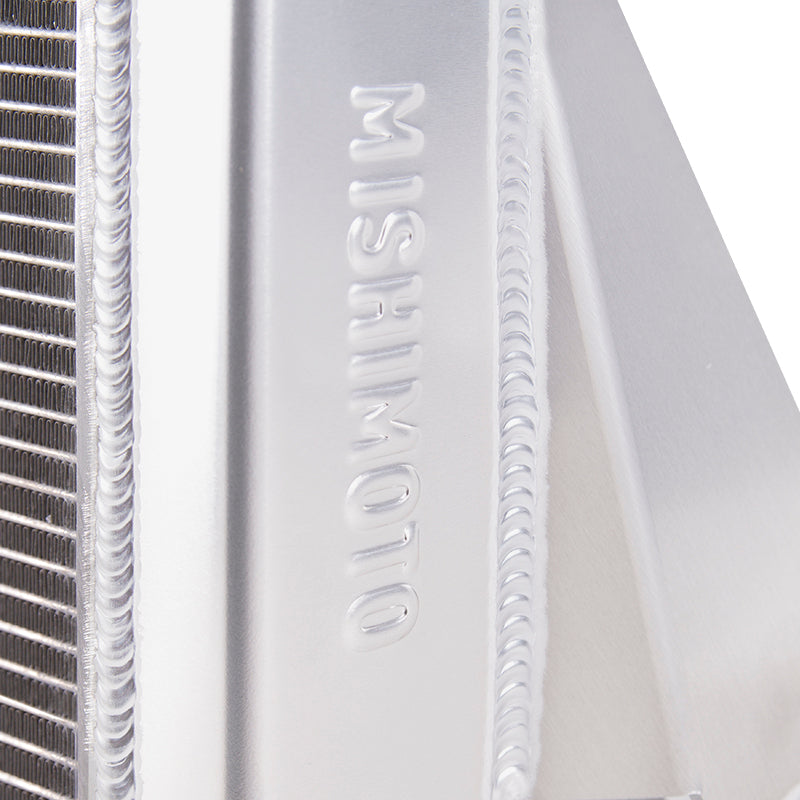

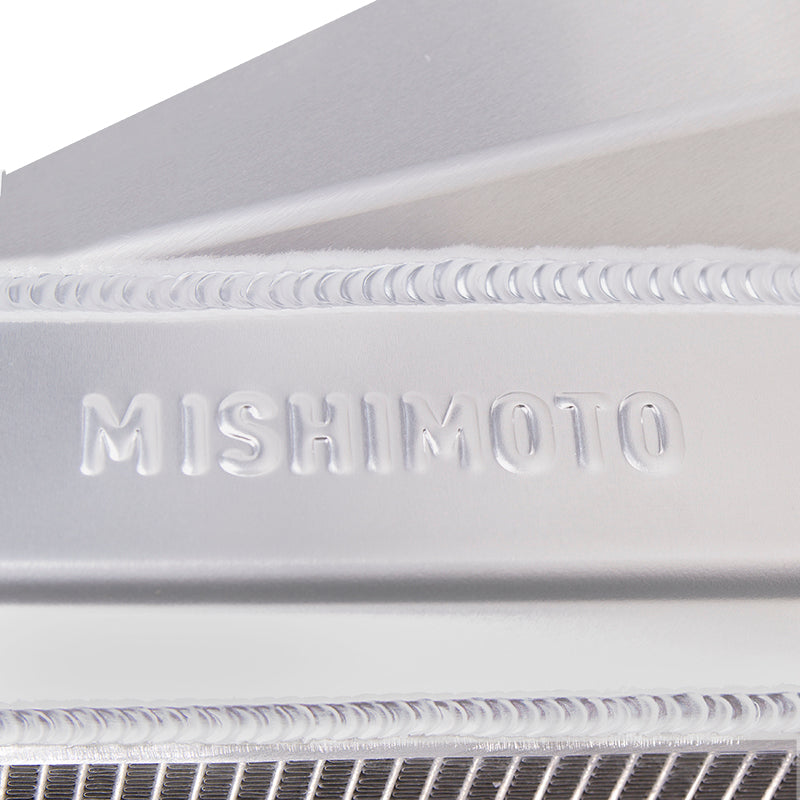

TIG-welded to perfection |
| SellingPoint11 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec DPI |
13230 |
| TechSpec Engine Codes |
N/A |
| TechSpec Includes |
Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
N/A |
| SellingPoint03 |
20-percent increase in fin area |
| SellingPoint06 |

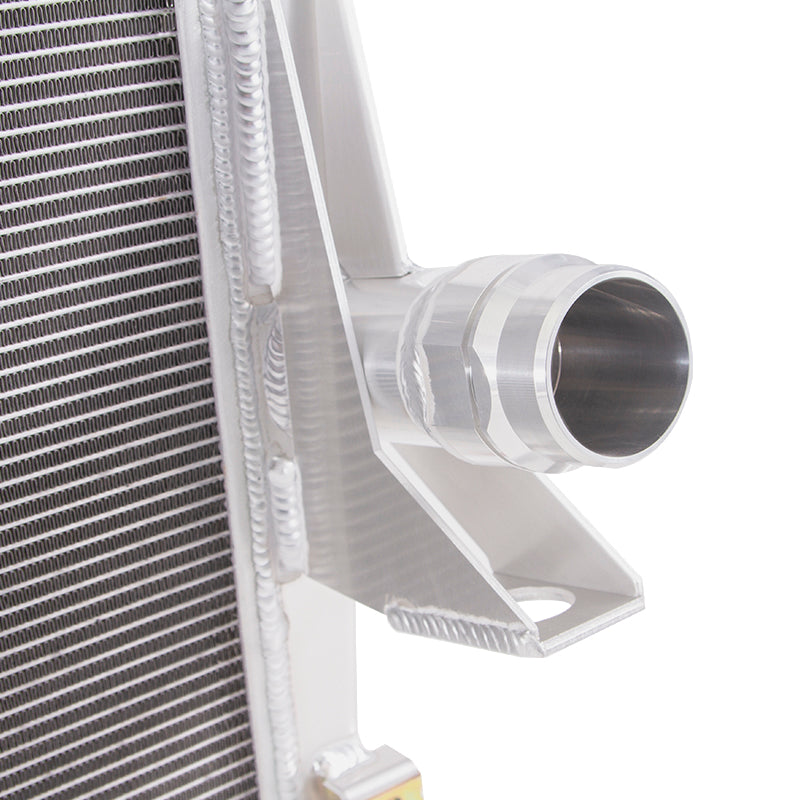

CNC-machined, factory-style, quick-disconnect inlet and outlet |
| SellingPoint08 |
Includes magnetic oil drain plug |
| SellingPoint09 |
Patent numberD717,218 |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| SellingPoint12 |
N/A |
| TechSpec Applications |
2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke |
| TechSpec Core Height (in) |
38.39 |
| TechSpec Core Length (in) |
27.76 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Fluid Capacity (gal) |
11.61 |
| TechSpec Overall Height (in) |
30.2 |
| TechSpec Overall Width (ins) |
8 |
| Length |
9.8000 |
| Width |
33.0000 |
| Height |
52.0000 |
| Weight |
57.0000 |
