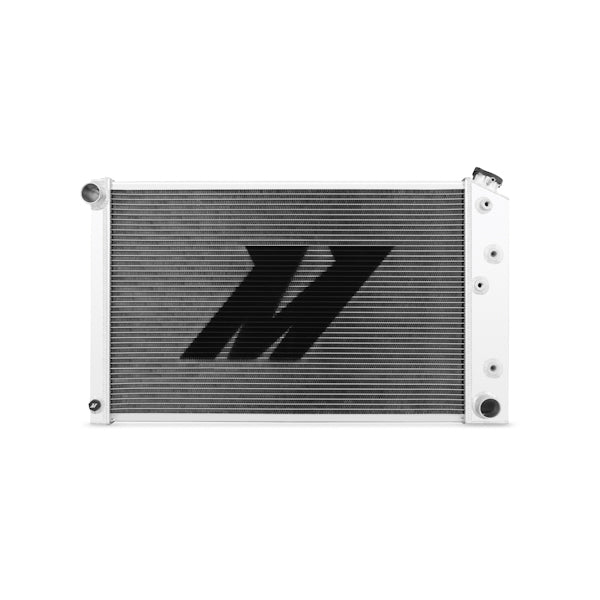

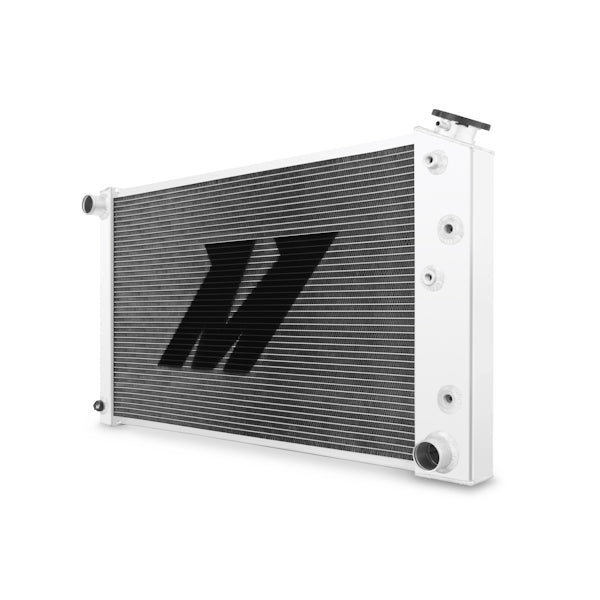

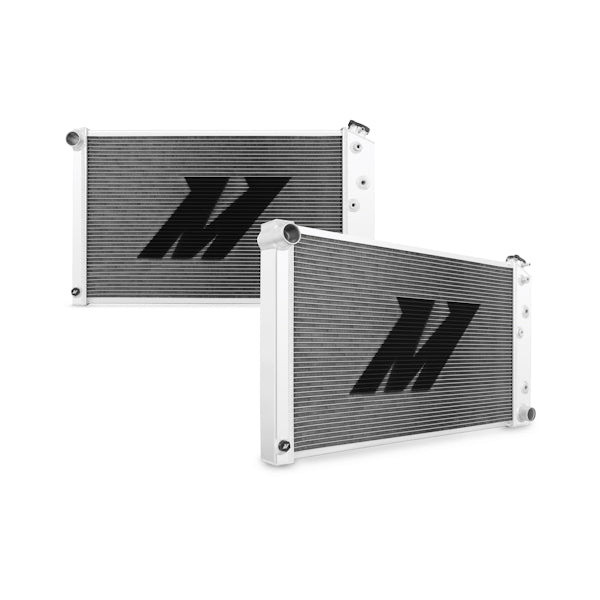

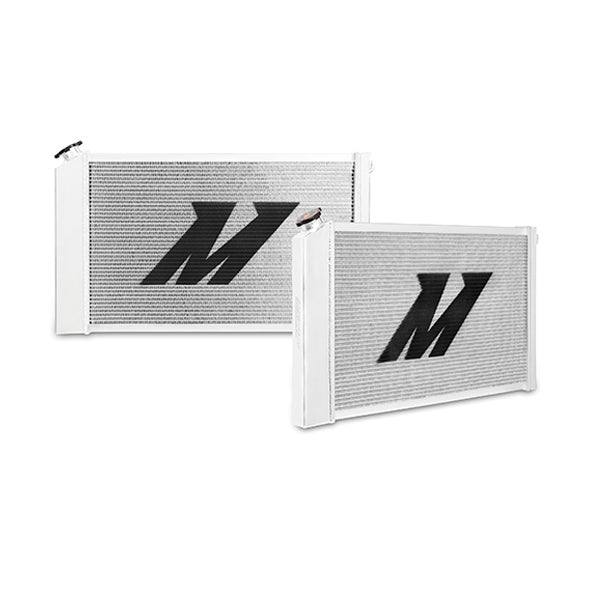

The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty.
Specifications:
| Description_DEF |
Radiator |
| Description_DES |
Chevrolet Camaro 2-Row Performance Aluminum Radiator, 1970 - 1981 |
| Description_EXT |
2-Row Performance Aluminum Radiator, fits Chevrolet Camaro 1970-1981 |
| Description_MKT |
The Mishimoto performance aluminum radiator for the Chevrolet Camaro / Pontiac Firebird is an ideal upgrade to the OEM radiator. Whether you are cruising to a car show or slinging rubber at the strip an efficient cooling system is a must. The Mishimoto Chevrolet Camaro aluminum radiator features a 2 row core and high pressure radiator cap to keep your stock or modified small block temperatures in check. Not only will this radiator improve engine cooling but the incorporated transmission cooler will provide significant reductions in fluid temperatures. The Mishimoto Chevrolet Camaro radiator is crafted from high quality TIG welded aluminum with polished end tanks. This aluminum radiator is a direct fit unit and will not require any trimming or cutting and is backed by the Mishimoto lifetime warranty. |
| Description_FAB |
Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines |
| Description_FAB |
Full aluminum radiator featuring robust TIG-welded construction |
| Description_FAB |
Massive three-row, 2.05" thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip |
| Description_FAB |

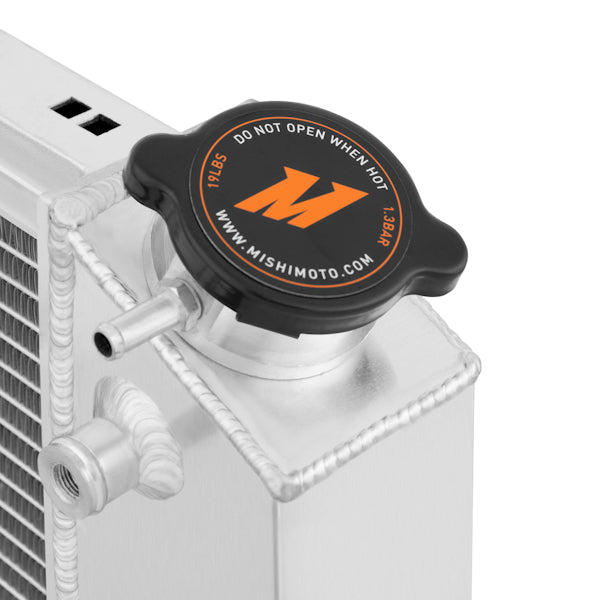

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| Description_FAB |

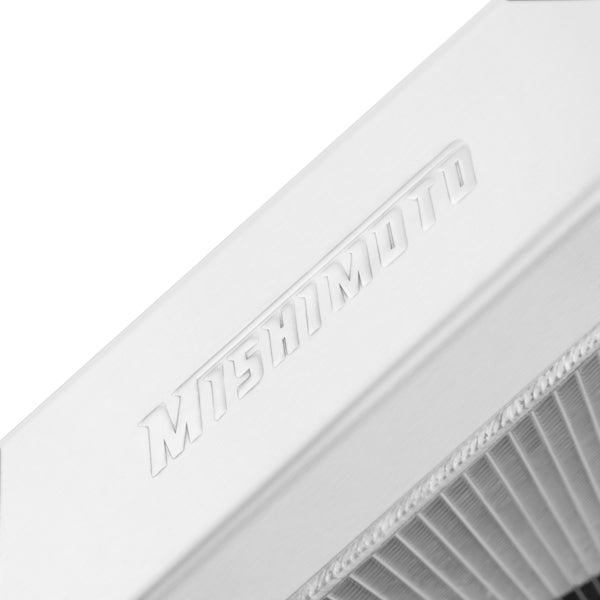

Polished aluminum end tanks enhance engine bay aesthetics |
| Description_FAB |
Includes Mishimoto M12 x 1.5" Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMRAD-CAM-70 |
| Description_SHO |
Radiator |
| SellingPoint07 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Overall Length (in) |
18.75 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Note |
N/A |
| SellingPoint06 |
Includes Mishimoto M12 x 1.25-in Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint08 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| TechSpec Core Length (in) |
26.2 |
| TechSpec Overall Height (in) |
31 |
| TechSpec Overall Width (ins) |
4.2 |
| SellingPoint10 |
N/A |
| TechSpec Core Height (in) |
16.5 |
| TechSpec Fluid Capacity (gal) |
4.87 |
| Install Difficulty |
3 |
| SellingPoint01 |
Direct fit for the 1970-1981 Chevrolet Camaro w/ L6 and V8 engines |
| SellingPoint02 |
Full aluminum radiator featuring robust TIG-welded construction |
| SellingPoint03 |
Two-row brazed aluminum core provides efficient fluid temperature reduction on the street or strip |
| SellingPoint04 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint05 |
Polished aluminum end tanks enhance engine bay aesthetics |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| TechSpec Applications |
1970-1981 Chevrolet Camaro--1970-1981 Chevrolet Camaro |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Thickness (in) |
1.41 |
| TechSpec DPI |
162 |
| TechSpec Engine Codes |
N/A |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug w/ Dowty Oil Seal--(2) 1/8-inch NPT Plugs--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Outlet (in) |
1.57 |
| TechSpec Rows |
2 |
| Length |
24.0000 |
| Width |
9.0000 |
| Height |
29.0000 |
| Weight |
21.0000 |
