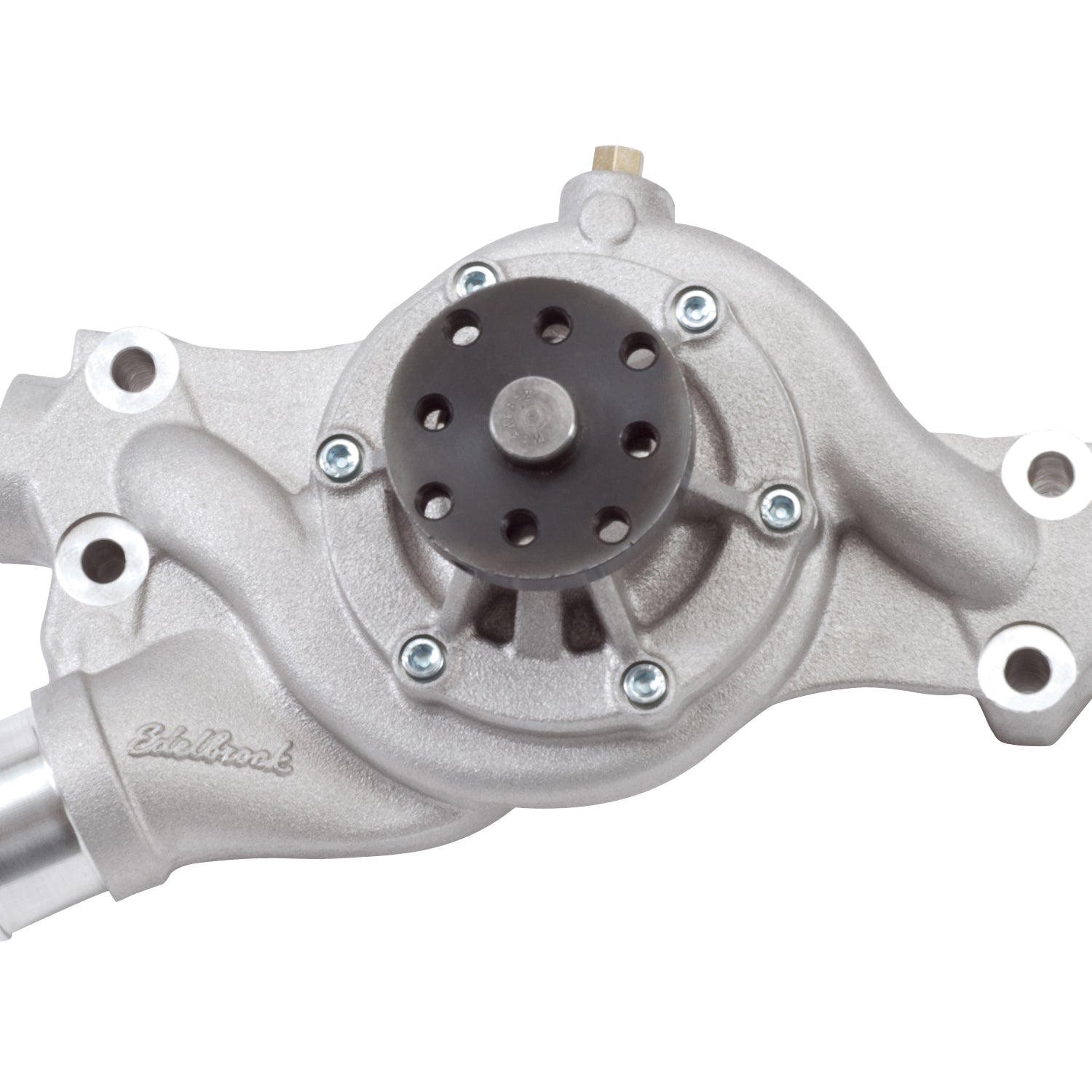

Edelbrock #8827 Water Pump small block Chevy cartridge style race ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications:
| Description_ABR |
Water Pump |
| Description_ASM |
Chevrolet:Small-Block:262 (4.3L)-400 (6.6L) |
| Description_DEF |
Engine Water Pump |
| Description_EXT |
Edelbrock #8827 Water Pump Small Block Chevy Cartridge Style Race Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_LAB |
Water Pump Cartridge for Small-Block Chevy (Race Style) |
| Description_MKT |
Edelbrock #8827 Water Pump small block Chevy cartridge style race ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_INV |
Water Pump SBC Cartridge Style Race |
| Description_TRA |

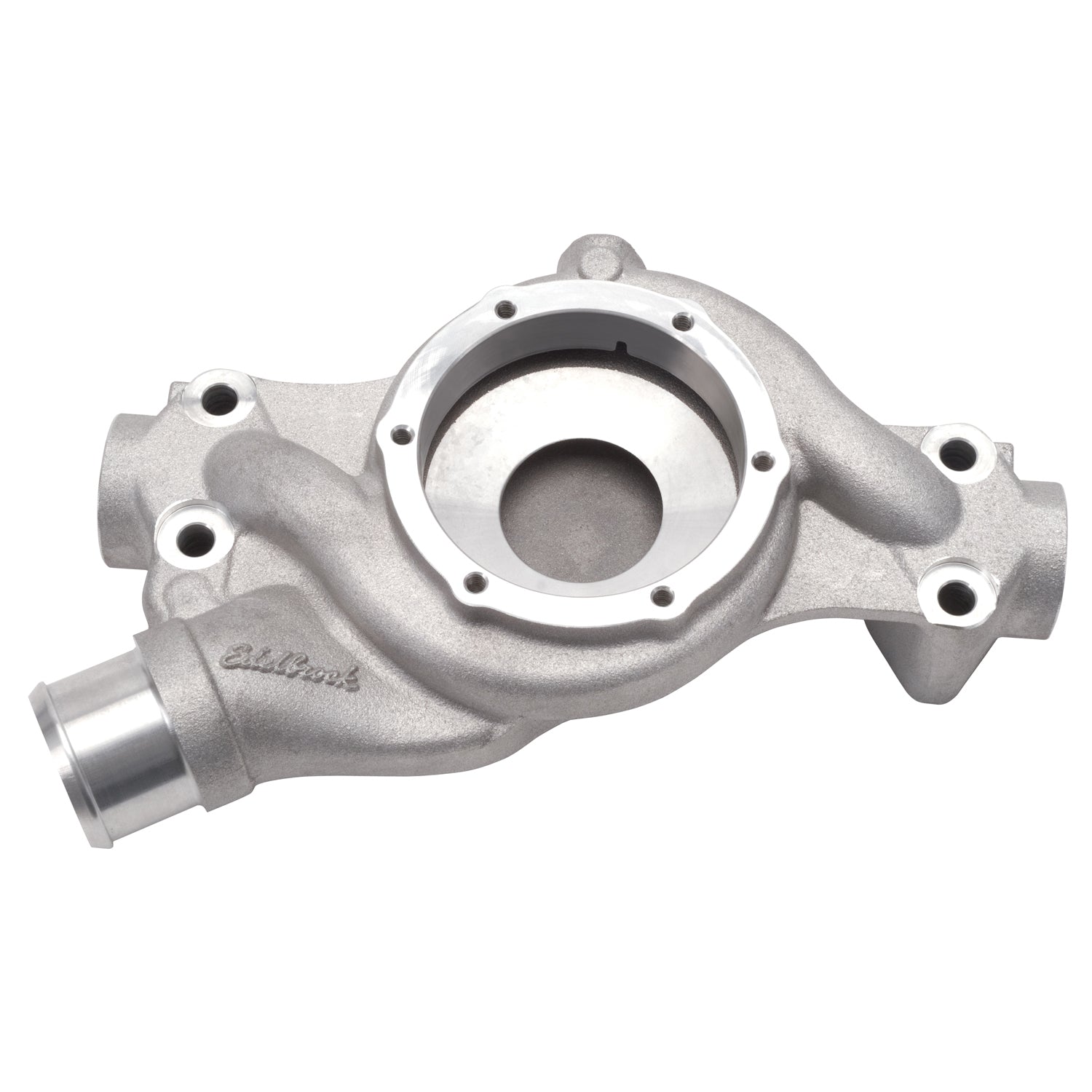

The Edelbrock 8827 is a two-piece insert-style water pump with a 1.80" diameter inlet designed for small block Chevrolet engines used in competition- The pump uses the same hub height (5 13/16") as the short leg pump found on 1971-82 Corvettes - It offers weight savings along with increased durability and cooling potential - The #8828 is a replacement insert service item for the #8827.- Installation is the same as for original equipment water pumps, although it does require longer than stock mounting bolts - Consult service manual for specific procedures, if necessary - A -2 AN bleeder screw is installed at the top of the pump. - Loosen the screw after filling the cooling system to remove any air. |
| Includes Back Housing |
Yes |
| Hub Height |
5.813 |
| Mounting Hardware Included |
No |
| Casting Number |
8827 |
| Impeller Material |
Powdered Metal |
| Impeller Rotation |
Standard |
| Housing Material |
Aluminum |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Related Cooling Fan Components |
No |
| Fan Clutch Included |
No |
| Pulley Included |
No |
| Impeller Vane Quantity |
6 |
| Water Pump Drive Type |
V-Belt |
| Mounting Hole Quantity |
4 |
| Hub Hole Quantity |
6 |
| Thermostat And Housing Included |
No |
| Outlet Quantity |
1 |
| Installation Warnings |
Yes |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
14.0000 |
| Weight |
8.0000 |
