By tying pairs of rocker arms together, COMP Cams has found a way to improve valve train dynamics, increase valve train stiffness and reduce deflection. The use of a tri-layer bushing instead of needle bearings reduces deflection, which then allows for increased rigidity and decreased rocker pad wear. The increased valve train stiffness provided by the COMP Cams Max-Lift BSR Shaft Rocker System makes the same camshaft perform like a slightly larger camshaft as more of the lobe lift is transferred directly to the valve train instead of being absorbed by deflection in the cylinder head and single-bolt rocker mounting design. The system will also allow the use of higher lift, more aggressive camshafts before the valve train goes out of control. The Max-Lift BSR Shaft Rocker System ensures the rocker pad and valve tip remain parallel through the contact sweep, allowing the rocker to safely sweep up to .675" valve lift. Available for GM GEN V LT1/LT2/LT4/LT5/L86 engines, the COMP Cams Max-Lift BSR Shaft Rocker System ships fully assembled for an easy, bolt-on installation. Does NOT fit GM Gen V L83 (5.3L) cylinder heads.
Specifications:
| Description_DEF |

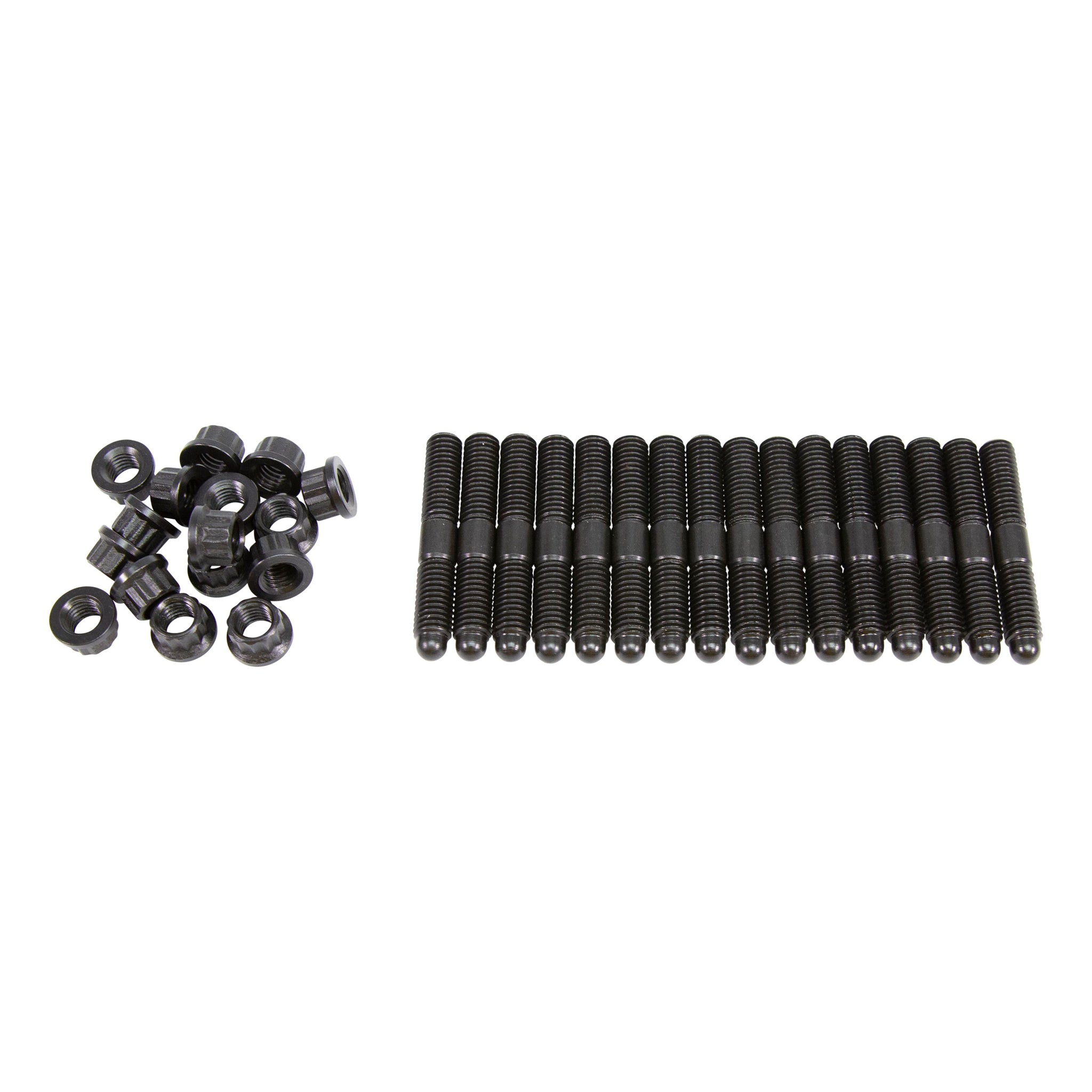

Engine Rocker Arm Stud |
| Description_DES |
M8x1.25 threads on both sides. 52mm Overall Stud Length. 12 Point flange nuts |
| Description_INV |
COMP ROCKER ARM STUD KIT, GM LS7/LT |
| Description_EXT |
No modifications to stock rocker arms needed. Check fitment on aftermarket systems before use. Torque specs follow the factory settings. Check the service manual for the proper specification and process. |
| Description_SHP |
None |
| Description_MKT |
By tying pairs of rocker arms together, COMP Cams has found a way to improve valve train dynamics, increase valve train stiffness and reduce deflection. The use of a tri-layer bushing instead of needle bearings reduces deflection, which then allows for increased rigidity and decreased rocker pad wear. The increased valve train stiffness provided by the COMP Cams Max-Lift BSR Shaft Rocker System makes the same camshaft perform like a slightly larger camshaft as more of the lobe lift is transferred directly to the valve train instead of being absorbed by deflection in the cylinder head and single-bolt rocker mounting design. The system will also allow the use of higher lift, more aggressive camshafts before the valve train goes out of control. The Max-Lift BSR Shaft Rocker System ensures the rocker pad and valve tip remain parallel through the contact sweep, allowing the rocker to safely sweep up to .675" valve lift. Available for GM GEN V LT1/LT2/LT4/LT5/L86 engines, the COMP Cams Max-Lift BSR Shaft Rocker System ships fully assembled for an easy, bolt-on installation. Does NOT fit GM Gen V L83 (5.3L) cylinder heads. |
| Description_SHO |
ROCKER ARM STUD KIT |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Guideplate Locator Shank |
N/A |
| Rocker Arm Nut Thread Length (mm): |
14.6 |
| Base Thread Length (mm): |
19.1 |
| Rocker Arm Nut Thread Length (in): |
0.575 |
| Rocker Arm Nuts Included |
Yes |
| Effective Stud Length (mm): |
28.4 |
| Rocker Arm Nut Thread Size |
M8x1.25 |
| Effective Stud Length (in): |
1.118 |
| Base Thread Length (in): |
0.752 |
| Base Thread Size |
M8x1.25 |
| Quantity: |
16 |
| Rocker Arm Nut Wrench |
10mm, 12 point |
| Length |
2.0000 |
| Width |
2.0000 |
| Height |
8.0000 |
| Weight |
1.0000 |
