| Description_ASM |
Fits '87-'98 Chevrolet 262/4.3L V6 w/ OE Roller Camshaft (Non Balance Shaft) |
| Description_DEF |
Engine Camshaft |
| Description_DES |

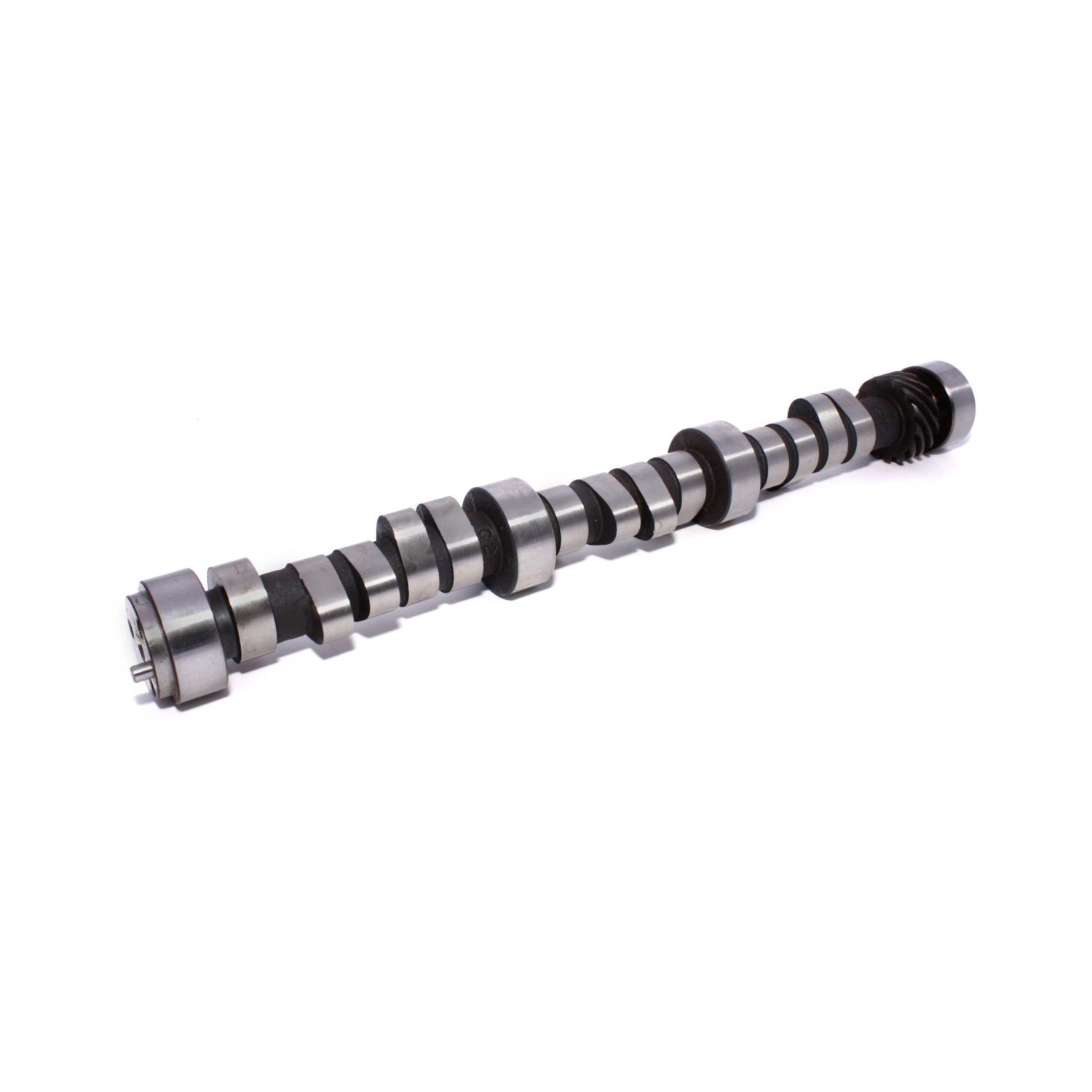

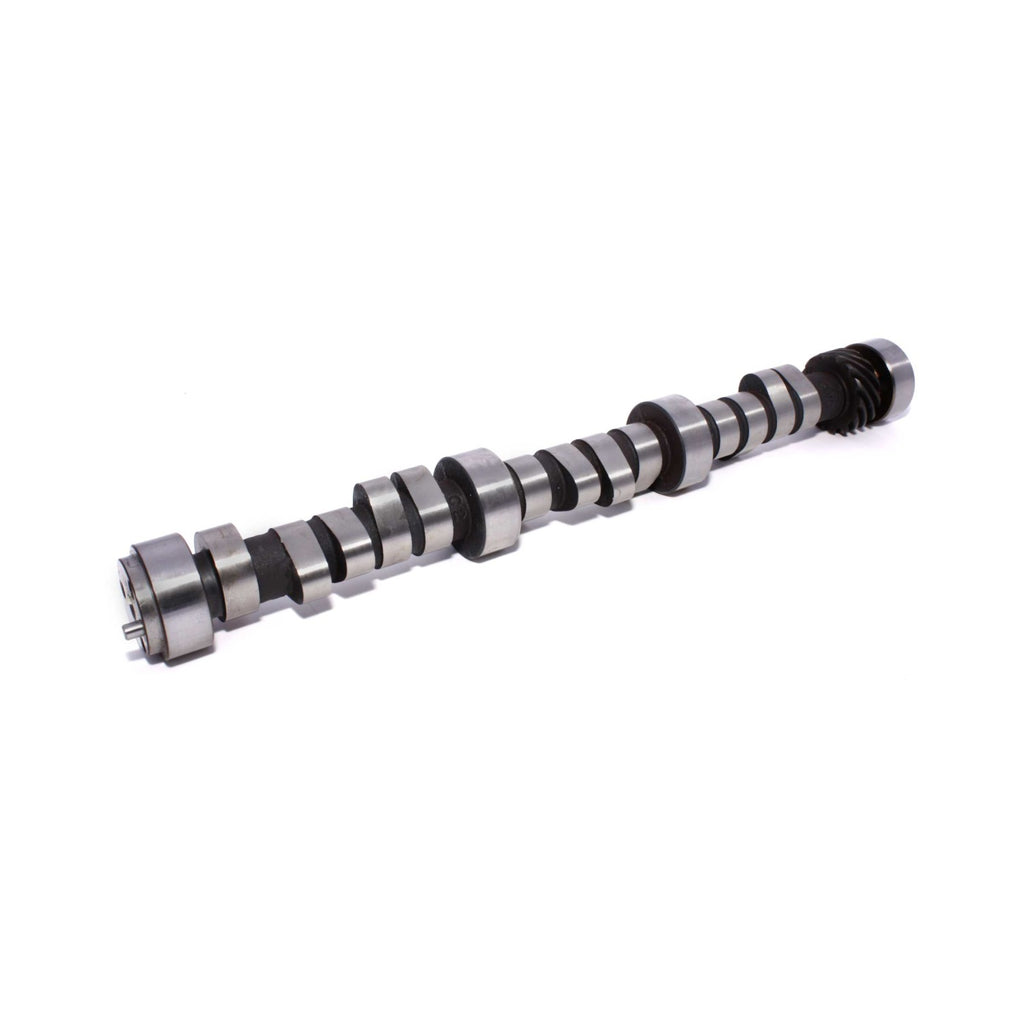

Magnum 215/220 Hydraulic Roller Cam for Chevrolet 262/4.3L |
| Description_INV |
Mag 215/220 H-Roller Cam Chevrolet 4.3L |
| Description_EXT |
Performance cam for computer cars. Needs aftermarket chip, exhaust and mild stall. Strong mid-range and top end. |
| Description_KEY |
90 Degree V6 |
| Description_KEY |
4.3: 262 |
| Description_KEY |
Chevrolet 262 |
| Description_KEY |
Chevrolet 4.3L |
| Description_KEY |
LB1 |
| Description_KEY |
LB4 |
| Description_KEY |
L35 |
| Description_KEY |
LF6 |
| Description_KEY |
S10 |
| Description_KEY |
Blazer |
| Description_KEY |
S10 Blazer |
| Description_KEY |
S15 |
| Description_KEY |
Sonoma |
| Description_KEY |
GMC |
| Description_KEY |
Safari |
| Description_KEY |
Astro Van |
| Description_KEY |
Safari |
| Description_KEY |
GMC Safari |
| Description_KEY |
Silverado |
| Description_SHO |
Mag 215/220 HRlr 4.3 |
| Description_SHP |
None |
| Cam Type |
Hydraulic Roller |
| Amazon ASIN |
N/A |
| Intake Duration at .050 Inch Lift |
215 |
| Advertised Exhaust Duration |
276 |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Exhaust Duration at .050 inch Lift |
220 |
| Camshaft Gear Attachment |
3-Bolt |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Basic Operating RPM Range |
2,000-5,500 |
| C.A.R.B. Exemption Reason |
N/A |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Cam and Lifter Kit Upgrade |
CL09-422-8 |
| Intake Valve Lift |
0.5 |
| C.A.R.B. E.O. Number |
N/A |
| Grind Number |
270AHR |
| Valve Springs Required |
Yes |
| Camshaft Series |
Magnum Computer Controlled |
| Exhaust Valve Lift |
0.51 |
| Lobe Separation |
114 |
| Lifters Included |
No |
| Usage |
Street/Strip |
| Lifter Type |
Hydraulic Roller |
| SK-Kit Upgrade |
SK09-422-8 |
| Assembly Lubricant Included |
No |
| Advertised Intake Duration |
270 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Engine Family |
Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft |
| Title |
Magnum 215/220 Hydraulic Roller Cam for Chevrolet 262/4.3L |
| K-Kit Upgrade |
K09-422-8 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Material |
Austempered Ductile Iron |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
24.0000 |
| Weight |
7.0000 |
