The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Specifications:
| Description_ABR |
CF-K |
| Description_APS |
1986 thru 1995 Suzuki Samurai and Sidekick 1.3L |
| Description_ASM |
1986 thru 1995 Suzuki Samurai and Sidekick 1.3L |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Centerforce(R) I, Clutch Kit |
| Description_EXT |
The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications. |
| Description_INV |
Centerforce, Full Clutch Kits |
| Description_FAB |
7.200" Diameter; |
| Description_LAB |

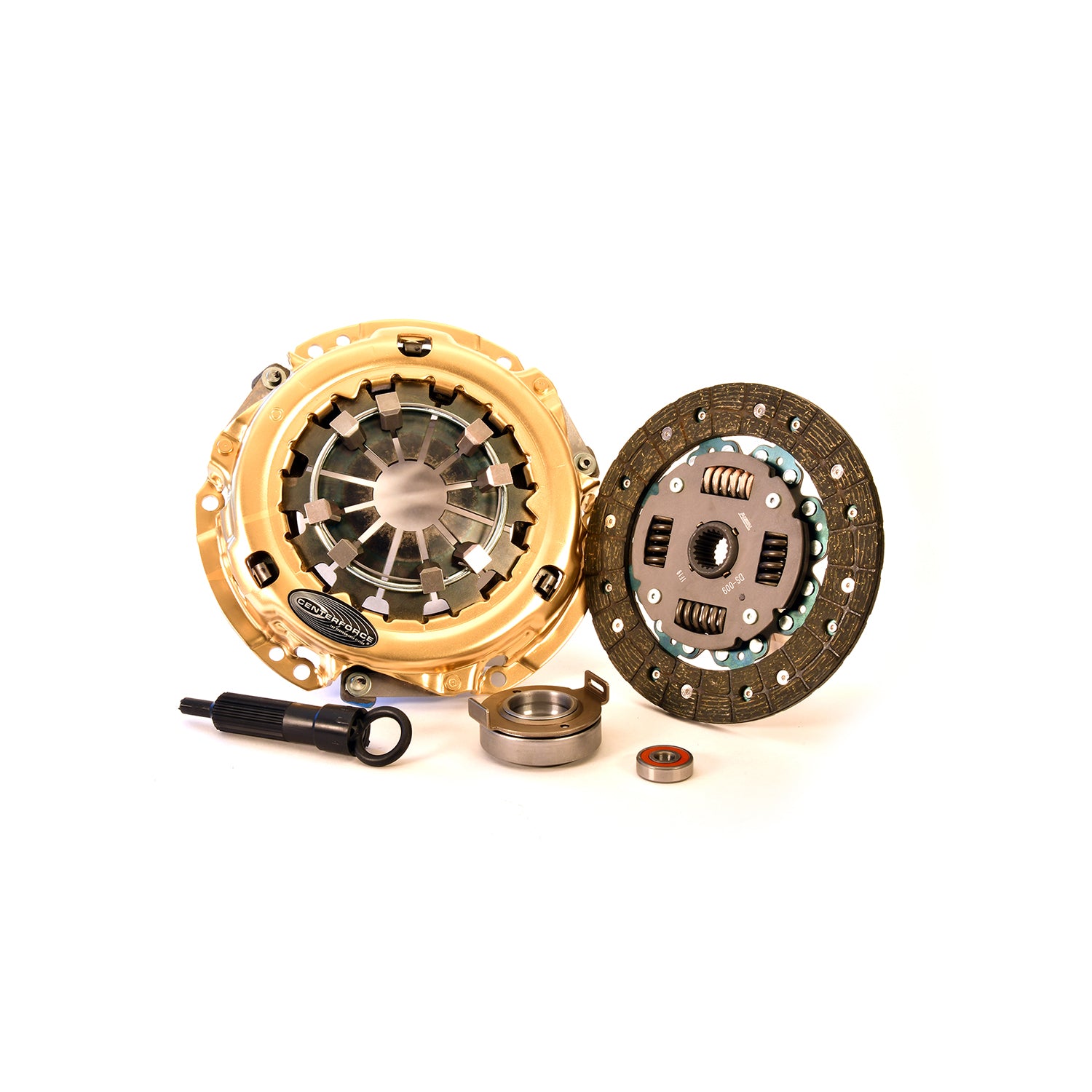

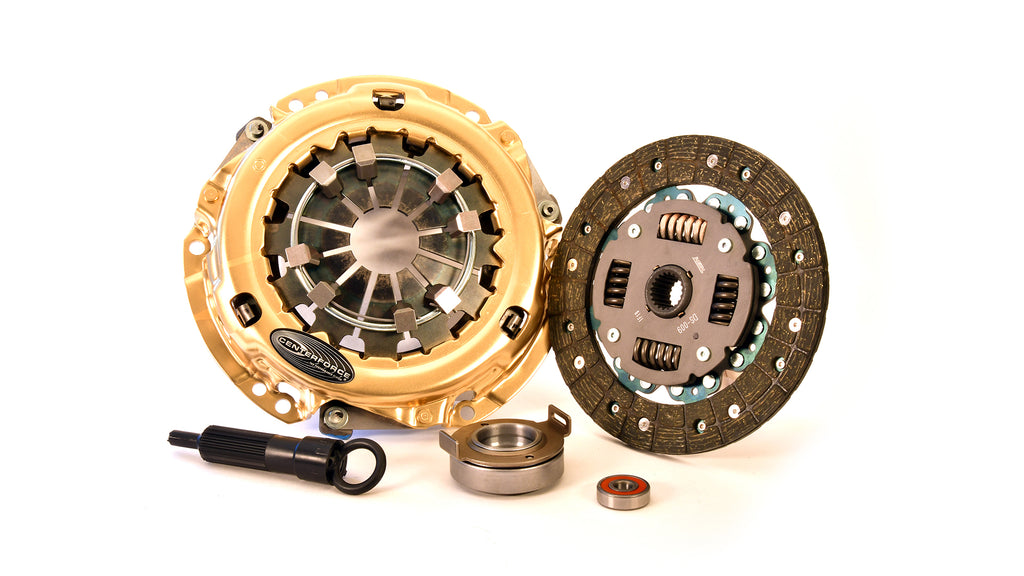

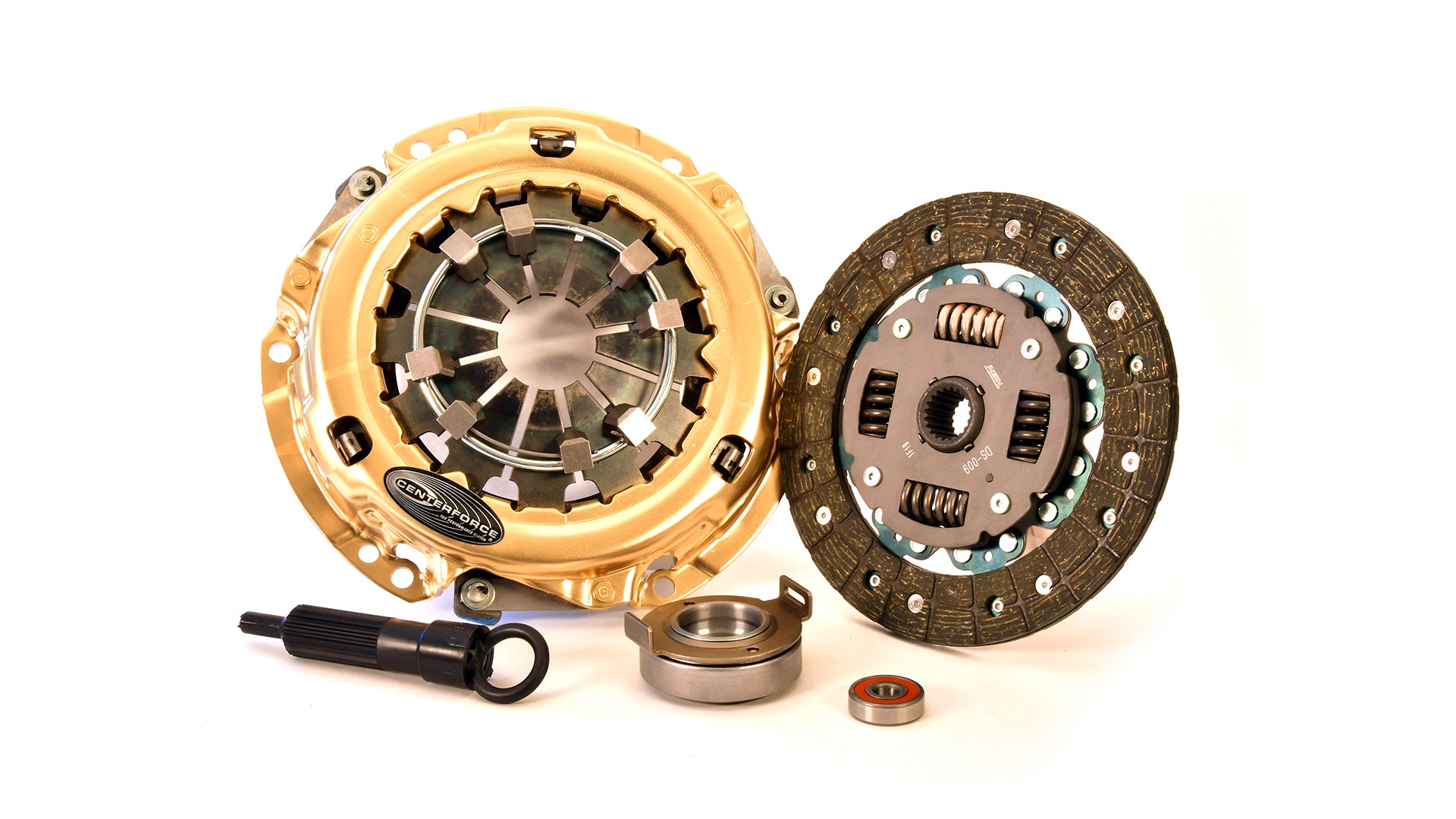

Cover, Disc, T.O.B., Pilot Bearing, Align Tool |
| Description_SHO |
Full Clutch Kits |
| Description_MKT |
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc. |
| Description_SLA |
Clutch Kit, Centerforce I, 7-1/5-IN/190-MM, 7/8-IN - 20 Spl., Sprung Full Face Organic Disc |
| Description_SLD |
Centerforce I, 7.200-IN, 7/8-IN - 20 Spl. |
| Title |
PN: KCF009512 - Centerforce I, Clutch Kit |
| Clutch Disc Diameter |
7.200 |
| Clutch Disc Diameter |
190 |
| Material |
Cast Iron Pressure Plate / Organic Friction |
| Disc Material |
Organic |
| Disc Type |
Full Face |
| Input Shaft Diameter |
7/8 |
| Out of Package Weight |
8.35 |
| Alignment Tool Included |
Yes |
| Disc Quantity |
1 |
| Disc Type Sprung Solid |
Sprung |
| Flywheel Step |
-.09 |
| Input Spline Quantity |
20 |
| Pilot Bushing Included |
Yes |
| Release Bearing Included |
Yes |
| Made In The USA |
Assembled |
| California Proposition 65 |
WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Counterweight Assist |
YES |
| Torque Capacity |
157 |
| Length |
5.5000 |
| Width |
18.0000 |
| Height |
18.0000 |
| Weight |
10.4000 |
