| Description_ASM |
Fits Chrysler 273, 318, 340 and 360 LA |
| Description_DEF |

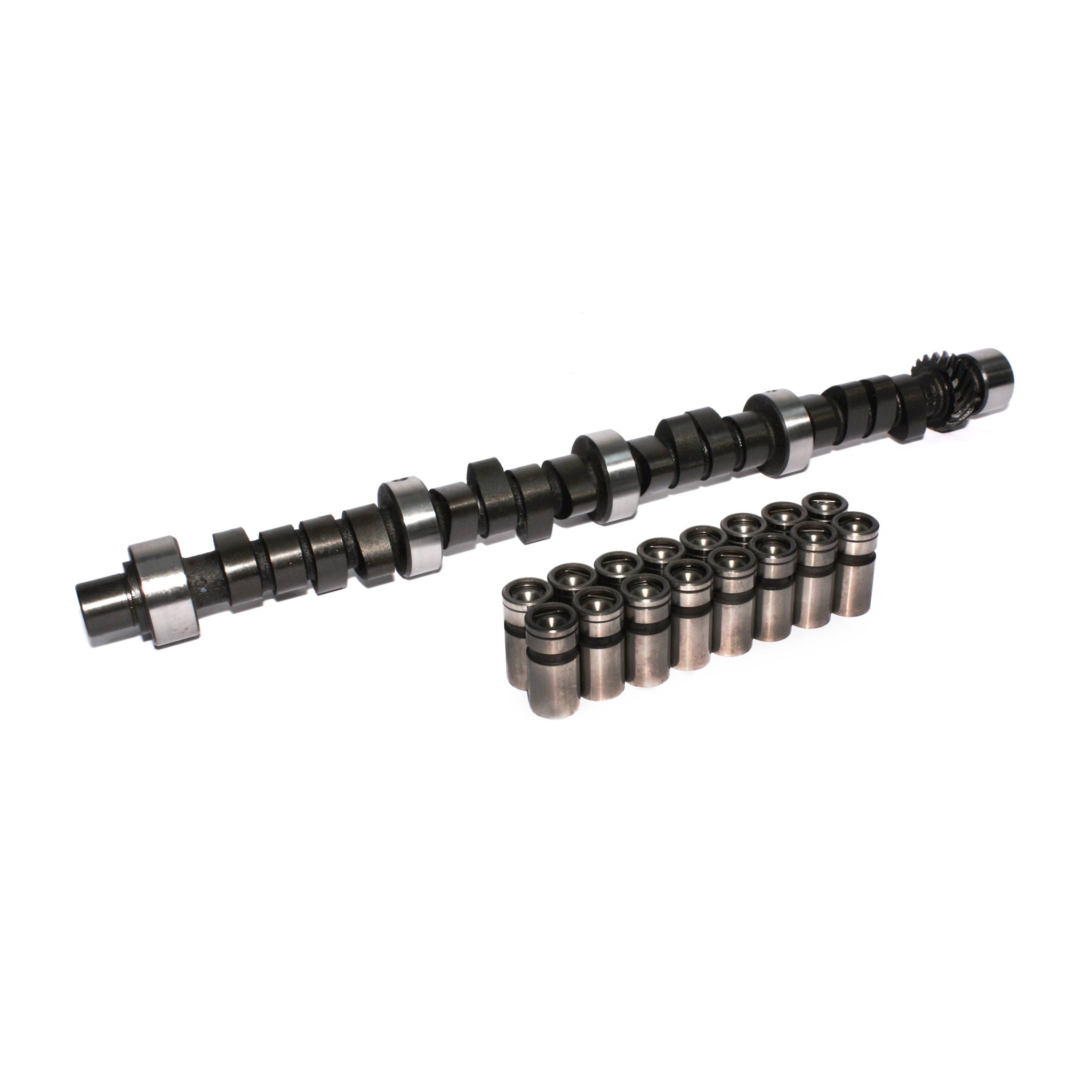

Engine Camshaft and Lifter Kit |
| Description_DES |
Magnum 253/253 Hydraulic Flat Cam and Lifter Kitfor Chrysler 273-360 |
| Description_INV |
Mag 253/253 H-Flt CL-Kit Chryslr 273-360 |
| Description_KEY |
273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA |
| Description_EXT |
Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb. |
| Description_MKT |
CL-KIT - Cam and Lifter Kit Includes: Camshaft, Lifters, Assembly Lube, Decals and Instructions. |
| Description_SHP |
None |
| Description_SHO |
Camshaft, Lifter Kt |
| Cam Type |
Hydraulic Flat Tappet |
| C.A.R.B. Exemption Reason |
N/A |
| Intake Valve Lift |
0.525 |
| Valve Springs Required |
Yes |
| K-Kit Upgrade |
K20-244-4 |
| Basic Operating RPM Range |
3,500-6,800 |
| Intake Duration at .050 Inch Lift |
253 |
| Amazon ASIN |
B001R9H9HU |
| Exhaust Duration at .050 inch Lift |
253 |
| Gaskets Included |
No |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Camshaft Gear Attachment |
1-Bolt |
| Timing Chain and Gears Included |
No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? |
Yes, but must be a race/competition only vehicle. |
| Advertised Exhaust Duration |
305 |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Locks Included |
No |
| Lifters Included |
Yes |
| Retainers Included |
No |
| Valve Stem Seals Included |
No |
| C.A.R.B. Exempt for On-Road Vehicles? |
No |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Title |
Magnum 253/253 Hydraulic Flat Cam and Lifter Kitfor Chrysler 273-360 |
| Lifter Type |
Hydraulic Flat Tappet |
| Camshaft Series |
Magnum |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? |
Yes, but must meet tailpipe emission standards for year of vehicle. |
| Exhaust Valve Lift |
0.525 |
| Lobe Separation |
110 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Material |
Cast Iron |
| Assembly Lubricant Included |
Yes |
| Kit Type |
CL-Kit - Cam and Lifter Kit |
| SK-Kit Upgrade |
SK20-244-4 |
| Advertised Intake Duration |
305 |
| C.A.R.B. E.O. Number |
N/A |
| Usage |
Street/Performance |
| Length |
3.0000 |
| Width |
6.0000 |
| Height |
26.0000 |
| Weight |
14.0000 |
