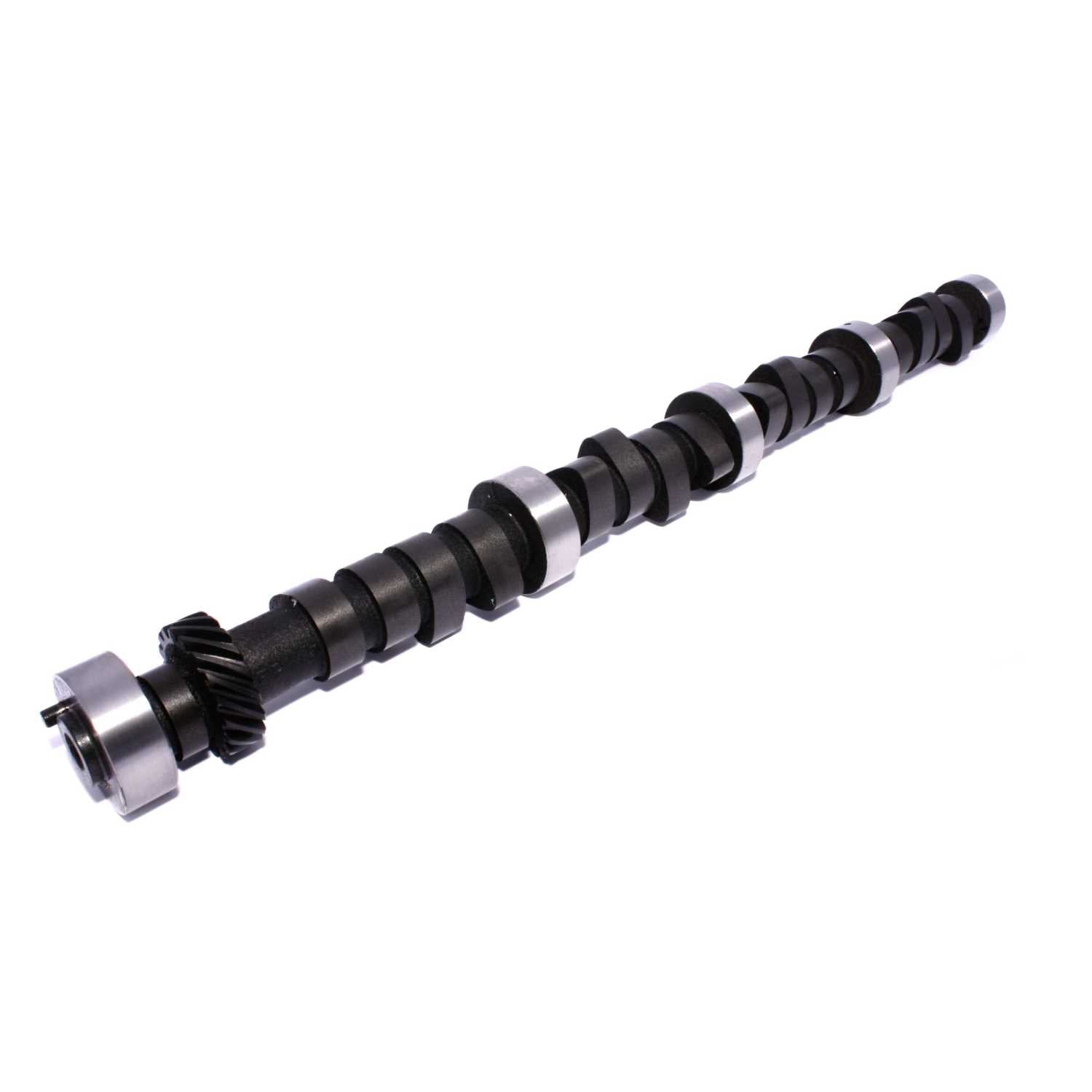

COMP Cams 21-247-4 Magnum 236/236 Solid Flat Cam for Chrysler 383-440

2 sold in last 8 days
COMP Cams
ds_BDQQ_21-247-4
Engine Camshaft
$439.69
customers are viewing this product
COMP Cams K21-230-4 Xtreme Energy 230/236 Solid Flat Cam K-Kit for Chrysler 383-440
COMP Cams K21-230-4 Xtreme Energy 230/236 Solid Flat Cam K-Kit for Chrysler 383-440
$1,040.62
COMP Cams 21-212-4 High Energy 206/206 Hydraulic Flat Cam for Chrysler 383-440
COMP Cams 21-212-4 High Energy 206/206 Hydraulic Flat Cam for Chrysler 383-440
$398.32
COMP Cams 21-247-4 Magnum 236/236 Solid Flat Cam for Chrysler 383-440
Details

Excellent for street/strip. 383 needs 2800 stall. 440 use 2400 stall, 700-800 CFM carb and headers.

Specifications:

Description_ASM Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440
Description_DEF Engine Camshaft
Description_DES Magnum 236/236 Solid Flat Cam for Chrysler 383-440
Description_EXT Excellent for street/strip. 383 needs 2800 stall. 440 use 2400 stall, 700-800 CFM carb and headers.
Description_INV Mag 236/236 S-Flat Cam Chrysler 383-440
Description_KEY 273, 360, 318, AMC, Dodge, Mopar, Plymouth, Dart, Road Runner, Charger, Challenger, 383, 400, 440, 426, HEMI, 426 Wedge, 426 HEMI, RB, B, HEMI, 392, Chrysler, LA
Description_SHO Mag 236/236SFTChrBRB
Description_SHP None
Grind Number 282S
Camshaft Gear Attachment 1-Bolt
Advertised Exhaust Duration 282
Lifters Included No
Exhaust Duration at .050 inch Lift 236
Intake Duration at .050 Inch Lift 236
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Cam Type Solid Flat Tappet
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? Yes, but must be a race/competition only vehicle.
Valve Springs Required Yes
C.A.R.B. E.O. Number N/A
Basic Operating RPM Range 2,500-5,800
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? Yes, but must meet tailpipe emission standards for year of vehicle.
Intake Valve Lift 0.495
Lobe Separation 110
C.A.R.B. Exemption Reason N/A
Camshaft Series Magnum
Lifter Type Solid Flat Tappet
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? Yes, but must meet tailpipe emission standards for year of vehicle.
SK-Kit Upgrade SK21-247-4
Cam and Lifter Kit Upgrade CL21-247-4
Advertised Intake Duration 282
Amazon ASIN B000P5DABQ
Title Magnum 236/236 Solid Flat Cam for Chrysler 383-440
Assembly Lubricant Included Yes
Exhaust Valve Lift 0.495
Usage Street/Strip
Camshaft Material Cast Iron
K-Kit Upgrade K21-247-4
Engine Family Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
C.A.R.B. Exempt for On-Road Vehicles? No
California Proposition 65 WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Length 3.0000
Width 3.0000
Height 25.0000
Weight 10.0000
