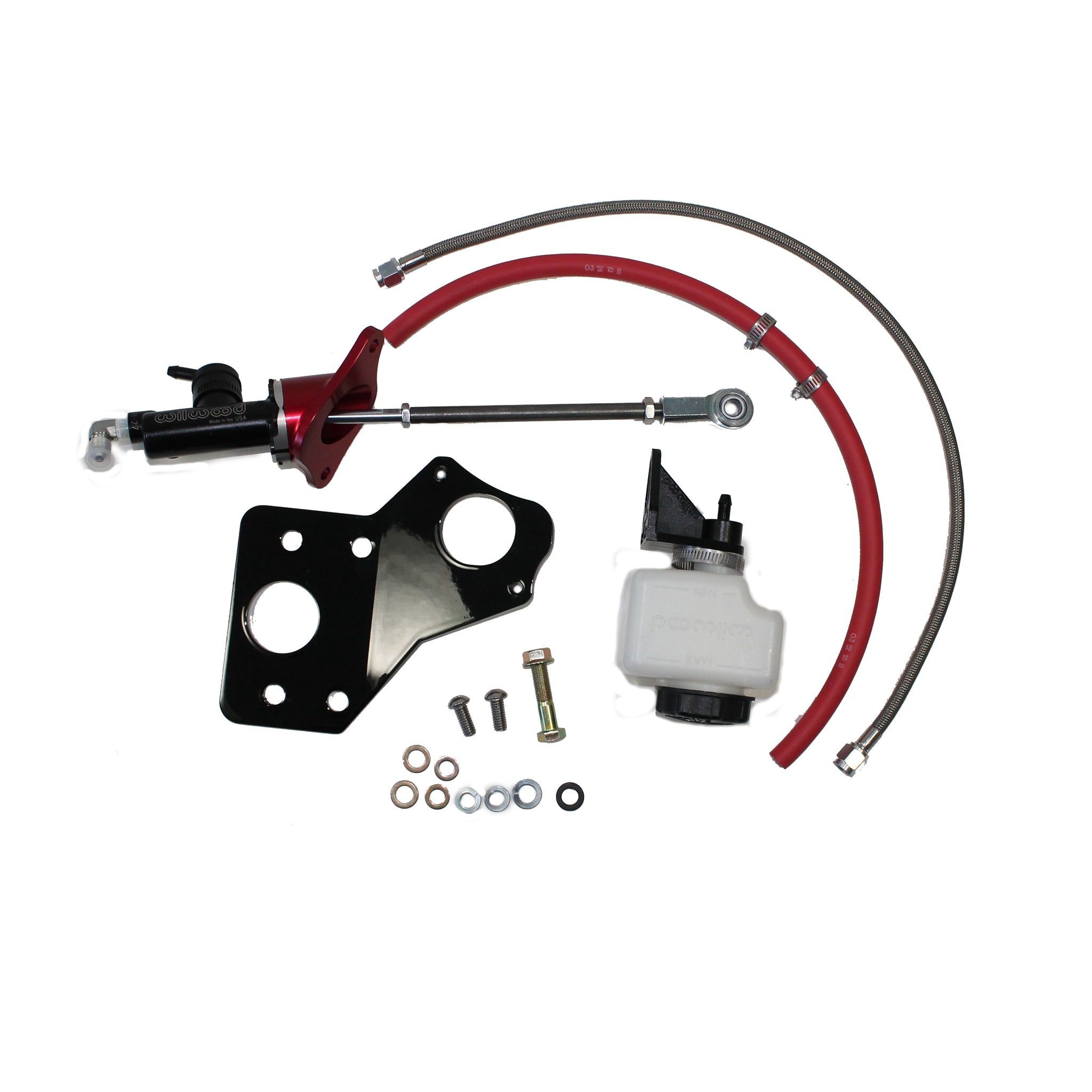

Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 ΓÇö 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately
Specifications:
| Description_ASM |
Chevrolet: Camaro 70 - 72 6.6 L Engine, Pontiac: Firebird 70 - 76 4.1 L Engine, Pontiac: Firebird 71 - 76 7.5 L Engine, Pontiac: Firebird 77 - 81 4.9 L Engine, Pontiac: Firebird 81 - 81 4.4 L Engine, Chevrolet: Camaro 80 - 81 3.8 L Engine, Chevrolet: Camaro 70 - 81 5.7 L Engine, Pontiac: Firebird 80 - 81 4.3 L Engine, Pontiac: Firebird 77 - 81 3.8 L Engine, Pontiac: Firebird 70 - 79 5.7 L Engine, Chevrolet: Camaro 80 - 81 4.4 L Engine, Chevrolet: Camaro 70 - 79 4.1 L Engine, Pontiac: Firebird 70 - 79 6.6 L Engine, Pontiac: Firebird 77 - 81 5 L Engine, Chevrolet: Camaro 70 - 81 5 L Engine |
| Description_DEF |
Clutch Master Cylinder |
| Description_DES |
Kit:Hydraulic Conversion 1970-1981 Camaro. |
| Description_MKT |
Hydraulic Conversion Kit -Ideal For Cars That Have Aging Mechanical Linkage Or Need Extra Space Due To A Motor Swap Or Other Changes, A Mcleod Hydraulic Kit Is Designed With The Very Best Components For Ease Of Install And Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is The Self-Adjusting Bearing Feature. No More Adjusting The Clutch Every 4 ΓÇö 6 Months. The Hydraulic Kit Will Allow The Bearing To Self Adjust When The Disc Wears Throughout It Is Life Cycle. Include Master Cylinder And Line. Hydraulic Bearing Must Be Purchased Separately |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_INV |
Hyd Conv Kit |
| Description_EXT |
Kit:Hydraulic Conversion 1970-1981 Camaro. |
| Description_SHO |
Hyd Conv Kit |
| NOTE 3: |
This firewall kit was designed to work with 1970-81 Camaro manual pedal box assemblies only. May not work with any other F-Body applications without modifications. |
| Make |
Chevrolet |
| NOTE 2: |
This kit is intended to work with McLeod Racing 1300 & 1400 series internal hydraulic bearings (Sold Separately) Call McLeod Tech for more info at 714-630-2764 |
| NOTE: |
Firewall Kit Only. Hydraulic Bearing Sold Separately. |
| Fitting Connection |
AN-4 S.S. Braided Line. |
| Master Cylinder Stroke |
1.2In. |
| Application |
1970-1981 Camaro |
| Master Cylinder Bore |
.750In. |
| Length |
3.0000 |
| Width |
15.0000 |
| Height |
13.0000 |
| Weight |
12.0000 |
