| Description_ASC |
Professional Installation Recommended |
| Description_ASM |
Universal |
| Description_DEF |
Exterior Multi-Purpose LED |
| Description_EXT |
Reflect Side Mirror With Integrated LED Light And Amber Side Light, Pair |
| Description_DES |
Reflect Side Mirror With Integrated LED Light And Amber Side Light, Pair |
| Description_FAB |
Light and Mirror Can Be Independently Adjusted |
| Description_FAB |
Integrated Amber LEDS For Use As Running Lights Or Turn Signal |
| Description_FAB |
Fully Adjustable 1.75 - 2.00 Inch Tube Mount Included |
| Description_FAB |
Break Away Joint for Damage Prevention |
| Description_FAB |
Convex Mirror For Enhanced Field Of Vision |
| Description_FAB |
3-Wire Open Lead For Convenient Wiring |
| Description_FAB |
Removable Trim Bezel Can Be Painted To Match Vehicle |
| Description_FAB |
Angle Adjustment Ring For Roll Cage Mounting |
| Description_FAB |
Removable Bar Clamp Assembly For Flat Surface Mounting |
| Description_FAB |
RFI/EMI Protection |
| Description_FAB |
Off Road Use Only |
| Description_FAB |
9-32 V DC |
| Description_FAB |
IP69K Compliant - Dust/Water Ingress |
| Description_FAB |
Over/Under Voltage Protection |
| Description_FAB |
RoHS Compliant |
| Description_FAB |
Limited Lifetime Warranty - Light Engine Only |
| Description_FAB |
Off Road Use Only |
| Description_MKT |

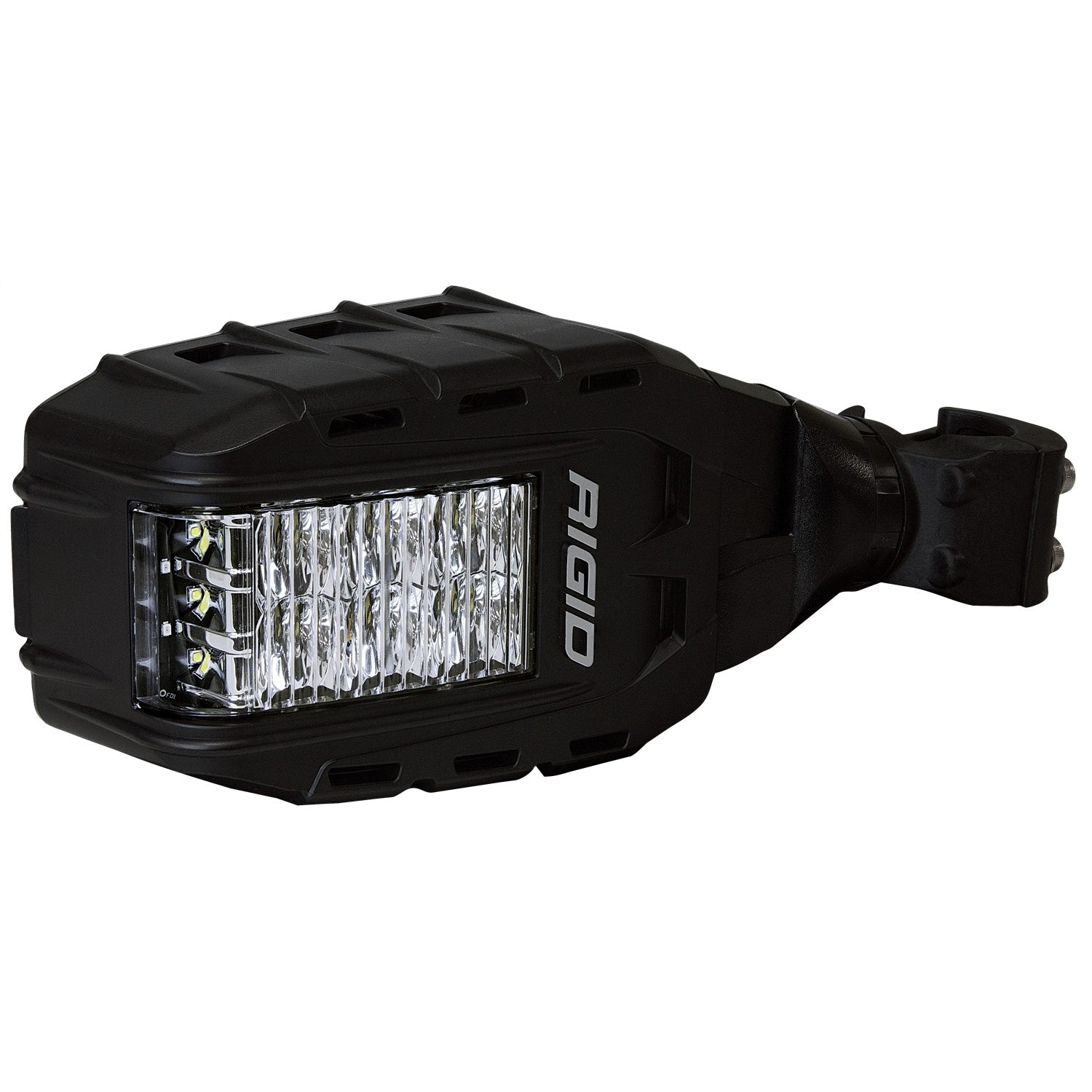

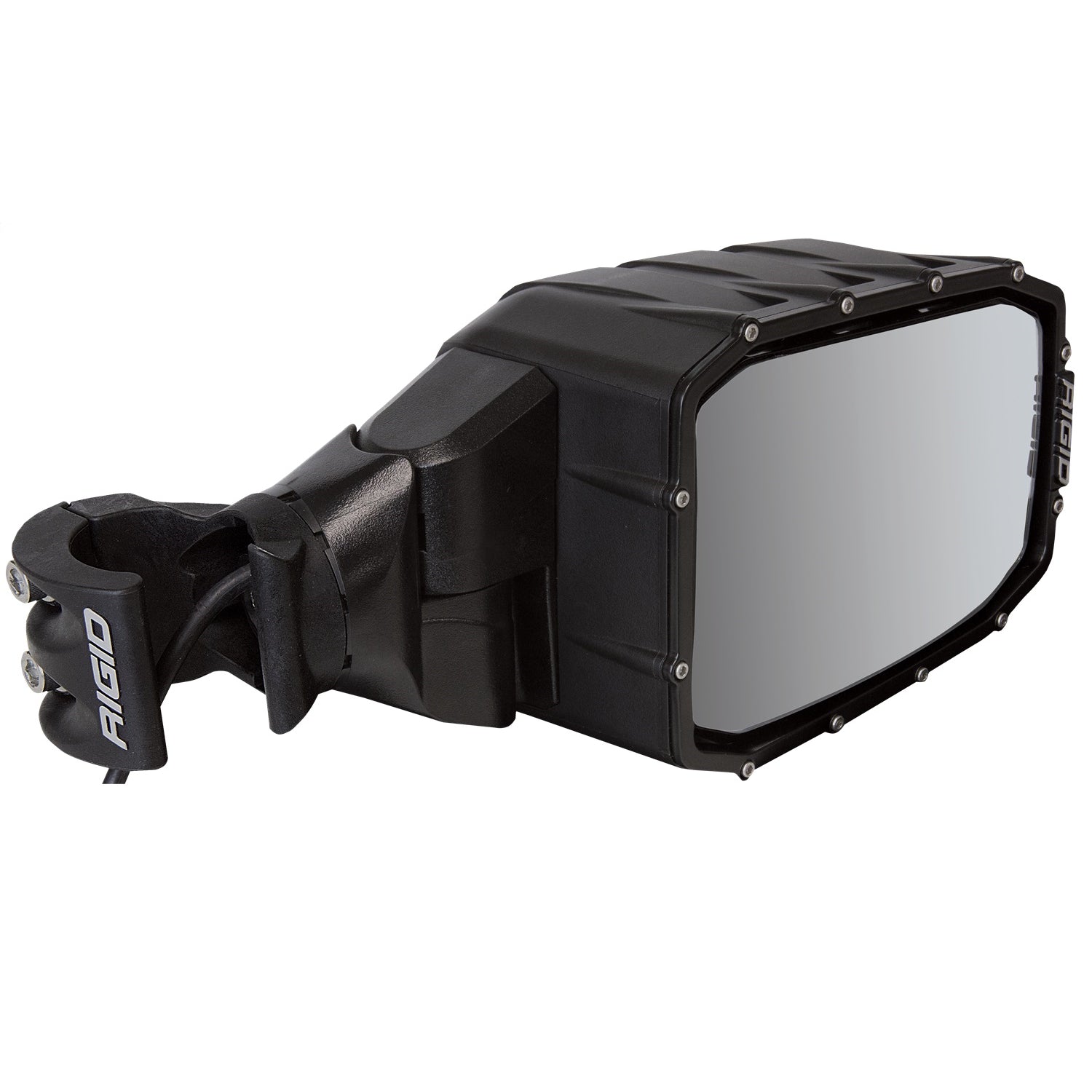

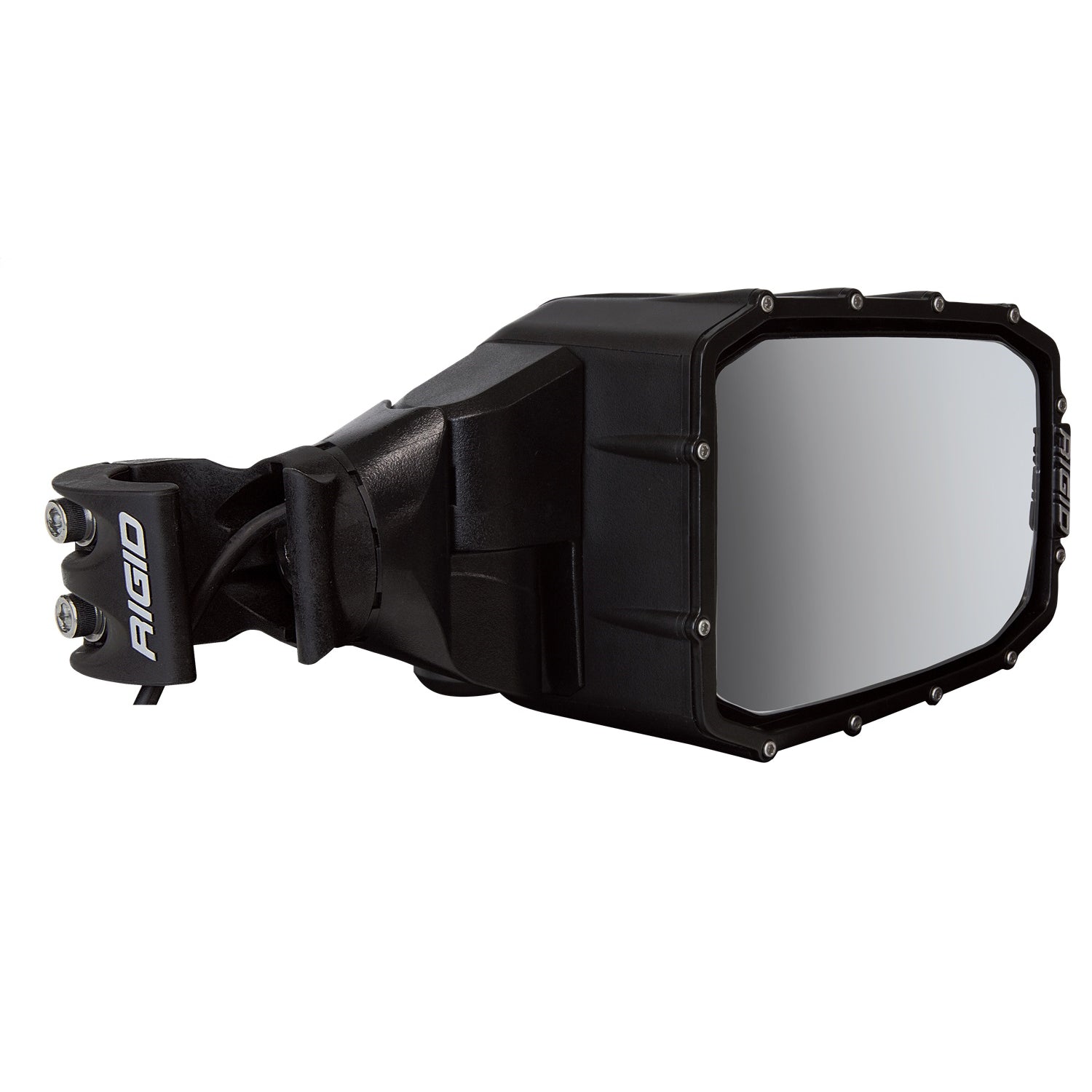

The RIGID Reflect is the first LED light that not only illuminates the road ahead, but also allows you to see what's behind. The RIGID Reflect is an advanced LED lighting solution with a fully adjustable side mirror all in one. Though originally developed for UTV and Powersports applications, the Reflect is a great solution for just about any off-road application.The Reflect uses RIGIDs patented LED technology and Side-Shooter optics to provide a wide beam of light for cornering and drifting. For even more versatility, there are also built-in amber LEDs on the outside edge of the fixture that can be used as turn signals, flashers, or even auxiliary running lights.The lights and mirror can be aimed independently, and tube mounting clamps are included to make installation easy. The RIGID Reflect is one more compact, versatile lighting solution that enables off-road enthusiasts to Own the Night. The Reflect light engine is protected by RIGIDs limited lifetime warranty.Features:Light and Mirror Can Be Independently AdjustedSide Shooter Optic and Lenticular Lens For Enhanced Beam WidthIntegrated Amber LEDS For Use As Running Lights Or Turn SignalFully Adjustable 1.75 - 2.00 InchTube Mount IncludedBreak Away Joint for Damage PreventionConvex Mirror For Enhanced Field Of Vision3-Wire Open Lead For Convenient WiringRemovable Trim Bezel Can Be Painted To Match VehicleAngle Adjustment Ring For Roll Cage MountingRemovable Bar Clamp Assembly For Flat Surface MountingRFI/EMI ProtectionOff Road Use Only9-32 V DCIP69K Compliant - Dust/Water IngressOver/Under Voltage ProtectionRoHS CompliantLimited Lifetime Warranty - Light Engine OnlyOff Road Use Only |
| Description_INV |
Rigid - 64011 - LED MIRROR LIGHT |
| Description_SHO |
Reflect Lamp Set Pair RIGID Industries |
| Title |
RIGID Reflect Side Mirror With Integrated LED Light And Amber Side Light, Pair |
| Product Family |
Reflect |
| ASIN |
No |
| B = Beam Distance with 1 LUX |
66 |
| Peak Beam Intensity (cd) |
4,300 |
| Amp Draw |
2.3 |
| series |
Reflect |
| Field Horizontal (Measured in Degrees) |
107 |
| Product Weight |
3.15 |
| Prop 65 Yes/No |
No |
| Product Fits What |
Universal Fit |
| A = LUX at 10 Meters |
43 |
| Watts |
32 |
| Raw Lumens |
3,826 |
| C = Beam Distance with .25 LUX |
131 |
| What's In The Package |
2 mirrors |
| Add-On |
41644, 41645, 41646, 41647, 41648, 30130, 30140, 30150 |
| Field Vertical (Measured in Degrees) |
52 |
| Number of LEDs |
9 |
| Number of LED's |
9 |

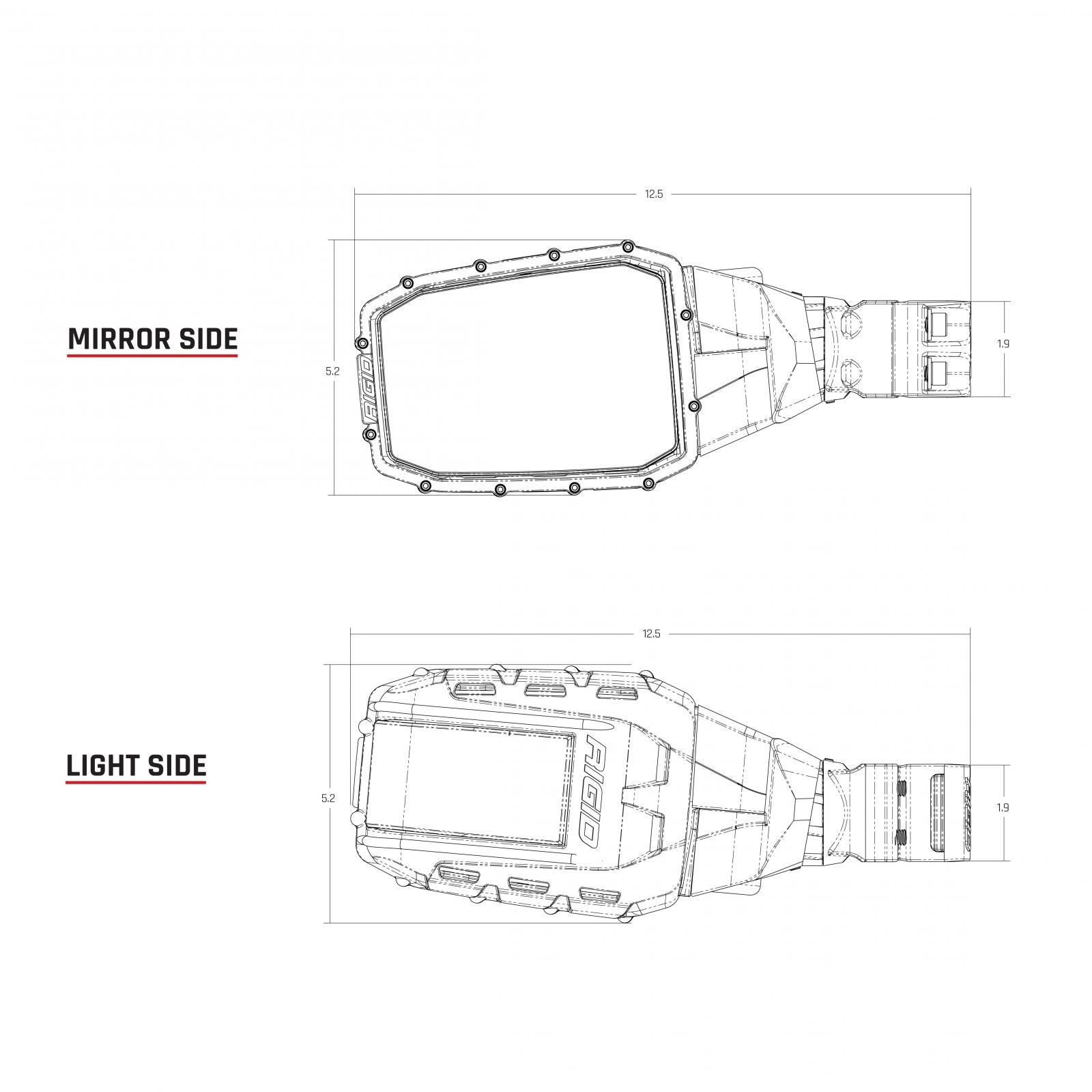

| Length |
25.0000 |
| Width |
8.0000 |
| Height |
6.0000 |
| Weight |
7.0000 |
